Summary of Contents for Aprilaire 70 Living Space Control

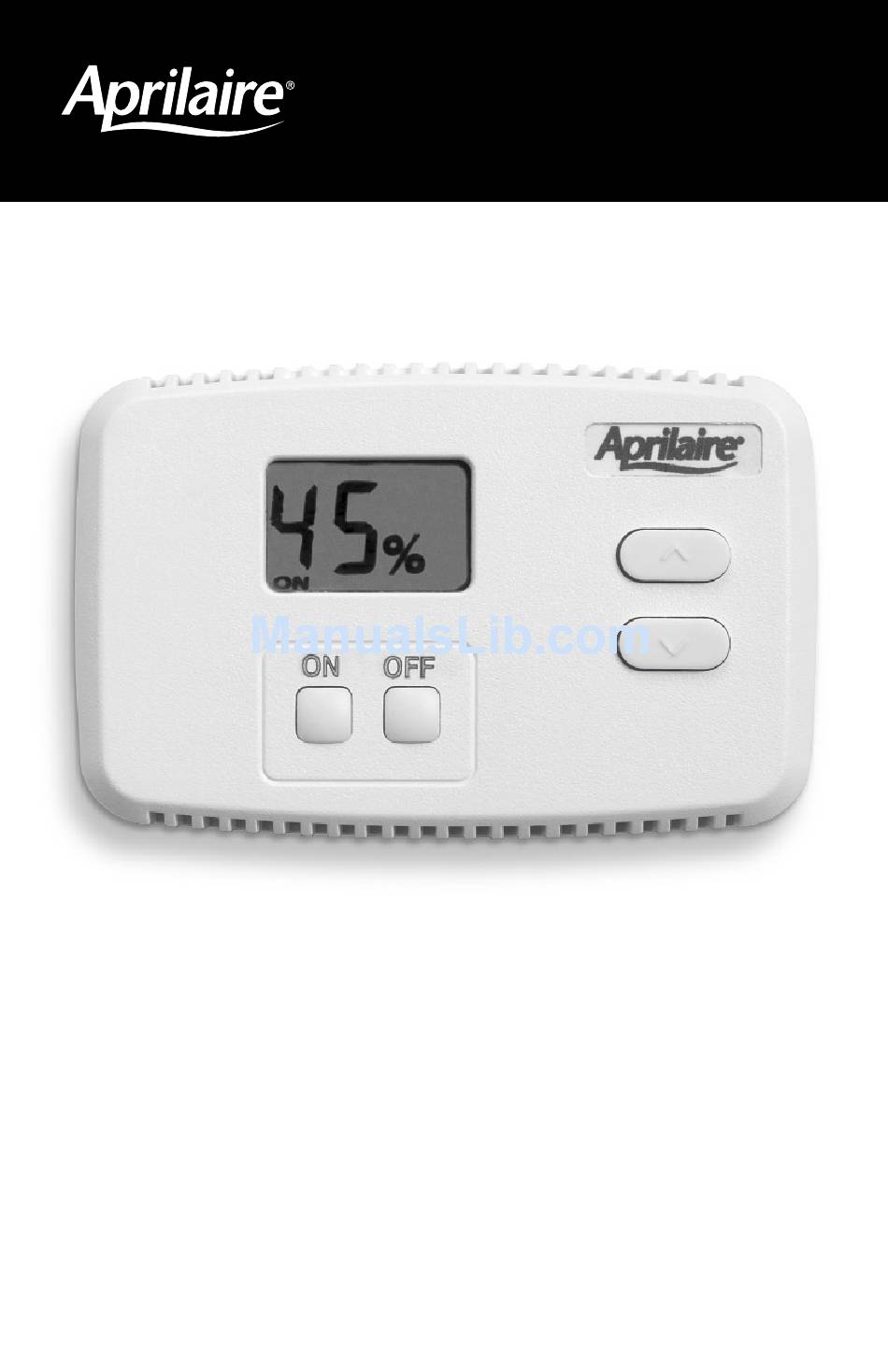

- Page 1 Living Space Control Model 70 Living Space Control Installation Manual For use with Model 1700 Whole-Home Dehumidifier Non-Programmable...
-
Page 2: Specifications
STEP 1. CHOOSE A LOCATION TO MOUNT THE CONTROL The Model 70 Living Space Control contains its own sensors that override the Model 1700 main control sensors when connected and enabled. Therefore, the control should be located in an area (living room, master bedroom, etc.) where the homeowner wants to monitor and control moisture levels at a... - Page 3 STEP 2. DISASSEMBLE THE CONTROL • Carefully remove the front cover from the backing plate. See Figure 1. Figure 1 – Disassemble the Control BACKING PLATE FRONT COVER STEP 3. MOUNT THE CONTROL ON THE WALL • There are two mounting screws and two drywall anchors provided with the control. See Figure 2. IMPORTANT…...
- Page 4 4. The factory default setting is 3 bars. Adjust the LM buttons to obtain a different set point level, if desired. NOTE: After initial power-up, the dehumidifier will not run until 2 minutes have elapsed for system initialization. 10006367 B2203506 1015 E. WASHINGTON AVE. • MADISON, WI 53703 • PHONE: 608/257-8801 • FAX: 608/257-4357 • www.aprilaire.com...
