Magnadyne RV-DOCK Installation And User Manual

Any model of IPOD with a dock connector can fit perfectly into a single RV-DOCK through the use of Interchangeable Dock Adapters
and an Insert. Dock Housing connects to any cable with a connector.

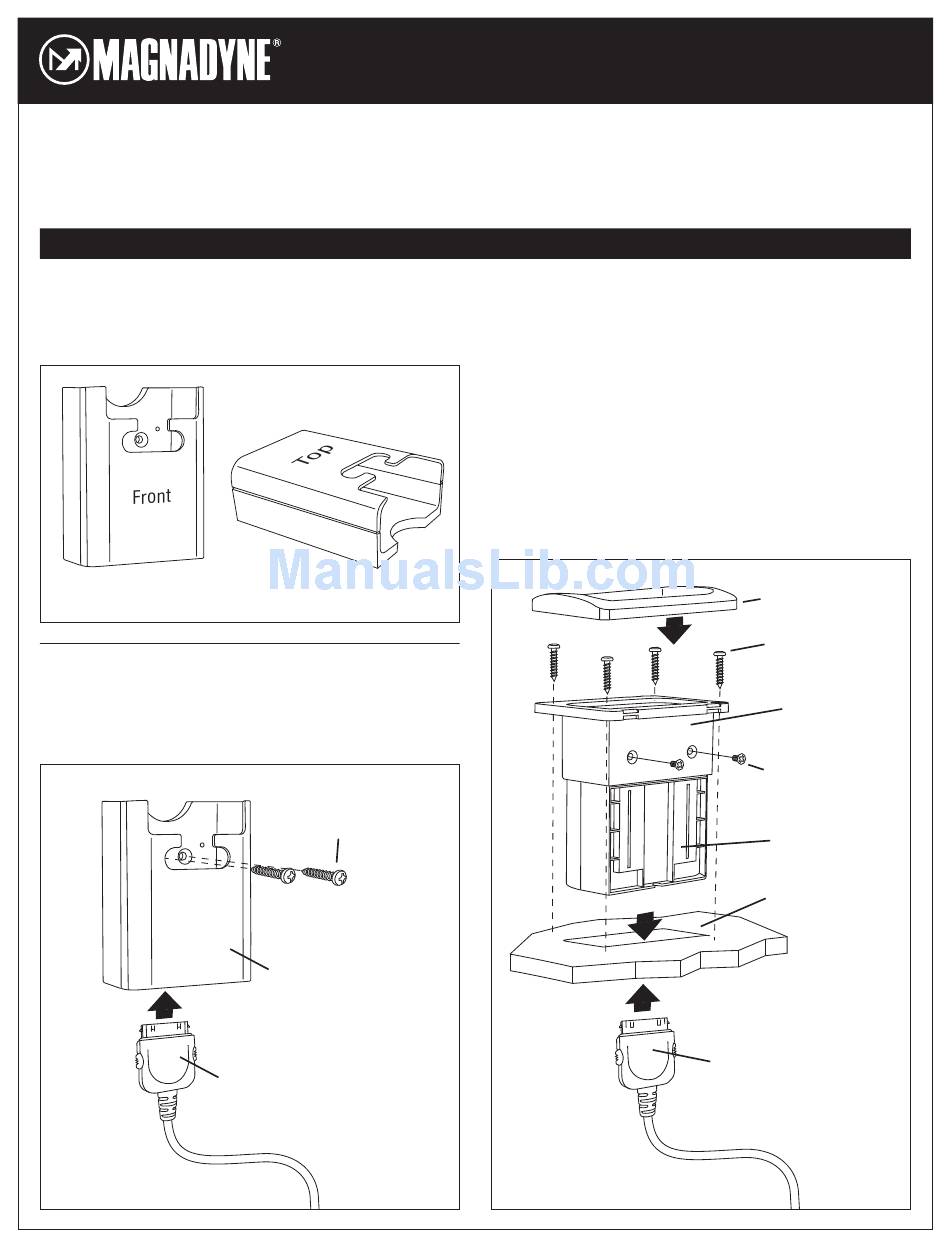

Installation
The RV-DOCK has 2-way mounting capability: Surface or Dash
mount. The housing can be installed vertically or horizontally.
Choose a mounting location that provides easy access for the
user.
Vertical Mount
Surface Mounting:
1. Secure the Dock Housing in place by using the supplied
mounting screws.
2. Attach the IPOD connector to the bottom of the housing.
Installation and User Manual
Horizontal Mount
Mounting Screws
(supplied)
Dock Housing
Connector Cable (not
supplied)
Dash Mounting:
1. Use the enclosed RV-DOCK-TEMPLATE to mark where you
want to mount the Docking Station.
Note 1: Make sure there is enough room behind the dash
to mount the Dock Housing.
Note 2: When cutting the hole into the dash make sure
there are no cables or wires that can be accidentally cut.
2. Secure the Dash-Mount Housing to the Dock Housing
using the supplied screws.
3. Secure the Dock Housing to the dash using the supplied
mounting screws.
4. Snap-on the Bezel.
5. Attach the connector to the bottom of the housing.
Model: RV-DOCK
4. Snap-on Bezel
3. Mounting Screws
(supplied)
Dash-Mount
Housing
2. Housing Screws
(supplied)
Dock Housing
1. Hole in Dash
5. Connector Cable
(not supplied)
