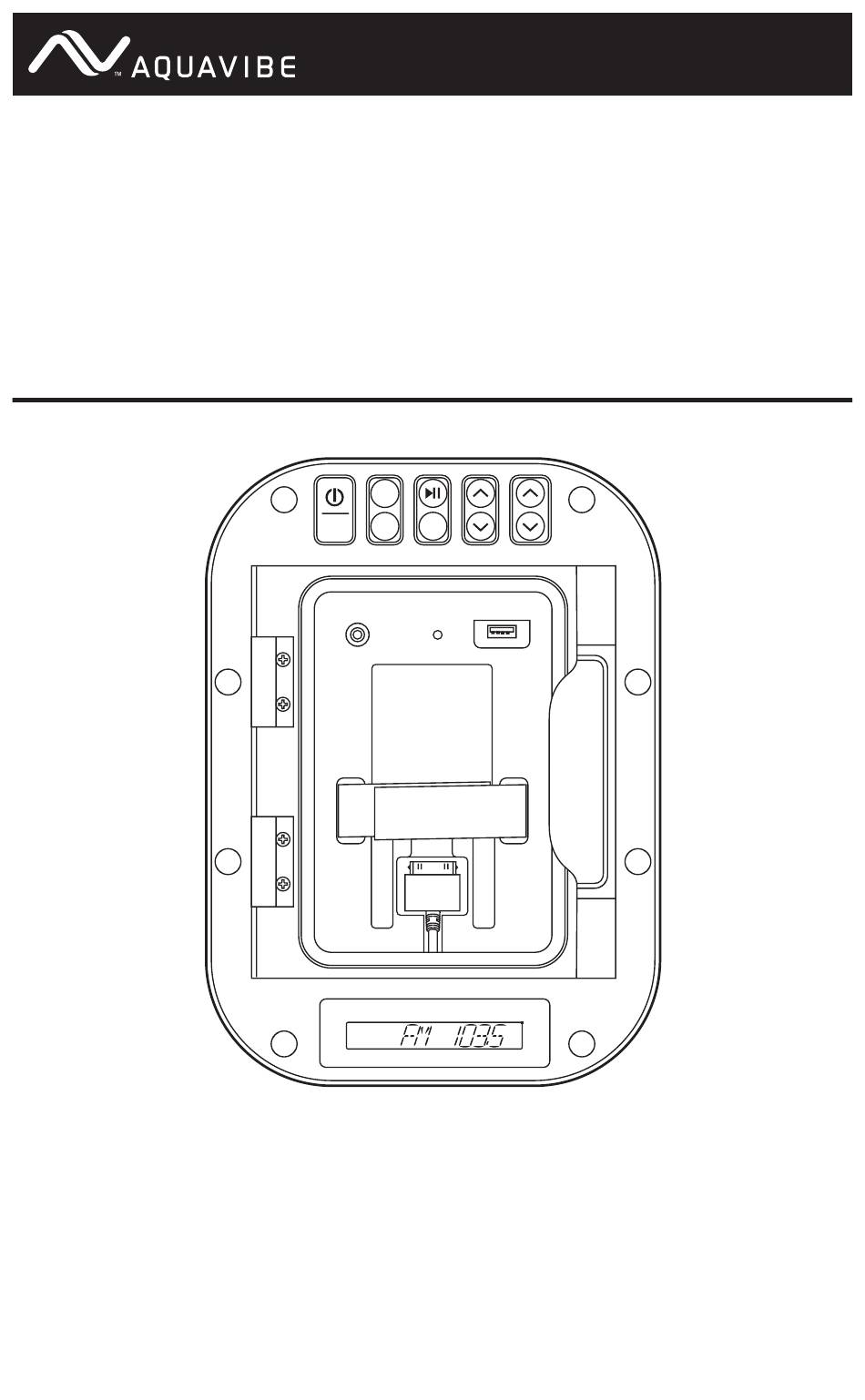

- Page 1 Operation and Installation Manual TRACK MODE Reset Charge Only Aux In 1 Models: MD-150 MD-250 MD-350 Deluxe Entertainment Center with Docking Station...
-
Page 2: Table Of Contents
• This product must be installed and used in accordance with this manual. Magnadyne Corporation disclaims any and all liability that may result from failure to • FCC REGULATIONS STATE THAT ANY UNAUTHORIZED... -
Page 3: Button Locations And Functions
Button Locations and Functions 2 3 4 5 6 TRACK TRACK RPT T MODE MODE Reset Reset Aux In 1 Charge Only Aux In 1 Charge Only 6. Track Buttons: 1. Power and Mode Button: Radio Mode: Press for automatic seek up or Power Button: Press to turn the entertainment seek down of radio stations. -
Page 4: Remote Control Button Locations And Functions
Button Locations and Functions (Continued) 13. USB Charging Socket: To charge a device plug 15. 30-pin Connector for Apple Products: Plug the cable into the USB socket then into the device. the 30-pin connector in an IPOD, ITOUCH or Note: The unit will not control the device. The IPHONE. -
Page 5: General Operation
General Operations Power On: Press the / MODE button to turn the entertain- TRACK MODE ment center on. Power Off: Aux In 1 Charge Only Press and hold the / MODE button for 2 sec- onds to turn the unit off. Selecting a Play Source: Press the MODE button to select between input TRACK... - Page 6 Sound Controls (Continued) Bass, Treble, Balance, Fader and Equalizer Control Select the desired sound mode by pressing the SEL button. The modes will be displayed in the following order: Bass, Treble, Balance, Fader, Equalizer, Area Setting, Loudness, Distance/Local and Volume. After 5 seconds of inactivity control reverts back to volume control.
-
Page 7: Using An Iphone Or Ipod
Sound Controls (Continued) Mute: Press the button to mute the volume level. Press the button again to restore the volume. TRACK MODE Note: If the unit is in either the IPOD or Bluetooth mode pressing the button will pause play- back. - Page 8 Using an IPHONE or IPOD Changing the Track: Press the TRACK button to select a higher TRACK MODE track. Press the TRACK button to select a lower track. Aux In 1 Charge Only Track Elapse IPOD Number Time Random Play Selection: The default setting is the Random feature is off.
-
Page 9: Using A Device With 3.5Mm Output
Using an IPHONE or IPOD Lingo Modes: Lingo Mode 4 (default): Devices with iOS 6.1 software TRACK MODE or higher the touch screen for music is active. Devices with non-iOS or older versions of iOS software, the touch screen for music is inactive. In lingo mode 4 song information will be shown in the LCD display. -
Page 10: Bluetooth Operation
Bluetooth Operation Pairing Bluetooth Devices: 1. Open the Bluetooth setup program on the mobile TRACK MODE device and activate the Bluetooth feature. 2. Press the button to turn on the entertainment center. 3. From you mobile device scan for available devices. Aux In 1 Charge Only Select ”AQUAVIBE”... -
Page 11: Radio Operations
Radio Operations Selecting the FM Radio Mode: Press the MODE button until “RADIO” appears in TRACK MODE the display. After a brief moment “FM” will appear in the display along with the radio frequency. Aux In 1 Charge Only Tuning in a Radio Station Using Seek: Higher Press the TRACK button and the tuner will... - Page 12 Radio Operation (Continued) Stereo/Mono Operation: Note: “ST” will appear in the display when a FM TRACK MODE stereo station is being received. For weaker FM stereo stations selecting mono reception usually improves reception. Aux In 1 Charge Only 1. To switch from stereo to mono reception press the SEL button until “STEREO”...
-
Page 13: Reset
Reset Resetting the System: To reset the microprocessor to the original TRACK MODE factory settings use a ball point pen and press the RESET button located in the interior of the waterproof compartment. Reset Aux In 1 Charge Only Inserting a Battery into Remote Controller Lock Inserting a Battery: Coin... -
Page 14: Installation
Installation Installing Entertainment Center 3. Mount the entertainment center using the pro- vided screws. Make sure to tighten the screws 1. Use the template included to determine the best equally to create a waterproof seal. location for the entertainment center. Note: If the surface is uneven like wood, use Note: The mounting location needs to be a flat silicone to create a waterproof seal between the... -
Page 15: Wiring
Wiring Left White/Black Wire Gray/Black Wire Right Front Front Speaker Speaker White Wire Gray Wire Wired Remote (Optional) External Automotive Type Antenna MENU (Optional) MODE Wiring Harness 10 Amp Model: SPA-HAR Fuse (Sold Separately) Right Black Wires Audio In (Aux in 2) Left Right Gray Wires Audio Out... -
Page 16: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product. - Page 17 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
