Monster Mounts MA641 User Manual

Slim full motion mount
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

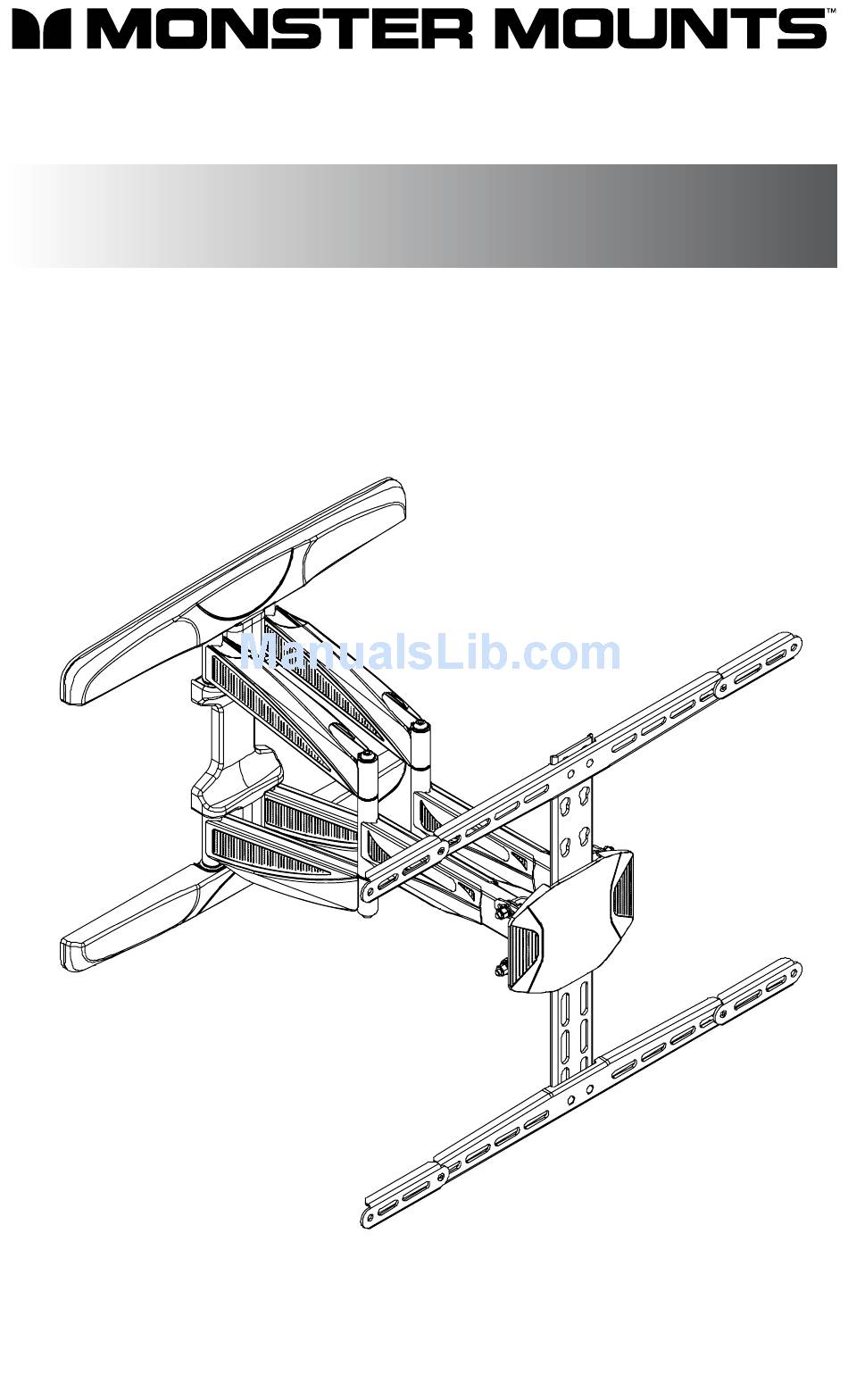

S L I M F U L L M O T I O N M O U N T
MA641
Display Size:
30" -70"
Maximum load:
100 lbs / 45 kg
VESA Patterns:
100 x 100 to 600 x 400
U S E R M A N U A L
ATTENTION:
BEFORE INSTALLING, READ ALL WARNINGS AND CAUTIONS ON REVERSE SIDE.
FOR MORE INFORMATION, GO TO:
www.monstermounts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA641 and is the answer not in the manual?

Questions and answers

Related Manuals for Monster Mounts MA641

Summary of Contents for Monster Mounts MA641

  • Page 1 S L I M F U L L M O T I O N M O U N T MA641 Display Size: 30” -70” Maximum load: 100 lbs / 45 kg VESA Patterns: 100 x 100 to 600 x 400...
  • Page 2 Warnings & Cautions IT IS HIGHLY RECOMMENDED THAT THIS PRODUCT BE INSTALLED BY A PROFESSIONAL. PLEASE REVIEW THIS INSTRUCTION MANUAL COMPLETELY BEFORE STARTING THE INSTALLATION PROCESS. WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

  • Page 3: Package Contents

    Package contents Front cover (x1) Cable cover (x6) Vertical bracket (x1) Wall plate cover (x2) Wall plate (x1) M6 bolt (x4) M8 nut (x6) Horizontal bracket (x2) M8 washer (x6) VESA adaptor (x4) 1 Bubble level (x1) 2 M6 box wrench (x1) 3 M8 box wrench (x1)
  • Page 4 1a. Mount on Wood Wall 60 mm (2.4”) Ø5 mm (Ø3/16”)
  • Page 5 1b. Mount on Solid Brick or Concrete Block 60 mm (2.3”) Ø10.5 mm (Ø7/16”)
  • Page 6 2. Install the Wall Plate Covers Wall plate cover 3. Install the Front Cover and Vertical Bracket Front cover M8 nut Vertical bracket M8 washer 4. Install the VESA Adaptors (for TVs with horizontal VESA 600 only) VESA 600 (mm) VESA 400 (mm) Horizontal bracket VESA adaptor...
  • Page 7 5. Install the Horizontal Brackets A1-4 A6 Square Washer M8 bolts M5 and M6 bolts M4 bolts M6 bolt 6. Hang the TV from the Arm M8 box wrench to adjust M6 box wrench horizontal level to adjust tilt tension M6 bolt...
  • Page 8 7. Cabling the TV Detach cable covers Cables Attach cable covers after routing cables 8. Adjustments & Use ±45˚ -2˚ to 12˚ ±90˚ ±3˚ Monster Mounts 20218 Hamilton Avenue Torrance, CA 90502 FOR MORE INFORMATION, VISIT: www.monstermounts.com AUM120 v2.5...
