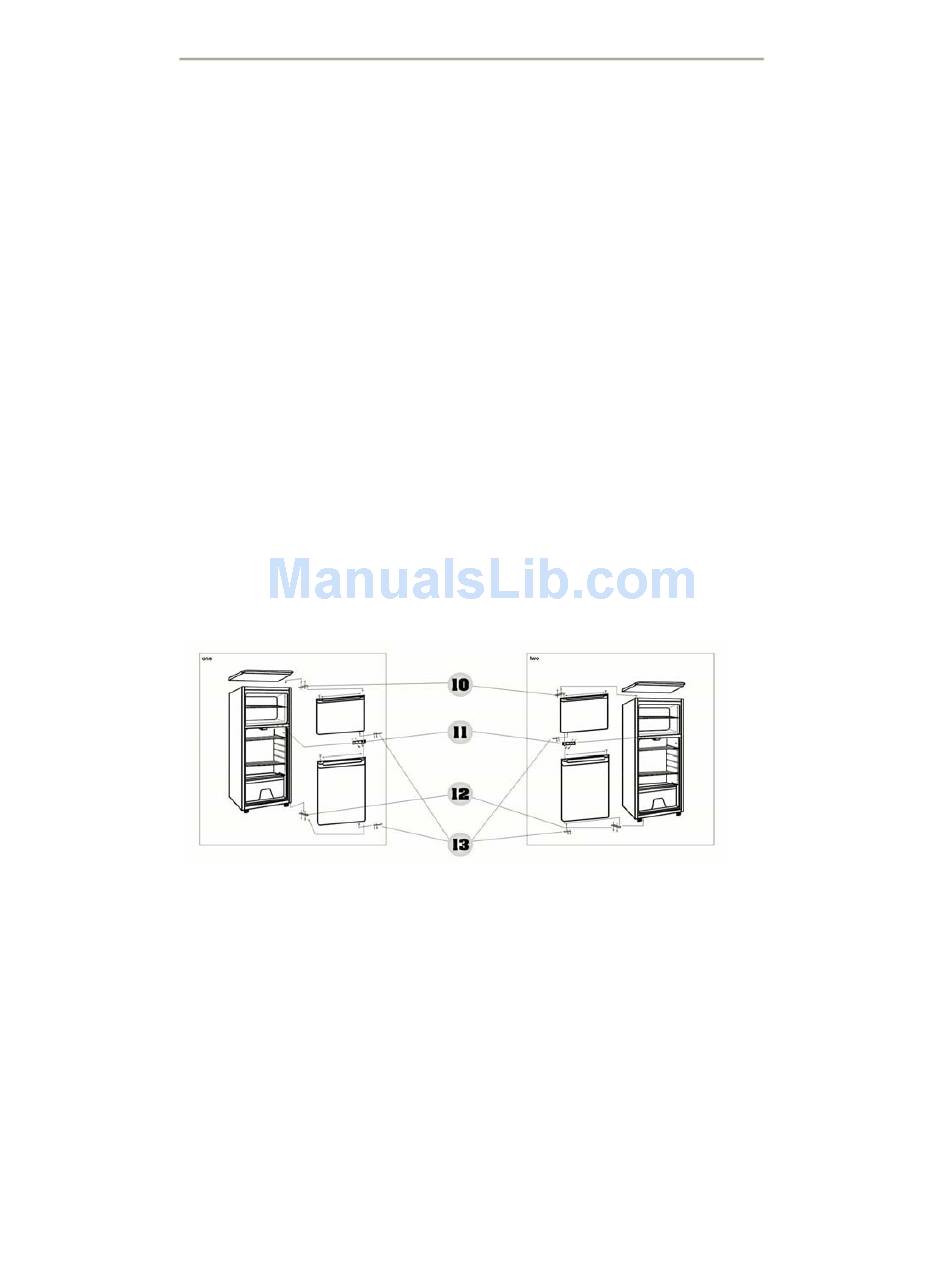

CHANGING THE REVERSIBLE DOORS

CAUTION: To avoid personal injury to yourself and/or property, we recommend
someone assist you during the door reversal process.
1.
Remove the cabinet tabletop.
2.
Remove the upper hinge assembly (10) and take out the freezer door.
3.
Remove the mid hinge assembly (11) and take out the refrigerator door.
4.
To access the lower hinge assembly, tilt back the refrigerator cabinet or lay the refrigerator on its back.
5.
Remove both leveling legs located at the front of the cabinet.
6.
Remove the lower hinge assembly (12).
7.
Re-install the lower hinge assembly (12) and the upper hinge assembly (10) onto the opposite side of the
cabinet.
8.
Remove the door plugs each located on the top of the two doors and change them on the opposite side of the
doors (change the door plugs from left side to right side).
9.
Remove the door stoppers (13) each located on the bottom of the two doors and change them on the opposite
side of the doors (change the door stoppers (13) from right side to left side).
10. With two doors on the pins of mid hinge assembly (11), re-install the mid hinge assembly (11) and two doors
onto the cabinet. Do not fasten the hinge assembly (11) too tight at this step.
11. Align two doors properly on the cabinet and then fasten the mid hinge assembly (11). If necessary, loosen the
lower hinge assembly (12) and the upper hinge assembly (10) when aligning and then fasten them.
12. Re-install both leveling legs to the cabinet.
13. Re-install the cabinet tabletop.
The process is now complete.
