Summary of Contents for Magic Chef MCBR405B

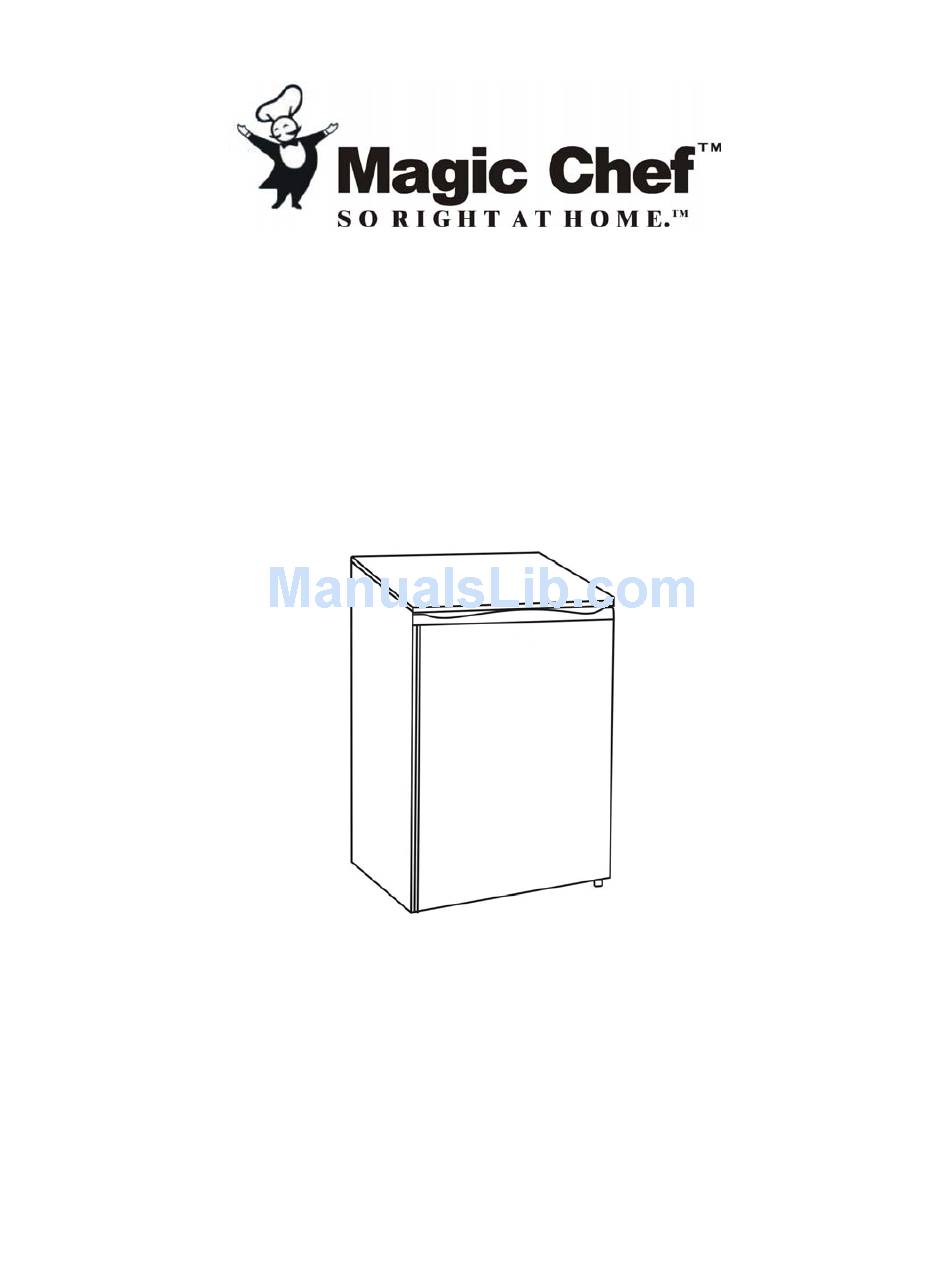

- Page 1 4.5 CU.FT. AUTO-DEFROST REFRIGERATOR INSTRUCTION MANUAL Model No.: To ensure proper use of this appliance and your safety, please read the following instructions completely before operating this appliance. MCBR405W MCBR405B...
-
Page 2: Table Of Contents
TABLE OF CONTENTS NAMES OF THE PARTS……………………………………………………… 2 SPECIFICATIONS…………………………………………………………….. IMPORTANT SAFETY INSTRUCTIONS………………………….………… 3 INSTALLATION INSTRUCTIONS BEFORE USING YOUR REFRIGERATOR ………………………... 3 INSTALLING YOUR REFRIGERATOR ………………………..…… 3-4 ELECTRICAL CONNECTION………………………………………… 4 OPERATING YOUR REFRIGERATOR TEMPERATURE CONTROL………………………………………….. 5 CHANGING THE REVERSIBLE DOOR ……………………………………. 6 CARE AND MAINTENANCE CLEANING YOUR REFRIGERATOR…………………………………... -
Page 3: Names Of The Parts
Net Weight ( lbs) A) Chiller Compartment B) Full Range temperature control C) Adjustable shelves D) Crisper E) Can Dispenser F) 2 Liters Bottle Rack Magic Chef Refrigerator MCBR405W/B 4.5 Cu. Ft. Width Depth 19.9” 20.7” 68 ( lbs ) Height 33.4”... -
Page 4: Important Safety Instructions
• This appliance is designed to be free standing only, and should not be recessed or built-in. • Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully loaded. • Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air ventilation. -
Page 5: Electrical Connection
The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury. Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. -
Page 6: Operating Your Refrigerator
This will ensure the cabinet is thoroughly chilled before food is put • The range of the refrigerator temperature control is from position “1” the warmest to “6” the coldest. Adjust the temperature control to the setting that best suits your needs. The setting of “4”... -
Page 7: Changing The Reversible Door
Remove the door Hinge and foot from the underside of the fridge (Illustration 1). • Carefully lift the refrigerator door, placing it on a padded surface to avoid scratching. • Unscrew the upper hinge (beneath the plastic top) (Illustration 2) •... -
Page 8: Care And Maintenance
Be sure the refrigerator stays in the upright position during transportation. Energy Saving Tips • The refrigerator should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight. •... -
Page 9: Troubleshooting Guide
TROUBLESHOOTING GUIDE You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service. PROBLEM Refrigerator does not operate. - Page 10 Moisture forms on outside of refrigerator. The door will not close properly. can adequately support refrigerator. refrigerator by putting wood or metal shims under part of the refrigerator. The refrigerator is touching the wall. Re-level the refrigerator and move it from the wall.
-
Page 11: Refrigerator Warranty
Refrigerator Warranty MC Appliance Corporation warrants each new Refrigerator to be free from defects in material and workmanship and agrees to remedy any such defect or to furnish a new part(s) (at the company’s option) for any part(s) of the unit that has failed during the warranty period.
