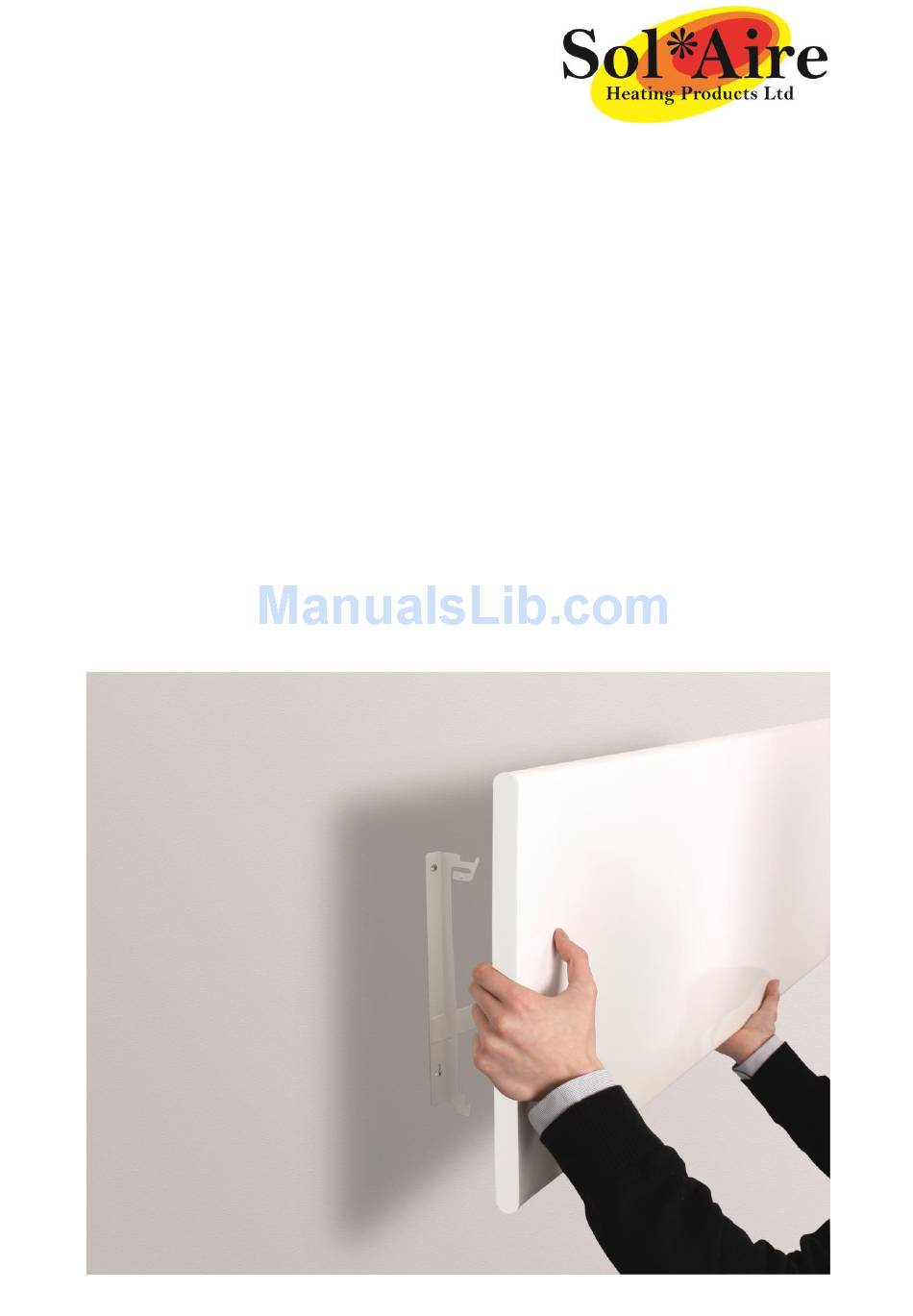

- Page 1 English User manual Electric panel radiators αlpha remote...
-
Page 2: Table Of Contents
Doc.Code: INSAHDE001-04/2014 Contents Topic Page Your new electric panel radiator ....……………………………………………… Disposal …………......…………………………………………………………………. Delivery....……………………………………………………………………………………….. Safety instructions and warnings .……………………………………………………………. 4 - 5 - Instructions prior to installation ........………………………………………………….. - After installation.............……………………………………………………… - Safe operation............…………………………………………………… - Mounting location………………………………………………………………………………………………………. Wall mounting the Alpha Heater.……………………………………………………………… Remote thermostatic controller Use of wall-mounted or table stand (optional), and batteries -.....…………………………. -
Page 3: Your New Electric Panel Radiator
Your new electric panel radiators Alpha Thank you for purchasing the "αlpha" Panel Heater, which is a modern and high quality device. Please check carefully the heater once you have unpacked the unit, our production facility strives to pack and ship for the ultimate in protection. If you do happen to experience a problem, please contact ourselves during working hours with your query. -
Page 4: Delivery
Delivery Check immediately on receipt of the unit the contents of the package. The following items must be included: Complete electric Alpha panel radiator with wall mounting bracket, all in the correct colour ordered. Remote control (if ordered) in a separate box, embedded in a foam covering for protection. -
Page 5: After Installation
After installation Any faults that may develop in the future must always be repaired by a certified professional otherwise there is a risk of possible serious consequences. To ensure quality and safe operation it is advised that manufacturer recommended parts are always fitted. -
Page 6: Wall Mounting The Alpha Heater
Wall mounting the device The appliance must not be connected to the electricity whilst fitting to the wall brackets. Place the heater, with the front panel on the ground ensuring the surface you are placing it on will not damage the heaters finish. If in doubt place a soft cloth down first. To release the wall bracket, press the top part of the bracket on both sides at the same time the metal tabs slightly to the left (Fig. -
Page 7: Remote Thermostatic Controller Use Of Wall-Mounted Or Table Stand (Optional), And Batteries
Preparing the Remote Control (mounting, installation, battery replacement) Wall mounting Table stand for remote control (Optional Accessory) -
Page 8: Basic Settings Of The Remote Control
Inserting the batteries Procedure prior to first use or when changing batteries Remove the two screws at the bottom Battery Compartment Open short side of the remote control Lift the display face carefully 2 alkaline batteries 1.5 V IEC LR6 (AA) ... - Page 9 must be visible on the screen. Now press the - P (3) for about 3 seconds to move to the input mode of the configuration menus. The large figure shown is setting number; the small figure to the right is the adjustment for this setting. By pressing the arrow keys (6/7) you can adjust the options until the desired selection is displayed.
-
Page 10: Commissioning
Commissioning Now that the remote control has been prepared and the device is attached to the wall, the connection can be made to the mains. This is done either by simply plugging the power cord into the outlet, or by fixed wiring in a junction box. The latter must be executed by an appropriate qualified professional. -
Page 11: Pairing Between Transmitter (Remote Control) And Heater Receiver
Before commencing with pairing make sure the heater is switched on at the righthand side. The white switch should be pointing to the I symbol. Receiver power button red LED (A): A short press will turn the red LED on/off indicating supply status. -
Page 12: Adjustment For Operating Multiple Devices With Multiple Remote Controls
one screen. The screen sets the frequency, the heaters will accept this and only work through this controller. After these changes, close the cover of the remote control again and make the match between unit and remote control before, as described above. 8 dial switch Note1: The range of the remote control in an open area is about 100 m. -
Page 13: Time-Controlled Temperature Settings
b) You can prevent this from happening by pressing the (R) button for 3 seconds until the symbol of a key (18) appears below the figure for the current day of the week This means that the automatic program is temporarily suspended and the manually set temperature request is executed. -
Page 14: Frost Protection Mode, Holiday Mode, Reset Function
Firstly set the time to end the first programme. Now push the clock button (2) to set the temperature required when the heater is off. This can be set as low as 5°C meaning the heater will only activate should the room temperature drop below this figure. -
Page 15: Customer Record Sheet
Forgotten to buy batteries despite the low battery indicator flashing. Control screen is missing or damaged. In these circumstances simply turn the power on to the heater at the main switch at the rear. With the red LED turned off, push and hold the receiver on/off button for 10 seconds. Keep it pushed in even when the yellow LED pairing light illuminates until the green LED lights up denoting „calling for power“. - Page 16 Other products and accessories for electric heating for radiators and towel rails Electric immersion heaters without control devices - for heating radiators and towel rails Electric immersion heaters with controllers - For heating of towel rails Valves and fittings of all kinds - For radiators and heated towel rail Various models of electric panel radiators...
