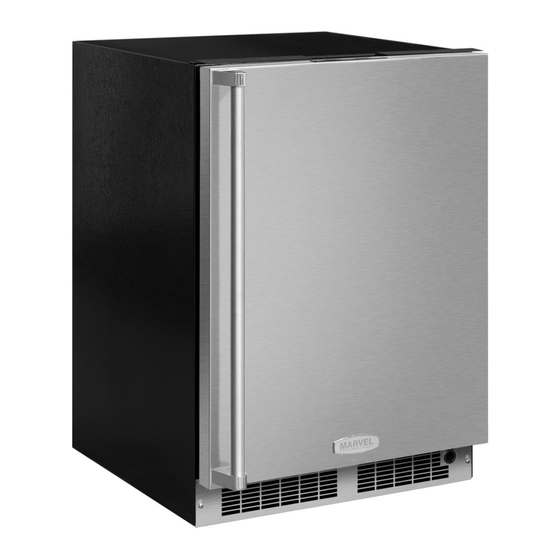

AGA marvel MP15BC Installation, Operation And Maintenance Instructions

AGA marvel MP15BC Installation, Operation And Maintenance Instructions

Advertisement

Quick Links

EN Installation, Operation and Maintenance Instructions
FR Instructions d'installation, d'utilisation et d'entretien
ES Instrucciones de instalación, operación y mantenimiento
Built in Refrigerators
Réfrigérateurs intégrées
Refrigeradores
empotradas
MP15BC
MP24BR
MP24RA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP15BC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AGA marvel MP15BC

  • Page 1 EN Installation, Operation and Maintenance Instructions FR Instructions d’installation, d’utilisation et d’entretien ES Instrucciones de instalación, operación y mantenimiento Built in Refrigerators Réfrigérateurs intégrées Refrigeradores empotradas MP15BC MP24BR MP24RA...
  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions Contents: Warnings and safety instructions appearing in this guide Safety information ...............2 are not meant to cover all possible conditions and situa- Unpacking your appliance ..........3 tions that may occur. Common sense, caution, and care Warranty registration .............3 must be exercised when installing, maintaining, or operat- Installing your appliance ............4 ing this appliance.
  • Page 3: Unpacking Your Appliance

    UNPACKING YOUR APPLIANCE Warranty Registration WARNING It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at www.agamarvel.com. EXCESSIVE WEIGHT HAZARD Use two or more people to move product. Failure to do so can result in personal injury.
  • Page 4: Installing Your Appliance

    For this reason it is important this area to not be obstructed and the grille Table B openings kept clean. AGA MARVEL does not recommend the use of a custom made grille as air flow may be restrict- ed. (See Figure 2).
  • Page 5: Electrical Connection

    INSTALLING YOUR APPLIANCE WARNING Electrical Shock Hazard • Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance. • This appliance should not, under any circumstanc- es, be installed to an un-grounded electrical supply. •...
  • Page 6: Product Dimensions

    PRODUCT DIMENSIONS ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J" 15" **34" to 35" ⁄ " ⁄ " to 34 ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " MP15BCG (38.1 cm) (86.4 to 88.9 cm) (37.8 cm) (85.7 to 88.3 cm)
  • Page 7 PRODUCT DIMENSIONS PRODUCT DATA ELECTRICAL PRODUCT MODEL REQUIREMENTS # WEIGHT "H" 105 lbs MP15BCG 115V/60Hz/15A (47.6 kg) 105 lbs MP15BCF 115V/60Hz/15A (47.6 kg) 140 lbs MP24**S 115V/60Hz/15A (63.6 kg) 140 lbs MP24**G 115V/60Hz/15A (63.6 kg) "J" 140 lbs MP24**F 115V/60Hz/15A (63.6 kg) "G"...
  • Page 8: Using Your Electronic Control

    USING YOUR ELECTRONIC CONTROL Lights keypad Temp Temp On/Off (glass door Lock System Status Minus Plus keypad keypad keypad Display Area keypad indicators only) Figure 7 Electronic single zone control To wake the display press any keypad. A confirm tone will sound, and the current storage compartment temperature will be displayed.
  • Page 9: Adjusting The Temperature

    USING YOUR ELECTRONIC CONTROL Adjusting the temperature: To set or check the set-point temperature (with the control Temperature mode: out of sleep mode), press the "-" or "+" keypads. "SET" will The temperature mode is preset from the factory in Fahren- be indicated on the user interface panel and the current heit (°F) but you have the option to change it to Centigrade set-point temperature will display and flash.
  • Page 10: Power Failure

    USING YOUR ELECTRONIC CONTROL Vacation mode: This operating mode can be used to save energy during Power Failure high cost energy periods, or when you won't be using your ALARM RESET appliance for an extended period of time by disabling the lights, alarm tones, and keypad entry tones.
  • Page 11: Overlay Door Panel Installation

    OVERLAY DOOR PANEL INSTALLATION If you purchased an overlay panel model, your unit is WARNING equipped with articulated hinges to allow fully integrated built-in installations. Custom panel thicknesses of ⁄ " (15 mm) and ⁄ " (18 mm) are accommodated. Use extreme caution with the articulated hinges.
  • Page 12 OVERLAY DOOR PANEL INSTALLATION Clearance for Press and hold this down screw head, this tab on the wire connec- 4 places tor and pull the connector apart. Figure 11 Figure 9 Left Hand Hinged Door 15" (38.1 cm) wide appliance Overlay panel flush with top Clearance...
  • Page 13 OVERLAY DOOR PANEL INSTALLATION Clearance for Clearance CAUTION screw head, for hinge 4 places at top and bottom Weight of overlay door panel must not exceed 15 pounds (6.8 kg) for a solid door model or 10 pounds (4.5 kg) for a glass door model.
  • Page 14 OVERLAY DOOR PANEL INSTALLATION Clearance CAUTION for hinge Clearance for at top and screw head, bottom 4 places Weight of overlay door panel must not exceed 15 pounds (6.8 kg) for a solid door model or 10 pounds (4.5 kg) for a glass door model. Material Type #10 Wood Screw Hardwood...
  • Page 15 OVERLAY DOOR PANEL INSTALLATION Step 5: Assemble lock parts Two (2) lock extensions are provided with the lock. Use the longer extension for ⁄ " thick overlay panels and the shorter Counter bore one for ⁄ " thick overlay panels. Assemble the lock exten- lock hole sion, cam stop washer, spring washer, and set screw to the on back side.
  • Page 16 OVERLAY DOOR PANEL INSTALLATION Step 8: Secure the cabinet Step 7: Install the door Use the #8 x ⁄ " black screws from the literature pack to Carefully open the top and bottom hinges on the door being secure the counter top to the cabinet top through the holes careful as there are many pinch points.
  • Page 17: Shelving Configurations

    SHELVING CONFIGURATIONS Loading Tips and Suggestions Your appliance is equipped with a cantilever shelf system which provides maximum adjust ability and customizing of the shelving arrangements listed below. Beverage Center: 15" (38.1 cm) Wide Models: Shown with a glass door. Figure 23. (2) frame and flat glass shelf.
  • Page 18 SHELVING CONFIGURATIONS Figure 26 Frame and flat glass shelf Figure 28 with trim Slide out metal cantilever shelf Figure 29 half width metal cantilever shelf Wine shelf underneath glass Figure 27 Wine cutout and flat glass shelf with vibration dampening mat, the glass can be removed for wine storage.
  • Page 19 SHELVING CONFIGURATIONS To Add or Remove a Shelf CAUTION Remove stored product from the shelf. Do not try to remove a loaded shelf from the appliance. Grasp the shelf front with both hands, rotate the front upward and lift out. (See Figure Make sure your cantilever shelf is secure on the shelf 31b).
  • Page 20: Care And Cleaning

    CARE AND CLEANING AND ENERGY SAVING TIPS The following suggestions will minimize the Front Grille cost of operating your refrigeration appliance. Be sure that nothing obstructs the required air flow open- ings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see 1.
  • Page 21: Obtaining Service

    If Service is Required: • If the product is within the first year warranty period please contact your dealer or call AGA MARVEL Cus- tomer Service at 800.223.3900 for directions on how to obtain warranty coverage in your area. •...
  • Page 22: Troubleshooting

    TROUBLESHOOTING Before You Call for Service WARNING If the appliance appears to be malfunctioning, read through this manual first. If the problem persists, check the trouble- shooting guide below. Locate the problem in the guide and Electrocution Hazard refer to the cause and its remedy before calling for service. •...
  • Page 23: Warranty

    Limited One Year Parts and Labor Warranty Not Supplied or Designated by AGA MARVEL AGA MARVEL warrants that it will supply all necessary The above warranties also do not apply if: parts and labor to repair or replace in the end user’s home or office, any component which proves to be defective •...
  • Page 24 www.agamarvel.com 1260 E. VanDeinse St. Greenville MI 48838 800.223.3900 41013373-EN Rev F All specifications and product designs subject to change without notice. Such revisions do not entitle 11/5/14 the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.
