IMPORTANT INFORMATION
CONDARI PTY LTD makes over 120 different models of QASAIR Rangehoods plus
many special rangehoods designed by architects and interior designers.
It is important to follow the installation instructions.
There are many different cooking appliances on the Australian market today.
Examples: Electric Ego, ceramic hotplates, teppanyaki plates and Induction hotplates. There are gas hotplates
drawn out from the catchment area of the rangehood.
minimum should be 750mm.
.
way, as this may result in reduced performance.
Qasair Rangehoods Installation Instructions
Advertisement
Table of Contents
Related Manuals for Qasair 4F
Summary of Contents for Qasair 4F

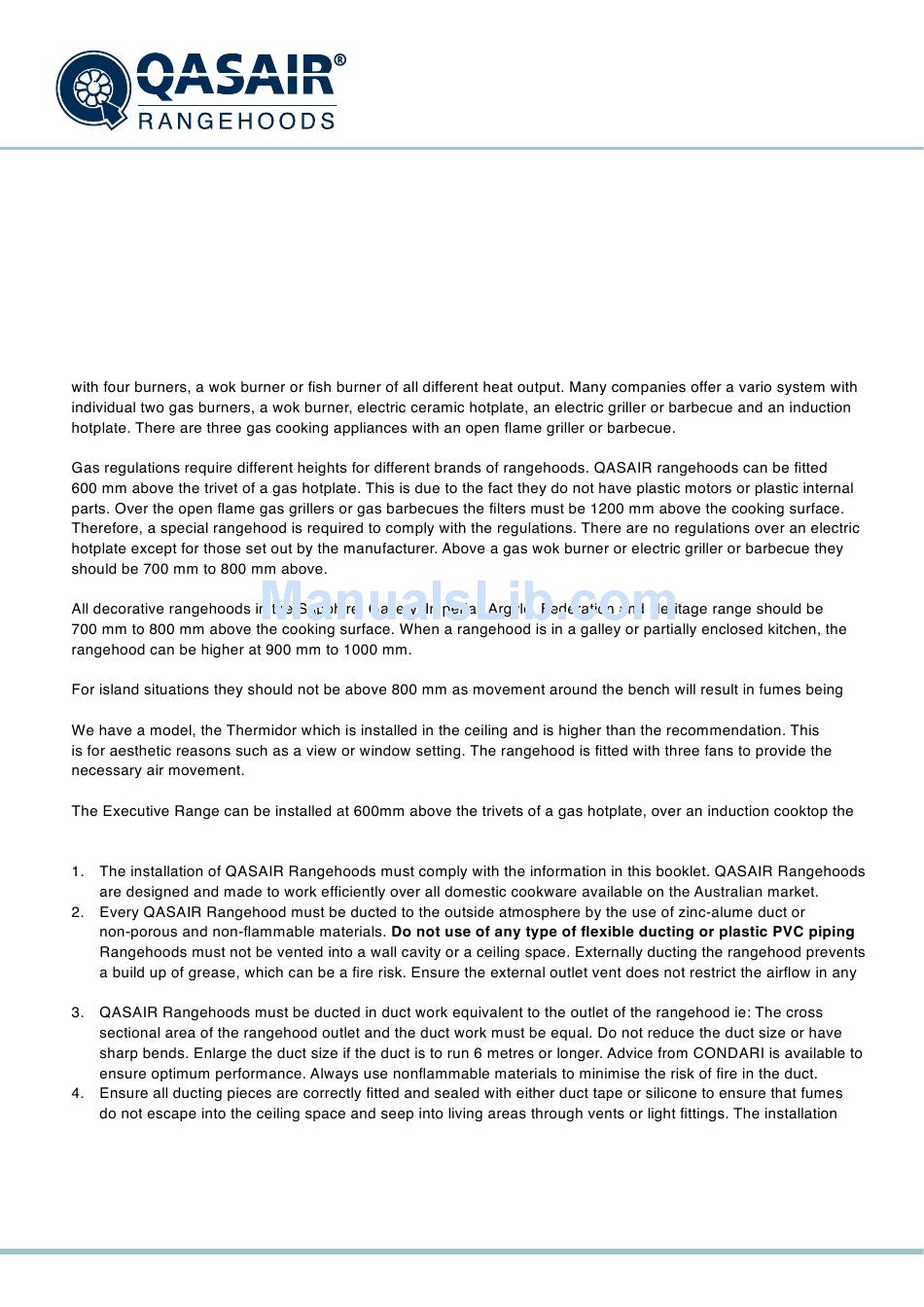

- Page 1 IMPORTANT INFORMATION CONDARI PTY LTD makes over 120 different models of QASAIR Rangehoods plus many special rangehoods designed by architects and interior designers. It is important to follow the installation instructions. There are many different cooking appliances on the Australian market today.
- Page 2 9. NOTE for optimum results. Barbecues should be positioned under the centre of the hood where the fans are mounted and not near the outer edges where leakage may occur. only through single sheet material. name. Qasair Rangehoods Installation Instructions...
-
Page 3: Installation Instructions
4. Using a plumb line, mark the ceiling before making the cut out. Check for obstructions like electrical cables etc. are 90 degrees to the ceiling joists. 8. Fit off ducting as required. Installation Suggestions Qasair Rangehoods Installation Instructions... -
Page 4: Ceiling Mounted
4 Flare Technical Specification Sheet Ceiling Mounted 4 FLARE - 4F Power Entry Ø15mm Radius Power Entry Ø15mm Radius A Transition is supplied to suit standard DL2 ducting Model 4F 900L-2 4F 1200L-2 Model 4F 900L-2 4F 1200L-2 Body Width... -
Page 5: Technical Specification Sheet
Maximum Height Nightlight 1600mm 1600mm (H =) PowderKote Light Qty Available All-thread Light Centres 510mm 648mm 360mm 360mm Fixing Centres Filter Qty Corner Type Round Round Condari Pty Ltd. Page 1 of 2 Version: C 20/01/2015F Qasair Rangehoods Installation Instructions... - Page 6 1600mm 1600mm (H =) PowderKote Light Qty Available All-thread Light Centres 816mm 816mm 422mm 360mm 840mm 840mm Fixing Centres Filter Qty Corner Type Round Round Round Condari Pty Ltd. Page 2 of 2 Version: C 20/01/2015F Qasair Rangehoods Installation Instructions...
- Page 7 Fixing Centres Varies depending on Varies depending on Filter Qty Corner Type Square Square length of rangehood length of rangehood Condari Pty Ltd. Page 1 of 1 Version: B 26/11/2014F Qasair Rangehoods Installation Instructions...
- Page 8 (H =) Maximum Height Nightlight 1450mm (H =) PowderKote Light Qty Available All-thread Light Centres 250mm X 320mm Centre Fixing Centres Filter Qty Square Corner Type Condari Pty Ltd. Page 1 of 1 Version: B 27/11/2014F Qasair Rangehoods Installation Instructions...
- Page 9 (H =) Maximum Height Nightlight 1100mm (H =) PowderKote Light Qty Available All-thread Light Centres 250mm X 320mm Centre Fixing Centres Filter Qty Square Corner Type Condari Pty Ltd. Page 1 of 1 Version: B 27/11/2014F Qasair Rangehoods Installation Instructions...
- Page 10 Maximum Height Nightlight 1400 1400mm (H =) PowderKote Light Qty Available All-thread Light Centres 510mm 648mm 500mm 800mm Fixing Centres Filter Qty Corner Type Square Square Condari Pty Ltd. Page 1 of 1 Version: C 20/01/2015F Qasair Rangehoods Installation Instructions...
- Page 11 Fixing Centres Varies depending on Varies depending on Filter Qty Corner Type Square Square length of rangehood length of rangehood Condari Pty Ltd. Page 1 of 1 Version: A 20/01/2015F Qasair Rangehoods Installation Instructions...
- Page 12 Maximum Height Nightlight 1450mm 1450mm (H =) PowderKote Light Qty Available All-thread Light Centres 510mm 510mm 500mm 500mm Fixing Centres Filter Qty Corner Type Square Square Condari Pty Ltd. Page 1 of 3 Version: C 20/01/2015F Qasair Rangehoods Installation Instructions...
- Page 13 Maximum Height Nightlight 1450mm 1450mm (H =) PowderKote Light Qty Available All-thread Light Centres 648mm 648mm 500mm 500mm Fixing Centres Filter Qty Corner Type Square Square Condari Pty Ltd. Page 2 of 3 Version: C 20/01/2015F Qasair Rangehoods Installation Instructions...
- Page 14 Maximum Height Nightlight 1450mm 1450mm (H =) PowderKote Light Qty Available All-thread Light Centres 816mm 816mm 500mm 500mm Fixing Centres Filter Qty Corner Type Square Square Condari Pty Ltd. Page 3 of 3 Version: C 20/01/2015F Qasair Rangehoods Installation Instructions...
- Page 15 Maximum Height Nightlight 1100mm 1100mm (H =) PowderKote Light Qty Available All-thread Light Centres 510mm 510mm 500mm 500mm Fixing Centres Filter Qty Corner Type Square Square Condari Pty Ltd. Page 1 of 2 Version: B 20/01/2015F Qasair Rangehoods Installation Instructions...
- Page 16 Maximum Height Nightlight 1100mm 1100mm (H =) PowderKote Light Qty Available All-thread Light Centres 648mm 648mm 500mm 500mm Fixing Centres Filter Qty Corner Type Square Square Condari Pty Ltd. Page 2 of 2 Version: B 20/01/2015F Qasair Rangehoods Installation Instructions...
-
Page 17: Filter Cleaning
Ensure the filters are completely dry before placing them back. Do not operate the rangehood without the filters installed. Condari does not recommend the use of any citrus or industrial products, particularly RANGEHOOD CLEANING • • Stainless Steel cleaner may be used. Qasair Rangehoods Installation Instructions... -
Page 18: For Example
This warranty is conditional upon the appliance being used only for personal, domestic and household purposes and installed and operated in accordance with QASAIR Instructions and does not apply to articles which by their nature are consumable. - Page 19 EXCLUSIONS outdoor use only and also a mega joule rating per burner or a total mega joule rating. special hoods are required for the appliances. situated in domestic kitchens. Qasair Rangehoods Installation Instructions...
-
Page 20: Standard Warranty
Date purchased Purchased from Model original purchase document. This form must be produced if and when a claim is made under this warranty. QASAIR Rangehoods are made in Ringwood, Australia. AGA Australia Tel: 03 9521 4965 Email: info@AGAaustralia.com.au Website: www.AGAaustralia.com.au...
