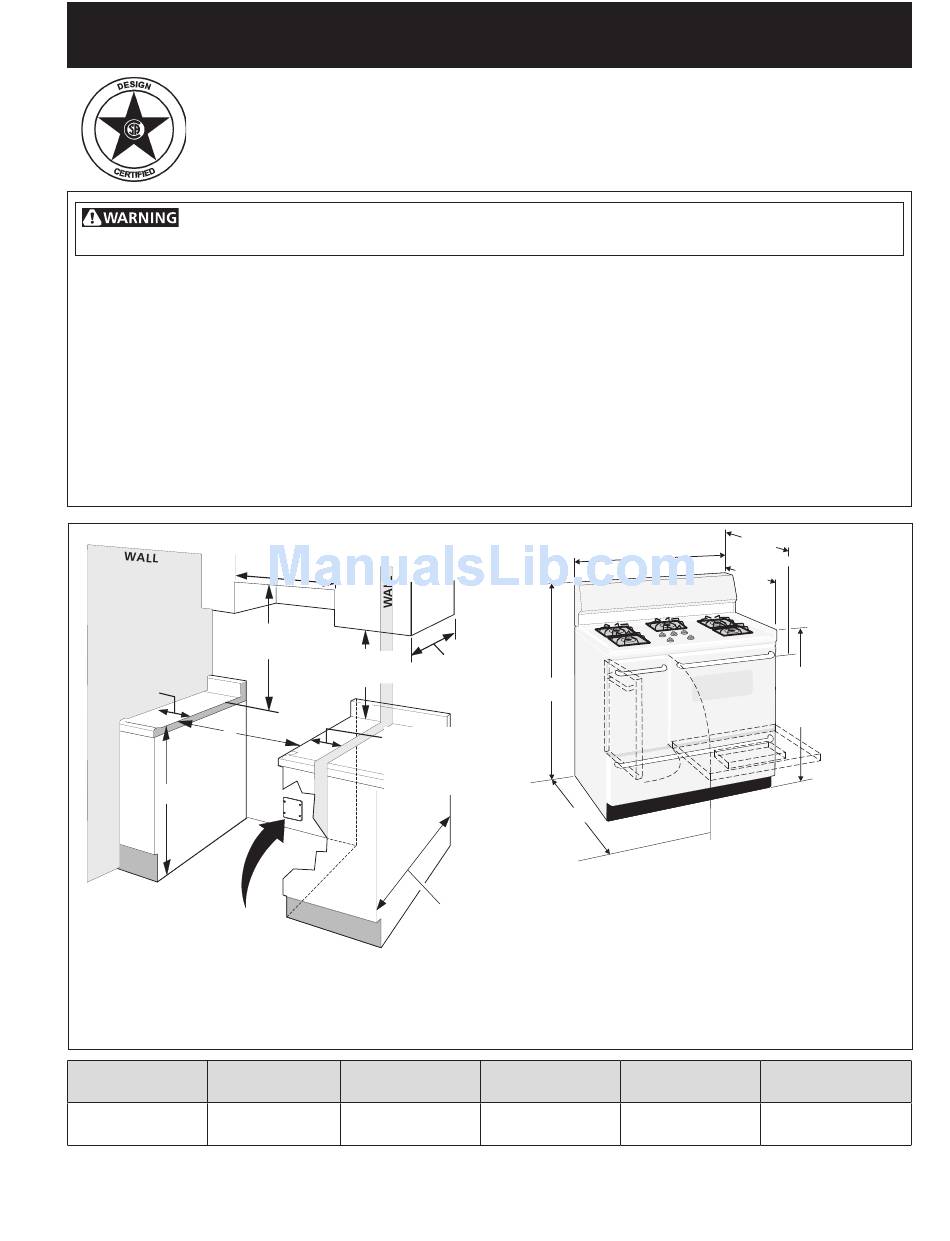

40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
40 1/8" Min.
(101.9 cm Min.)
If there is a wall:
3" Min.
(7.62 cm Min.)
Left side
E
F
Grounded
Wall Outlet
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
A. HEIGHT
B. WIDTH
48 1/8" (122.24 cm)
40 1/8" (101.9 cm)
(Models with Electric Ovens and Gas Cooktop)
OBSERVE ALL GOVERNING CODES AND ORDINANCES.
See
note
18" Min.
13" Min.
(45.7 cm Min.)
(33 cm Min.)
If there is a wall:
7" Min.
(17.78 cm Min.)
Right side
24" Min.
(61 cm Min.)
24 1/2" Max.
(62.2 cm Max.)
C. DEPTH TO FRONT
OF RANGE
25 7/8" (65.7 cm)
B
A
D
NOTE: 24" (61 cm) minimum clearance between the
cooktop and the bottom of the cabinet when the bottom
of wood or metal cabinet is protected by not less than
1/4" (0.64 cm) flame retardant millboard covered with
not less than No. 28 MSG sheet metal, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020" (0.5
mm) copper.
30" (76.2 cm) minimum clearance when the cabinet is
unprotected.
D. DEPTH WITH
E. MINIMUM CUTOUT
DOOR OPEN
43 3/4" (111.1 cm)
40 1/4" (102.2 cm)
1
28 1/8" (71.4 cm) with
handle
C
36" (91.4
cm) with feet
extended
F. HEIGHT OF
WIDTH
COUNTERTOP
36" (91.4 cm) standard
35 3/8" (90 cm) min.
P/N 318201754 (1302) Rev. B
English - pages 1-11
Español - páginas 12-23
Wiring Diagram - page 24

Advertisement

Table of Contents
loading

Related Manuals for Electrolux 40"

Summary of Contents for Electrolux 40"

  • Page 1 40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. OBSERVE ALL GOVERNING CODES AND ORDINANCES. If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

  • Page 2: Important Notes To The Installer

    40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) Important Notes to the Installer Home Installation 1982 (Manufactured Home Sites, Communities and Setups), ANSI Z225.1/NFPA 501A- 1. Read all instructions contained in these installation latest edition, or with local codes. instructions before installing range.

  • Page 3: Power Supply Cord Kit

    40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) Power Supply Cord Kit Electrical Connection to the Range The user is responsible for connecting the power supply This appliance is manufactured with the neutral terminal cord to the connection block located behind the back connected to the range.
  • Page 4 40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) 2. Remove the 3 loose nuts (after you removed the 6. Replace the 3 nuts on the terminal block (see fig. 4). rubber band) on the terminal block using 3/8" nut 7.

  • Page 5: Junction Box Location

    40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) Junction Box Location Locate junction box as shown in Figure 7. If a service cord is used, the wall receptacle should be located in accordance with the dimensions below. Center Line of Range...

  • Page 6: Gas Supply Installation

    40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) the wall (the location of the outlet may not allow the The supply line should be equipped with an approved range to be positioned against the wall), draw a line shutoff valve (see Figure 9).

  • Page 7: Moving The Appliance For Servicing And Cleaning

    40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) Tighten all connections if necessary to prevent gas Moving the Appliance for leakage in the cooktop or supply line. Servicing and Cleaning Turn off the range line fuse or circuit breakers at the Check alignment of valves after connecting the main power source, and turn off the manual gas shut-off cooktop to the gas supply to be sure the manifold pipe...

  • Page 8: Range Installation

    40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) Range Installation Check Operation Refer to the Use and Care Guide and the Electronic Oven When unpacking the range, do not Control Guide packaged with the range for operating discard the 4 shipping bolts.

  • Page 9: When All Hookups Are Complete

    40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) 2. Turn on Electrical Power and Open Main Shutoff 5. Operation of Oven Elements The oven is equipped with an electronic oven control. Each Gas Valve of the functions has been factory checked before shipping. 3.

  • Page 10: Important Safety Warning

    40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) Important Safety Warning 1. Unfold paper template and place it flat on the floor with the back and side edges positioned exactly To reduce the risk of tipping of the range, the range where the back and sides of range will be located must be secured to the floor by properly installed anti-tip when installed.
  • Page 11 40" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS (Models with Electric Ovens and Gas Cooktop) NOTES:...
  • Page 12 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) IMPORTANTE: GUARDE ESTAS INSTRUCCIONES PARA USO DEL INSPECTOR LOCAL DE ELECTRICIDAD. LEA Y GUARDE ESTAS INSTRUCCIONES PARA REFERENCIA FUTURA. OBSERVE CÓDIGOS TODO GOBERNANTES Y ORDENANZAS.

  • Page 13: Notas Importantes Para El Instalador

    INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) Notas importantes para el Instalador for Mobil Home Construction and Safety, título 24, HUD (parte 280)] o cuando tal estándar no se aplica, el Standard 1.
  • Page 14 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) • No almacene ni utilice gasolina u otros vapores y Al realizar la conexión de la estufa, no líquidos inflamables en la proximidad de éste o de desaprete las tuercas que aseguran el alambraje de la estufa al cualquier otro artefacto eléctrico.
  • Page 15 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) 1. Quite los tres tornillos en la parte más baja del panel laterales. Conecte los alambres y terminales emparejando trasero, luego levante la parte más baja del panel los colores (los alambres rojos conectados al terminal derecho, los alambres negros conectados al terminal...
  • Page 16 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) Situación de caja de unión En el cortacircuito, la caja de fusibles o la caja de empal- a) Conecte el alambre verde (o cobre desnudo), el alambre blanco del cable del electrodoméstico y el alambre neutral (blanco) juntos.

  • Page 17: Instalación De La Alimentación De Gas

    INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) Si la estufa no será instalada junta contra un armario, Abra la válvula de cierre en la línea de suministro de gas. mueva la estufa a su posición final.

  • Page 18: La Mudanza Del Aparato Para Reparaciones O Limpieza

    INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) Conversión para uso de Propano Líquido Aísle la estufa del sistema del suministro de gas cerrando su válvula manual de cierre individual durante cualquier Este aparato puede ser usado con gas natural o propano prueba de presión del suministro del gas a presiones iguales a líquido.

  • Page 19: Instalación De La Estufa

    INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) Instalación de la estufa Nivelación de la estufa Nivele la estufa y ajuste la altura de la estufa antes de Mientras se desembala la estufa, ne instalarla en la abertura.

  • Page 20: Antes De Llamar Al Servicio

    INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) 2. Enciende la corriente eléctrica y abre la válvula Funcionamiento de los Elementos del Horno principal de cierre. El horno está...
  • Page 21 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) Importante Advertencia de Seguridad 1. Desdoble la plantilla de papel y colóquela plana en el piso con los bordes laterales y el trasero colocados Para reducir el riesgo de que la estufa se vuelque, es exactamente donde la parte trasera y los lados de la necesario asegurarla al piso instalando los soportes...
  • Page 22 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) NOTAS:...
  • Page 23 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA DE FUEL DUAL DE 40" (Para modelos con un horno eléctrico y una estufa a gas) NOTAS:...
  • Page 24 WIRING DIAGRAM - DIAGRAMA DE LA INSTALACIÓN ALÁMBRICA (Models with Electric Ovens and Gas Cooktop - Para modelos con un horno eléctrico y una estufa a gas)
