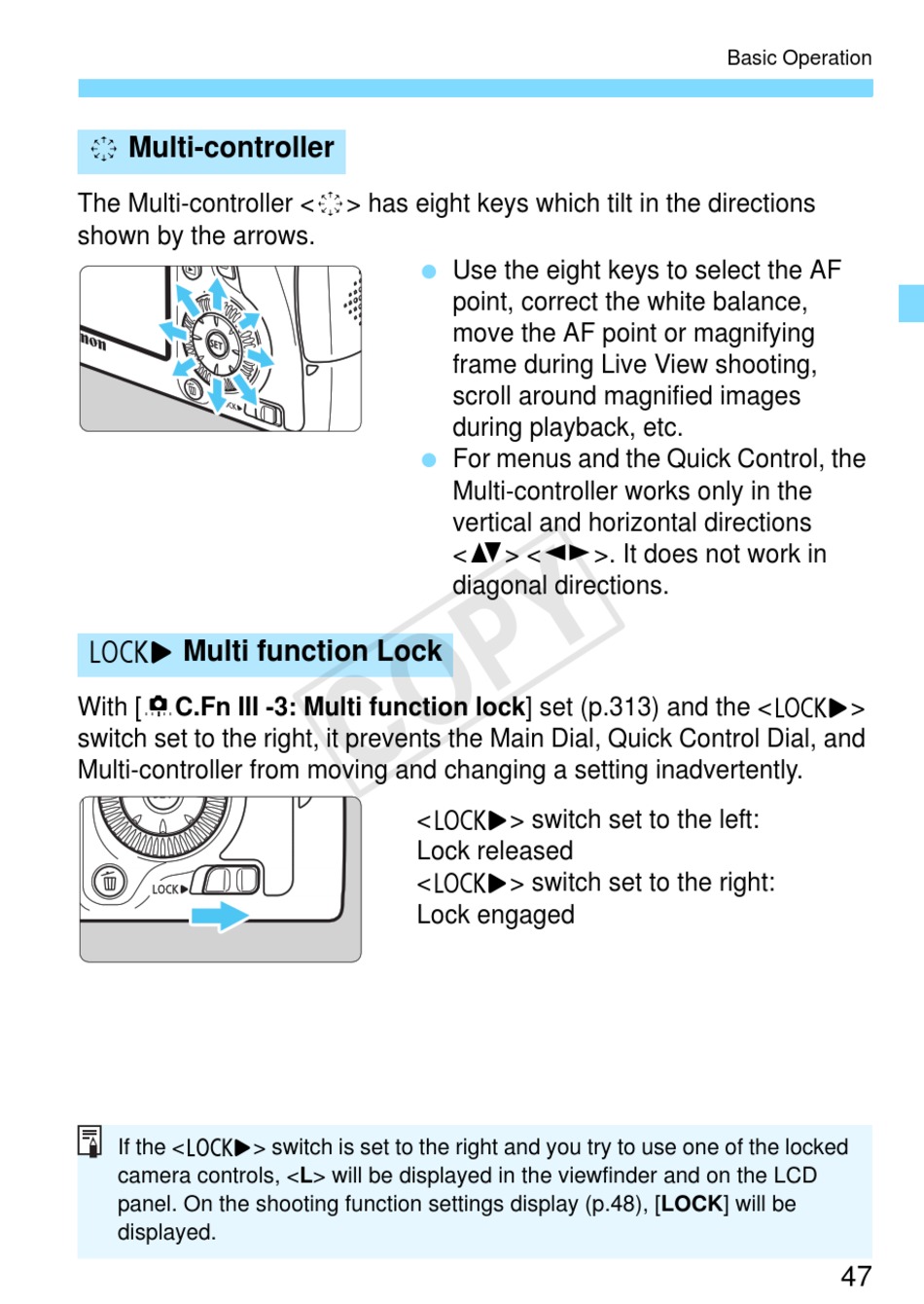

Canon EOS 6D Instruction Manual page 47

9
Multi-controller
The Multi-controller <9> has eight keys which tilt in the directions
shown by the arrows.
R Multi function Lock
With [8C.Fn III -3: Multi function lock] set (p.313) and the <R>
switch set to the right, it prevents the Main Dial, Quick Control Dial, and
Multi-controller from moving and changing a setting inadvertently.
If the <R> switch is set to the right and you try to use one of the locked
camera controls, <L> will be displayed in the viewfinder and on the LCD
panel. On the shooting function settings display (p.48), [LOCK] will be
displayed.
Use the eight keys to select the AF
point, correct the white balance,
move the AF point or magnifying
frame during Live View shooting,
scroll around magnified images
during playback, etc.
For menus and the Quick Control, the
Multi-controller works only in the
vertical and horizontal directions
<V> <U>. It does not work in
diagonal directions.
<R> switch set to the left:
Lock released
<R> switch set to the right:
Lock engaged
Basic Operation
47
