Page 1

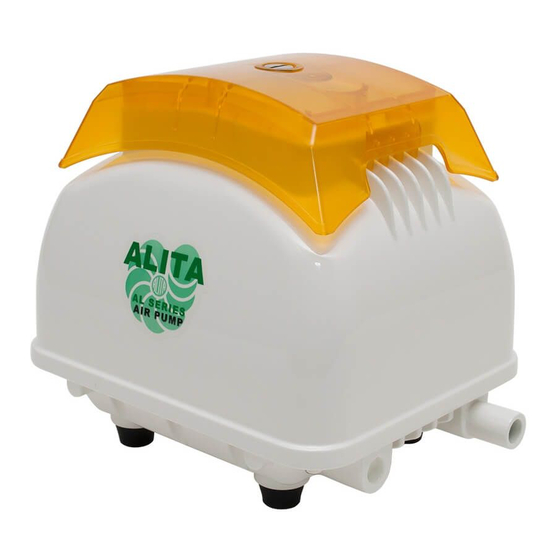

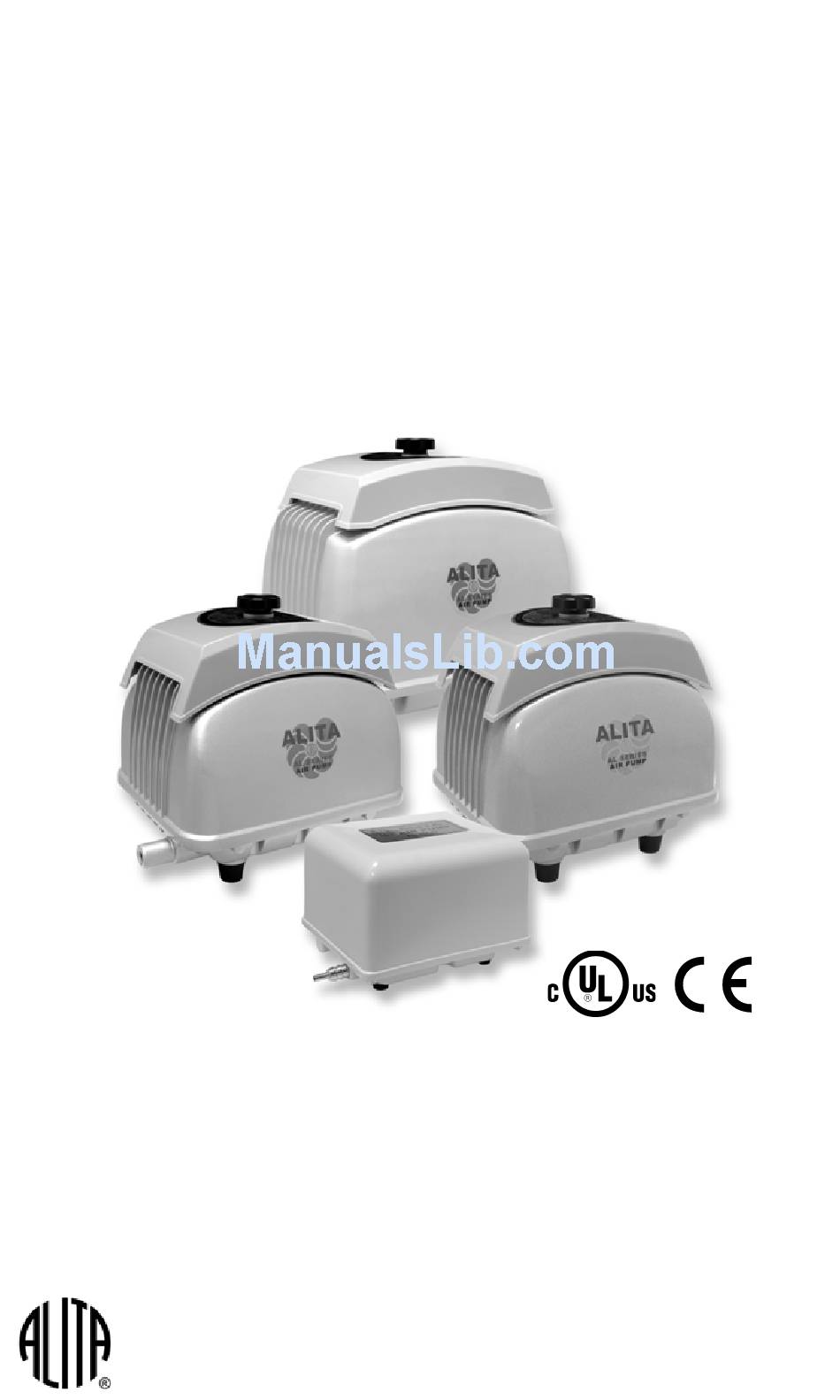

ALITA LINEAR AIR COMPRESSORS ® & M PERATION AINTENANCE ANUAL AL-30, AL-40, AL-60, AL-80 ODELS AL-100, AL-120, AL-150, AL-200 AL-250, AL-300, AL-350, AL-400 ALITA INDUSTRIES, INC. Efficient and Reliable Air Moving Products...
Page 2
Remember to mail in your Warranty Registration Alita Industries has made every effort to ensure the correctness and completeness of the materials in this document. Alita Industries shall not be liable for errors contained herein. The information in this document is subject to changes without notice. Alita Industries shall not be liable for any errors or for incidental or consequential damages in connection with the furnishing, performance, or use of this document.
ALITA Limited Warranty covers only those defects which arise as a result of normal use of the product and do not apply to any: (a) defect or malfunctions resulting from failure to properly install, operate or maintain the ALITA product in accordance with printed instructions provided;...
SAFETY INSTRUCTIONS Special care should be taken when operating an electrical device. To avoid serious or fatal personal injury or major property damage, read and follow all safety instructions in manual and on pump. WARNINGS • DO NOT operate pump in the vicinity of explosive or flammable materials, liquids or gases.
Page 5
For outdoor installations, shaded area that shelters from excessive weathering is ideal. Do not allow pump to swelter under intense sun and avoid places with excessive dust or debris. The ambient operating temperature for this pump is between 5°C (41°F) and 40°C (104°F).
1. Set pump upside down (remove filter cover for stability if required), unscrew and remove all upper housing screws. Then return pump to upright position and lift away upper housing. Number of housing screws: AL-30~80 (4x), AL-100~200 (6x), AL-250~400 (12x) 2.
Page 7
In case of unusual noise or odor from the pump, turn off the power immediately, consult the maintenance guide, or contact your nearest pump representative or Alita service department for assistance. PARTS PARTS DIAPHRAGM...
Page 8
Assembly Diagram for Models AL-40 ~ AL-80 Cover Bolt Filter Cover Semi Cover Packing Air Filter Pad Upper Pump Housing Diaphragm Electromagnets Housing Hex Nut Diaphragm Diaphragm Diaphragm Frame Block Hex Nut Core Frame Magnetic L-tube Diaphragm Block Silicone Band Diaphragm Housing Power Plug...
Page 9
Assembly Diagram for Models AL-100 ~ AL-400 Cover Bolt Filter Cover Models AL-100~120 AL-250 Dual Core Semi Cover Packing Air Filter Pad Protective Switch Upper Pump Housing Hex Nut Diaphragm Magnetic Rod Diaphragm Frame Models AL-150~200 Diaphragm Housing Core Frame AL-300~400 Dual Core Diaphragm Frame Diaphragm...
Page 10
Check for any damage to magnetic rod. Contact ALITA for assistance and procure replacement parts. If none of the prescribed solution can help you resolve your pump problem, contact ALITA for repair service instructions. DO NOT ATTEMPT to repair the pump on your own. - 9 -...
Page 11
For repair or service, contact your Alita representative or Alita Industries first for instructions and to receive an authorization number prior to sending of the pump. Alita Industries will not be responsible for any lost or misdirected package. When sending a pump for service or repair, please include the following: Dated proof of purchase.
Page 12
ALITA INDUSTRIES, INC. PO Box 660923, Arcadia, CA 91066-0923, USA Phone: (626) 962-2116 On-Line: www.alita.com E-mail: info@alita.com...
Page 13
Instruction Manual BL1.5 • BL3 • BL5 BL7 • BL10 BL15 • BL20 Dosing Pumps w w w . h a n n a i n s t . c o m...
Dear Customer, PRELIMINARY EXAMINATION Thank you for choosing a Hanna product. Please read this instruction manual carefully before using the pump. Remove the pump from the packing mate- If you need additional technical information, rial and examine it carefully to make sure hesitate e-mail that no damage has occurred during ship-...
Always store chemicals in safe, out of reach GENERAL DESCRIPTION places. Follow the directions for use with each chemical. Do not assume chemicals are the same because they look alike. Hanna Instruments cannot be held responsible for the misuse of chemicals or the pump. Always wear protective clothing (gloves and safety glasses) when working near chemical dosing pumps.
The ball valves are constructed in glass. The FLOW RATE CHART body is made of fiber-reinforced polypropy- lene for strength and durability. The following charts show the relationship between their flow rate and pressure. Reliability through simplicity An increase of pressure in the system de- All BlackStone pumps use the positive dis- creases the flow rate.
Power Requirements INSTALLATION BlackStone pumps are designed to operate to specifications within the following voltage Materials Needed ranges: • LDPE hose (7 meter / 22 feet) (included) 100 - 130 Volts for -1 models or other type of tubing (PTFE, for example) 200 - 240 Volts for -2 models more suitable for a specific application (op- tional)
Page 20
• The pump should be placed in a conven- It is recommended that the system be con- tional location that will allow easy access nected to a power line/leg equipped with a to the control and connections. It should be circuit breaker of 1 Amp.
Page 21
the feed tank. Allow some slack in the • Repeat the same installation procedure for hose and be sure it is not kinked or twisted. the hose connections on the discharge end with the injection assembly (HI 721004). • Slip a hose connector onto the hose over the head valve and up to the bottom of the...
Page 22
Assembling the Hose to the Valve EXAMPLE OF TYPICAL INSTALLATIONS The end of the valve is specially tapered to form a leak free seal when the hose is prop- HOSE PIPE erly installed. Be sure to seat the hose completely so that PUMP CONNECTION there is no gap.
Uphill Installation OPERATIONAL GUIDE Suggested installation whenever the supply is START-UP located higher than the discharge point; typi- At start-up, purge all chemical gases and air cally a waste water ap- from the suction tubing, valves and pump plication. head. Start the pump. It is important to in- When all the air or gas is vented, the solu- stall the Injection valve...
Operating Pressure and Back Pressure 4. Switch the pump ON to the estimated setting and Operating pressure is a combination of back run for a specific amount pressure plus all of the other resistances to of time (e.g. 1 minute). flow present in your system.
exceed 1.5 meters (5 feet). Either lower the MAINTENANCE pump or raise the feed tank. • Check pumphead, suction Your BlackStone Pump is designed to give discharge valves for blockage. you years of trouble-free service. Mainte- Pump flow rate is reduced: nance should be the preventative type, that •...
Cleaning the Pumphead CHEMICAL COMPATIBILITY GUIDE The pumphead should be cleaned at regular intervals and at least once a year. Remove Partial Listing of Chemicals that can be the deposits that form in the cavities with a used with BlackStone Pumps solution that is neutral to the chemical the pump has been dosing.
HI 721008 Ceramic Weights, 4 pcs CE DECLARATION OF CONFORMITY HI 721101 Pumphead, O-Ring, 6 screws and washers HI 721106 (for BL7, BL10, BL15 and BL20) Pumphead Large PTFE Diaphragm Aluminum Piston Aluminum Disk HI 721107 (for BL1.5, BL3 and BL5) Pump-head Small PTFE Diaphragm Recommendations for Users...
Page 30
07WTM002681 57470-30 rG.qxd 3/26/07 4:22 PM Page 1 ITALIAN GERMAN User’ s Guide Istruzioni d’installazione • Controllare sempre i codici locali prima d’installare qualsiasi impianto di Installationsanleitung irrigazione. Jar Top Automatic In-Line Control Valve Installare la valvola in sette facili passaggi– •...
Page 31
07WTM002681 57470-30 rG.qxd 3/26/07 4:22 PM Page 2 FRANCAIS ENGLISH SPANISH • Always check local codes before installing any sprinkler system. Installation Instructions Instructions d’installation Instrucciones de instalación • Arrow indicates direction of water flow. Install the valve in seven easy steps— Pose de la vanne en sept étapes simples Instale la válvula siguiendo estos siete pasos–...
Page 32
Users ManUal ManUal del UsUario MoDels / MoDelos: 28954, 28956, 57854, 57856, 57874, 57876 PN 57874-24 rD dimensions: Printers are responsible for proof no: flat: w: 14" h: 5" meeting print production requirements. Any changes date: 09.13.11 finished: w: 7" d: " h: 5" must be approved by the colors des:...
Page 33
Table of Contents Congratulations on selecting your new easy Dial™ timer! With orbit’s exclusive easy-set logic™, simple programming and setup are Section 1: Get to know your timer . . . . . . . . . . . . . . . . .4 combined with the latest timer technology Section 2: Installation .
Page 34
Section 1: Get to know your timer Buttons Function Dial Position Function Dial AUTo set program is running automatically eNTeR To confirm a new setting Digital Display seT CloCk set clock time Battery Compartment MANUAl To water manually seT DATe Year, Month, and Day CleAR To clear a setting...
Page 35
Section 2: Installation 3. Connecting the Timer to Valves If the distance between the sprinkler timer and valves is under 700’ (210 m), use Orbit sprinkler wire or 20 gauge ® Wiring Electric Valves Required Tools (AWG) plastic jacketed thermostat wire to connect the Taking the sprinkler wire, strip 1/2”...
Page 36
Section 3: Programming with only connect one valve to 4. Connect Electrical Transformer Power Tip: To increase or decrease more rapidly, hold down each terminal (station) or either the [+] or [-] buttons until the display goes into Easy-Set Logic ™...
programmed run time (how long) will run in sequence on this screen the RUN TIMe or duration for each • selecting a different option or pressing clear will at each start time . station is set . erase the previous selection . example: odd: 1st, 3rd, 5th, etc .
Page 38
• Turn dial to [AUTO] [eNTeR] the timer will begin manual watering . Example: To manually water on station 3 for five 1 2 3 4 24VAC SENSOR COM minutes, press the [MANUAl] button then press • Press the [RAIN DelAY] button to automatically •...
Page 39
Section 5: Reference • Insert one CR2032 battery into the compartment with the + side up. • Slide back into place. To Remove TERM DEFINITION A weak or missing battery can cause the time, date, and program to be erased after a power failure . If sTART TIMe The time the program begins watering the first programmed station .
Troubleshooting HELP WARRANTY AND STATEMENT 1-800-488-6156 or 1-801-299-5555 orbit Irrigation Products, Inc . warrants to its customers ® that its products will be free from defects in materials PROBLEM POSSIBLE CAuSE www .orbitonline .com and workmanship for a period of six years from the date Before returning this sprinkler timer to the store, contact of purchase .
Page 41
Warning: Changes or modifications to this unit not expressly Caution: This appliance is not intended for use by young approved by the party responsible for compliance could void children or infirm persons without supervision. Young the user’s authority to operate the equipment. children should be supervised to ensure that they do not play with the appliance.
Page 42
Section 1: Conozca su temporizador Posiciones del Botones Función Función selector Selector eNTeR Para confirmar una nueva configuración el programa de configuración está Pantalla digital AUTo funcionando automáticamente . Compartimiento para baterías MANUAl Para regar manualmente AjUsTe Del Ajuste de la hora del reloj Reloj CleAR Para borrar una configuración...
Page 43
Sección 2: Instalación 3. Conecte el temporizador a las válvulas Nota: La carga máxima para cada estación/bomba es 250 mA (una válvula), la carga máxima para el temporizador es 500 mA. Cableado eléctricas Herramientas necesarias Si la distancia entre el temporizador del regador y las válvulas Tome el conductor del regador, pele 12,7 mm (1/2”) •...
Page 44
Sección 3: Programación con 4. Conexión de la alimentación eléctrica del transformador sólo conecte una válvula a • Presione los botones [ ] para configurar a .m ./p .m . cada terminal (estación) o se Easy-Set Logic Interiores – Conecte el conector de alimentación al •...
Page 45
Tenga en cuenta que la hoRA De INICIo es la hora del día sTATIoN es el área que regará cada válvula . en esta pantalla, - la pantalla mostrará la letra del programa (A o B) . Nota: Si su programa se pierde, el programa a prueba de fallos en que comienza su riego programado .
Page 46
Reemplazo de la batería • Si desea un retraso por lluvia más largo, presione los Nota: Si no se configuraron los tiempos de funcionamiento, Nota: Consulte el manual del detector de lluvia para obtener botones [+/-] para aumentar o disminuir la el temporizador no comenzará...
Page 47
Sección 5: Referencia Solución de problemas TÉRMINO DEFINICIÓN PROBLEMA CAuSA POSIBLE 1 . la conexión del solenoide no es la correcta . hoRA De INICIo la hora en que el programa comienza el riego la primera estación programada . 2 . el cable está dañado o cortado . suministra agua a una estación o área específicos .
Page 48
AYuDA Para utilizar su garantía, regrese la unidad al distribuidor con una copia del recibo de venta . 1-800-488-6156 or 1-801-299-5555 este dispositivo cumple con la sección 15 de las reglas de la FCC . el www .orbitonline .com funcionamiento está sujeto a las siguientes dos condiciones: (1) este Antes de devolver este temporizador de regador a la tienda, póngase en dispositivo no debe causar interferencia perjudicial, y (2) deberá...
Page 50
Mini Submersible / Fountain / Pond Pump Item 68372 Item 68389 Item 68393 Item 68395 Item 68396 Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL. When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
Page 51
7. The pump must be protected from frost. Before start-up: 8. The pump must be protected from running dry. The pump can be connected to any shock-proof plug which has been installed according to regulations. 9. Access by children should also be The plug must have a supply voltage of 120 V~ at 60 Hz.
3. When the plug is inserted into the socket the pump will operate. Save This Manual WARNING! If the power cord or plug is damaged, Keep this manual for the safety warnings and precautions, do not use the pump. The power cord or plug assembly, operating, inspection, maintenance and may only be repaired by a certified electrician.
Page 53
Quarterly Maintenance Maintenance The below maintenance should be performed at least once every 3 months under optimal conditions. If pump starts to sound abnormal, unplug it and check the Impeller by doing the following: 1. Remove the front cover and filter/regulator TO PREVENT SERIOUS INJURY FROM (depending on particular pump).
68372 Parts List and Assembly Diagram PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
Page 55
68393 Parts List and Assembly Diagram Parts List Part Description Part Description Front Cover Power Cord Filter Cord Clamp Water Seating String Block Impeller Head Back Cover Impeller Plug Impeller Shaft Grounded Terminal Suction Cups Frame Water Outlet Sealing Ring Pump Body Shaft Cover Motor...
Page 56
68393 Parts List and Assembly Diagram Parts List Part Description Part Description Extension Right Adjustment Lever Star Outlet Extension Valve Foam Outlet Main Outlet Bell Outlet Lower Connector Top Connector Adapter Left Adjustment Lever Assembly Diagram SKU 68372 - 68396 For technical questions, please call 1-800-444-3353.
Page 57
68395 Parts List and Assembly Diagram Parts List Part Description Part Description Front Cover Power Cord Filter Cord Clamp Water Seating String Block Impeller Head Back Cover Impeller Plug Impeller Shaft Suction Cups Holder Suction Cups Sealing Ring Water Outlet Shaft Cover Pump Body Sealing Ring...
Page 58
68395 Pump Extension Parts List and Assembly Diagram Parts List Part Description Part Description Extension Right Adjustment Lever Bell Outlet Extension Valve Star Outlet Main Outlet Left Adjustment Lever Adapter Assembly Diagram SKU 68372 - 68396 For technical questions, please call 1-800-444-3353. Page 9...
Page 59
68396 Parts List and Assembly Diagram Parts List Part Description Part Description Front Cover Motor Regulator Magnet Wire Suction Cup Cord Clamp Water Seating Back Cover Impeller Head String Block Impeller Power Cord Impellor Shaft Plug Pump Body Assembly Diagram Page 10 For technical questions, please call 1-800-444-3353.
Page 60
68389 Parts List and Assembly Diagram Parts List Part Description Part Description Regulator Pump Housing Front Cover Motor Water Seating Magnet Wire Impeller Head Cord Clamp Impeller String Block Impeller Shaft Power Cord Sealing Ring Back Cover Suction Cup Plug Water Outlet Assembly Diagram SKU 68372 - 68396...
Page 61
Items 68372, 68393 and 68395: Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
Page 63
TJERNLUND PRODUCTS, INC. 1601 Ninth Street • White Bear Lake, MN 55110-6794 PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547 Visit our web site • www.tjernlund.com CRAWL SPACE VENTILATOR MODELS V1, V1D, V2D READ OWNERS INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION. THESE INSTRUCTIONS MUST REMAIN WITH EQUIPMENT.
Page 64
INSTALLATION The Crawl Space Ventilator must be installed by a qualified installer in accordance with these instructions and all local codes or in their absence in accordance with the latest editions of the International Residential Code and International Electrical Code. Improper installation can create a hazardous condition such as fire, electric shock or personal injury. To reduce these risks significantly, use this unit only in the manner intended by the manufacturer.
Page 65
WIRING WIRING A SINGLE MODEL V1 120 VAC GROUND 50/60 Hz T-STAT OPTIONAL SWITCH V1 ELECTRICAL BOX 8050001 PROVIDED BY INSTALLER WIRING MULTIPLE MODEL V1’s 120 VAC GROUND 50/60 Hz T-STAT OPTIONAL SWITCH V1 ELECTRICAL BOX PROVIDED BY INSTALLER T-STAT V1 ELECTRICAL BOX 8050002 MODEL V1D INTERNAL WIRING...
Page 66
REPLACEMENT PARTS Component Part Number Dehumidistat DH10 Thermostat 950-8302 950-0020 WARRANTY TJERNLUND LIMITED ONE YEAR WARRANTY Tjernlund Products, Inc. warrants to the original purchaser of this product that the product will be free from defects due to faulty materi- al or workmanship for a period of (1) year from the date of original purchase or delivery to the original purchaser, whichever is earlier. Remedies under this warranty are limited to repairing or replacing, at our option, any product which shall, within the above stated war- ranty period, be returned to Tjernlund Products, Inc.
