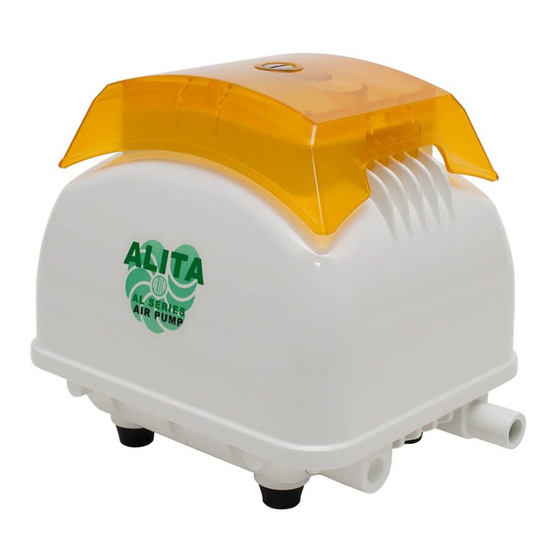

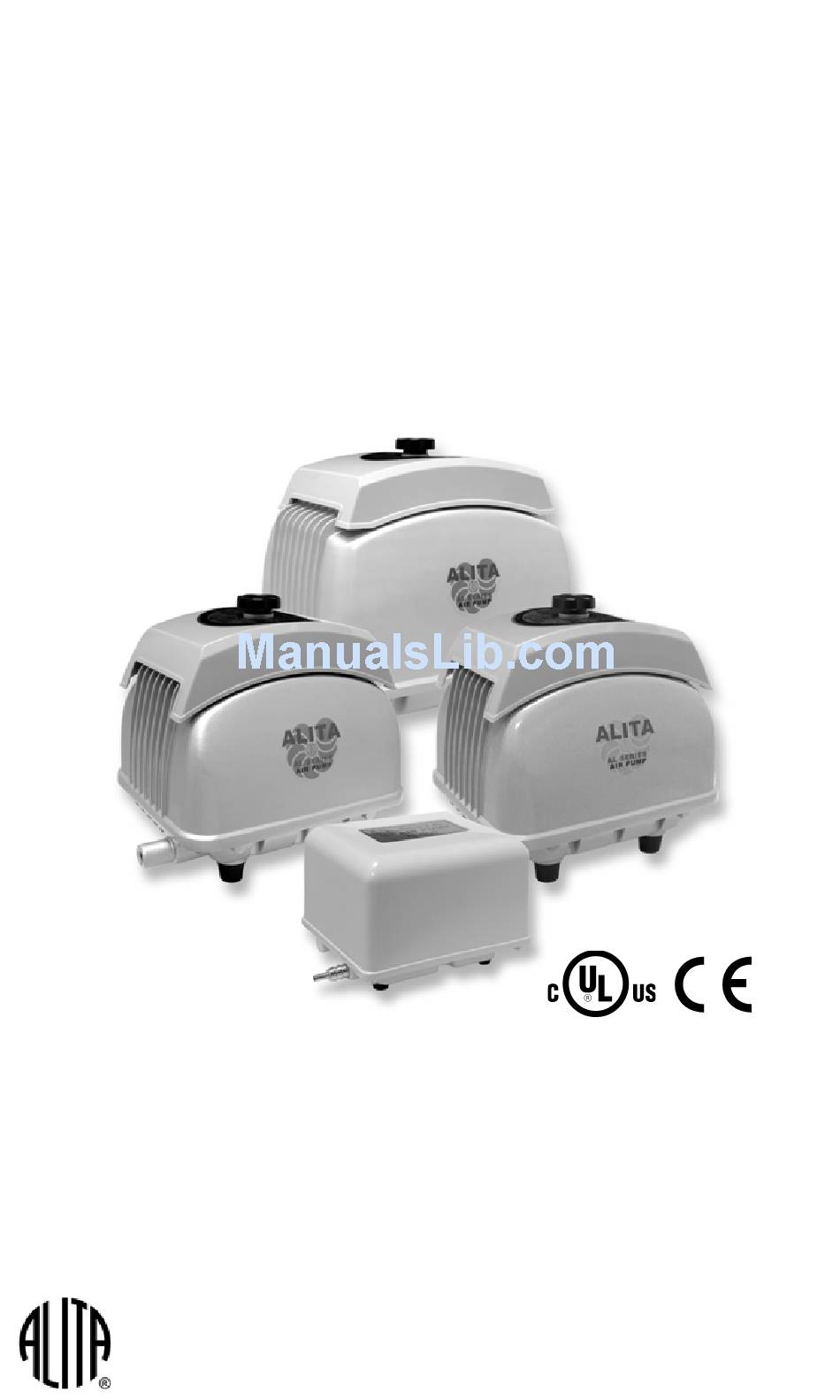

- Page 1 ALITA LINEAR AIR COMPRESSORS ® & M PERATION AINTENANCE ANUAL AL-30, AL-40, AL-60, AL-80 ODELS AL-100, AL-120, AL-150, AL-200 AL-250, AL-300, AL-350, AL-400 ALITA INDUSTRIES, INC. Efficient and Reliable Air Moving Products...
- Page 2 Remember to mail in your Warranty Registration Alita Industries has made every effort to ensure the correctness and completeness of the materials in this document. Alita Industries shall not be liable for errors contained herein. The information in this document is subject to changes without notice. Alita Industries shall not be liable for any errors or for incidental or consequential damages in connection with the furnishing, performance, or use of this document.
-
Page 3: Limited Warranty
ALITA Limited Warranty covers only those defects which arise as a result of normal use of the product and do not apply to any: (a) defect or malfunctions resulting from failure to properly install, operate or maintain the ALITA product in accordance with printed instructions provided;... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Special care should be taken when operating an electrical device. To avoid serious or fatal personal injury or major property damage, read and follow all safety instructions in manual and on pump. WARNINGS • DO NOT operate pump in the vicinity of explosive or flammable materials, liquids or gases. -
Page 5: Pipe Sizing
For outdoor installations, shaded area that shelters from excessive weathering is ideal. Do not allow pump to swelter under intense sun and avoid places with excessive dust or debris. The ambient operating temperature for this pump is between 5°C (41°F) and 40°C (104°F). -
Page 6: Maintenance Instructions
1. Set pump upside down (remove filter cover for stability if required), unscrew and remove all upper housing screws. Then return pump to upright position and lift away upper housing. Number of housing screws: AL-30~80 (4x), AL-100~200 (6x), AL-250~400 (12x) 2. - Page 7 In case of unusual noise or odor from the pump, turn off the power immediately, consult the maintenance guide, or contact your nearest pump representative or Alita service department for assistance. PARTS PARTS DIAPHRAGM...
- Page 8 Assembly Diagram for Models AL-40 ~ AL-80 Cover Bolt Filter Cover Semi Cover Packing Air Filter Pad Upper Pump Housing Diaphragm Electromagnets Housing Hex Nut Diaphragm Diaphragm Diaphragm Frame Block Hex Nut Core Frame Magnetic L-tube Diaphragm Block Silicone Band Diaphragm Housing Power Plug...
- Page 9 Assembly Diagram for Models AL-100 ~ AL-400 Cover Bolt Filter Cover Models AL-100~120 AL-250 Dual Core Semi Cover Packing Air Filter Pad Protective Switch Upper Pump Housing Hex Nut Diaphragm Magnetic Rod Diaphragm Frame Models AL-150~200 Diaphragm Housing Core Frame AL-300~400 Dual Core Diaphragm Frame Diaphragm...
-
Page 10: Troubleshooting Guide
Check for any damage to magnetic rod. Contact ALITA for assistance and procure replacement parts. If none of the prescribed solution can help you resolve your pump problem, contact ALITA for repair service instructions. DO NOT ATTEMPT to repair the pump on your own. - 9 -... - Page 11 For repair or service, contact your Alita representative or Alita Industries first for instructions and to receive an authorization number prior to sending of the pump. Alita Industries will not be responsible for any lost or misdirected package. When sending a pump for service or repair, please include the following: Dated proof of purchase.
- Page 12 ALITA INDUSTRIES, INC. PO Box 660923, Arcadia, CA 91066-0923, USA Phone: (626) 962-2116 On-Line: www.alita.com E-mail: info@alita.com...
