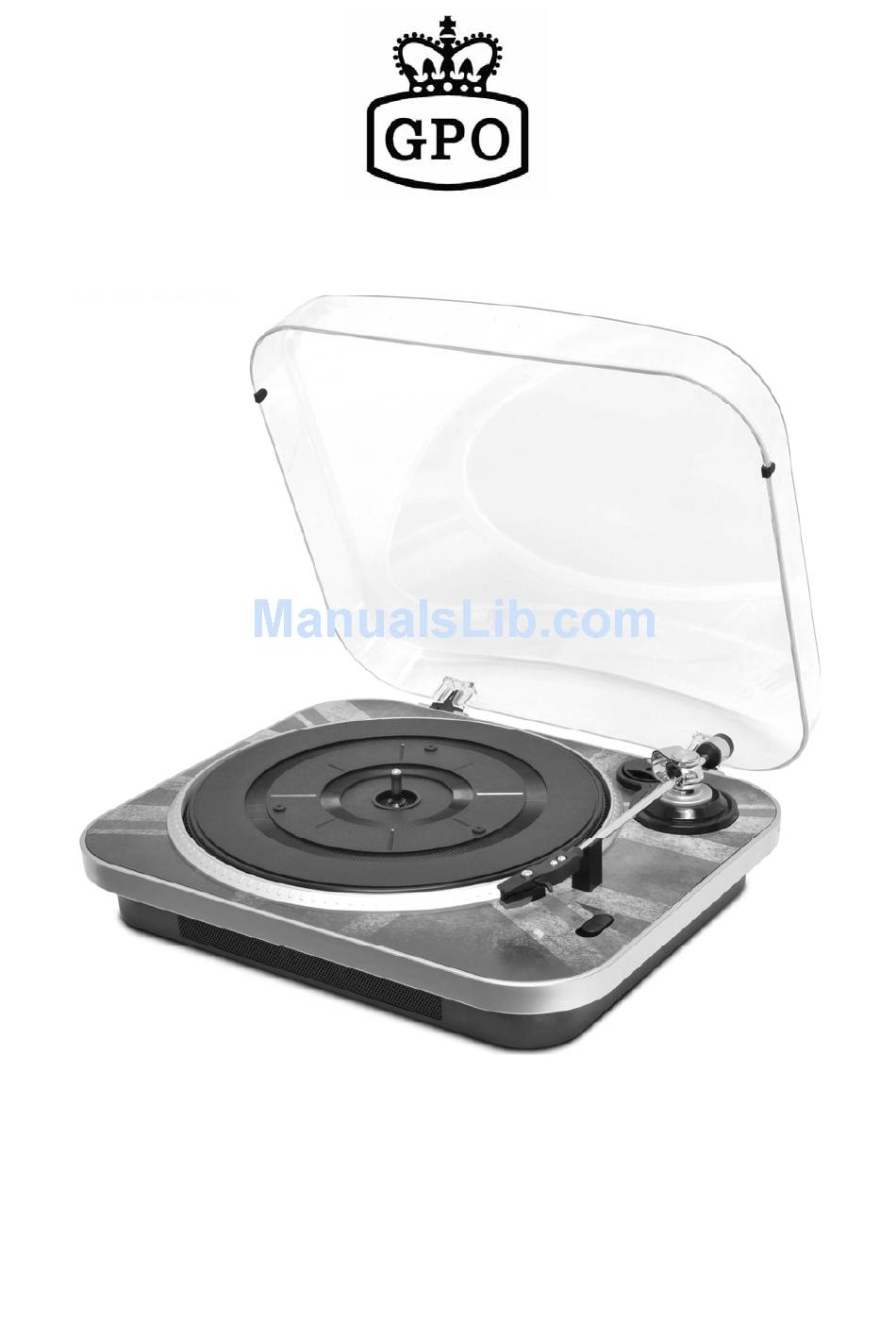

  • Page 1 OPERATING MANUAL TURNTABLE MODEL: GPO JAM Please read carefully this manual and keep it for future reference.

  • Page 2: Table Of Contents

    CONTENT IMPORTANT SAFETY INSTRUCTIONS FOR AUDIO PRODUCTS - READ THROUGH ......1 PRECAUTIONS ........................... 3 BEFORE USE ............................4 HOW TO REPLACE THE TURNTABLE STYLUS (NEEDLE) ..............4 LAYOUTS ............................4 PART I: MAIN FUNCTION ........................5 LINE OUT ............................5 PHONOGRAPH ...........................
  • Page 3 from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

  • Page 4: Precautions

    21. Safety Check - Upon comple of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper opera ng 22. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

  • Page 5: Before Use

    Before Use 1. Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from sources that hum, such as transformers or motors. 2.

  • Page 6: Layouts

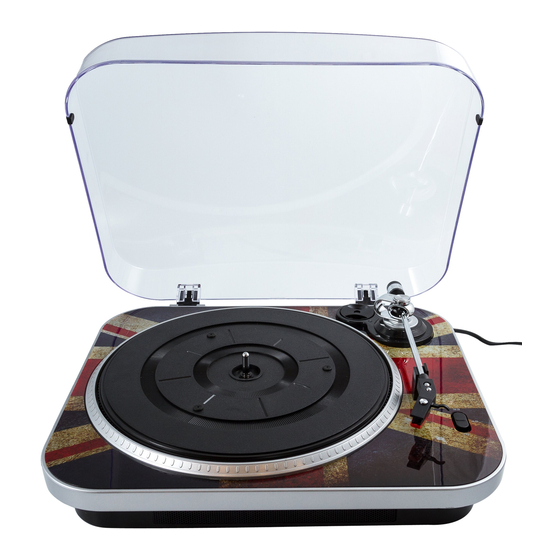

    Layouts 1. 45 RPM ADAPTOR 2. TONE ARM CONTROL INDICATOR 3. DECORATION (NOT FOR ADJUSTMENT TO THE TONE ARM) 4. TONE ARM 5. TONE ARM REST 6. SPEED SELECTOR 7. STYLUS 8. NEEDLE COVER 9. TURNTABLE 10. ATMOSPHERE LIGHT 11. BUILT-IN SPEAKERS 12.

  • Page 7: Part Ii: Audacity Software

    arm on the edge of the record and the record starts playing. NOTE: You’re strongly recommended to play records with transparent dust cover closed. Also, please don’t place anything on top of dust cover especially playing a record. 7. To pause or stop playing, you need to lift and move the tone arm back to the tone arm rest manually.
  • Page 8 3. Double click the Audacity_for_WIN for Windows system, and double click the audacity-win-2.0.2 to install the audacity software. Installing the Audacity Software 1. Select the setup language first and click on OK to continue. 2. The Audacity Setup Wizard will appear. Click on Next to install the software.
  • Page 9 3. Continue to click on the Next buttons.
  • Page 10 4. Click on the Install button to start installation.

  • Page 11: Configuring Audacity For Microsoft Windows

    5. Click on Next to continue. 6. Click on Finish to complete installation. 7. You can now open the Audacity software and start recording your files. NOTE: Once you set up Audacity, you do not need to re-set it with each use. (For additional information, visit the Audacity website at http://audacity.sourceforge.net) Configuring Audacity for Microsoft Windows Audacity Interface...
  • Page 12 Audacity Control Buttons the attribute controls button at the top of the screen to go to beginning, Pause, Play, Stop and Record etc. Use the File, Edit, View, Transport, Tracks, Generate, Effect and Analyze menus to Save, Export, and edit the music. 1.
  • Page 13 HOW TO USE AUDACITY 1-Launch AUDACITY. your turntable place your record want encode. 3- Launch the record and push Record button (red one).
  • Page 14 You can see the recording in blue. 4- Push Stop to stop the recording (yellow button). 5- To record your file, go into Files and then click on ‘Export as MP3’.
  • Page 15 7- For example, you can record your file into Music. 8- Click on record. Your MP3 file is kept into your menu.
  • Page 16 9- You can also change the settings you prefer. 10- The options menu opens to set your preferences.

  • Page 17: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If you experience any problems with your unit, kindly consult the following guide prior to calling your dealer. NO SOUND: • If you are not getting any sound into the software application, go back to the preferences as shown above and make sure that you have selected the USB Audio Controller for the recording device in the devices.
  • Page 18 Problem Cause Solution Power does not come Connect the unit to the on when the unit is Unit is unplugged. AC power supply. switch on. The volume is turned Adjust the volume. down (to MIN). No sound comes out of the speakers.

  • Page 19: Specification

    Specification AMPLIFIER section Output Power……………………………………………..… 0.8W + 0.8W Frequency Response……………………………………… 60 TO 20,000 Hz PHONOGRAPH section Motor……………………………………………………….…… DC servo motor Drive system…………………………………………………. Belt drive Speeds………………………………………………………….. 33-1/3 rpm, 45 rpm and 78 rpm Wow & Flutter………………………………………………. Less than 0.25% (WTD) S/N ratio……………………………………………………….. More than 35 dB Cartridge type………………………………………………..
  • Page 20 WARRANTY & SUPPORT Your ProTelX product has been carefully manufactured and 100% tested using high quality assured components. It is guaranteed against faulty workmanship and materials for a period of 12 months from the date of purchase. In the unlikely event that failure should occur, the unit will be repaired or replaced free of charge when returned postage paid to the address below within the guarantee period.
