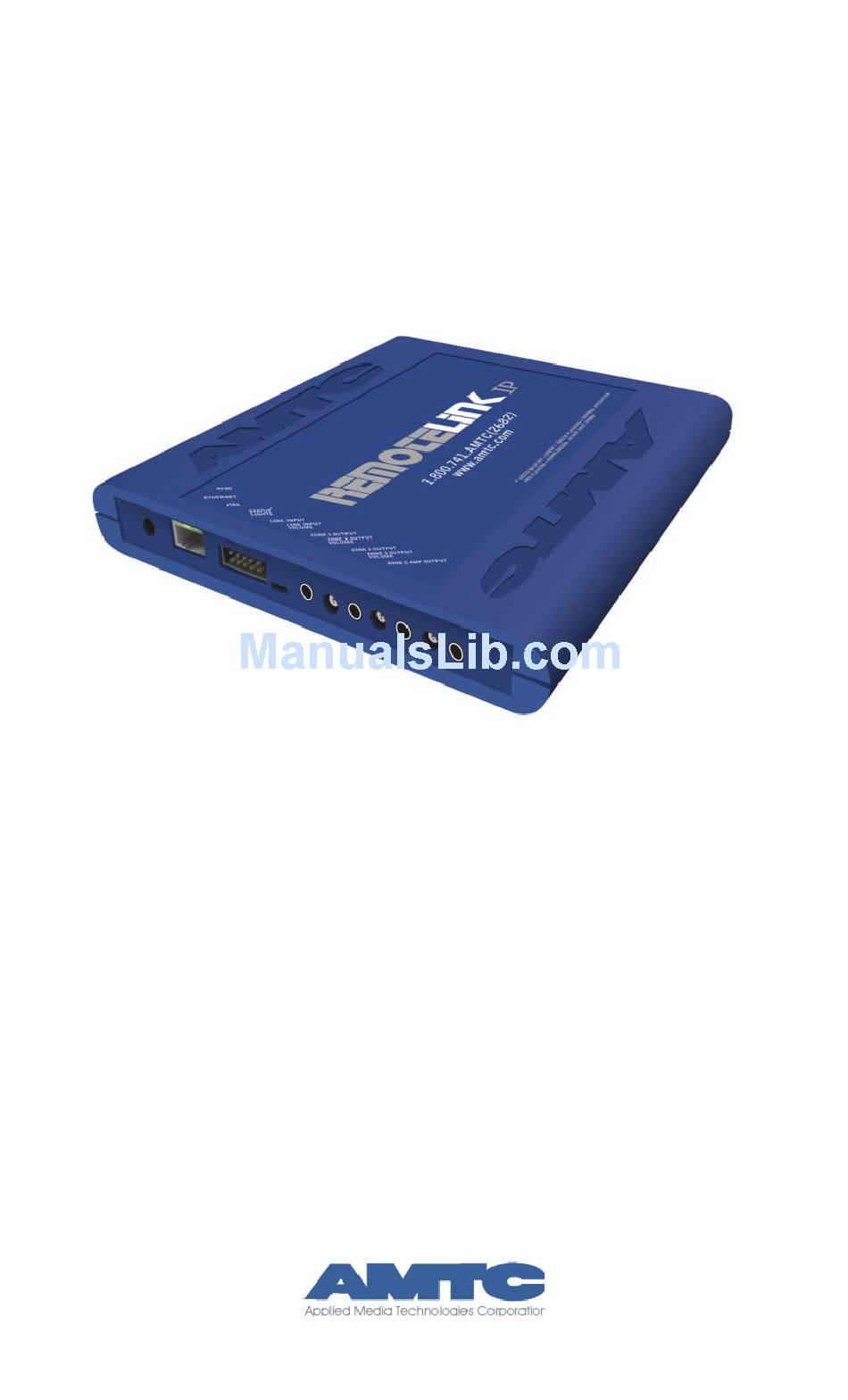

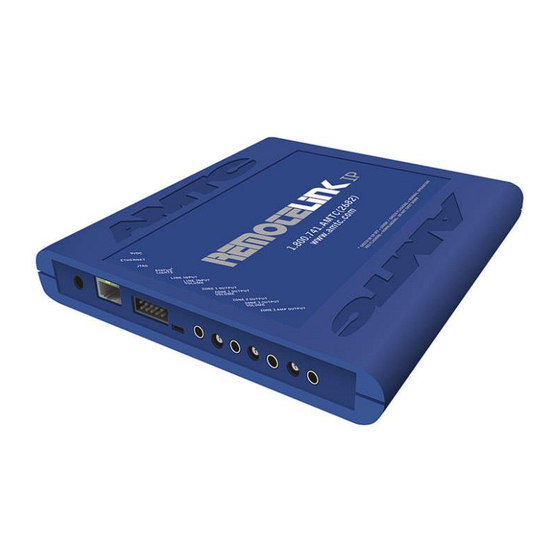

RemoteLink IP Digital Media Player
Installation and Operation Guide
IMPORTANT!
THIS DEVICE REQUIRES ACCESS TO AMTC SERVERS
VIA AN INTERNET CONNECTION. CERTAIN
ROUTER/FIREWALL CONFIGURATIONS ARE REQUIRED.
SEE INSIDE COVER FOR DETAILS.
4091 AMTC Center Drive
Clearwater, FL 33764-6976
(727)531-3105
(727)531-3965
www.amtc.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AMTC RemoteLink
Summary of Contents for AMTC RemoteLink
- Page 1 RemoteLink IP Digital Media Player Installation and Operation Guide IMPORTANT! THIS DEVICE REQUIRES ACCESS TO AMTC SERVERS VIA AN INTERNET CONNECTION. CERTAIN ROUTER/FIREWALL CONFIGURATIONS ARE REQUIRED. SEE INSIDE COVER FOR DETAILS. 4091 AMTC Center Drive Clearwater, FL 33764-6976 ...
- Page 2 MODEL, AND REQUIRE I.T. EXPERTISE. AMTC CANNOT ASSIST YOU WITH ROUTER/FIREWALL CONFIGURATION. The RemoteLink IP is PCI-compliant. Files cannot be loaded directly into the Remotelink IP. Files are obtained solely from the servers listed above. The device’s MAC address is:...
- Page 3 SAFETY INSTRUCTIONS – Please read before opening your player! The RemoteLink IP player was designed and manufactured by AMTC to meet strict quality and safety standards. There are, however, some precautions that you should be particularly aware of: Read Instructions – This guide should be read thoroughly prior to operating the unit.
- Page 4 OUTPUT POWER CONNECTOR ZONE 1 INPUT OUTPUT (FACTORY USE ONLY) ZONE 2 LINE STATUS LIGHT OUTPUT INPUT ETHERNET VOLUME VOLUME CONNECTOR LINE ZONE 2 INPUT LINE OUTPUT AMTC RemoteLink IP Digital Media Player Installation and Operation Guide 5/24/2012 Page 4...
- Page 5 IMPORTANT! If your phones are not connected to a central “control box” (a.k.a. KSU, or Key Service Unit), you will need a special adapter to give you MOH capability. Call AMTC Technical Support for information about this adapter.
- Page 6 This cable probably has a 3.5mm mono male connector on the end, which is the type of output connectors used on the RemoteLink IP player. Simply remove this connector from the radio or CD/tape player headphone connector and plug it into either ZONE 1 OUTPUT or ZONE 2 OUTPUT of the RemoteLink IP player.
- Page 7 5. Connect power adapter to wall outlet and 9VDC POWER INPUT. Avoid using any circuit that is also powering any heavy equipment or appliances, particularly air conditioners or refrigeration equipment. We AMTC RemoteLink IP Digital Media Player Installation and Operation Guide 5/24/2012 Page 7...
- Page 8 Assuming your audio output connection(s) is(are) correct, when you connect power you should hear three short diagnostic tones, followed by one tone of a higher pitch. This indicates that the RemoteLink has connected to your network. It does NOT indicate that the player has connected to our servers via the internet.
- Page 9 NOTE: When the player is in download mode, playback of audio is suspended. So that this does not result in interruption of service during business hours, the RemoteLink IP may be set to poll only during non- business hours. This setting is made via the website. When setting this polling “window”, ensure that you provide a window long enough for the...
- Page 10 PA amplifier. If an external music source is connected, its volume should be adjusted to match the volume of the files played by the RemoteLink IP. While the RemoteLink IP is playing, adjust the LINE INPUT VOLUME so that the external audio source cannot be heard.
- Page 11 Liability for any defect is limited to repair or replacement of this product at the option of AMTC. AMTC shall not be liable for damage to other products caused by defects in this product, damages based on inconvenience or loss of use of this product, or any other damages, whether incidental, consequential or otherwise.
- Page 12 Power Adapter: Input / Output: 110-120VAC / 9VDC, 500mA ©2012 Applied Media Technologies Corporation. All rights reserved. Subscription governed by Applied Media Technologies Corporation Terms & Conditions agreed to at time of purchase. AMTC RemoteLink IP Digital Media Player Installation and Operation Guide 5/24/2012 Page 12...
