GMC Yukon User Manual

2008 full-size truck navigation
Hide thumbs Also See for Yukon:
Table of Contents

Advertisement

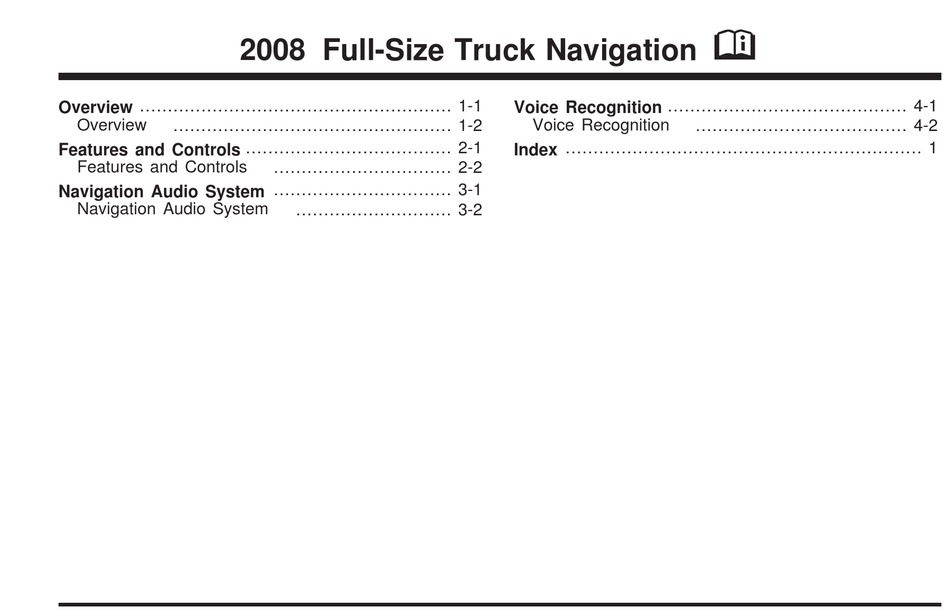

Overview ........................................................ 1-1
Overview
.................................................. 1-2
Features and Controls ..................................... 2-1
Features and Controls
Navigation Audio System ................................ 3-1
Navigation Audio System
2008 Full-Size Truck Navigation
................................ 2-2
............................ 3-2
Voice Recognition ........................................... 4-1
Voice Recognition
Index ................................................................ 1
M
...................................... 4-2

Advertisement

Table of Contents
loading

Summary of Contents for GMC Yukon

  • Page 1 2008 Full-Size Truck Navigation Overview ............1-1 Voice Recognition ........... 4-1 Overview Voice Recognition ..........1-2 ........4-2 Features and Controls ........2-1 Index ..............1 Features and Controls ........ 2-2 Navigation Audio System ........ 3-1 Navigation Audio System ......3-2...
  • Page 2 For vehicles first sold in Canada, substitute the name General Motors of Canada Limited for Chevrolet GENERAL MOTORS, GM, the GM Emblem, Motor Division, GMC, or HUMMER whenever it appears CHEVROLET, the CHEVROLET Emblem, and the in this manual.
  • Page 3: Canadian Owners

    Canadian Owners Propriétaires Canadiens On peut obtenir un exemplaire de ce guide en français A French language copy of this manual can be auprès de concessionnaire ou à l’adresse suivante: obtained from your dealer/retailer or from: Helm Incorporated Helm, Incorporated P.O.
  • Page 4 ✍ NOTES...
  • Page 5 Section 1 Overview Overview ............1-2 Navigation System Overview ......1-2 Getting Started ..........1-4 Cleaning the Video Screen ......1-11...
  • Page 6: Overview

    Overview Navigation System Overview Screen Shown with Map Disc Inserted...
  • Page 7 A. Map Disc DVD Slot. See “Installing the Map DVD” (Zoom In) Touch Screen Button. See “Map under Maps on page 2-4 for more information. Scales” under Maps on page 2-4 for more B. FULL MAP Touch Screen Button. See “NAV” under information.
  • Page 8: Getting Started

    V. MENU Hard Key (Settings and Preferences). See The navigation system includes navigation and audio Configure Menu on page 2-29 for more information. functions. ¨ While the vehicle is parked: SEEK (or Next) Key. See Navigation Audio System on page 3-2 for more information. •...
  • Page 9 The navigation system lets you: • CAUTION: Plan a route with provided turn-by-turn route and map guidance with voice prompts. • Select a destination using various methods and This system provides you with a far greater choices. access to audio stations and song listings. Always be alert and obey traffic and roadway laws and Giving extended attention to entertainment instructions, regardless of the guidance from the...
  • Page 10: Language — English/Metric

    Language — English/Metric To change the language of the navigation screens, see “Driver Information Center (DIC)” in your vehicle’s owner manual index for more information. To change the navigation screens from English or metric, see “DIC Operation and Displays” in your vehicle’s owner manual index for more information.
  • Page 11: Setting The Clock

    Storing Radio Station Presets Setting the Search Area, Entering an Address and Point of Interest, and To set preset radio stations, do the following: Storing Preset Destinations 1. Press the (power) knob to turn the system on. Before entering an Address, Point of Interest, Home, or 2.
  • Page 12: Entering An Address

    Entering an Address 7. The City name category will automatically be selected for entry. Start entering the city name. If you are having trouble finding a city or a street name, If five or less names are available for the entered do the following: characters, a list will display.
  • Page 13 10. Once a street has been selected, the numeric 4. A caution may appear. Touch the OK screen button keyboard will display, allowing you to enter the to proceed. house number. The system will display the house 5. Press the DEST hard key. number range that is available for the street.
  • Page 14: Using Your Stored Preset Destinations

    Storing Preset Destinations 9. Press and hold one of the screen buttons at the bottom of the screen until a pop-up confirmation 1. If the radio is already on with a map disc inserted, displays. skip to Step 5. The name will appear in that preset destination 2.
  • Page 15: Canceling Guidance

    Guidance Volume 5. Press the DEST hard key. 6. Select one of the available preset destination To adjust the volume of voice guidance prompts, screen buttons. A map screen, with the destination do the following: marked, will appear. 1. Press the MENU hard key to enter the menu 7.
  • Page 16 ✍ NOTES 1-12...
  • Page 17: Table Of Contents

    Section 2 Features and Controls Features and Controls ........2-2 Global Positioning System (GPS) ....2-42 Using the Navigation System ......2-2 Vehicle Positioning ........2-43 Maps ............2-4 Problems with Route Guidance .......2-44 Symbols ............2-8 If the System Needs Service ......2-44 Destination ..........2-14 Ordering Map DVDs ........2-45 Configure Menu ..........2-29 Database Coverage Explanations ....2-45 Rear Vision Camera (RVC) ......2-37...
  • Page 18: Features And Controls

    Features and Controls (Tune/Speaker Adjustment): Press this knob to access the Sound screen to adjust bass, midrange, treble, and equalization or Digital Signal Processing Using the Navigation System ® (DSP), if the vehicle has the Bose sound system. Turn the tune knob to go to the next or previous radio This section presents basic information needed to station.
  • Page 19: Alpha-Numeric Keyboard

    Alpha-Numeric Keyboard FAV (Favorite): Press this key to access the preset stations. See “Storing Radio Station Presets” under Letters of the alphabet, symbols, punctuation, and Navigation Audio System on page 3-2 for more numbers, when available, will display on the navigation information.
  • Page 20: Maps

    Installing the DVD Map Disc If a name does not display after entry, it may need to be entered differently, the map DVD disc may not contain When a DVD Map Disc is installed, noise from the disc that information, or the correct search area has not been may occur when entering the vehicle and turning the selected.
  • Page 21: Ejecting The Dvd Map Disc

    Ejecting the DVD Map Disc When the DVD map disc is not loaded, you will not be able to use the navigation portion of the system. 1. Press the MENU key to enter the Menu options, then press the MENU key repeatedly until Nav is selected or touch the Nav screen button.
  • Page 22: Handling The Dvd Map Disc

    Handling the DVD Map Disc DVD Map Disc Messages When handling the DVD map disc, be careful of the If Disc Read Error appears on the display and/or the following: disc comes out, it could be for one of the following reasons: •...
  • Page 23 Map Scales If scrolling while your vehicle is in PARK (P), the system will scroll initially at a slower rate. It will increase if you continue touching the map screen. (Zoom In/Zoom Out): Touch the zoom in or out screen buttons or the scale on the bar to change the If scrolling while your vehicle is in motion, you have one level of map detail.
  • Page 24: Symbols

    Symbols The waypoint symbol will display on the map after a waypoint has been The following symbols are the most common symbols added to your route. that will appear on a map screen. Your vehicle is shown as this symbol. It indicates the current position and heading direction of The waypoint symbol will be numbered from one...
  • Page 25 This symbol only appears when time is not available or The north up symbol when you are scrolling on the map. indicates the map with North Up, known as The distance and time North Up mode. to destination symbol indicates the distance and the estimated time remaining to your final destination or arrival time,...
  • Page 26: Map Screen

    Displaying Points of Interest (POI) on the The No GPS symbol will appear when your vehicle Map Screen is not receiving a Global Positioning System (GPS) Touch anywhere on the satellite signal. map to display the POI (Point of Interest) screen button.
  • Page 27 Select one of the POI categories to display or to delete POI Close to: Once a category has been selected, POI icons from the map screen. Once a category select this screen button to display the list of available has been selected, the POI icon will display at the top POIs for the selected POI categories.
  • Page 28 Add to Address Book: Press this screen button to List all Categories: Select this screen button to list all add this POI to the address book. See “Nav” under POIs sorted alphabetically. Configure Menu on page 2-29 for information on editing Clear: To delete a category, do one of the following: address book entries.
  • Page 29: Driving On A Route

    Driving on a Route When a destination has been routed and you are driving on route, the map screen will automatically display the next maneuver. This next maneuver pop-up will display the next maneuver direction and how many miles or kilometers you are from it.
  • Page 30: Destination

    Traveling Across Regions Destination If you plan to drive across many states, you may have Press the DEST key to access the Destination Entry to change the region selected to represent the area screen. From this screen, you can select from several you are traveling to.
  • Page 31: Search Area

    Search Area highlighted on the map. Touch the down arrow to select CAN (Canada). Touch the back screen button to return to The Destination Entry screen allows you to select the the Destination Entry screen and to store the selected area included in the search for your destination.
  • Page 32 If using the alpha keyboard, finish entering the city name. If five or less names are available, a list will display. If more than five are available, there will be a screen button with a number in it, it represents the number of available cities.
  • Page 33 To enter a destination by entering the street name first, 6. Once a city has been selected, the numeric do the following: keyboard will display, allowing you to enter the house number. The system will display the 1. Press the DEST hard key. house number range that is available for the street.
  • Page 34 Point of Interest (POI) 4. Select the desired street name with the correct prefix from the list (Dr., Ln., St., etc.). The Point of Interest (POI) destination entry method 5. Once a street has been selected the Cross Street allows you to select a destination from the POI list. screen button will become available.
  • Page 35 To use the point of interest destination entry method by 3. Select the Browse POI screen button to view the entering the name, do the following: list of POI categories. 1. Press the DEST hard key. 4. Select a category, and then a sub-category. The system will display available POI names in the 2.
  • Page 36: Previous Destination

    Previous Destination To use the previous destination entry method: 1. Press the DEST hard key. The previous destination entry method lets you select a destination from a list of previous destination points. 2. Select the Previous Destination screen button. 3. Select a previous destination from the list. Use the arrow to the right of the destination to view the entire destination name as necessary.
  • Page 37: Address Book

    Address Book To use the address book entry method, do the following: 1. Press the DEST hard key. The address book entry method allows you to select a destination by selecting an address that has been 2. Select the Address Book screen button. stored in your address book.
  • Page 38 Pick from Map 3. Use the screen buttons and touch on the map to find the area that you would like to select This destination entry method allows you to select a as your destination. destination by scrolling on the map. Pressing/holding and dragging your finger on the map activates fast scrolling.
  • Page 39 Map Coordinates 3. Select the Map Coordinates screen button. 4. Touch N (north) or S (south) next to Lat. (latitude) The coordinates destination entry method lets you to enter the direction of the latitude coordinate. select a destination by entering latitude and longitude Enter the numeric portion of the latitude coordinate.
  • Page 40 Preset Destination The preset destination entry method lets you set a destination by selecting from one of five previously stored destinations. Besides voice tagged destinations, these are the only destinations available to set while the vehicle is moving. If a destination is not set for one of the screen buttons, the button is dimmed and not available for use.
  • Page 41: Getting Started On Your Route

    Getting Started on Your Route Turn List Turn List: Touch this screen button to view the list of Once you have entered a destination there are several turn maneuvers for the entire route and to avoid turns on functions that can be performed. Press the DEST the route.
  • Page 42 Avoid List: Select this screen button to cancel an (Reverse Scroll): Select this screen button to avoided turn. The list of selected avoided turns scroll to the start point or previous waypoint. This will display. Select the turn to cancel the turn from button will toggle between slow and fast speed.
  • Page 43 Voice Prompt To add a waypoint: 1. Press the DEST hard key. Select this screen button from the Route screen to turn voice prompts on or off and to change the volume of 2. Select the Add Waypoint screen button. This button voice prompts.
  • Page 44: Adding Destinations To The Address Book

    Adding Destinations to the To delete a waypoint from your current route: Address Book 1. Press the DEST hard key. 2. Select the Delete screen button for the desired There are two ways to add a destination to the waypoint to delete. address book: 3.
  • Page 45: Configure Menu

    Configure Menu To store the current final destination as a preset destination: 1. Select the Mark screen button from the map screen to add the current final destination. The Address Book screen will appear. 2. Select the Name screen button. An alpha-keyboard will display.
  • Page 46: Nav (Navigation)

    Sound Nav (Navigation) Press the MENU key to enter the Menu options, then press the MENU key repeatedly until Sound is selected or touch the Sound screen button to make speaker and equalization or DSP (Digital Signal Processing), ® if equipped with the Bose sound system, adjustments.
  • Page 47: Route Preference

    Voice Prompt Route Preference Touch the Route Preference screen button to change Voice Prompt: Touch the Voice Prompt screen button route options when the system calculates a route. to change the volume of the voice prompts or to turn voice guidance on and off. Allow highway: This feature lets the system use major Voice Prompt Volume: Touch the + (plus) or −...
  • Page 48 Edit Address Book — How to Add To add or change the phone number of an address book entry: To add an address to the address book, see “Adding Destinations to the Address Book” under Destination on 1. Select the MENU hard key. page 2-14.
  • Page 49 To add a voice tag to an address book entry: To delete the entire address book: 1. Select the MENU hard key. 1. Select the MENU hard key. 2. Select the NAV screen button. 2. Select the NAV screen button. 3.
  • Page 50 Map Database Information A. Map DVD Slot Touch the Map Database Information screen button to change the map DVD and to view the coverage areas of Once the map DVD is loaded touch the Close screen the map DVD. button. The screen will close. Change: Touch this screen button to eject or change Once the screen is closed touch the OK screen button the map DVD.
  • Page 51: Low Fuel Warning

    Low Fuel Warning To turn the Low Fuel Warning on or off, do the following: 1. Press the MENU key. 2. Press the Nav screen button. 3. Press the Low Fuel Warning ON or OFF screen button. The active button will be highlighted. When on, a warning will appear on the display when your vehicle’s fuel tank is low on fuel.
  • Page 52: Display Off

    Off-Road Mode Display To turn the Off-road mode on or off, do the following: 1. Press the MENU hard key. 2. Press the Nav screen button. 3. Press the Off-Road mode ON or OFF screen buttons. The active button is highlighted when the feature is on.
  • Page 53: Rear Vision Camera (Rvc)

    Brightness/Contrast/Mode Night: Touch this screen button and the system will make the map background darker. Day: Touch this screen button and the system will make the map background brighter. Setting the Clock Press the MENU key to enter the menu options, then press the MENU key repeatedly until the time is selected or touch the time screen button, then press the Set screen button.
  • Page 54 Turning the Rear Vision Camera System On or Off CAUTION: To turn the rear vision camera system on or off, do the following: The Rear Vision Camera (RVC) system does 1. Shift into PARK (P). not replace driver vision. RVC does not: •...
  • Page 55 The image is provided by the camera located on the rear bumper. The camera uses a special lens. The distance of the Yukon XL Denali shown; Yukon, Yukon XL, Yukon image that appears on the screen differs from the actual Denali, Tahoe, Suburban, Avalanche similar distance.
  • Page 56 Yukon XL Denali shown; Yukon, Yukon XL, Yukon Denali, Tahoe, Suburban, Avalanche similar 2-40...
  • Page 57 When the System Does Not Seem To Work Notice: The spare tire extends farther away from rear of the vehicle than the trailer hitch shown Properly on rear vision camera display. Your spare tire could The rear vision camera system may not work properly hit an object even though there appears to be or display a clear image in the following situations: enough distance on the display between the trailer...
  • Page 58 Rear Vision Camera Error Messages This system may not be available or interferences may occur if any of the following are true: Rear Vision Camera System Unavailable: This • Signals are obstructed by tall buildings, trees, large message may display when the system is not receiving trucks, or a tunnel.
  • Page 59 Vehicle Positioning • The vehicle is entering and/or exiting a parking lot, garage, or a lot with a roof. At times, the position of the vehicle on the map may be • The GPS signal is not received. inaccurate due to one or more of the following reasons: •...
  • Page 60 Problems with Route Guidance • The route prohibits the entry of a vehicle due to a regulation by time or season or any other regulation Inappropriate route guidance may occur under one or which may be given. more of the following conditions: •...
  • Page 61: Database Coverage Explanations

    Ordering Map DVDs After receiving the updated disc, replace the old disc in the navigation system. See “Installing the DVD Map Disc” and “Ejecting the DVD Map Disc” under Maps on The map DVD in your vehicle is the most up-to-date page 2-4.
  • Page 62 ✍ NOTES 2-46...
  • Page 63 Section 3 Navigation Audio System Navigation Audio System ........3-2 CD Player ...........3-12 DVD Player ..........3-18 Auxiliary Devices ..........3-24...
  • Page 64: Navigation Audio System

    Navigation Audio System Playing the Radio Notice: Before adding any sound equipment to (Power/Volume): Press this knob to turn the audio the vehicle, such as an audio system, CD player, system on and off. Turn the knob to increase or to CB radio, mobile telephone, or two-way radio, make decrease the volume.
  • Page 65: Finding A Station

    Finding a Station FM source shown, other sources similar FM source shown, other sources similar If you do not want to view a split screen or you are not If viewing a map screen, touch the source screen on a map screen, press the AUDIO hard key. (AM, FM, XM, CD, etc.) button.
  • Page 66 When listening to XM stations, you will be able to select all of the categories when using the right and left arrow screen buttons on the main audio screen. The categories, when removed, will not be enabled to select from the category list screen.
  • Page 67: Sound Menu

    Storing Radio Station Presets Sound Menu This feature allows you to store up to 30 preset stations. See “Number of Preset Pages” under “Radio Menu” later in this section for more information. You can mix AM, FM, and XM (if equipped). To store presets, do the following: 1.
  • Page 68: Setting The Tone

    Setting the Tone To not use the automatic equalization setting, press any of the screen buttons that will change the treble, TREBLE: Touch the plus (+) or minus (−) sign to midrange, bass, balance, or fade. This will take the increase or decrease the treble.
  • Page 69: Radio Menu

    Radio Menu Rear: Select this screen button to adjust the audio to give the rear seat occupants the best possible sound quality. The 2 CH and 5.1 CH buttons are available only when a 5.1 CH disk is available and RSA is off. 2 CH (Channel): Select this screen button to enhance surround sound.
  • Page 70 Additional Information Displayed See “Category” earlier in this section for more information. See “From Map” under Destination on The navigation system may have this feature. page 2-14 for more information. Touch the Additional Information Displayed screen Number of Preset Pages button to turn station, channel, CD, and MP3 information on or off.
  • Page 71 ® Automatic Volume Control or Bose AudioPilot: If the system has the Bose sound system ® ® it may include Bose AudioPilot noise compensation AudioPilot technology. > Automatic Volume Control: With automatic ® To use AudioPilot volume control, your audio system adjusts automatically 1.
  • Page 72: Radio Data System (Rds)

    Radio Data System (RDS) XM™ Satellite Radio Service The audio system has a Radio Data System (RDS). XM™ is a satellite radio service that is based in RDS features are available for use only on FM stations the 48 contiguous United States and 10 Canadian that broadcast RDS information.
  • Page 73 XM™ Radio Messages No CAT Info: No category information is available. The system is working properly. XL (Explicit Language Channels): XL on the radio CAT Not Found: There are no channels available for display, after the channel name, indicates content with the selected category.
  • Page 74: Cd Player

    CD Player There may be an increase in skipping, difficulty in finding tracks, and/or difficulty in loading and ejecting. If these problems occur, check the bottom surface of The player can be used for CD and MP3. If your vehicle the CD.
  • Page 75 Playing an Audio CD (Rewind): Touch and hold this button to rewind quickly through a track selection. You will hear sound at a reduced volume. Release this button to stop rewinding. The display will show the elapsed time of the track. (Forward): Touch and hold this button to fast forward quickly through a track selection.
  • Page 76: Using An Mp3 Cd

    Using an MP3 CD • The files can be recorded on a CD-R or CD-RW with a maximum capacity of 700MB. MP3 Format • DVD with MP3 are not playable on this system. There are guidelines that must be met, when creating an MP3 disc.
  • Page 77 When the CD contains only playlists and compressed When play enters a new folder, the display will not audio files, but no folders, all files will be located under automatically show the new folder name. The the root folder. The left and right arrow buttons will new track name will appear on the display.
  • Page 78 Playing an MP3 If there is no apparent damage, try a known good CD. Notice: If a label is added to a CD, or more than one With the ignition on, insert a CD partway into the slot, CD is inserted into the slot at a time, or an attempt label side up.
  • Page 79 (Forward): Touch and hold this button to fast forward quickly through a track selection. You will hear sound at a reduced volume. Release this button to stop fast forwarding. The display will show the elapsed time of the track. (Folder): Select the left or right arrow to go to the previous or next folder on the disc.
  • Page 80: Cd Messages

    CD Messages DVD Player If Disc Read Error appears on the display and/or the CD The player can be used for CD, MP3, DVD audio, and comes out, it could be for one of the following reasons: as a DVD video player. •...
  • Page 81: Rear Seat Entertainment (Rse)

    Rear Seat Entertainment (RSE) If playing any compatible DVD-R the sound quality may be reduced due to disc quality, the method of recording, If the Rear Seat Entertainment (RSE) video screen is the quality of the video that has been recorded, and the playing a DVD movie and the ignition is turned to LOCK way the disc has been handled.
  • Page 82: Playing A Dvd

    Playing a DVD DVD Menu Options There are three ways to play a DVD: Once a DVD starts to play, the menu options will automatically appear. To display the menu choices while • Once a DVD is inserted, the system will a DVD is playing in full screen, touch anywhere on automatically start play of the DVD.
  • Page 83 Full: Press this screen button to remove all menu (Stop): Touch this button to stop play of the DVD. options from the display. Press anywhere on the screen Press the play button to continue playing the DVD to display the menu options. from where the DVD was stopped.
  • Page 84 Initial Settings: From the DVD Setup screen, touch (Brightness): Touch the up or down screen arrows this button to change audio, subtitle, and menu to increase or decrease the brightness of the navigation languages, parental level, and to view the aspect of the screen.
  • Page 85 Parental Level: Touch this button to change the rating Subtitle: Touch this button to playback the video with level to only allow the play of DVDs with a certain rating. subtitles. Repeatedly press this button to toggle through The rating selection is 1 through 8, with 1 being a G the available languages.
  • Page 86: Dvd Messages

    DVD Messages Auxiliary Devices The navigation system has an auxiliary input jack located If Disc Read Error appears on the display and/or the in the upper right corner of the faceplate. This is not an DVD comes out, it could be for one of the following audio output;...
  • Page 87: Voice Recognition

    Section 4 Voice Recognition Voice Recognition ..........4-2...
  • Page 88: Voice Recognition

    Voice Recognition Helpful Hints for Stating Commands • When a multiple command is available, choose the The navigation system’s voice recognition allows for command that best works for you. hands-free operation of the navigation system, • ® audio system, and OnStar features.
  • Page 89: Voice Recognition Commands

    • Voice Recognition Commands If the system is not yet ready, the system may state “System is checking the disc. Please wait”. The following list shows all of the voice commands • To cancel a command or if the system response available for the navigation system with a brief does not match your verbal command, press description of each.
  • Page 90 Storing Voice Tags Radio Commands From the address book entry information page, press The following are radio commands you can access by the Add Voice tag screen button. The system will clearly stating the commands exactly as they are written. respond “Name Please?”.
  • Page 91: Cd Commands

    CD Commands Auxiliary Commands The following are CD, MP3, and DVD commands that The following auxiliary commands can be accessed by can be accessed by clearly stating the commands clearly stating the commands exactly as they are exactly as they are written. written.
  • Page 92 ✍ NOTES...
  • Page 93 Adding Destinations to the Address Book ... 2-28 Database Coverage Explanations ...... 2-45 Adding or Changing Preset Destinations ..... 2-28 Deleting Personal Information ......1-6 Alpha-Numeric Keyboard ........2-3 Destination ............. 2-14 Audio System ..........3-2 Display ............2-36 Auto Reroute ..........2-13 Driving on a Route ..........
  • Page 94: Overview

    Getting Started, Navigation ........ 1-4 Language — English/Metric ........ 1-6 Getting Started on Your Route ......2-25 Global Positioning System (GPS) ...... 2-42 Guidance Volume ........... 1-11 Map Adjustments ..........2-6 Map Coverage ..........2-4 Map Scales ............. 2-7 Handling the DVD Map Disc ......2-6 Maps ..............
  • Page 95: Overview

    Ordering Radio ............. 2-30, 3-2 Map DVDs ..........2-45 Radio Data System (RDS) ....... 3-10 Overview, Navigation System ......1-2 Radio Menu ............. 3-7 Owners, Canadian ..........iii Rear Seat Entertainment (RSE) ......3-19 Rear Vision Camera ........2-37 Park Aid ............2-37 Playing a DVD ..........
  • Page 96 Touch-Sensitive Screen Buttons ......2-3 Vehicle Positioning .......... 2-43 Traveling Across Regions ......... 2-14 Video Screen, Cleaning ........1-11 Voice Recognition ..........4-2 Voice Recognition Commands ......4-3 Using an MP3 CD .......... 3-14 Using Your Stored Preset Destinations ....1-10 XM™...

Table of Contents
