Summary of Contents for JK Audio Interloop

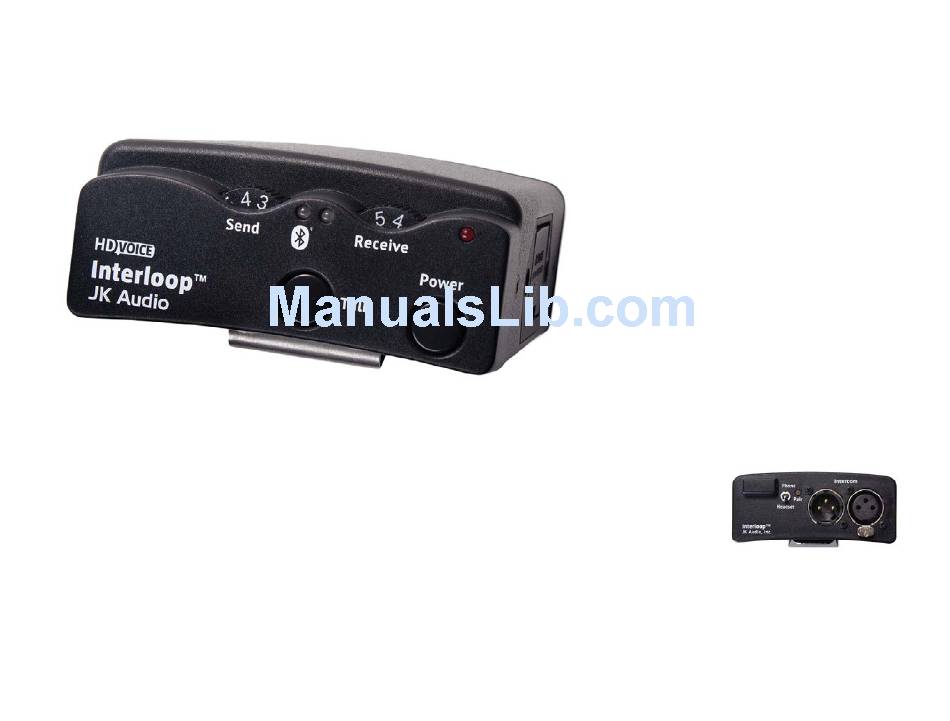

- Page 1 Interloop™ Wired/Wireless Intercom Beltpack User Guide JK Audio...
-
Page 2: Limited Warranty
Welcome Thank You Limited Warranty Thank you for purchasing the Interloop is covered by a 2 year JK Audio Interloop. warranty to be free from defective Please read this guide for instructions workmanship and materials. To obtain on using it. -
Page 3: Safety Precautions
Note: While Interloop was designed to distortion. be very rugged and durable, it is not waterproof and care should be taken to keep the unit dry. -
Page 4: Table Of Contents
Bluetooth Wireless Technology 7 Bluetooth Status LED 8 Pairing to a Cell Phone 9 Pairing to a Headset1 10 Connection History, Disconnecting from a Device 11 Reconnecting to a Device, Switching between Phone and Headset FAQs Technical Information Interloop™ Wired/Wireless Intercom Beltpack... - Page 5 Features HD Voice* Send and Receive Volume Controls Bluetooth Wireless Technology PTT Button 2.4 GHz Encrypted Digital Wireless Connects to Bluetooth Headsets, Phones, & Notebooks 3-pin XLR Male and Female Intercom Jacks Intercom Powered with 9 Volt Battery Backup * HD Voice. While standard phone calls have a narrow bandwidth of 300 to 3400 Hz, HD Voice calls offer 50 Hz to 7 kHz bandwidth.
-
Page 6: Overview
Includes 9 VDC battery backup, holding the wireless connection while changing cables. While Interloop™ will work with any Bluetooth enabled headset, most headsets were designed to work a short distance from the phone. JK Audio BSET-HS1 Bluetooth Headset offers increased range and performance making it the perfect match. -
Page 7: Applications
Applications BELTPACK BELTPACK 40 ft. 40 ft. Anywhere ’ ” ” ’ Headset Mode Phone Mode Connect to a Bluetooth enabled Connect to a Bluetooth enabled headset and leave your beltpack wireless phone or computer to behind. provide remote voice access to the party-line. -
Page 8: Controls & Indicators
Controls & Indicators Interloop™ Wired/Wireless Intercom Beltpack... - Page 9 Controls & Indicators 1) Send Control 6) Talk Button Controls the audio level from the Push-on, push-off operation with solid Bluetooth device into the intercom. state logic. 2) Bluetooth LED 7) Power Button The <Power> button applies power to See section on Bluetooth Wireless the belt pack and immediately starts Technology.
-
Page 10: Getting Connected
Interloop with a Bluetooth enabled Button). headset or any device that emulates a 3) Intercom headset. Male and Female loop-through XLR Select <Phone> if you will be using jacks. Interloop with a cell phone or other master device. Interloop™ Wired/Wireless Intercom Beltpack... - Page 11 Getting Connected Intercom Audio Sidetone Null In bridging mode, Interloop provides A screwdriver slot on the side of the minimal loading to the intercom audio unit allows fine tuning of the intercom line, typically >15k ohms impedance. hybrid circuit to remove or minimize echo.
-
Page 12: Configuring Your Interloop
To access the channel select 6. Carefully return the battery box to switch: its original position, then reinstall 1. First turn off the Interloop the screws and battery drawer. <Power> switch and disconnect the XLR cables. Interloop™ Wired/Wireless Intercom Beltpack... -
Page 13: Bluetooth Wireless Technology
Bluetooth Wireless Technology Bluetooth Status LED The blue LED on the front of the unit flashes in different sequences to indicate the current connection status. When attempting to put the unit into Pairing mode, you should power the unit off then hold the <Pair> button as you are turning the unit on. -
Page 14: Pairing To A Cell Phone
LED will flash at a rate of 2 secs off, 1 sec on (2 secs off, 4 secs switch to the <Phone> position. on for HD Voice). Once Interloop 2. Press and hold the <Pair> button has been added to your cell phone,... -
Page 15: Pairing To A Headset1
After you release the a new device, you should be in an <Pair> button, the blue LED should environment with no other Bluetooth flash rapidly if Interloop is in Pairing wireless technology enabled devices Mode. within range that might also be in Pairing Mode. - Page 16 Bluetooth Wireless Technology Connection History Disconnecting from a device with Bluetooth Wireless Interloop retains a history of the 16 Technology most recent devices. To clear the connection history and return to Since Interloop has no other function factory reset, hold the <Pair> button in when Bluetooth is powered down, you for at least 20 seconds.
-
Page 17: Reconnecting To A Device, Switching Between Phone And Headset
Headset device during its power up cycle. When reconnecting to your cell phone, the switch on Interloop should be set to <Phone> and the Interloop should be turned on first. When reconnecting to your Bluetooth headset, the switch on Interloop should be set to <Headset>... -
Page 18: Faqs
FAQs What is the range of the Can I pair my Interloop to Bluetooth transmitter/ two cell phones and send receiver? my audio to two locations simultaneously? Interloop will transmit and receive audio signals up to 65 feet from your No, your Interloop can only connect Bluetooth device. - Page 19 FAQs Can I use my Bluetooth My Interloop will not pair with headset with my cell phone my cell phone. Why will it not while I have my phone accept the PIN? connected to the Interloop? If this is the first time you have paired...
-
Page 20: Technical Information
Hands-Free (HD Voice): 50 Hz -7 kHz Power: +12 to +35 VDC, 55 mA Intercom Power with 9 VDC battery backup Size: 4.7” x 3.75” x 1.65” (12 x 9.5 x 4.2 cm) Weight: 10 oz (275 g) Interloop™ Wired/Wireless Intercom Beltpack... - Page 21 Changes or modifications not expressly approved by JK Audio can void the user's authority to operate the equipment. FCC Compliance Notice...
-
Page 22: Declaration Of Conformity
Manufacturer’s Address: 1311 E 6 Street Sandwich, Illinois 60548 USA Declares that the product: Product Name: Interloop™ Wired / Wireless Belt Pack Model Numbers: Interloop Conforms to the following Product Specifications: ESD: ESD: EN 61000-3-2, 3-3, 4-3, 4-4, 4-5, 4-6, 4-11 EN 301 489-17 V1.2.1... - Page 23 CE marking accordingly: R&TTE Directive 1999/5/EC EMC Directive 89/336/EEC, 92/31/EEC, 93/68/EEC RoHS Directive 2002/95/EC The Technical File containing supporting documentation is maintained at: JK Audio, Inc (Corporate Headquarters) Compliance Manager 1311 E 6th Street Sandwich, Illinois 60548 USA 815-786-2929 phone...
- Page 24 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2015 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
