Summary of Contents for JK Audio Outerloop

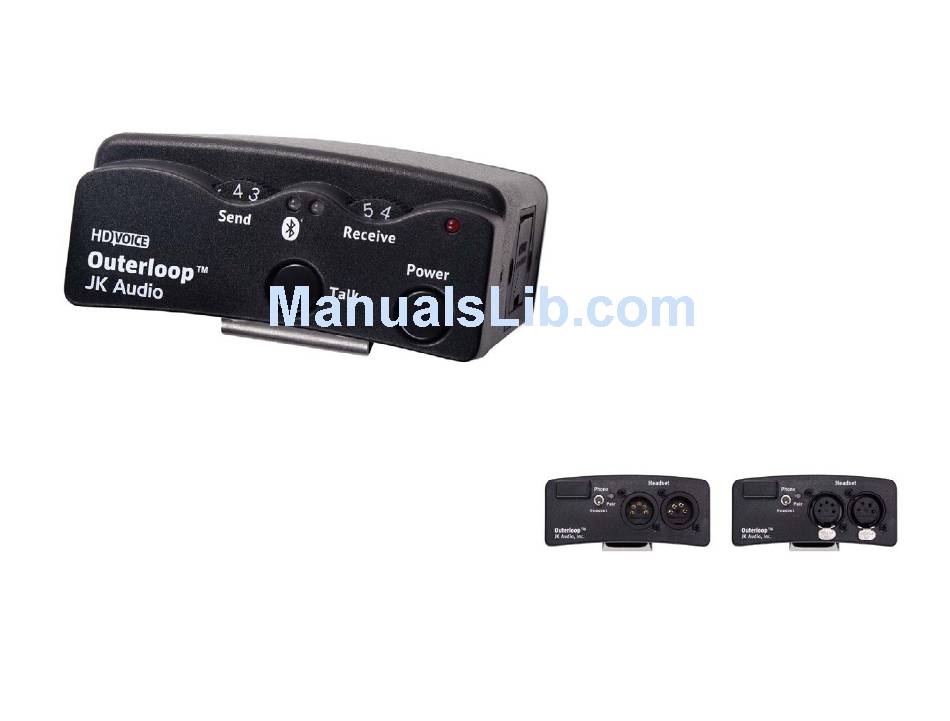

- Page 1 Outerloop™ Wireless Intercom Beltpack User Guide JK Audio...
-
Page 2: Limited Warranty
Welcome Thank You Limited Warranty Thank you for purchasing the Outerloop is covered by a 2 year JK Audio Outerloop. Please read this warranty to be free from defective guide for instructions on using it. workmanship and materials. To obtain... -
Page 3: Safety Precautions
Doing so may hinder your the typical consumer product. hearing and can be hazardous on the JK Audio products are designed for roadways or at pedestrian crossings. the broadcast industry. The broadcast professional must be able to hear... -
Page 4: Table Of Contents
Bluetooth Wireless Technology 6 Bluetooth Status LED 8 Pairing to a Cell Phone 9 Pairing to a Headset1 10 Connection History, Disconnecting from a Device 11 Reconnecting to a Device, Switching Between Phone and Headset FAQs Technical Information Outerloop™ Wireless Intercom Beltpack... - Page 5 Features HD Voice* PTT Button Bluetooth Wireless Technology 4-Pin and 5-Pin Male or Female Headset Jacks Uses Standard Intercom Headsets >10 Hours on one 9 Volt Alkaline Battery * HD Voice. While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD Voice calls offer 50 Hz to 7 kHz bandwidth.
-
Page 6: Overview
All the comforts of a standard belt pack whether you are around the corner or around the world. Outerloop also features a switch that selects between pairing to a phone or to a headset. In <Phone>... -
Page 7: Applications
Headset Mode Connect to a Bluetooth enabled Connect to a Bluetooth enabled mobile phone to provide remote voice headset or another Outerloop access to the party-line with your for a short range secure wireless 4-pin or 5-pin intercom headset. point-to-point intercom. -
Page 8: Controls & Indicators
Controls & Indicators Outerloop™ Wireless Intercom Beltpack... - Page 9 Controls & Indicators 1) Send Level 5) Power Indicator Controls the level of your microphone LED indicates when the power is input. turned on and dims when the battery charge is getting low. 2) Bluetooth LED 6) Push-to-Talk Button (PTT) See section on Bluetooth Wireless Technology.
-
Page 10: Getting Connected
OTL-F: 4-pin or 5-pin Female XLR headset jacks. Select <Phone> if you will be using Outerloop with a cell phone or other OTL-M: 4-pin or 5-pin Male XLR master device. headset jacks. Outerloop™ Wireless Intercom Beltpack... - Page 11 Getting Connected Send Level Control Sidetone Null Most Intercom Belt Packs do not A screwdriver slot on the side of the include front panel transmit level unit adjusts the amount of Sidetone controls. However, Bluetooth (your voice coming back to you in your devices encompass a wide range of headset).
-
Page 12: Bluetooth Wireless Technology
"X" seconds will not put it into the desired mode. When Should I Release the Pair Button? Bluetooth LED Phone Mode Idle Mode Pairing Mode Clear Headset Mode Idle Mode Pairing Mode Clear seconds Outerloop™ Wireless Intercom Beltpack... - Page 13 Idle Mode. Idle Mode When the <Power> switch is turned on, Outerloop starts in Idle Mode. In Idle Mode, Outerloop searches for paired devices. The blue LED will flash at a rate of 2 seconds off, 200ms on.
-
Page 14: Pairing To A Cell Phone
LED will flash at a rate of 2 secs switch to the <Phone> position. off, 1 sec on. (2 secs off, 4 secs 2. Turn the Outerloop on, then hold on for HD Voice) Once Outerloop the <Pair> Button for 5 full seconds. -
Page 15: Pairing To A Headset1
Bluetooth Wireless Technology Pairing to a Headset 3. Turn the Outerloop on, then hold with Bluetooth Wireless the <Pair> Button for 5 full seconds. After you release the <Pair> button, Technology the blue LED should flash rapidly if When you are first connecting to Outerloop is in Pairing Mode. - Page 16 Bluetooth Wireless Technology Connection History Disconnecting from a device with Bluetooth Wireless Outerloop retains a history of the Technology 16 most recent devices. To clear the connection history and return to Since Outerloop has no other function factory reset, hold the <Pair> button in when Bluetooth is powered down, for at least 20 seconds.
-
Page 17: Reconnecting To A Device, Switching Between Phone And Headset
Reconnecting to a Device Switching Between Phone and Headset When reconnecting to a device that is still in Outerloop’s pairing history, the The Role Select switch is only device that will be in Headset mode monitored during the power-up should be powered up first and both sequence. -
Page 18: Faqs
FAQs What is the range of the Can I pair my Outerloop to Bluetooth transmitter/ two cell phones and send receiver? my audio to two locations simultaneously? Outerloop will transmit and receive audio signals up to 40 feet (12 meters) No, your Outerloop can only connect from your Bluetooth device. - Page 19 FAQs Can I use my Bluetooth My Outerloop will not pair with headset with my cell phone my cell phone. Why will it not while I have my phone accept the PIN? connected to the Outerloop? If this is the first time you have paired...
-
Page 20: Technical Information
Mic + Pin 3: Headphone - Pin 4: Headphone + 5-pin Male or Female Pin 1: Mic - Pin 2: Mic + Pin 3: Headphone - Pin 4: Headphone B + Pin 5: Headphone A + Outerloop™ Wireless Intercom Beltpack... - Page 21 Technical Information Bluetooth Wireless Technology Standard: Bluetooth 3.0 Range: 66 feet ( 20 meters ) Hands-Free (phone): 300 Hz - 3.4 kHz Frequency Response: Hands-Free (HD Voice): 50 Hz -7 kHz Power: 9 VDC battery Size: 4.7” x 3.75” x 1.65” (12 x 9.5 x 4.2 cm) Weight: 10 ounces (275 grams) Technical Information...
-
Page 22: Declaration Of Conformity
1311 E 6 Street Sandwich, Illinois 60548 USA Declares that the product: Product Name Outerloop™ Wireless Intercom Beltpack Model Numbers OTL-F, OTL-M Conforms to the following Product Specifications: ESD: EN 61000-3-2, 3-3, 4-3, 4-4, 4-5, 4-6, 4-11 EN 301 489-17 V1.2.1... - Page 23 FCC Part 15 Compliance Notice The Technical File containing supporting documentation is maintained at: JK Audio, Inc (Corporate Headquarters) Compliance Manager 1311 E 6th Street Sandwich, Illinois 60548 USA 815-786-2929 phone 815-786-8502 fax FCC Part 15 Compliance of this equipment in a residential area is...
- Page 24 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2015 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
