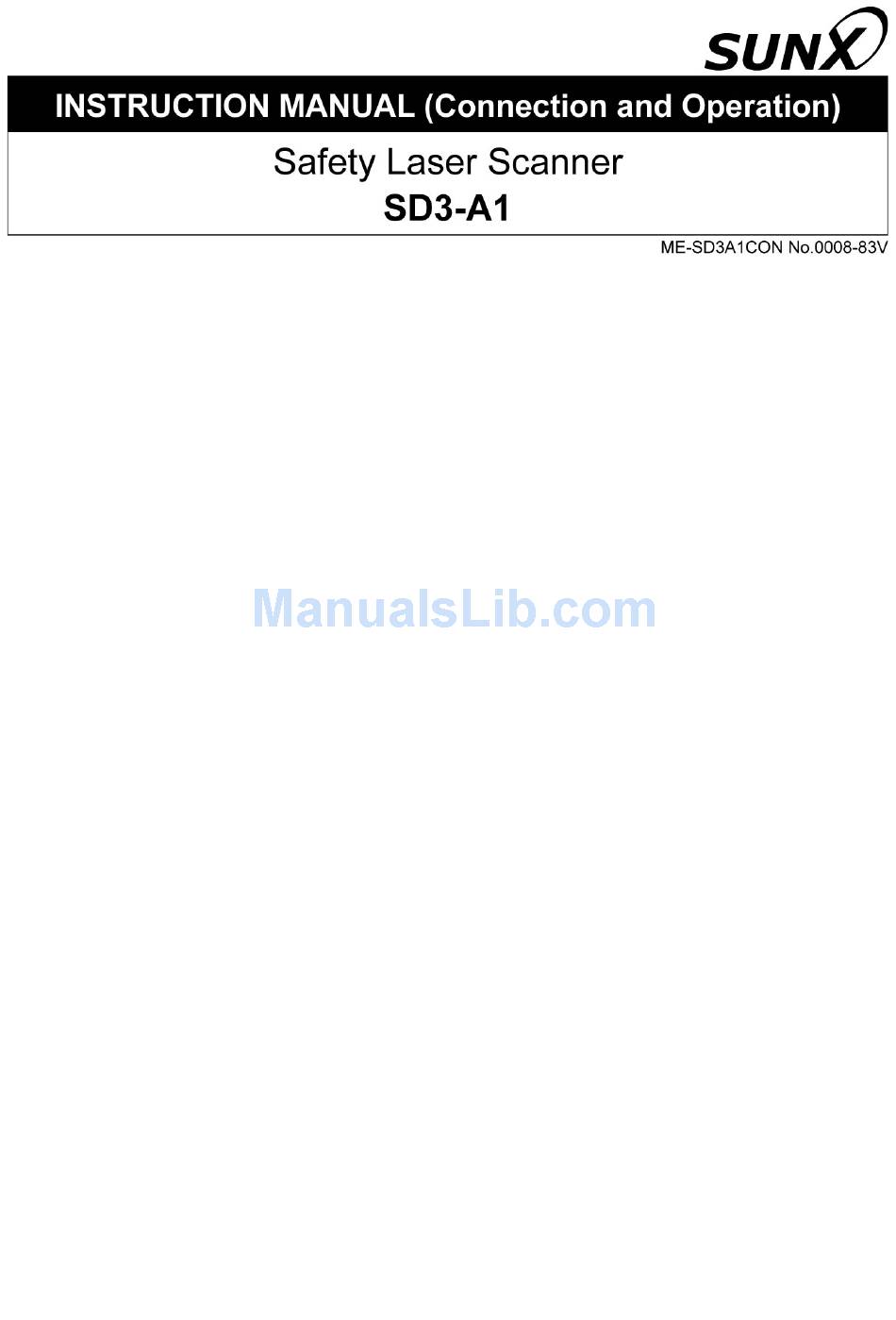

Sunx SD3-A1 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD3-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunx SD3-A1

  • Page 2 They must be available during the entire period when the SD3-A1 is in use. Documents are also automatically installed on the PC when SD3SOFT is installed and can be viewed at any time with the Help menu.

  • Page 3: Table Of Contents

    Specialized technical terms and abbreviations ..............7 Guidelines and standards....................... 8 System Overview..........................9 Brief description and functional principle of the SD3-A1............9 Special features of the SD3-A1 .................... 11 Safety Notes and Usage in Accordance with Intended Purpose ..........13 General safety notes ......................
  • Page 4 Integrating the SD3-A1 with external wiring with relays and eightfold zone pair changeover .................... 65 Connecting the SD3-A1 to a safety sequence circuit with manual restart, relay monitoring, without zone pair changeover ..............67 Connecting the SD3-A1 to a PLC with corresponding safety level (Category 3 or higher, EN 954) and zone pair changeover ..........
  • Page 5 Maintenance and Testing......................79 11.1 Test before first startup by person qualified and authorized to perform the task ....79 11.2 Extended shutdown of the SD3-A1 ..................79 11.3 Regular tests by a person qualified and authorized to perform the task ......80 11.4 Daily test by with test piece performed by responsible operating personnel.......

  • Page 6: Approvals

    Approvals Approval and declaration of EC conformity EC type examination in accordance with DIN EN 61496 - 1 and IEC 61496 - 3 PRODUCT SERVICE GMBH IQSE Ridlerstr. 65 80339 Munich...

  • Page 7: Specialized Technical Terms And Abbreviations

    Normal open contact OSSD Output Signal Switching Device Safety-relevant switch output Personal Computer Detection Zone (SF in German) Reset Defined Reset or SD3-A1 RS-232 RS-232 interface RS-422 RS-422 interface Zone Pair (contains 1 × detection zone and 1 × warning zone)

  • Page 8: Guidelines And Standards

    Guidelines and standards The following guidelines and standards are of critical importance for the implementation of laser scanner. Guidelines providing particularly relevant information for users of such systems are marked with an asterisk ( Guideline / Standard Designation European Guidelines 98 / 37 / EG Machine guideline 73 / 23 / EWG...

  • Page 9: System Overview

    If these pulses strike a person or an object, the reflected light is received and evaluated by the SD3-A1. The scanner calculates the precise coordinates of the person or object based on the travel time of the reflected light and the current angle of the deflecting unit.
  • Page 10 Fig. 2.1-2: Functional principle of the SD3-A1 The SD3-A1 can detect people up to a distance of 4.0m even if they are wearing very dark clothing or exhibit a low degree of reflectance. Dangerous movements are brought to a standstill by two failsafe semiconductor outputs.

  • Page 11: Special Features Of The Sd3-A1

    (mobile safeguarding of transport vehicles). Due to its wide range of measurement and its non-contact, electro-sensitive measurement principle, the SD3-A1 can be effectively used as a protective device for virtually any application. Special features of the SD3-A1...

  • Page 13: Safety Notes And Usage In Accordance With Intended Purpose

    / or limb for persons who are in the general area of the machines or systems. Caution – laser radiation! The SD3-A1 is a laser device belonging to laser class 1. The valid legal and local regulations for operating laser systems must be complied with. Avoid positioning the scanner at eye level.

  • Page 14: Restrictions For Use

    System tests (of the scanner, machine, control components and switch components) may only be performed when they do not result in potential hazards for people. Tampering with or making changes to the SD3-A1 can result in the loss of the safety function.

  • Page 15: Information Related To Detection Zone Changeover

    Please consider as well Chapter 5.2. It must not be used for vehicles with internal combustion engines. The SD3-A1 is conceived for use inside enclosed spaces and with the operating parameters listed in the technical specifications (temperature, humidity, shock, vibration, etc.). Please refer to the list of parameters in Chapter 13.

  • Page 16: General Information Related To Determining Detection Zone Contours

    General information related to determining detection zone contours Shadow effects (e.g. surfaces or areas located behind stationary objects) must be considered. As a rule, insufficient safeguarding must be adequately supplemented by further safety measures such as protective grid, light curtains, and the like! Access to the detection zone in the dangerous area is not permitted.

  • Page 17: Additional Safety Notes For Stationary Use

    When calculating the safety distances, be sure to consider all delay times, such as the response time of the scanner, response time of the control elements, and braking times and / or stopping times of the machine / system or AGV! Variations in delay time caused by factors such as reduced braking power must also be taken into consideration.

  • Page 18: Additional Safety Notes For Mobile Use

    . Furthermore, the greatest possible lateral shift of the AGV while making curves must be considered when defining detection zones. If the SD3-A1 is mounted on vehicles, the mounting (especially the angle of inclination), the vehicles' braking power, and if applicable, play in the vehicle guidance (the difference between the optimum and actual line of guidance) must be regularly checked in order to guarantee the reliability of detection.

  • Page 19: Applications For The Sd3-A1

    / or lower extremities, at the same time without impeding the production process. The SD3-A1 can be mounted directly at the machine table or on the side or in front of the machine.

  • Page 20: Access Guarding By Passage Monitoring

    In order to secure the protective equipment, laser scanner and fence against inadvertent misadjustment and manipulation, the detection zones of the SD3-A1 must be defined on the basis of a reference boundary. In this operating mode, the scanner will use the polled environment...

  • Page 21: Safeguarding Of Danger Points Based On Hand And Arm Protection

    To safeguard danger points in this way a protective system needs to be installed. The SD3-A1 is certified as a system providing hand and arm protection, and is able in such a situation to guarantee flexible safety conditions in the workplace. This may be combined with alternation of the detection zones.

  • Page 22: Mobile Safeguarding Of Automatic Guided Vehicles

    Mobile safeguarding of automatic guided vehicles For this application, the SD3-A1 is installed on automatic guided vehicles in order to monitor the vehicle path. The aim is to detect people or objects in the path of the vehicle and to automatically bring the vehicle to a halt. Safety systems available up to now, such as bumpers or safety bars, have allowed only very low driving speeds to be maintained.

  • Page 23: Guarding The Sides On Agvs

    Please comply with the safety notes in Chapter 3 and Chapter 5.7.8. In these cases, the SD3-A1 is used to detect people or objects in the vehicle path and then automatically bring the vehicle to a halt. Select “Manual restart” mode.

  • Page 24: Other Possible Applications

    Fig. 4.6-1: Bild 6.3-1 guarding the sides on AGVs Please observe the safety notes in Chapter 3. An example for the side guarding configuration on AGVs can be found in Chapter 5.7.9 and 5.7.10. Other possible applications Object and contour measurement Logistics (counting, measuring, controlling) Projection control (e.g.

  • Page 25: Information For Planning And Mounting

    Information for Planning and Mounting It is essential that the following key points be complied with so that the SD3-A1 can provide optimum performance: The SD3-A1 must be placed so that areas of access to the danger zone being monitored are completely covered by the detection zone.

  • Page 26: Attachment And Dimensions

    Attachment and dimensions For attaching the SD3-A1, four drill holes are located at the back of the unit. Any laser scanner installation point is possible with mounting. The SD3-A1 can, for example, also be mounted on the head or inclined facing down.

  • Page 27: Adjusting Adjacent Laser Scanners

    = SD3-A1 = Machine (view from above) c = Detection zones = Shield plate, flush with the housing Fig. 5.2-1: Shielding to prevent direct irradiation 5.2.2 Adjusting adjacent laser scanners In order to prevent faulty deactivation and scanners interfering with each other as much as possible, when using several laser scanners you must install these as shown in the following examples.

  • Page 28: Information On Setting The Dimensions Of Detection Zones

    Methods of configuring detection zones using the PC 5.3.1 With its SD3SOFT configuration and diagnostic software, the SD3-A1 offers various methods for setting the configurations of detection zones. Numerical input A separate dialog within the user program “SD3SOFT” allows the right, left and front edges of the detection zone to be set using numerical values in mm.

  • Page 29: Range Of The Warning Zone, Resolution

    5.3.3 Range of the warning zone, resolution A maximum range of 10m is available for an object with a diameter of 100mm. The maximum available range for an object with a diameter of 150mm is 15m. Both of these figures assume a reflectance factor of 20%. Resolution in mm a = Detection zone b = Warning zone...

  • Page 30: Range Of The Measurement Field

    5.3.5 Required detection zone additions Z The SD3-A1 is equipped with a selectable dust algorithm to ensure optimum freedom from interference. The following detection zone additions must be taken into account:...

  • Page 31: Safeguarding Stationary Danger Zones

    5.4.2 Mounting position The SD3-A1 can be mounted either in a stationary position (e.g. on a wall or a machine) or on moving parts (e.g. machine table). The qualified installer must ensure that the mounting position of the SD3-A1 allows the danger zone to be monitored completely.

  • Page 32: Mounting Height

    = Resolution of the scanner in mm (object size = 70mm throughout the detection zone). The admissible height range of the SD3-A1 scanning plane lies between 0mm (presettings leg detection) and 1,000mm above the base level. If the application requires...
  • Page 33 5.4.4.1 Recessed installation (undercut) under the machine table The undercut must be at least as deep as the zone not monitored by the detection zone lateral to and in front of the scanner. The minimum depth Z is 135mm. If it is possible UMIN to recess the scanner, this is allowed up to a maximum of 40mm;...
  • Page 34 For information on how to configure the scanner in this way, please refer to the instruction manual (software operation) for the SD3SOFT. Fig. 5.4-2: Recessed installation within the machine contour If it is not possible to mount the SD3-A1 directly onto the machine, it can also be positioned lateral to or across from the machine.
  • Page 35 Fig. 5.4-3: Lateral external scanner mounting without an undercut If the machine contour runs parallel to the 90° beam of the laterally placed SD3-A1, the distance between the detection zone boundary and the machine may not exceed 35mm. Fig. 5.4-4:...

  • Page 36: Additions

    This is possible since it is absolutely certain that a person will be detected in front of the undercut. Furthermore, the dust algorithm of the SD3-A1 can be implemented if floating particles may be present in the area. This algorithm, which can be activated in the user program “SD3SOFT”, prevents the machine or system from being switched OFF unintentionally.

  • Page 37: Restart Interlock

    5.4.7 Restart interlock The SD3-A1 is equipped with a restart interlock function. You can select or deselect this function as needed to connected restarting of the machine to a manual approval. It affects all detection zones and does not depend on any detection zone changeovers. For information on how to configure the scanner appropriately, please refer to SD3SOFT (Section: “Safety-relevant parameters”...

  • Page 38: Calculating The Detection Zone Dimensions For Safeguarding An Area

    5.4.8 Calculating the detection zone dimensions for safeguarding an area According to IEC 61496-3 and DIN EN 999, the following formulas apply for calculating the safety distance and the minimum depth of the detection zone when the direction of approach runs parallel to the detection zone: (K ×...
  • Page 39 5.4.8.1 Additions and minimum depth of detection zone The sum of the system-specific and application-specific detection zone additions (see Chapter 5.3.5) is calculated according to the following formula: REFL = Sum of the system-specific and application-specific detection zone additions, in mm = Scanner measurement error, in mm = Addition of the reflectors taken into account, in mm REFL...
  • Page 40 Fig. 5.4-5: Considering the maximum measurement distance when safeguarding an area...
  • Page 41 This example is based on the following application data (see 5.4-5): Largest width between the axis of 700mm BDIFF the rotating mirror and the boundary of the danger zone Access speed 1,600mm/s (constant) Response time of the SD3-A1 0.08s SCAN (adjustable) 0.1s Response time of the machine or MACH system Stopping time or lag time of the 0.5s (time for braking the...
  • Page 42 Sample calculation of a maximum range of a detection zone 5.4.8.4 The formulas: BDIFF + S + Z BDIFF BDIFF yield, under consideration of the width of the danger zone results in the maximum distance to be monitored: 2,456mm + 3,031mm = 700mm + 2,248mm + 83mm = 3,031mm BDIFF = 3,901mm...

  • Page 43: Access Protection

    Care must be taken to ensure that the positioning of the laser scanner SD3-A1 does not leave any areas through which a person might slip through without being detected. The distance of the scanning field limiting the passage and the boundaries of the detection zone must be defined in such a way that no gaps measuring more than 150mm can arise.

  • Page 44: Definition Of The Reference Boundary

    The safety distance for an access protection system may be calculated, based on EN 999 by means of the following formula: S = K × T + C Safety distance, in mm Approach velocity, in mm/s Here = 1,600mm/s Overall time of delay, in s, a total consisting of: Response time of the laser scanner Here = 80ms...

  • Page 45: Protecting Danger Points

    The SD3-A1 will detect the body parts of individuals and the intrusion of these body parts into the scanning field of the laser scanner. In this operating mode, hand and arm protection is effectively realised.
  • Page 46 To safeguard the danger point, a safety distance S must be observed between the detection zone of the laser scanner and the danger zone. The SD3-A1 can fulfill its protective function only if it has been installed and positioned in such a way as to allow for an adequate safety distance.

  • Page 47: Defining The Reference Boundary

    Defining the reference boundary 5.6.4 Fig. 5.6-1: Safeguarding of danger point based on hand and arm protection with monitoring of a reference boundary The reference boundary must cover at least two sides of the detection zone. The detection zone itself must be defined in such a way that no gaps can arise through which or over which a person could reach without being detected.

  • Page 48: Safeguarding Mobile Machines

    5.7.3 Mounting position For the purpose of safeguarding the path of a vehicle, the SD3-A1 is mounted on the front of a vehicle (in each direction of travel), preferably in the center. The scanner, and hence the beam axis, must be aligned horizontally in order to achieve a consistent scanning height.

  • Page 49: Recommendations For Mounting To Prevent Unmonitored Zones

    If the detection zone of a SD3-A1 mounted on an AGV does not cover the entire front of the vehicle, you can prevent the creation of unmonitored zones by changing the installation depth of the scanner or by adjusting the angle range (from 180° to 190°).
  • Page 50 If this is not possible due to constructional limitations, additional safety measures such as mechanical cover panels, switch strips or bumpers must be implemented. Please comply with the safety notes in Chapter 3.7. Fig. 5.7-2: Three possibilities for mounting the SD3-A1 onto an AGV...

  • Page 51: Additions

    5.7.6 Additions The axis of the rotating mirror (midpoint of the scanner) is of critical importance when configuring the detection zones. This axis is assigned a value of 64mm from the front edge of the scanner when calculating detection zones. Add 83mm or 100mm for the maximum radial measurement error Z as described in Chapter 5.3.5.

  • Page 52: System Availability

    AGV, since it prevents the surrounding contour from being detected as relevant for generating a switch-off signal due to a measurement error. Furthermore, the dust algorithm of the SD3-A1 can be implemented if floating particles may be present in the area. This algorithm can be activated in the user program “SD3SOFT”...

  • Page 53: Calculating The Dimensions Of The Detection Zone Of An Agv Application

    5.7.9 Calculating the dimensions of the detection zone of an AGV application Following are the specifications and calculation examples for the mobile safeguarding of automatic guided vehicles.. According to IEC 61496-3, the following formulas apply for calculating the safety distance: S = (V ×...
  • Page 54 Fig. 5.7-4: Considering the maximum measurement distance for safeguarding AGVs In accordance with DIN EN 1525, a minimum safety distance of 0.5m width between the vehicle and its environment must be maintained.
  • Page 55 Largest width of the danger zone 1,400mm from the axis of the rotating mirror BDIFF Maximum speed 1,800mm/s MAXAGV 0.08s Response time SD3-A1 (selectable) SCAN Response time of AGV control 0.1s Braking distance 1,900mm STOP Factor for wear and tear on the brakes 1.1 (fixed addition to account for...

  • Page 56: Side Guarding Configuration On Agvs

    5.7.10 Side guarding configuration on AGVs All previous considerations and the Chapter 5.7.9 (Calculating the dimensions of the detection zone of an AGV application) also apply for side guarding on AGVs. With AGVs that drive along conveyor segments it should always be ensured that big enough undercut is provided (see also, details in Chapter 5.4.4).

  • Page 57: Details On Switching Over Detection And Warning Zones

    FP 1 to FP 4, which are provided on the X1 plug of the scanner. Please find detailed information on the scanner connection in Chapter 7.2 and Chapter 9. If the SD3-A1 is to be restarted or switching is to be made between different zone pairs, the following points must be observed: The zone pair planned for the start must be defined with special consideration of the danger areas valid for this moment.
  • Page 58 Table 6.1-1 applies with activation (start or switchover) of zone pairs 1 to 8. Zone pair Control input FP 1 – FP 2 – FP 3 – FP 4 1 - 0 - 0 - 0 Zone pair 1 is active 0 - 1 - 0 - 0 Zone pair 2 is active 0 - 0 - 1 - 0...

  • Page 59: Practical Agv Application (Example)

    Practical AGV application (example) The following example shows the sequence of zone pair changeovers for an efficiently implemented AGV under consideration of the ambient conditions. Please observe the particular danger zone analysis for each detection zone in combination with the corresponding route segments.
  • Page 60 Fig. 6.2-1: Example of a zone pair changeover for an AGV on a curved route...
  • Page 61 Fig. 6.2-2: Example of zone pair changeover with combined with reducing speed of the AGV...

  • Page 62: Functions Of The Sd3-A1

    Functions of the SD3-A1 The SD3-A1 is equipped with the X1 and X2 interfaces. The following functions are available through them: Restart Depending on the operating state, the restart input X1-2 has several functions: Enables the restart interlock following the interruption of a detection zone...

  • Page 63: Alarm 1 (X1-5)

    Alarm 1 (X1-5) As long as the output X1-5 is switched ON, the system signals trouble-free operation. If it is switched OFF, the following states are reported: Interruption of the warning zone is shown by the continuously lit LED 2 in the indicator field of the scanner.

  • Page 64: Ossd 1 (X1-12) And Ossd 2 (X1-11)

    For some sample connections, see Chapter 8. Data communication The interface X2 allows the SD3-A1 to support two types of connections to the PC. Communication via the X2 connector in RS-232 mode does not require any further bridging. To enable data transfer in RS-422 mode, connect pin 5 with pin 6. The scanner automatically adjusts itself to the appropriate transfer type and baud rate.

  • Page 65: Integrating The Sd3-A1 With External Wiring With Relays And Eightfold Zone Pair Changeover

    In this connection example, the restart interlock function is provided by the connected command unit “start interlock”, which applies the voltage of 24V to the input RESTART X1-2. The SD3-A1 itself must be configured using the “SD3SOFT” user software so that the operating mode “with restart interlock” is active.
  • Page 66 Fig. 8.1-2: Wiring the SD3-A1 with evaluation of the OSSDs, zone pair changeover, restart interlock and static relay monitoring Relays K1 and K2 must have forced contacts. They are operated directly at the two failsafe semiconductor outputs OSSD 1 (X1-12) and OSSD 2 (X1-11).

  • Page 67: Connecting The Sd3-A1 To A Safety Sequence Circuit With Manual Restart, Relay Monitoring, Without Zone Pair Changeover

    Fig. 8.2-1: Wiring the SD3-A1 with manual restart interlock and relay monitoring, and without zone pair changeover In this example, the relay monitoring is performed by an external safety module (e.g.

  • Page 68: Connecting The Sd3-A1 To A Plc With Corresponding Safety Level (Category 3 Or Higher, En 954) And Zone Pair Changeover

    (Category 3 or higher, EN 954) and zone pair changeover Fig. 8.3-1: Connecting the SD3-A1 to a failsafe PLC with a safety level (at least Category 3, EN 954) and zone pair changeover (example) All switching functions in this sample connection are controlled directly by the PLC.

  • Page 69: Electrical Connection

    Electrical Connection Electrical power supply The SD3-A1 requires a direct voltage of 24V and 8W of power plus the load at the outputs (max. 25W). The power must be supplied by way of an external 1.25A, semi time-lag fuse (e.g. in an electronics cabinet).

  • Page 70: Connector Assembly

    The connector adapter of control cable X1 must be connected with interface X1 and screwed tightly to the SD3-A1. The connector adapter of cable X2, or else the X2 dummy cap (without a cable), must also be screwed tightly to the SD3-A1. Screw thread bolts are located on the top of the scanner housing for this purpose.

  • Page 71: Interface Pin Assignments

    Interface pin assignments Pin assignments for connector X1 Signal Description Power supply ground Restart Input, scanner reset, and connecting of the restart button 24V DC power supply; protected by a 1.25A delayed-action fuse FP 1 Zone pair control input Alarm 1 Semiconductor output that switches OFF when the warning zone is violated as well as for warning messages such as “optical window slightly dirty”, error messages such as “optical...
  • Page 72 Do not assign Reserved Reserved for testing purposes Table 9.5-3: Pin assignments for connector X2 used as an RS-422 port For the pin arrangement, please refer to Chapter 2.2 and 9.5 in the instruction manual (connection and operation) of the SD3-A1.

  • Page 73: Commissioning

    Commissioning Communication with the PC needs to be established so that the SD3-A1 can be configured and the detection zones and warning zones can be programmed. This is also necessary for displaying the measurement contours and for the system check.
  • Page 74 When the connection between the SD3-A1 and the PC was successful, you can enter the appropriate password and then change the parameters and zone pairs of the SD3-A1 to meet the needs of the particular application. The standard password to be entered in the access level “Authorized User” of the SD3-A1 is: “SD3SUNX”.

  • Page 75: Sd3-A1 Status Indicator

    10.3 SD3-A1 status indicator There are five LEDs located on the front of the scanner behind the cover with the matte finish. These LEDs indicate the status of the SD3-A1. Fig. 10.3-1: The SD3-A1 status indicator...
  • Page 76 OSSD outputs are switched ON Yellow • Constantly lit: Start interlock Restart interlock • Flashing slowly (1): Warning message (approx. 2Hz) Optical window dirty • Flashing quickly (((1))): device message (approx. 4Hz) Table 10.3-1: Meaning of the SD3-A1 LED displays...

  • Page 77: Status Information Of The Sd3-A1

    Upon delivery, the SD3-A1 is programmed with the largest possible detection zone and with activated startup interlock and manual restart. For this reason, LED 5 is constantly lit up when the scanner is switched ON. When starting up your SD3-A1, please modify the parameters to meet the specific needs of your application.

  • Page 78: Restart And Device Swap-Out

    10.5 Restart and device swap-out The SD3-A1 can be connected via the X1 standard plug or the ConfigPlug with integrated configuration memory. With a restart the laser scanner starts in every case with the configuration that was set when it went out of operation. Thereafter a technical expert does not have to look at it, but the test in accordance with the specifications for daily testing must be performed.

  • Page 79: Maintenance And Testing

    11.2 Extended shutdown of the SD3-A1 If a system is taken out of operation and the SD3-A1 is placed in storage for later use with other machines / vehicles, the factory settings should be restored. Please see the chapter entitled “Set default configuration values” in the instruction manual (software...

  • Page 80: Regular Tests By A Person Qualified And Authorized To Perform The Task

    11.4 personnel The SD3-A1 is a safety-oriented laser scanner of Category 3. It is extremely important, however, to check the effectiveness of the detection zone with the test piece daily or after a shift change. This ensures that if the parameters or operating mode is changed, the...

  • Page 81: Checklist For Daily Test Of Stationary Applications By Responsible Operating Personnel

    8) Does the base marking match the detection zone contour? 9) Do the necessary detection zones match the configuration protocol? 10) If correct functionality is not certain or id the SD3-A1 LED 5 is flashing, take the machine out of operation immediately. Are any doubts resolved? If the answer to any of the questions above is No, the machine should be checked by a trained specialist.

  • Page 82: Checklist For Daily Test Of Mobile Applications By Responsible Operating Personnel

    8) Is the startup test / restart interlock (if there is one) working? 9) Do the necessary detection zones match the configuration protocol? 10) If correct functionality is not certain or id the SD3-A1 LED 5 is flashing, take the vehicle out of operation immediately. Are any doubts resolved? If the answer to any of the questions above is No, the vehicle should be checked by a trained specialist.

  • Page 83: Checklist For Testing Stationary Applications

    11) Is the possibility of being between the activated detection zone and the danger area reliably ruled out? 12) Is an installed protection to prevent walking behind (e.g. undercut) in effect? 13) Is the SD3-A1 able to cover the entire danger area? Are dead zones excluded?
  • Page 84 15) Does the base mark match the correctly identified detection zone? 16) Is the start / restart button for resetting the SD3-A1 positioned according to requirements and does it work properly? 17) Does the SD3-A1 work in all necessary operating modes and...

  • Page 85: Checklist For Testing Mobile Applications

    SD3-A1, for example contactors with forced contacts or safety valves monitored by the feedback loop (EDM)? 6) Does the actual connection of the SD3-A1 to the vehicle control system match the circuit diagrams? 7) Has the safety distance for safeguarding automatic guided...
  • Page 86 14) Is the motion causing the hazard stopped when electrical power to the SD3-A1 is disconnected and is a confirmation of the start / restart button necessary to reset the vehicle after the power is restored? 15) Are all test and parameter inaccessible to unauthorized...

  • Page 87: Replacing The Optical Window

    11.7 Replacing the optical window 11.7.1 General information: Only professionally trained personnel are permitted to replace optical windows. Be careful everything stays clean during all jobs (If possible, work in a dust-free environment. An adverse environment is not good for working on the device). 1) Loosening the housing parts Loosen the four Allen screws on the rear housing wall.
  • Page 88 3) Checking the condition of the scanner Please do not fail to observe: Check the mirror, optics and housing parts to make certain they are free of dust. Dry if necessary with a dry, oil-free, light jet of compressed air with appropriate components. Do not touch any parts in the device.

  • Page 89: Initial Measurement Of The New Optical Window

    5) Assembling the housing When assembling the housing, note that the two retaining bolts slide into the rubber sleeves provided for them. To do this, carefully join the two housing parts on a level surface. After that, carefully screw in the screws on the rear wall of the housing, working back and forth around the circle from screw to screw.

  • Page 90: Procedure When Using The Sd3Soft User Software Version 1.09 Or Later

    11.7.3 Procedure when using the SD3SOFT user software version 1.00 or later 1) Starting the PCs 2) Connection of X1 (electrical power supply with zone pair activated) and X2 (RS-232 cable 1:1) 3) Start SD3SOFT user software 4) Select the “Authorized user” access level 5) Confirm the echo data shown by the scanner 6) Click on the “Calibrate optical window monitoring”...

  • Page 91: Cleaning

    Different methods will work better under different conditions depending on load and medium. What is the best approach? Note: SD3-A1 clean sets are available for cleaning the optical window. They contain a special cleaning agent and suitable cleaning cloths. Two sizes are available. For more information, see the chapter entitled “Accessories...

  • Page 92: Cleaning The Optical Window; Cleaning Diffusing Light Panes

    11.8.2 Cleaning the optical window; cleaning diffusing light panes The front and light panes and diffusion screens must be washed depending on the load on the application in question. Generally this is a quick process. Fig. 11.8-1: Cleaning the optical window Sharp cleaning materials and / cloths that scratch must never be used! Fig.

  • Page 93: Delivery Package

    SD3-A1 SD3-A1 connector, complete, 15-pin, interface X1 SD3-A1 connector, complete, 9-pin, interface X2 Instruction manual (connection and operation) for SD3-A1, instruction manual (software operation) for SD3SOFT, Configuration and Diagnostic Software SD3SOFT on CD-ROM including the SD3SOFT instruction manual. Mounting screws, 4 pieces Instruction manual (safety instructions) for SD3-A1 12.1...

  • Page 94: Accessories And Spare Parts

    SD3-A1 plug, sock., 15 pins, for X1 interface SD3-PS SD3-A1 plug, sock., 9 pins, for X2 interface SD3-RS232-L SD3-A1 plug, sock., 15 pins, for X1 interface, cable routing to the rear SD3-PS-L SD3-A1 plug, sock., 9 pins, for X2 interface, cable routing...

  • Page 95: Coding Of The Control Cable X1

    12.3 Coding of the control cable X1 The following table defines the pin assignments for the 15-pin connector cable Pin No. Color code Meaning Black Blue Restart Orange FP 1 Yellow Alarm 1 Green FP 2 Violet FP 3 Gray FP 4 N.C.

  • Page 96: Technical Data

    30, 40, 50, 70, 150mm Cylinder, 1,000mm in length, 200mm in diameter, reflectance factor 1.8% ±0.2%, for mobile systems (e.g. AGV). 13.2 Detection zone Detection range SD3-A1 at a resolution of 30mm 1.60m at a resolution of 40mm 2.20m at a resolution of 50mm 2.80m...

  • Page 97: Detection Zone Additions

    13.3 Detection zone additions Addition with deactivated dust 83mm suppression Addition for activated dust 83mm (for a detection zone size < 3.5m) suppression 100mm (for a detection zone size 3.5m) Addition if retro-reflectors or very 0mm (more than 1.2m behind the detection zone shiny surfaces such as certain line) metals or ceramics are present in...

  • Page 98: Electrical Power Supply

    13.6 Electrical power supply Power supply 24V DC +20% / -30%, supply according to IEC 742 with safety transformer or comparable for DC / DC converters Overload protection Provide by 1.25A semi-delay fuse in the electronics cabinet Current consumption Approx. 300mA (use a power supply with 2.5A) Power consumption 8W at 24V, plus the output load Excess voltage protection...

  • Page 99: Software

    13.9 Software ® ® User software SD3SOFT under Windows 95 / 98 / 2000 / NT ® with safe protocol for programming Table 13.9-1: Technical data – software 13.10 Interfaces RS-232, RS-422 For device configuration and data exchange Table 13.10-1: Technical data – interfaces 13.11 Optics Angle range Max.

  • Page 100: 13.12 Environment And Material

    13.12 Environment and material Protection type IP65 in accordance with IEC 60529 Operating temperature 0 to +50°C Storage temperature -20 to +60°C Humidity DIN 40040 Table 10, Identifying letter E (moderately dry) Dimensions 140 × 155 × 135 (W × H × D) in mm Distance from the middle of the 48.75mm scanning plane to the bottom...

  • Page 101: Dimensional Drawings Of The Sd3-A1

    Dimensional drawings of the SD3-A1 13.13...

  • Page 102: Dimensional Drawings Of The Mounting System

    Dimensional drawings of the mounting system 13.14...

  • Page 103: Diagnostic Codes And Causes

    Diagnostic codes and causes Loca- Description Cause tion Processing of commands, Data transmission error on the X2 processing of messages interface Control of command Data transmission error on the X2 processing interface Processing of commands, Data transmission error on the X2 Processing of configuration interface Processing of commands,...
  • Page 104 Loca- Description Cause tion 1705 Processing of field monitoring Signal of a light barrier in optical light barrier data window monitoring is under the lower limit. Dirty optical window 1705 Processing of field monitoring Signal of a light barrier of optical light barrier data window monitoring is above the upper limit.
  • Page 105 Loca- Description Cause tion 2401 Reference measurement on No removal value can be the dark reference element calculated for reference measurement. Dust in device because connector housing or dummy connector not screwed on 2402 Reference measurement on No distance value can be the light reference element calculated for reference measurement.
