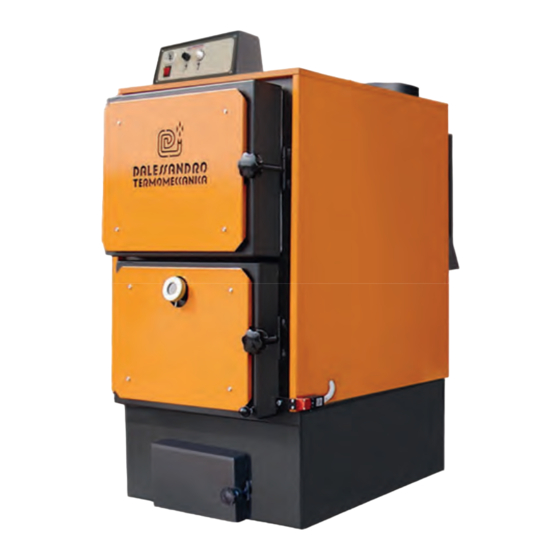

D'ALESSANDRO TERMOMECCANICA C.da Cerreto, 25/B - MIGLIANICO(CH) Phone +39 0871 950329 Fax +39 0871 950687 SOLID FUEL HEAT GENERATOR SERIE CSL Models from 25 to 100 USE AND MAINTENANCE MANUAL www.recal.cl · bio@recal.cl · (+562) 2430 7700... -
Page 2: Table Of Contents
GENERAL CONTENTS 0 – GENERAL INFORMATION PAGE 3 • Referring Standard PAGE 3 • Mark PAGE 3 • Proper and improper use PAGE 4 • Warranty and responsibility PAGE 4 • Declaration of Conformity PAGE 4 1 SAFETY and RESIDUAL RISKS PAGE 5 2 DESCRIPTION of the MACHINE PAGE 6... -
Page 3: General Information
0 – GENERAL INFORMATION 0.1 Identi cation of the document This instruction manual, carried out by D'Alessandro Termomeccanica, is an integral part of the machine. The reproduction of any part of this manual, in any form, is strictly forbidden. 0.2 Aim of the document The aim of this manual is to allow the machine users to employ it in the better conditions of safety for people, animals and things. -
Page 4: Proper And Improper Use
The warranty is valid only to the original customer and only when he is completely owner of the machine. Any controversy between D'Alessandro Termomeccanica and the purchaser are settled by an arbitration; in case of non-agreement upon the arbitration board the place of jurisdiction is Chieti. -
Page 5: Safety And Residual Risks
1 - SAFETY and RESIDUAL RISKS 1.0 Risks connected to the use of the machine The machine is built according to the essential safety requirements required by the European Directives. The European and National Standards concerning the safety of this type of machine have been considered during the planning. -
Page 6: Description Of The Machine
2 – DESCRIPTION OF THE MACHINE 2.0 General information Heat generator type "Marina" with three ways for smoke, on base [2], is carried out in steel suitable for the thermal shocks, and it is made up of a firebox with a cast iron grate [3] that can be reached by means of an insulated door [6], the tube nest [8], that can be reached too for the cleaning operations trough the door [7] and the fume pipe fittings [16]. -
Page 7: Machine General Data
MACHINE GENERAL DATA 3.1 - DIMENSIONS Ø Flue Water Water Connections Model Content (l.) CSL25 1400 1350 1" 1/2 CSL40 1400 1350 1" 1/2 CSL60 1170 1400 1350 1" 1/2 CSL80 1420 1400 1350 1" 1/2 CSL99 1580 1400 1350 2"... -
Page 8: Transport, Handling, Installation
Pic. 2 4 - TRANSPORT, HANDLING and INSTALLATION 4.1 General information The machine must be supplied completely assembled and ready for the installation. 4.2 Transport and Handling The transport and handling operations must be carried out by proper means. The heat generator is provided with a robust hook [14] for the coupler with slings (pict. 2) 4.3 Installation and testing Only when the machine is completely installed that is only when it is positioned and levelled, connected to the hydraulic circuit, connected to the electric board and supplied with the suitable... -
Page 9: Starting
5 – STARTING 5.1 Checks before the starting Before starting the heat generator check that: THERMO- REARMAMENT • The installer delivered the formal Declaration of THERMOSTAT HYDROMETER Conformity. • The water supply is regularly filled with the right water level in the open expansion tank. •... -
Page 10: Cleaning
6 - CLEANING 6.0 General information The firebox and the flues must be periodically cleaned from the combustion solid residues (ashes). Keeping the flues free from ashes ensure the draught efficacy and then the best efficiency of heat . 6.1 Operation mode and periodicity Firebox: The check and the cleaning of the amount of combustion residues in the firebox [3] must be carried out every day by opening the door [6]. -
Page 11: Noice
8 - NOISE 8.0 General information The machine acoustic radiation pressure are not significant. 8.1 Sound emission values Measurements carried out in room type (thermal station with a surface higher than 6 mq) have shown Leq,d continuative sound pressure values, and peak values lower than 76 dB(A) 9 –... -
Page 12: Instructions For The Installation
11 – INSTRUCTIONS FOR THE INSTALLATION 11.1 GENERAL PRESCRIPTIONS 11.1.1 REFERENCES All the persons that makes the electric and hydraulic installation of the heat generator must be inscribed in the register of the Installer Company according the L. 46/90. The installer both for the hydraulic and for the electrics connection must release the Certificate of Conformity according the L. -
Page 13: Instructions For The Installation
11.2.5 FLUE During the installation phase we recommend installing the flue at least 1 m higher than the roof and everything else that is about 10 m near. 11.2.6 NATURAL DRAUGHT The flue section and height must ensure that there is a depression of at least 10 Pa.(1 mm water of column) on the fume pipe fitting end. - Page 14 DECLARATION of CONFORMITY The company D'Alessandro Termomeccanica C.da Cerreto,25/B - 66010 MIGLIANICO (CH) In the place of D'ALESSANDRO RAFFAELE DECLARES Under its own responsibility that the HEAT GENERATOR Series Model Serial number Which this declaration refers to COMPLIES With the dictation, however applicable it is, of the Machine Directive 89/392 EEC,...
