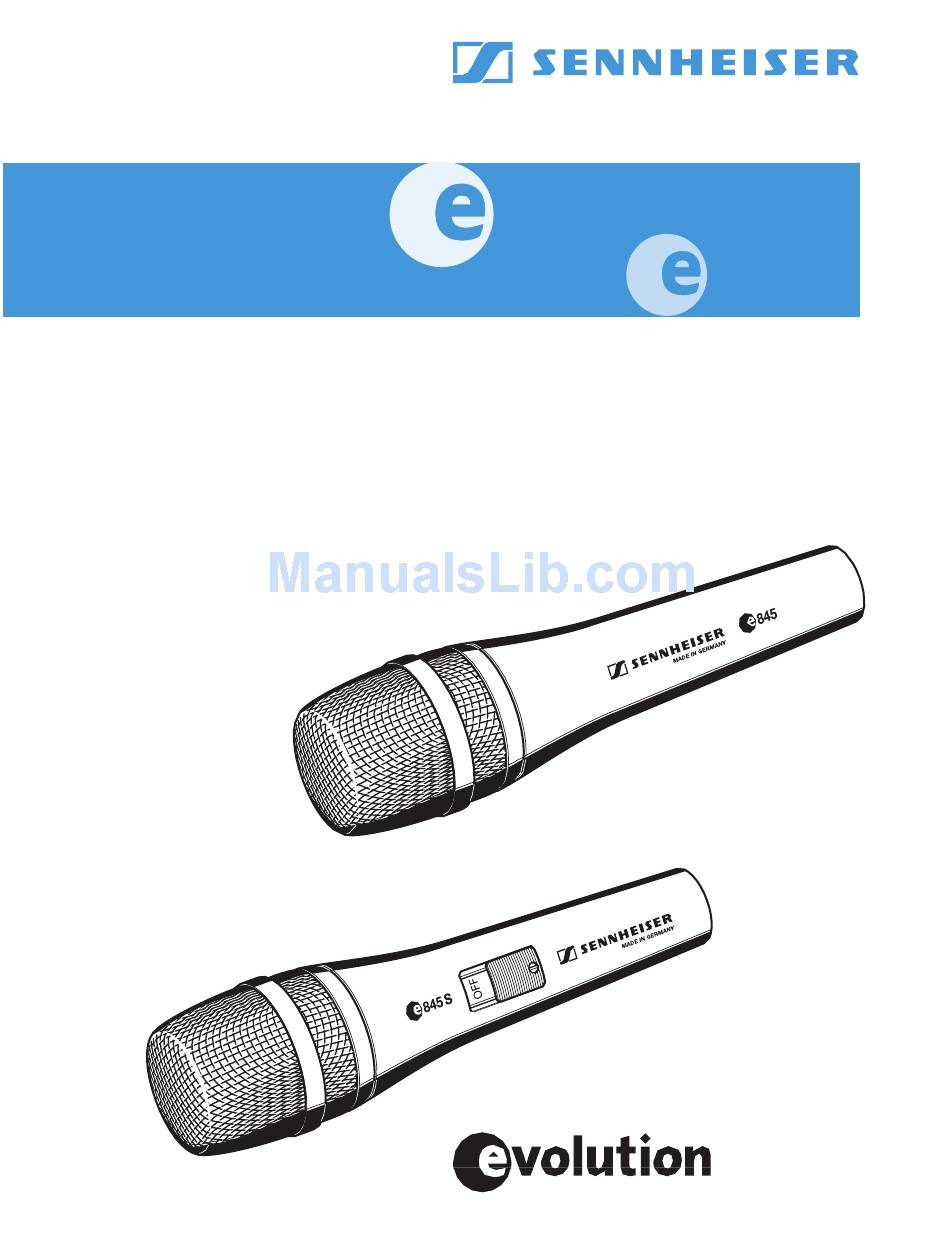

  • Page 1 845 S Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...

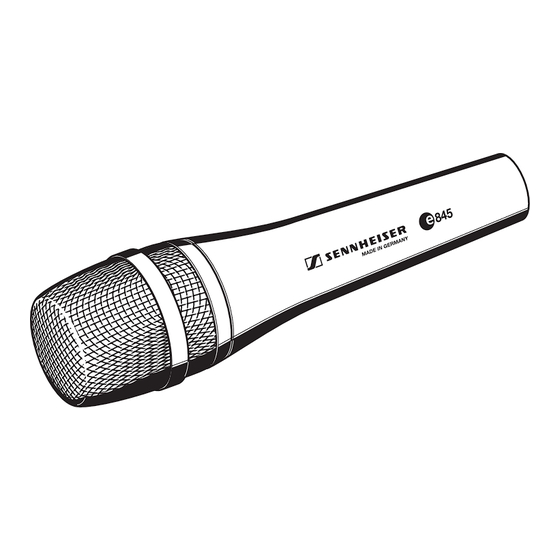

  • Page 2 845 / 845 S 845 is a high-performance lead vocal microphone, specially designed for rough stage use. Due to its extended high-frequency response and super-cardioid pick-up pattern, the 845 ensures vocal projection through high on-stage sound levels. The microphone has a smooth, warm tonal response and full dynamic range.
  • Page 3: Delivery Includes

    Features Rugged all metal body Full dynamic range and smooth frequency response for excellent signal quality Excellent feedback rejection Very good suppression of handling noise Humbucking coil Delivery includes 845 microphone MZQ 800 microphone clamp Pouch Instructions for use Warranty Certificate ON/OFF switch ( 845 S only) Use the screw to lock the switch in the ON position.
  • Page 4 Pin assignment of XLR-3 connector 6,3 mm 6,3 mm balanced symmetrisch Removing the sound inlet basket...
  • Page 5: Positioning The Microphone

    Positioning the microphone Position Resulting sound Commentary High proximity effect Very little crosstalk (much bass/ from other sound fundamental) sources Powerful, direct sound Less proximity effect More crosstalk from (less bass/fundamental) other sound sources Some room ambience, natural, balanced sound Very little proximity Much crosstalk from effect (little bass/...
  • Page 6: Polar Diagram

    Polar diagram ° 30° 30° 60° 60° 90° 90° 120° 120° 150° 150° 180° 125 Hz 2000 Hz 250 Hz 4000 Hz 500 Hz 8000 Hz 16000 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 500 1000 2000...
  • Page 7 Specifications Transducer principle dynamic Frequency response 40..16,000 Hz Pick-up pattern super-cardioid Sensitivity (free field, no load at 1 kHz) 1.8 mV/Pa Nominal impedance Min. terminating impedance Connector XLR-3 Weight 330 g Dimensions Ø 46 x L 185 mm...
  • Page 8 Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads...
  • Page 9: Manufacturer Declarations

    Manufacturer declarations Waaranty 2 years Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regula- tions. WEEE Declaration Please dispose of this product at the end of its operational li- fetime by bringing it to your local collection point or recycling centre for such equipment.
  • Page 10 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 03/07 511656/A04...
  • Page 11: Technical Data

    Dimensions shall be 46 x 185 mm Instructions for use (1.81“ x 7.28“). Weight without cable shall be 330 grams (11.64 oz). The microphone shall be the Sennheiser e 845, the variant with a silent ON/OFF switch shall be the Sennheiser e 845 S.
  • Page 12 Cat. No. 004711 MZW 4032-A anthracite foam windscreen Cat. No. 002978 MZW 4032-C blue foam windscreen Cat. No. 002980 Contact your local Service Partner: Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com...
