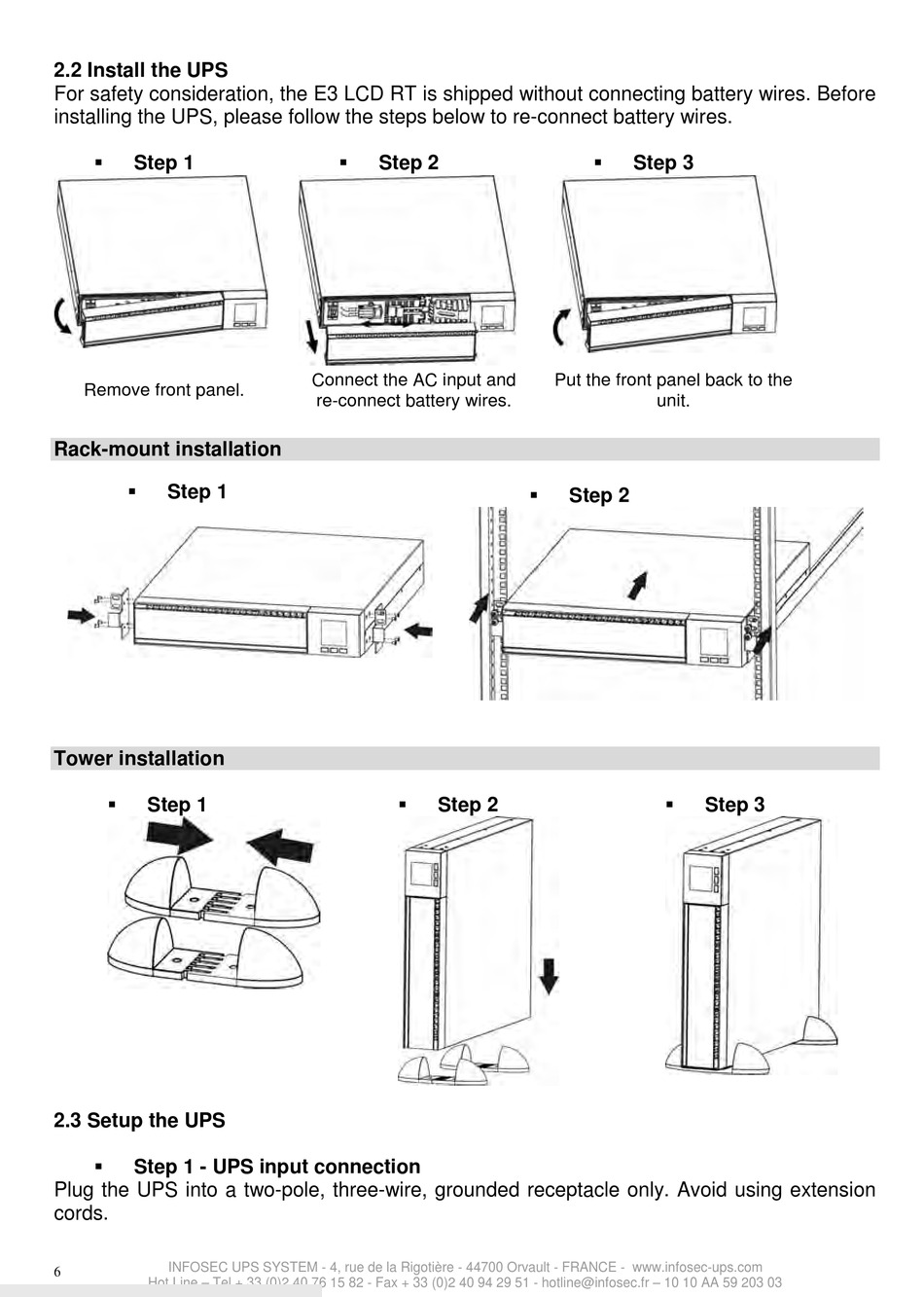

2.2 Install the UPS
For safety consideration, the E3 LCD RT is shipped without connecting battery wires. Before
installing the UPS, please follow the steps below to re-connect battery wires.

Step 1
Remove front panel.
Rack-mount installation

Step 1
Tower installation

Step 1
2.3 Setup the UPS

Step 1 - UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension
cords.
