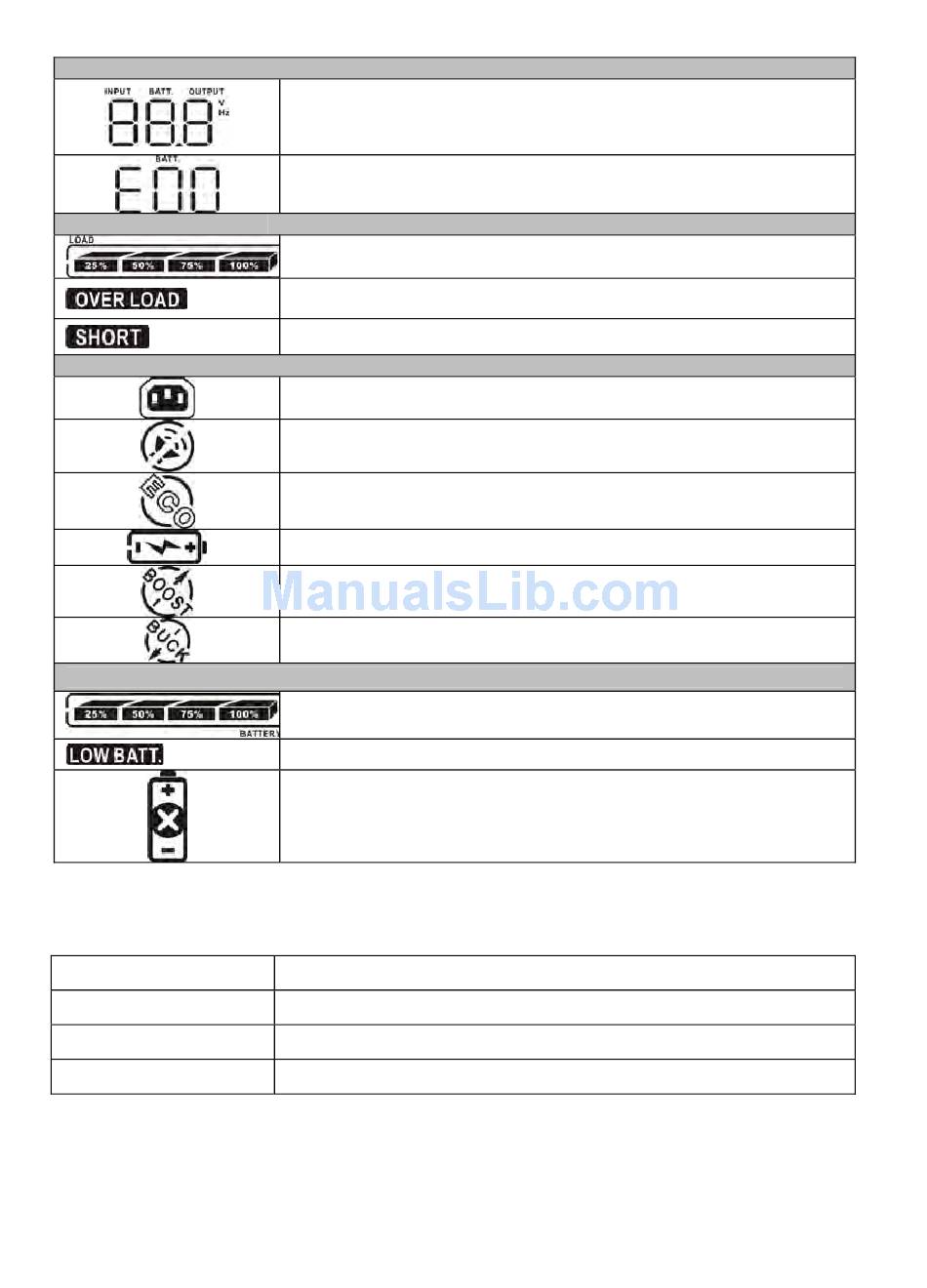

Input/Output & battery information
Load information
UPS status
Battery information
3.3 Audible alarms
Battery mode
Low battery
Overload
Fault
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 10 10 AA 59 203 03
Indicates the input/output voltage, input/output frequency or battery
voltage.
V: voltage; Hz: frequency.
Indicates the external battery pack number.
Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates overload.
Indicates that the load or the UPS output is short circuited.
Indicates that programmable management outlets are working.
Indicates that the UPS alarm is disabled.
Indicates the UPS powers the output directly from the mains (see
details page 13).
Indicates that the battery charger is working (see details page 13).
Indicates that the UPS is working in boost mode (see details page
13).
Indicates that the UPS is working in buck mode (see details page 13).
Indicates the battery level by 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates low battery.
Indicates a problem with the battery.
Sounding every 4 seconds.
Sounding twice every second.
Sounding every second.
Continuously sounding.
