INTRODUCTION

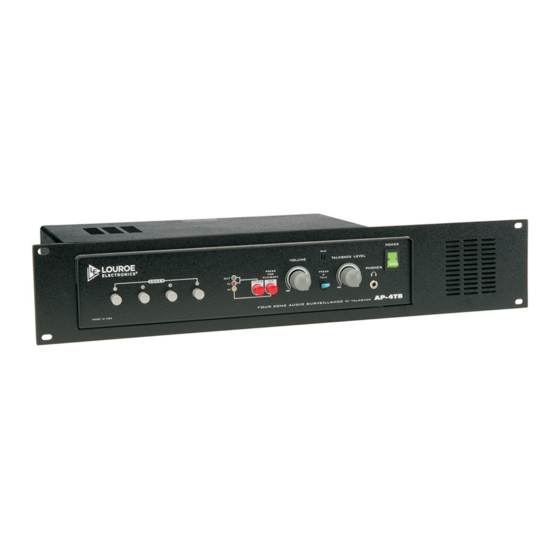

The AP-4TB-RM is a four zone rack mounted audio base station with 2-way talk/listen capabilities. It contains a built-in
microphone and speaker (mounted in the front rack panel) for two-way audio communication to the remote station. Unit has
volume adjustments for both talk and listen. Zone audio can be activated by manually pressing the zone activation switches
of the unit. Provides 4 line level RCA outputs for recording remote microphone audio to DVRs with multiple audio inputs.
Selectable Audio output and input from a recorder are provided through RCA connectors at the rear of the unit. Has built-in
speaker for listening to live audio. Compatible with all Louroe's two-way remote speaker/microphone units
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX
®
4 ZONE RACK MOUNTED TWO-WAY AUDIO BASE STATION
INSTALLATION AND OPERATING INSTRUCTIONS
/ www.louroe.com
Contents
AP-4TB-RM
Dual RCA Cable
®
website: www.louroe.com
AP-4TB-RM
Description
U
listed 4 ZoneTwo-Way Audio Base
®
Station. Used for two-way communication
to remote speaker/microphone units. Has
Audio IN/OUT for a recorder.
RCA cable for connection to a
DVR/VCR or other Audio devices
that accept line level input
(0dB @ 600 ).
e-mail: sales@louroe.com
