L
OUROE
E
LECTRONIC S
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
sales@louroe.com / www.louroe.com

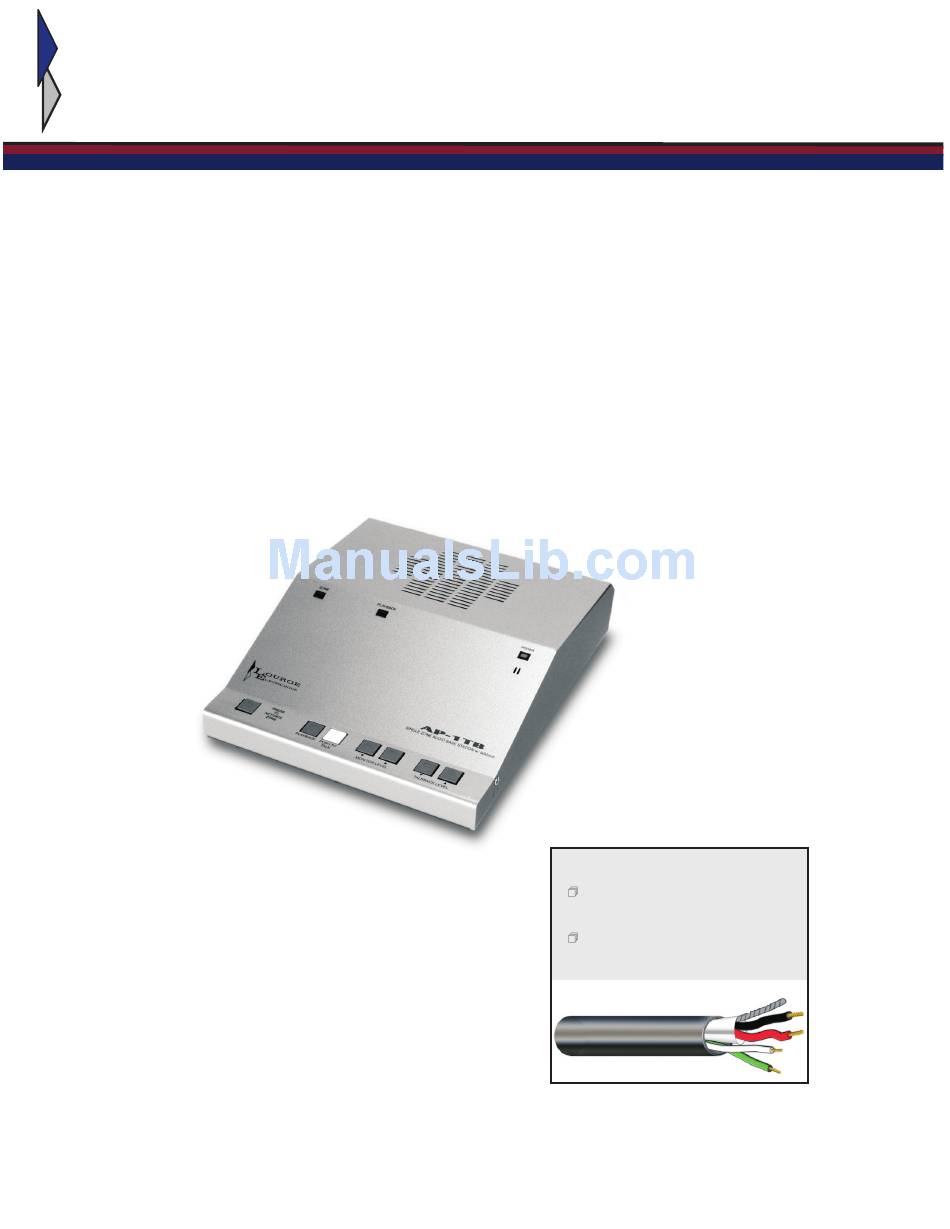

LOUROE MODEL AP-1TB AUDIO MONITORING
The LOUROE AP-1TB is a single zone audio monitoring base station with a built-in
microphone and speaker. When connected with a remote Louroe Speaker/Microphone,
it provides a bi-directional (2-way) communication system. Audio can be monitored by
pushing in the "Press To Activate Zone" switch. The unit contains an "Audio Out" and
"Audio In" jack for connection to a DVR/VCR for recording and playback. A 3.5mm
headphone jack is provided for private listening. The AP-1TB is compatible with Louroe
Speaker/Microphone Models TLI, TLM Series, TLMC, TLO and TLSP.

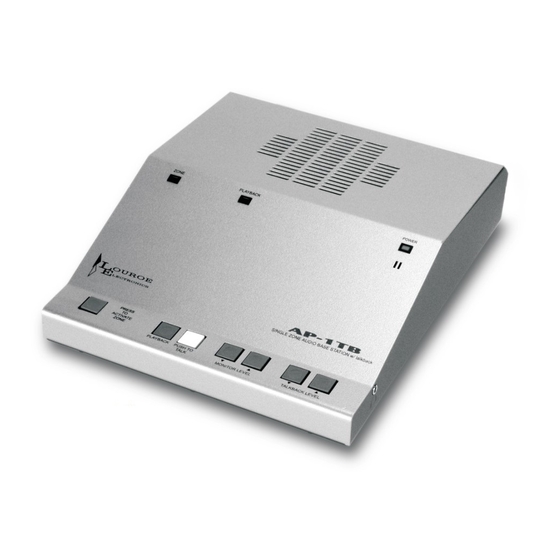

AP-1 TB Audio Base Station
(can be used as a desktop
or wallmount)
AP-1TB
AUDIO MONITORING BASE STATION
INSTALLATION AND OPERATING INSTRUCTIONS

BASE STATION

WIRING REQUIREMENTS
4 Conductor consisting of:
2 Conductor shielded, 20 gauge
with 22 gauge drain (microphone
connection)
2 Conductor unshielded, 18 gauge
(speaker connection)
All in the same jacket
West Penn 356 or equivalent
AP 1TB 6/08

Advertisement

loading

Related Manuals for Louroe Electronics AP-1TB

Summary of Contents for Louroe Electronics AP-1TB

  • Page 1: Base Station

    LOUROE MODEL AP-1TB AUDIO MONITORING BASE STATION The LOUROE AP-1TB is a single zone audio monitoring base station with a built-in microphone and speaker. When connected with a remote Louroe Speaker/Microphone, it provides a bi-directional (2-way) communication system. Audio can be monitored by pushing in the “Press To Activate Zone”...

  • Page 2: Description Of Parts

    DESCRIPTION OF PARTS FIG. 2 Front of AP-1TB Base Station L O U R O E E L E V a n C T R N u y O N IC s , C A M a d 9 1 4 0 e In U .S .A...
  • Page 3 Used for private listening. Any 3.5mm stereo headphone with 8Ω to 6 Ω impedance may be used. Mutes AP-1TB speaker output when in use. [9] Zone Indicator LED Illuminates when a zone is activated. Audio from microphone is present at the Monitor Speaker[13].

  • Page 4: Wiring Requirements

    “SP”. Connect cable’s white wire to terminal marked “G”. 3) Connect the other end of the cable to AP-1TB Mic 6-Pin Terminal Block [14]. Make sure that wire connected to terminal “A” of remote speaker/microphone connects to terminal “A” of AP-1TB’s Mic 6-Pin Terminal Block [14]; wire connected to terminal “B”...
  • Page 5 P O W GREEN (SP) 24 V REAR OF DVR Z O N Parallel each pin of terminal block from AP-1TB #1 (pins B, C, SP, G and P) to terminal block of AP-1TB #2. 24 Vdc POWER SUPPLY NOTE: Pin “A” is not used when paralleling...

  • Page 6: Operation And Test

    DVR/VCR Playback Switch [2] to playback. Playback Indicator LED[10] will illuminate. Playback audio will be present at the Monitor Speaker [13]. WALL MOUNTING AP-1TB AUDIO BASE STATION Bottom of chassis contains four teardrop cut-outs for wall mounting, using #8 screws (not supplied).
  • Page 7 INSTALLATION AND OPERATING INSTRUCTIONS NOTE Model AP-1TB Audio Base Station of ASK-4 Kit #501 is supplied with a 70V talkback output, which is standard for most audio applications. Should a 600Ù talkback output be required, please contact our factory for details regarding instructions for switching over to 600Ù.
  • Page 8 LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship. Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
