1.4

System Voltage Monitoring

AX6L implements a voltage monitoring system. As you turn on your system,
this smart design will continue to monitor your system working voltage. If any
of the system voltage is over the component's standard. There will be alarm
through application software such as HWMON2 (Small Icon for Hardware
Monitoring) for a warning to user. System voltage monitoring function monitors
5V, 12V, 3.3V and CPU core voltage. It is automatically implemented by BIOS
and HWMON2, no hardware installation is needed.
1.5

Fan Monitoring

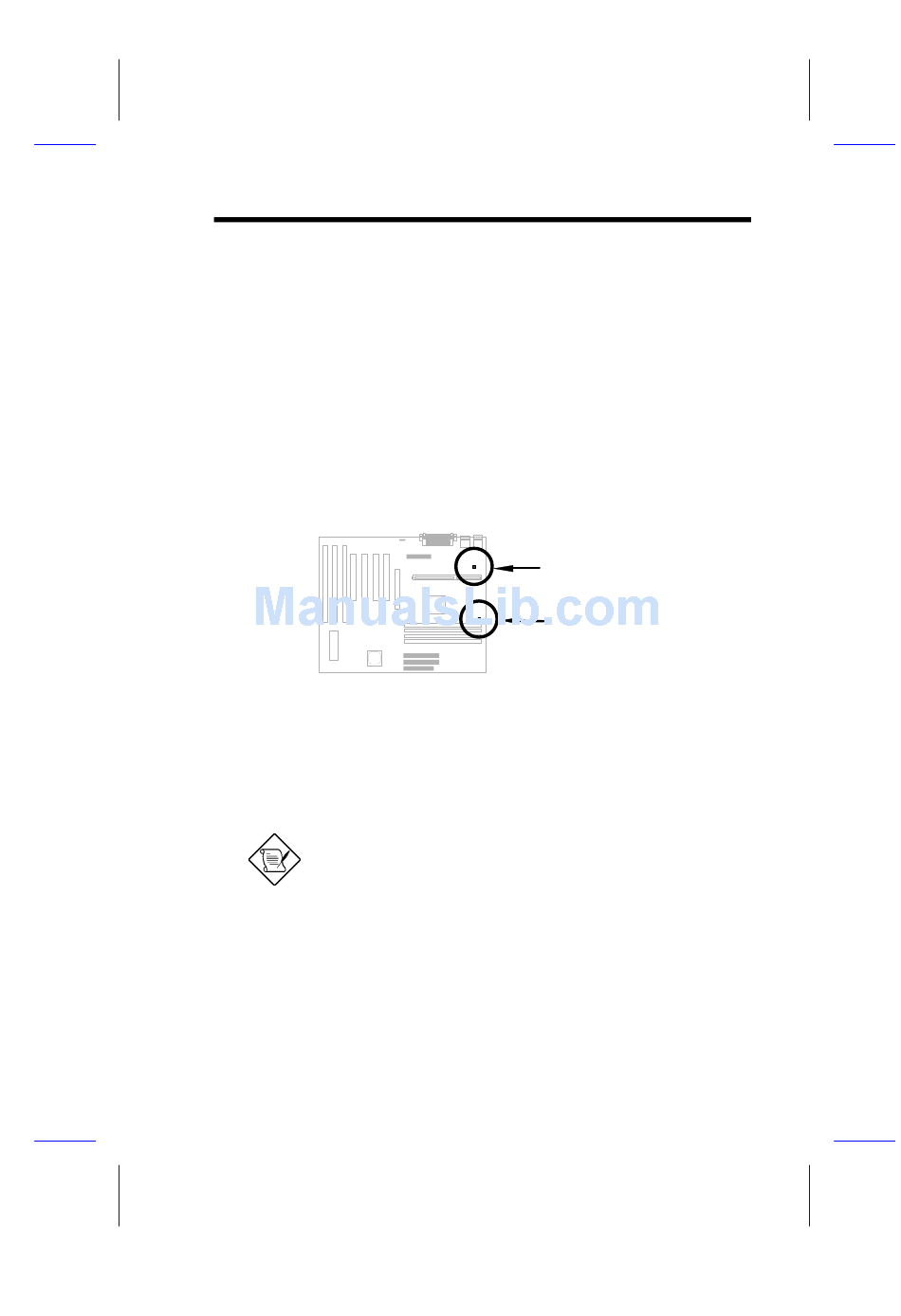

There are two fan connectors, one is for CPU, the other can be a housing fan.
The fan monitoring function is implemented by connecting fan to 3-pin fan
connector CPUFAN or FAN and installing HWMON2 (Small Icon for Hardware
Monitoring).
Note: You need 3-pin fan that supports SENSE
signal for fan monitoring function to work
properly.
Overview
FAN
CPU FAN
1-11
