Thanks for purchasing AOpen's AX6L motherboard. This Guide will help you installing the system.

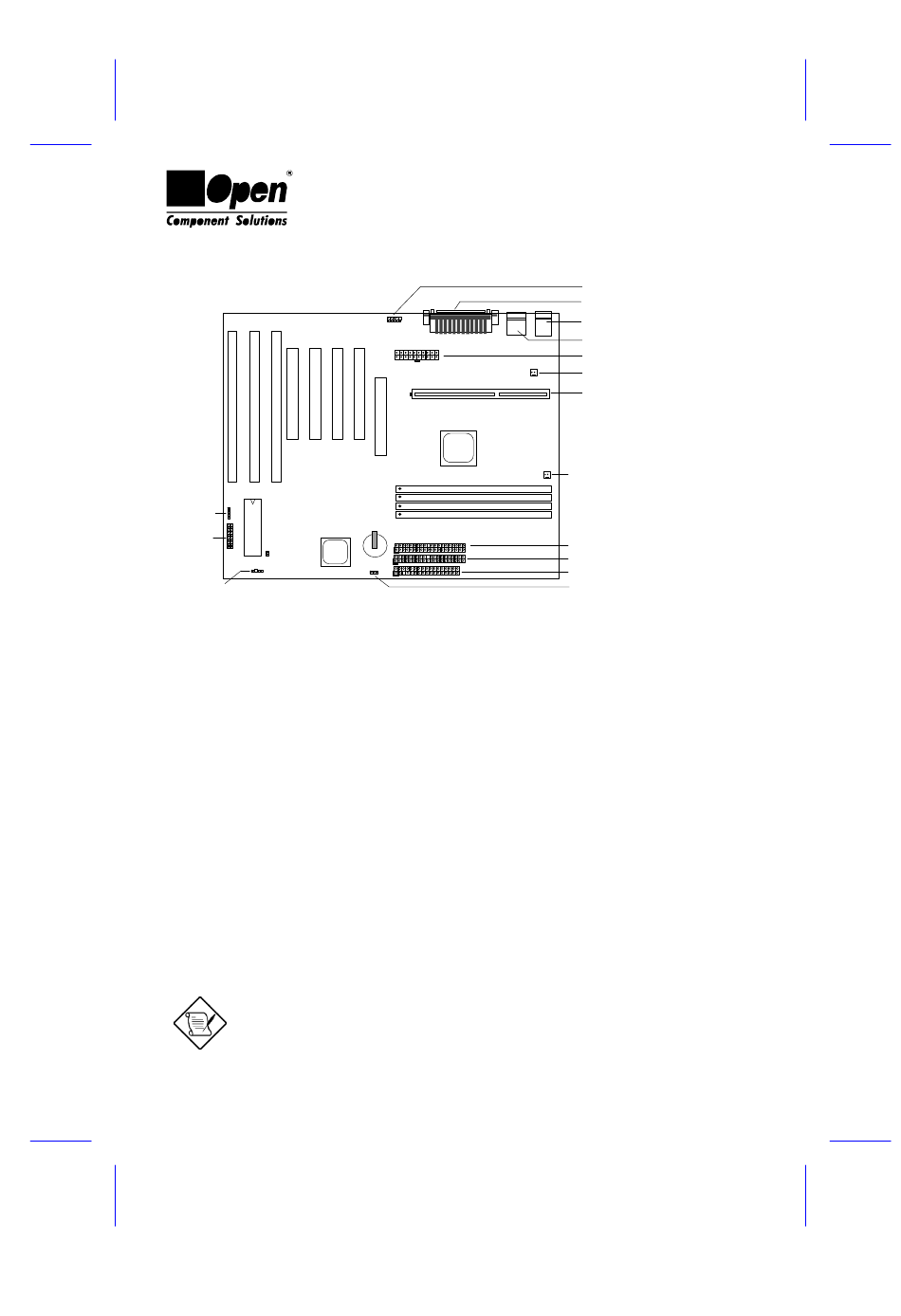

Following figure shows the location of the jumpers and connectors on this motherboard:
HDD LED
Panel
WKUP: Wake Up connector
AX6L implements many special features as following:
Jumper-less Design Pentium II VID signal and SMbus clock generator provide CPU voltage
auto-detection and allows user to set CPU frequency through CMOS setup, no jumper or switch is
needed.
Battery-less Motherboard AX6L implements EEPROM and special circuit (patent applied) that
allows you to save your current CPU and CMOS Setup configurations without the need of battery.
The RTC (real time clock) can also keep running as long as power cord is plugged.
Suspend to Hard Drive This function saves your work to HDD and resumes within a short time.
Modem Wake Up Through this feature, it is possible to have system totally power off and
wakeup to automatically answer a phone call, such as answering machine or to send/receive fax.
RTC Wake Up Timer Program the date/time to wake up your system.
Over-current Protection Full line (5V, 12V, 3.3V and CPU) over-current protection to prevent any
accident short circuit.
CPU Thermal Protection Warning when CPU temperature is higher than a predefined value.
Fan Monitoring Two fan connectors, warning when CPU or housing fan is malfunction.
System Voltage Monitoring This design will monitor your system working voltage continuously.
Switching Regulator High efficient switching regulator for future CPU.
75/83.3MHz External Clock For user's convenience, AX6L supports 75/83.3MHz external clock.
Please note that it is user's risk to do over-clocking.
FCC DoC certificate AX6L has passed FCC DoC test. The radiation is very low, you can use
any kind of housing.
Note: This Quick Installation Guide is only for quick reference. For more information,
please see the User's manual.
Quick Installation Guide
IrDA connector
COM1, COM2 and PRINTER
PS/2 MS and KB2 connector
USB connector
PWR2: ATX Power
FAN
CPU SLOT 1
CPU FAN
IDE2 connector
IDE1 connector
FDC connector
JP14: Clear CMOS
~1
~
