V2403 Series
Video Distribution Amplifier
Installation/Operation Instructions
The manual applies to the below products
V2403-4/V2403-8/V2403-16

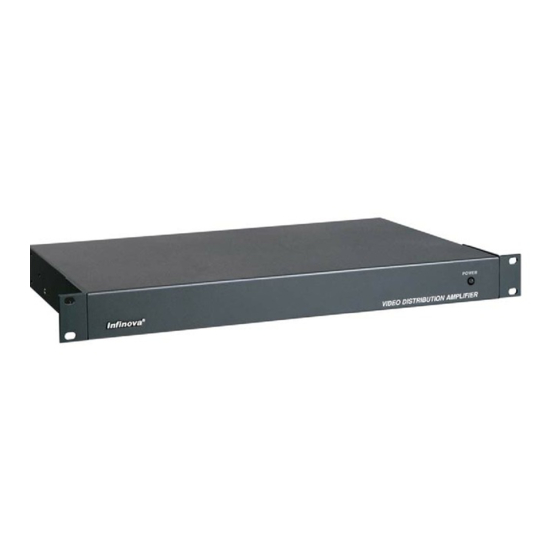

This manual addresses the installation and operation procedures for Infinova V2403 series Video
Distribution Amplifier. The V2403 series Video Distribution Amplifier provides 4 sets of video outputs (8
for each), or 8 sets of video outputs (4 for each), or 16 sets of video outputs (2 for each). The V2403 series
Video Distribution Amplifier distributes each video signal into 8 or 4 or 2, with no adjustments required.
Advertisement
Table of Contents
Related Manuals for Infinova V2403-4
Summary of Contents for Infinova V2403-4
- Page 1 The manual applies to the below products V2403-4/V2403-8/V2403-16 This manual addresses the installation and operation procedures for Infinova V2403 series Video Distribution Amplifier. The V2403 series Video Distribution Amplifier provides 4 sets of video outputs (8 for each), or 8 sets of video outputs (4 for each), or 16 sets of video outputs (2 for each). The V2403 series...
- Page 3 This manual may not be reproduced in any form or by any means to create any derivative such as translation, transformation, or adaptation without the prior written permission of Infinova. Infinova reserves the right to change this manual and the specifications without prior notice. The most recent product specifications and user documentation for all Infinova products are available on our website www.infinova.com.
- Page 4 Read this manual carefully before installation. This manual should be saved for future use. Important Safety Instructions and Warnings Electronic devices must be kept away from water, fire or high magnetic radiation. Clean with a dry cloth. Provide adequate ventilation. Unplug the power supply when the device is not to be used for an extended period of time.
-
Page 5: Table Of Contents
Table of Contents 2.3.1 Video Input Connections..........1 Chapter I General Description ............. 1 1.1 Description................1 2.3.2 Video Output Connections ..........2 1.2 Features................. 1 2.3.3 Power Connection ............2 Chapter II Installation and Operation......... 1 Appendix I Specifications ............. 2 2.1 Installation ................ -
Page 7: Chapter I General Description
Rear Panel 2.3 Hardware Connections 2.3.1 Video Input Connections The V2403-4 provides a group of 4 BNC connectors, labeled as "VIDEO INPUT”. The V2403-8 provides a group of 8 BNC connectors, labeled as "VIDEO INPUT". The V2403-16 provides a group of 16 BNC connectors, labeled as "VIDEO INPUT". Each... -
Page 8: Video Output Connections
1500 ft (475m) 2.3.2 Video Output Connections The V2403-4 amplifies a set of 4 video input signals and distributes them to a total of 32 outputs.The V2403-8 amplifies a set of 8 video input signals and distributes them to a total of 32 outputs. The V2403-16 amplifies a set of 16 video input signals and distributes them to a total of 32 outputs. -
Page 9: Appendix Ii Typical System Connection
Appendix II Typical System Connection Monitor Monitor Camera Camera VIDEO VIDEO OUTPUT INPUT 100~240VAC 50/60H z Camera Camera Monitor Monitor... -
Page 10: Surge Protection
Appendix III Cable Diameter Calculation and Lightning & Surge Protection Relation between 24VAC Cable Diameter and Transmission Distance In general, the maximum allowable voltage loss rate is 10% for AC-powered devices. The table below shows the relationship between transmission power and maximum transmission distance under a certain specified cable diameter, on condition that the 24VAC voltage loss rate is below 10%. - Page 11 Lightning & Surge Protection The product adopts multi-level anti-lightning and anti-surge technology integrated with gas discharge tube, power resistor and TVS tube. The powerful lightning and surge protection barrier effectively avoids product damage caused by various pulse signals with power below 4kV, including instantaneous lightning, surge and static.
- Page 12 Infinova 51 Stouts Lane, Monmouth Junction, NJ 08852, U.S.A. Tel: 1-888-685-2002 (USA only) 1-732-355-9100 Fax: 1-732-355-9101 sales@infinova.com V2.6 1102...
