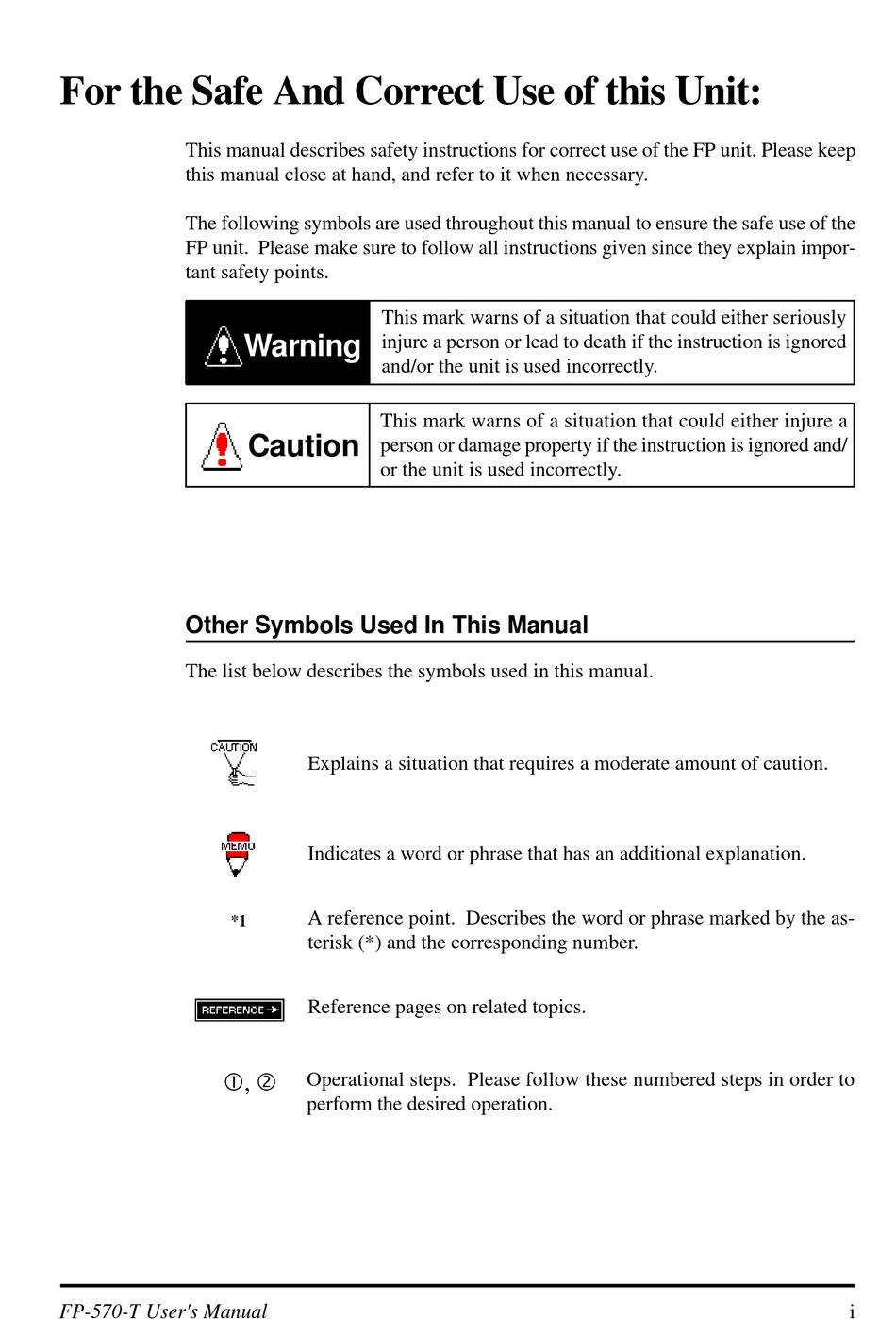

For the Safe And Correct Use of this Unit:
This manual describes safety instructions for correct use of the FP unit. Please keep
this manual close at hand, and refer to it when necessary.
The following symbols are used throughout this manual to ensure the safe use of the
FP unit. Please make sure to follow all instructions given since they explain impor-
tant safety points.
Other Symbols Used In This Manual
The list below describes the symbols used in this manual.
!, "
FP-570-T User's Manual
This mark warns of a situation that could either seriously
Warning
injure a person or lead to death if the instruction is ignored
and/or the unit is used incorrectly.
This mark warns of a situation that could either injure a
Caution
person or damage property if the instruction is ignored and/
or the unit is used incorrectly.
Explains a situation that requires a moderate amount of caution.
Indicates a word or phrase that has an additional explanation.
A reference point. Describes the word or phrase marked by the as-
*1
terisk (*) and the corresponding number.
Reference pages on related topics.
Operational steps. Please follow these numbered steps in order to
perform the desired operation.
i
Advertisement
Table of Contents
Related Manuals for Digital Electronics Corporation FP-570-TC-11
Summary of Contents for Digital Electronics Corporation FP-570-TC-11
- Page 1 For the Safe And Correct Use of this Unit: This manual describes safety instructions for correct use of the FP unit. Please keep this manual close at hand, and refer to it when necessary. The following symbols are used throughout this manual to ensure the safe use of the FP unit.
-
Page 2: Warning Safety Instructions
Safety Instructions Warning For the safe use of this unit, please follow these guidelines: Because of the ever present danger of electrical shock, be sure to unplug the power cable from the FP unit before plugging the cable's other end into the wall. Do not use power in excess of the unit's specified voltage range since it may cause a fire or electric shock. -
Page 3: Caution Safety Instructions
Safety Instructions Caution For the correct use of this unit, please follow these guidelines: Do not press the screen's touch surface too strongly with either your finger or a hard object, since the touch surface may be damaged. When the surface of the display screen becomes dirty or smudged, clean the display with a cloth soaked in a neutral detergent. -
Page 4: Preface
<Note> 1) It is forbidden to copy the contents of this manual, in whole or in part, except for the user's personal use, without the express permission of the Digital Electronics Corporation of Japan. 2) The information provided in this manual is subject to change without notice. -
Page 5: Table Of Contents
Table of Contents For the Safe and Correct Use of this Unit ..............i Warning: Safety Instructions ..................ii Caution: Safety Instructions ..................iii Preface ......................... iv Table of Contents ......................v PC Connectivity Notes ....................vii Features of the FP-570-T* ................... ix Package Contents ...................... - Page 6 3-3 Operation Mode Setup and Display Positioning ............3-8 1 Operation Mode Setup and Adjustment ..............3-8 2 Adjusting the Touch Panel Display ................. 3-9 3 Default Contrast Volume Setting and Adjustment ............3-10 Chapter 4—Touch Panel Commands Command List ......................4-1 Boot-up Initialization ....................4-2 Touch Interface Data ....................4-3 Touch Panel Commands ..................4-5 Chapter 5—Touch Panel Communication Programs...
-
Page 7: Pc Connectivity Notes
PC Connectivity Notes The FP unit's analog interface is designed for standard VGA mode. The number of dots (pixels) displayed are as follows: Display Mode Size Dot Clock Range 720 x 400, 720 x 350 28.322MHz ±1% Text Mode 640 x 480, 640 x 400, 640 x 350 25.175MHz ±1% Graphics Mode When the unit is used in VGA text mode, the far right side's 80 dots are... -
Page 8: Features Of The Fp-570-T
Features of the FP-570-T* The features of the FP-570-T* are as follows. High Quality TFT Color LCD Display This unit is equipped with a 10.4 inch TFT type color LCD. Its superior brightness and wide viewing angle, not found in ordinary laptop type TFT LCDs, widens your scope of applications. -
Page 9: Package Contents
Package Contents The FP's packing box contains the items listed below. Please check to be sure each is included and is not damaged. FP unit (FP-570-TC11 or FP-570-T* User’s Manual FP-570-TC21-24V) Pro-face Digital FP-570-T* User's Manual (100V/24V Units) 3.5 inch floppy disk Installation brackets (4) (Contains Touch Panel programs) These items have all been carefully packed with special attention to product quality. - Page 10 MEMO FP-570-T* User's Manual...
-
Page 11: Chapter 1-Introduction
C h a p t e r 1 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 Introduction 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2... -
Page 12: Optional Equipment
Introduction Optional Equipment All optional equipment listed below are products of Digital Electronics Corp. Item Model Description Backl i ght Repl acem entBackl i ghtbul bs G P570- BL00- M S Bul bs f or100V uni t( FP- 570- TC 11) Mainte- nance I nst al l at i on... -
Page 13: Chapter 2-Specifications
Chapter 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 Specifications 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1... -
Page 14: Structural Specifications
Specifications (Continued from previous page) The front face of the GP unit, installed in a solid panel, has been tested using condi- tions equivalent to the standard shown in the specification . Even though the GP unit’s level of resistance is equivalent to the standard, oils that should have no effect on the GP can possibly harm the unit. -
Page 15: Functional Specifications
Specifications 2-2 Functional Specifications (For both 100 V and 24V Units) 100V (FP-570-TC11) 2 4 V ( FP- 5 7 0 - T C1 2 - 2 4 V) Di s pl a y M edi a T FT c ol orL CD Di s pl a y Col or s 2 6 0 , 0 0 0 c ol or s Res ol u t i on... -
Page 16: Interface Specifications
Specifications Interface Specifications (For both 100V and 24V Units) 2-3-1 Analog RGB Interface Input signal type Anal og RGB I nputsi gnalchar act er i st i c I m age si gnal :anal og RGB Synchr onous si gnal :TTL l evel ,negat i ve t r ue orposi t i ve t r ue Scanni ng t ype:non- i nt er l ase Adj ust m entf unct i ons... -
Page 17: Serial Interface
Specifications 2-3-2 Serial Interface Baud r at e:9600 bps Dat a l engt h:8 bi t s Serial Interface Par i t y:none St op bi t :1 Pin Assignments and Signal Names for Serial Interface Si gnal Condi t i on Pi n Locat i on Name Car r i erDet ect( FP- >Host ) -
Page 18: Cable Diagrams
Specifications Cable Diagrams RGB Interface Cable Pin Connections FP side RGB cable PC side ANALOG R INPUT RED IN RED VIDEO OUTPUT RED VIDEO ANALOG G INPUT GRN IN GRN VIDEO OUTPUT GRN VIDEO ANALOG B INPUT BLU IN BLU VIDEO OUTPUT BLU VIDEO RESERVED... -
Page 19: Pin Connections For The Sio Interface Cable
Specifications Pin Connections for the SIO Interface Cable FP side SIO cable PC side Output Input Output Input Input Output Input Output GND 5 GND 5 Output DSR 6 Input DSR 6 Input Output Output Input Input Signal names for the FP's SIO interface are designed to match the same pin order as the SIO interface on personal computers. -
Page 20: Names And Functions Of Fp Parts
Specifications Names and Functions of FP Parts Front View A: TFT Color LCD The display monitor for your host (PLC). B: Touch Panel Allows you to perform touch operation. C: Power Lamp Indicates if the PL is turned ON. C: Power Input Terminal Block Provides the input and ground terminals for a power cable. -
Page 21: Flat Panel (Fp) Dimensions
Specifications 2-6 Flat Panel (FP) Dimensions 2-6-1 External Dimensions (Both 100V and 24V units) Unit: mm Top View Side View Front View 77.5 Rear View FP-570T User's Manual... -
Page 22: Installation Brackets
Specifications 2-6-2 Installation Brackets Unit: mm Top View Rear View 19.5 Front View Side View 2-6-3 FP Installation Dimensions Unit: mm 302 + 0.5 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0... -
Page 23: Chapter 3-Installation And Wiring
C h a p t e r 3 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 Installation and Wiring... -
Page 24: Installation And Wiring
Installation and Wiring • For easier maintenance and operation, and improved ventilation, be sure the FP unit is mounted at least 100 mm away from any adjacent structures or objects. • The FP uses natural ventilation through its outer shell for cooling. When installing the unit horizontally or sideways (portrait style), use a fan or air conditioning unit to prevent overheating. - Page 25 Installation and Wiring Panel Install the FP unit into the front of the panel. Side View Install the brackets from the rear of the panel. There are a total of 4 insertion slots, 2 on the top and 2 on the bottom of the FP, for the metal installation brackets to hook onto.
- Page 26 Installation and Wiring Use a screwdriver to tighten the screw and secure the FP unit in place. A torque of no more than 0.5~0.6 N•m should be required to tighten the screw. Using too much force may break the case and damage the unit. FP-570T User's Manual...
-
Page 27: Wiring
Installation and Wiring Wiring 3-2-1 Power Cable Connection Warning • To prevent electrical shocks, be sure the Power Cable is plugged first into the FP unit, then into the wall (main supply). • Your FP-570 uses input voltage of either DC24V or AC100V. If your power supply is greater than that required by your unit, it may damage both the power source and the FP unit. -
Page 28: Precautions: 100V Fp-570-Tc11 Power Supply
Installation and Wiring Connect the FP power cable as follows: ! Check to make sure the FP's power cord is disconnected. # Remove the plastic terminal cover. " Remove the screws from the 3 middle terminals, align the power wire connectors and re-insert the screws. -
Page 29: Precautions: Grounding
Installation and Wiring • Make sure the surge absorber FP unit (E1) is grounded separately from the FP unit (E2). surge • Select a surge absorber that absorber has a maximum circuit voltage greater than that of the peak voltage of the power supply. 3-2-3 Precautions: Grounding (a) Exclusive grounding (BEST) Connect the FP's FG terminal to an... -
Page 30: Operation Mode Setup And Display Positioning
Installation and Wiring Operation Mode Setup and Display Positioning 3-3-1 Operation Mode Setup and Adjustment The setup switches (dip-switches) are located in the rear of the unit. FP-570-T* (rear view) Dip-switch The default settings for the FP were created based on the standard connection method used with IBM-PCs. -
Page 31: Adjusting The Touch Panel Display
Installation and Wiring SW1-4 This switch is used to designate the FP's display mode. SW1-4 Display Mode VGA Standard graphics mode (640 x 480) (Dot clock frequency: 25.175MHz ±1%) Text mode (720 x 400 or 720 x 350) (Dot clock frequency: 28.322MHz ±1%) VGA special graphics mode (640 x 400) (Dot clock frequency: 25.175MHz ±1%) SW1-5... -
Page 32: Default Contrast Volume Setting And Adjustment
Installation and Wiring 3-3-3 Default Contrast Volume Setting and Adjustment The default contrast setting for the FP unit is based on the standard IBM-PC series display. If you connect the FP unit to another type of PC unit, with a different RGB screen output level, then color displacement or screen flicker may occur. -
Page 33: Chapter 4-Touch Panel Commands
C h a p t e r 4 Touch Panel Commands 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2... -
Page 34: Boot-Up Initialization
Touch Panel Commands Boot-up Initialization When the power is turned ON, the touch panel is initialized as follows. Clears its internal buffer. Initializes the serial communication mode. Baud rate 9600bps Data length 8 bits Parity none Stop bit 1 bit Initializes the system default values. -
Page 35: Touch Interface Data
Touch Panel Commands Touch Interface Data Since the FP uses an analog type touch panel, all 640 x 480 coordinates can be detected. Resolution of the analog touch panel is 1024 x 1024, so a conversion program to convert the coordinates to 640 x 480 becomes necessary. Also, a calibration program to adjust the actual touch position is needed. - Page 36 Touch Panel Commands (2) Data Format All data is in 8-bit ASCII format, and is structured in the following 11 byte strings. Header: 1 byte (T = touched; R = released) X coordinate: 4 bytes (0000 ~ 1023) Separator: 1 byte (,) Y coordinate: 4 bytes (0000 ~ 1023) Termination code: 1 byte (CR = 0Dh)
- Page 37 Touch Panel Commands Touch Panel Commands The following are touch panel commands sent from the host computer to the FP unit. The letter inside the bracket next to the command code shows the actual character used for that code. Display ON 65h ( e ) Turns on FP-570T's display.
- Page 38 Touch Panel Commands The order of priority for the buzzer and click sounds is as follows. They are not processed simultaneously. Sound Command Code Priority Order high Buzzer (high) ON Buzzer (low) ON Click sound (high) ON Click sound (low) ON Also, if the OFF command for each buzzer item is transferred, regardless of the priority order, only that buzzer item is turned off.
-
Page 39: Chapter 5-Touch Panel Communication Programs
C h a p t e r 5 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 Touch Panel 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1... -
Page 40: Operation Environment
Touch Panel Communication Program 5-2 Operation Environment FP unit Analog RGB Interface Cable SIO Interface Cable (VGA standard: Dsub 15-pin (Dsub 9-pin female) male) Personal Computer 3.5 inch FD Touch panel communication programs FP-570T User's Manual... -
Page 41: Touch Panel Input Drivers
Touch Panel Communication Program Touch Panel Input Drivers 5-3-1 ATPH.EXE (Touch Panel Handler) Input for the analog touch panel is carried out at a resolution of 1024 x 1024 dots, with the origin point located in the upper right corner of the panel. The origin point of the display panel, however, is located in the upper left corner, and its resolution is 640 x 480 dots. - Page 42 ("ATPH. CAL" in the current directory is selected for default.) When this program runs, the following message will display on the screen. Analog Touch Panel Handler ATPH. EXE Version 1.00 Copyright (c) 1993 Digital Electronics Corporation Stay resident. After execution, the command stays in memory.
- Page 43 Touch Panel Communication Program Function ATPH. EXE has the following functions, which are activated by software interrupt (Default = INT59H) function calls. < INT 59H Function List > Function Code Cont ent s 8100h T ouch paneli nput( i nf i ni t e wai t ) 8101h T ouch paneli nput( i nst antr et ur n) 8102h...
- Page 44 Touch Panel Communication Program Function 0200h Input buffer clear Clears the touch panel's input buffer. < input > AX = 0200h < output > AH = 0 : normal end Function 8500h Detection of touch panel's conditions Returns the touch panel condition. <...
-
Page 45: Calib.exe (Touch Panel Data Calibration)
Touch Panel Communication Program 5-3-2 CALIB.EXE (Touch Panel Data Calibration) Because of changes in operational environment and the unit's deterioration, dif- ferences in theoretical and actual touch coordinates arise; and therefore these differences must be corrected periodically, via a utility software called CALIB.EXE (touch panel data calibration). - Page 46 Touch Panel Communication Program " " " " " Touch the desigated positions, one after the other. Do not touch two points at the same time. Touch right above the designated position. By re-touching the points, the ac- tual coordinates will redisplay. Correction data will be calculated from the difference between the actual and the theoretical values.
-
Page 47: Chapter 6-Troubleshooting
C h a p t e r 6 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 Troubleshooting... -
Page 48: No Display
Troubleshooting 6-1-2 No Display When the screen does not display when powering up, or if the screen turns OFF by itself, use the flowchart below to find an appropriate solution. No Screen Display Does the backlight (CFL) light up? Connect the appropriate voltage. Is it using the correct Chapter 2. - Page 49 Troubleshooting Is the computer operating? Start the computer. Connect the RGB cable correctly. Is RGB cable connected Chapter 2-4 Cable Diagrams. correctly? Select the correct display mode with Dip SW1-4. Is display mode Chapter 3-3 Operation Mode right? Setup and Display Positioning. Adjust the screen display position.
-
Page 50: Touch Panel Does Not Work
Troubleshooting 6-1-3 The Touch Panel Does Not Work When the touch panel does not react, or its reaction is very slow after it is pressed, follow the flowchart below to find the origin of the problem and the appropriate solu- tion. -
Page 51: Cleaning The Display
C h a p t e r 7 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 Maintenance 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2... -
Page 52: Periodic Check-Up
Maintenance Periodic Check-Up To maintain your unit in its best condition, please check your unit periodically. Inspection Items: Surrounding Environment Is the surrounding temperature within the allowable range? Is the humidity within the specified range? (30~85% RH) Is the atmosphere free of corrosive gas? FP Temperature When the FP unit is mounted into a cabinet, the conditions inside the cabinet are considered to be the environment. -
Page 53: Changing The 100V Unit's Backlight
Maintenance Changing the 100V (FP570-TC11) Unit's Backlight Warning • Whenever changing the Backlight, be sure the power has been turned OFF. • When the unit is Hot, be sure to use gloves to prevent injury. • When the unit is still ON, high voltage runs through the Backlight area—do not touch!. - Page 54 Maintenance MEMO FP-570T User's Manual...
-
Page 55: Index
Index Symbols Damages responsibility iv 640 x 480 pixels Data Format Features viii 8-bit ASCII 4-4 Default Contrast Volume Setting 3-10 Dip switches 3-8 Adjusting the Touch Panel's Display 3-9 Disassembling the unit ii Afterimage iii Display coordinates 5-3 Analog RGB Display mode vii features viii Displayed color iii... - Page 56 Header Packaging Data Format 4-4 Contents ix High voltage ii PC Connectivity Notes vii Periodic Check-Up Maintenance 7-2 I/O cover Pin Assignments 2-3 Contrast Adjustment 3-10 Possible Device Problems 6-1 Infinite wait Power Cable Connection Touch Panel Input 5-5 Wiring 3-5 Insertion Slot 3-3 Power Terminal Inspection Items...
- Page 57 Structural Specifications 2-3 Surge Absorber 3-7 Wiring 3-5 Surge absorber 3-7 Grounding 3-7 Switch SW1-4 2-3 Input/Output Signal Lines 3-7 Symbols i Power Cable 3-5 System default values Power Supply 3-6 Initialization 4-2 SYSTEM ENVIRONMENT SETUP 5-3 SYSTEM SETUP 5-3, 5-7 SYSTEM SETUP Touch Buzzer sound 5-3 Terminals...
