Summary of Contents for King Edward PB1FV

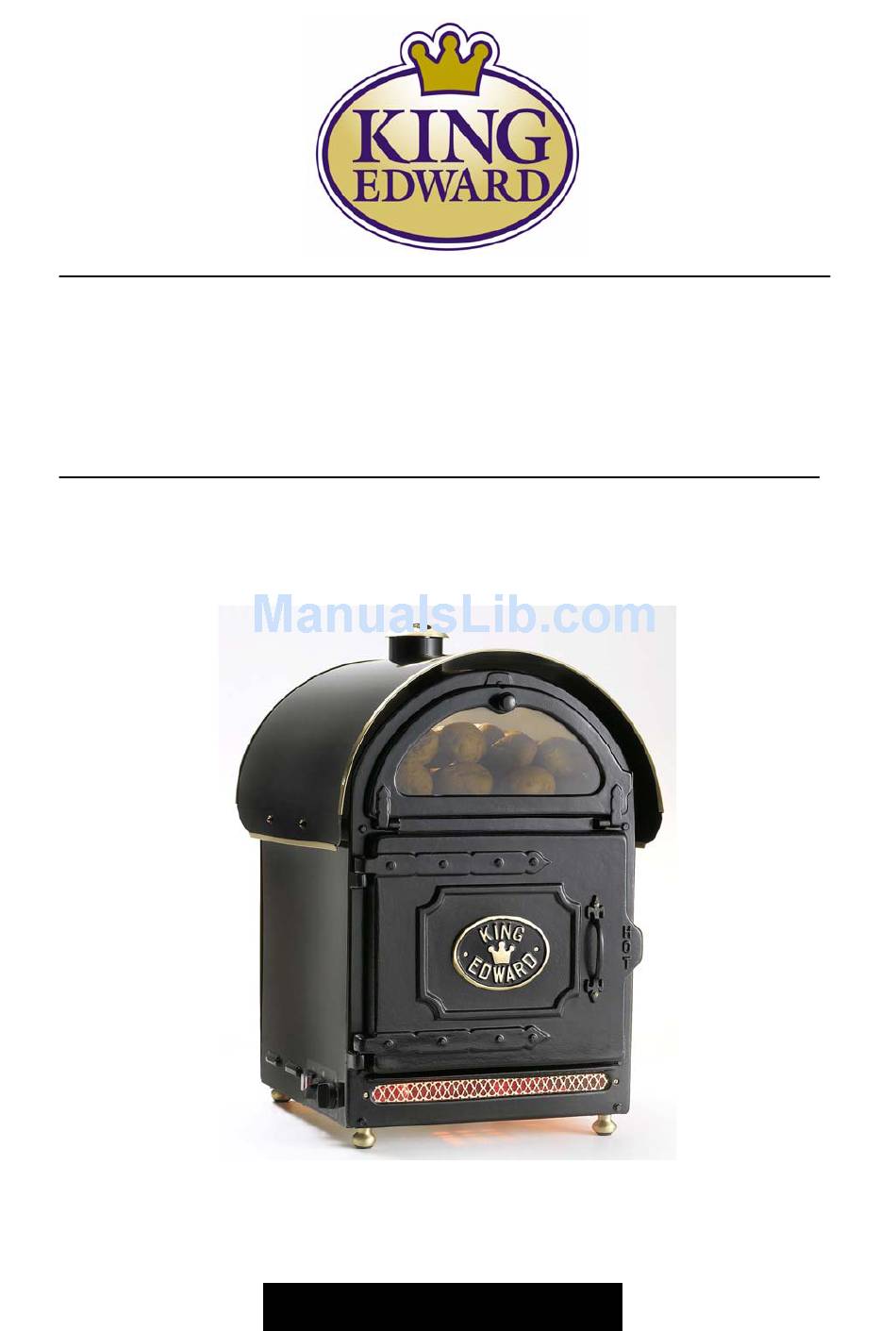

- Page 1 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS SMALL AND LARGE POTATO BAKERS SMALL AND LARGE POTATO BAKERS MODELS PB1FV & PB2FV MODELS PB1FV & PB2FV BEDIENUNGSANLEITUNG MODE D’EMPLOI GEBRUIKSAANWIJZING PLEASE READ CAREFULLY (Rev 10; 01/09/2010)
- Page 2 Handle baked potatoes carefully, occasionally they may burst in the oven or whilst being handled. All King Edward ovens MUST be operated by suitably trained staff. Under NO circumstances should children come into contact with or operate this appliance. Always use best practise and take all reasonable precaution to avoid accidents when using this oven.
- Page 3 OVEN COMPONENT LIST FOR POTATO BAKERS PB1(F) & PB2(F) OVEN COMPONENT LIST FOR POTATO BAKERS PB1(F) & PB2(F) Index No Part Description PB1(F) PB2(F) Door Frame (cast) 700101v 700201v Main oven door (cast) 700102v 700202v Top oven door (cast) 700103v 700203v Door handle (cast) 700104...
- Page 4 Wiring Diagram Potato Baker Wiring Diagram Potato Baker Wiring code: Top Bulb Top Oven Element NEUTRAL LIVE Main Oven Fan Element Fan Motor Front Panel Earth Timer Stud Mains Flex T’Stat Mains Connector Bottom Bulb Holder Display Oven Switch Thermal Cut Out Oven Switch...
- Page 5 We recommend the use of washed and graded baking potatoes as non-baking varieties take longer to cook and don’t produce such good results, King Edward, Maris Piper or Desiree are three good baking varieties although your supplier may be able to recommend others to you. Some ways you can prepare your potatoes include: Rubbing the skins in olive oil and salt.
- Page 6 Part Description PB1(F) PB2(F) Steam vent 700128 700228 Main door seal 700129v 700229v Self tapping screw 500111v 500111v Brass screw 500131 500131 Front frame (cast) 700132 700232 Brass convex 700133 700233 Name plate (brass oval) 700134 700234 Front D glass 700135 700235 Front panel (painted)
- Page 7 SERVICE SHEET FOR PB1(F)V & PB2(F)V SERVICE SHEET FOR PB1(F)V & PB2(F)V DISCONNECT FROM ELECTRICITY SUPPLY BEFORE COMMENCING SERVICE 1. Replacing top oven bulb: Access is gained through top oven door, lever off glass cover, unscrew bulb - replace cover ensuring cut-out in cover is over bulb housing side. 2.
- Page 8 GUARANTEE GUARANTEE All King Edward equipment is covered by a 1 year guarantee from the time of purchase; this does not effect your statutory rights. Depending on the contract you have entered into with your supplier, the guarantee may cover Parts Only or be full Parts & Labour. Please check with your supplier for confirmation.
