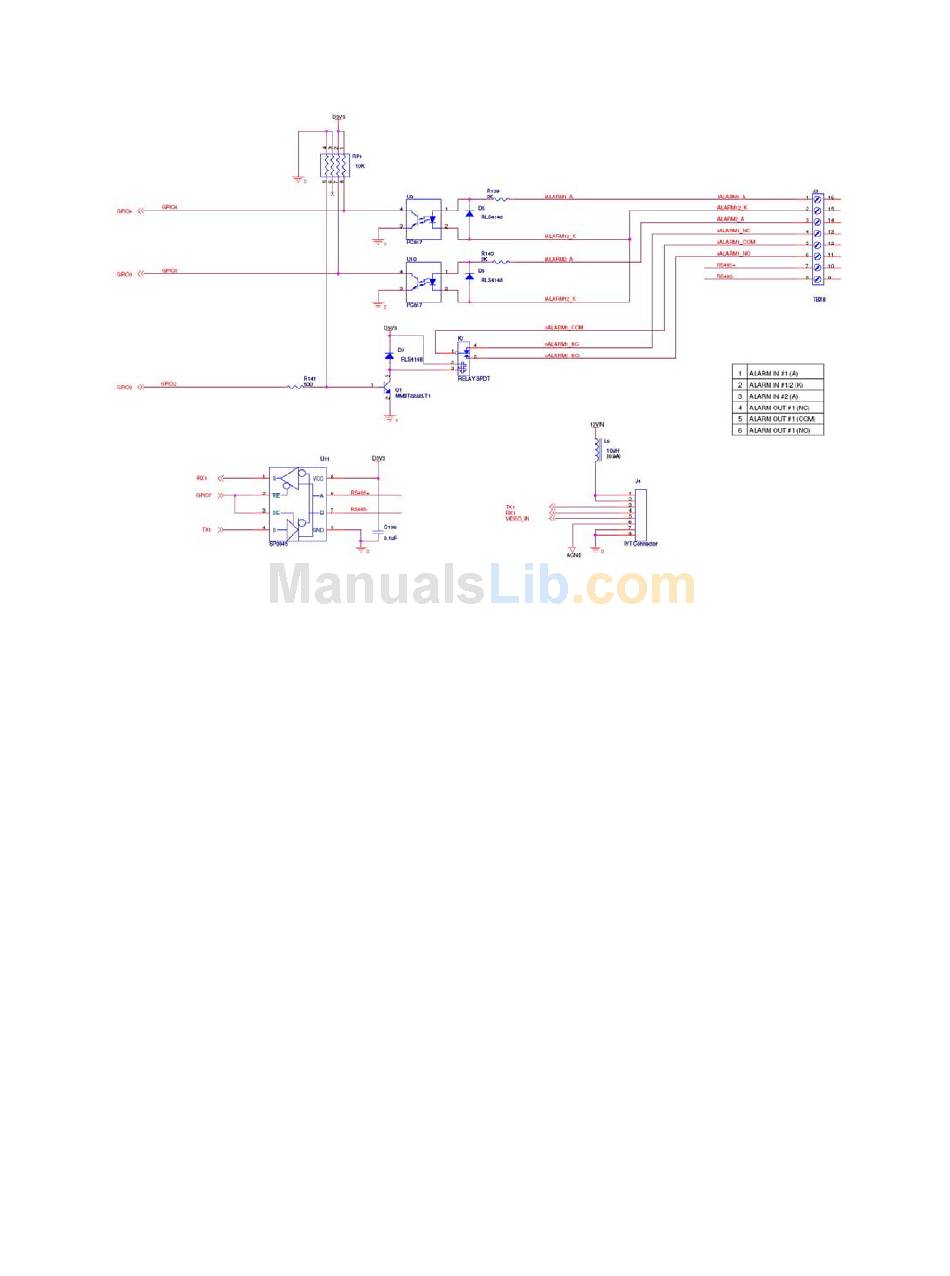

External Alarm I/O Circuit Diagram
Warning!
• Connecting of a low or high current loop to the external alarm input/output of the camera is required,
the wiring and connection shall be conducted by a qualified electrician. Incorrect wiring may bring
about damage to the camera or product fatal electric shock.
• Direct connect the external alarm input/output terminal to a high-current device is not allowed and a
customized relay circuit is required (provided by the customer) to isolate the terminal and the
high-current device. If the voltage/current of an external device exceeds the loading capability of the
Alarm I/O, the camera will be damaged.
©2007 Asante Networks Inc., All rights reserved. NetCam are registered trademarks of Asante Network, Inc.
All other names may be trademarks or registered trademarks of their respective owners. Specifications subject to change without prior notice.
