8. Attachment A: External Alarm
In addition to the motion detection executed by the internal software application, the camera can
connect to external infrared detectors, beepers, and smoke detectors. For more information about
these external devices, contact to your local retailer, dealer or installation service provider. This
camera provides a standard Alarm I/O for you.

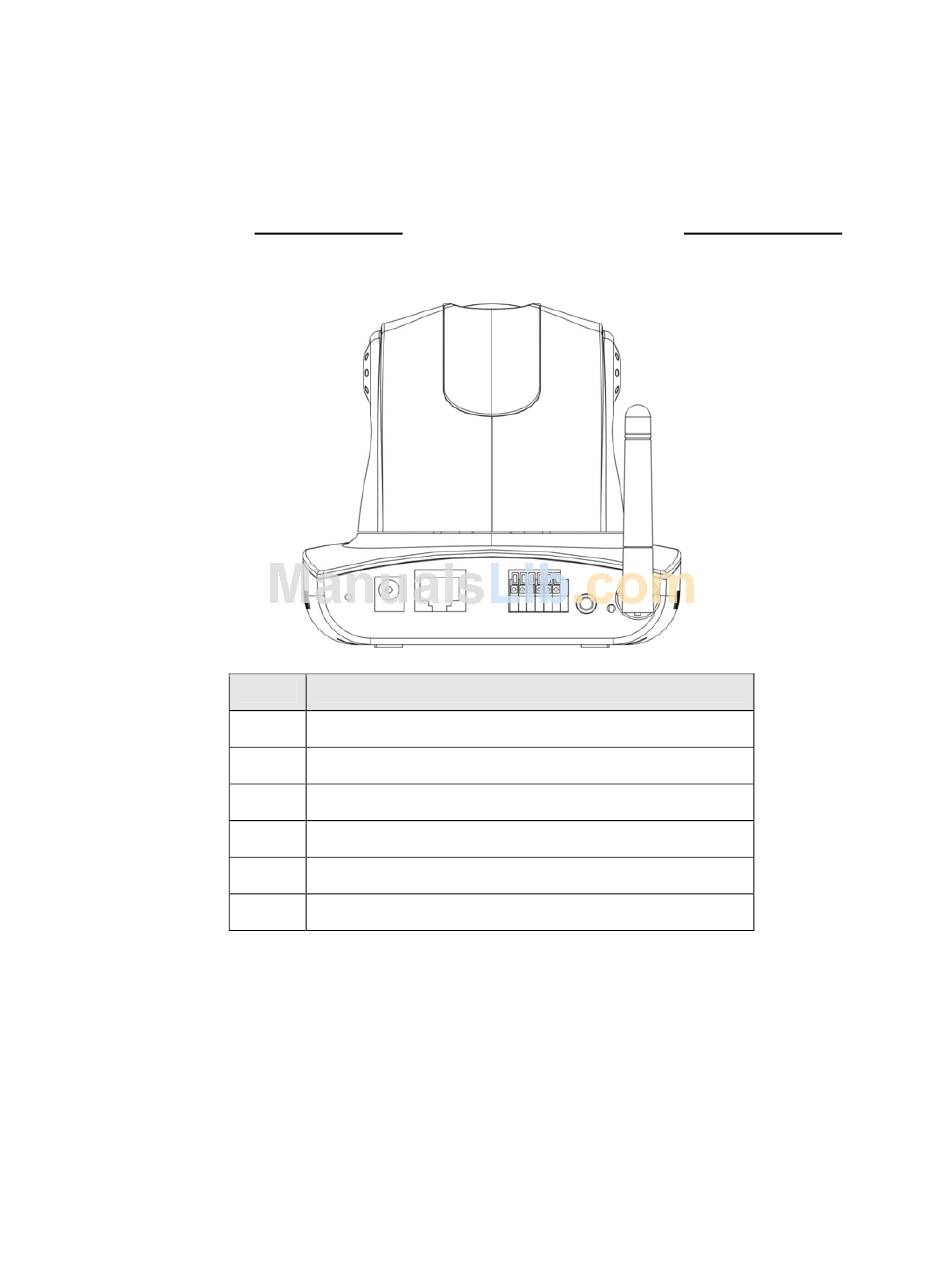

This product is provided with 2 sets of digital inputs and 1 set of digital outputs. Pin 1 and Pin 2 of the
terminal are used for external sensor 1, while Pin 2 and Pin 3 are used for external sensors 2. Pin 4,
5, and 6 are relays to control the normal open/normal close of external devices.
Pin
1
2
3
4
5
6
©2007 Asante Networks Inc., All rights reserved. NetCam are registered trademarks of Asante Network, Inc.
All other names may be trademarks or registered trademarks of their respective owners. Specifications subject to change without prior notice.
Function
Alarm Input #1 (A).
Max 24VDC, 12mA.
Alarm Input #1/2 (K). Ground
Alarm Input #2 (A).
Max 24VDC, 12mA
Alarm Output #1 (NC).
Alarm Output #1 (COM)
Alarm Output #1 (NO)
1 2 3 4 5 6
Max 24VDC, 1A
70
