Camera Control Panel

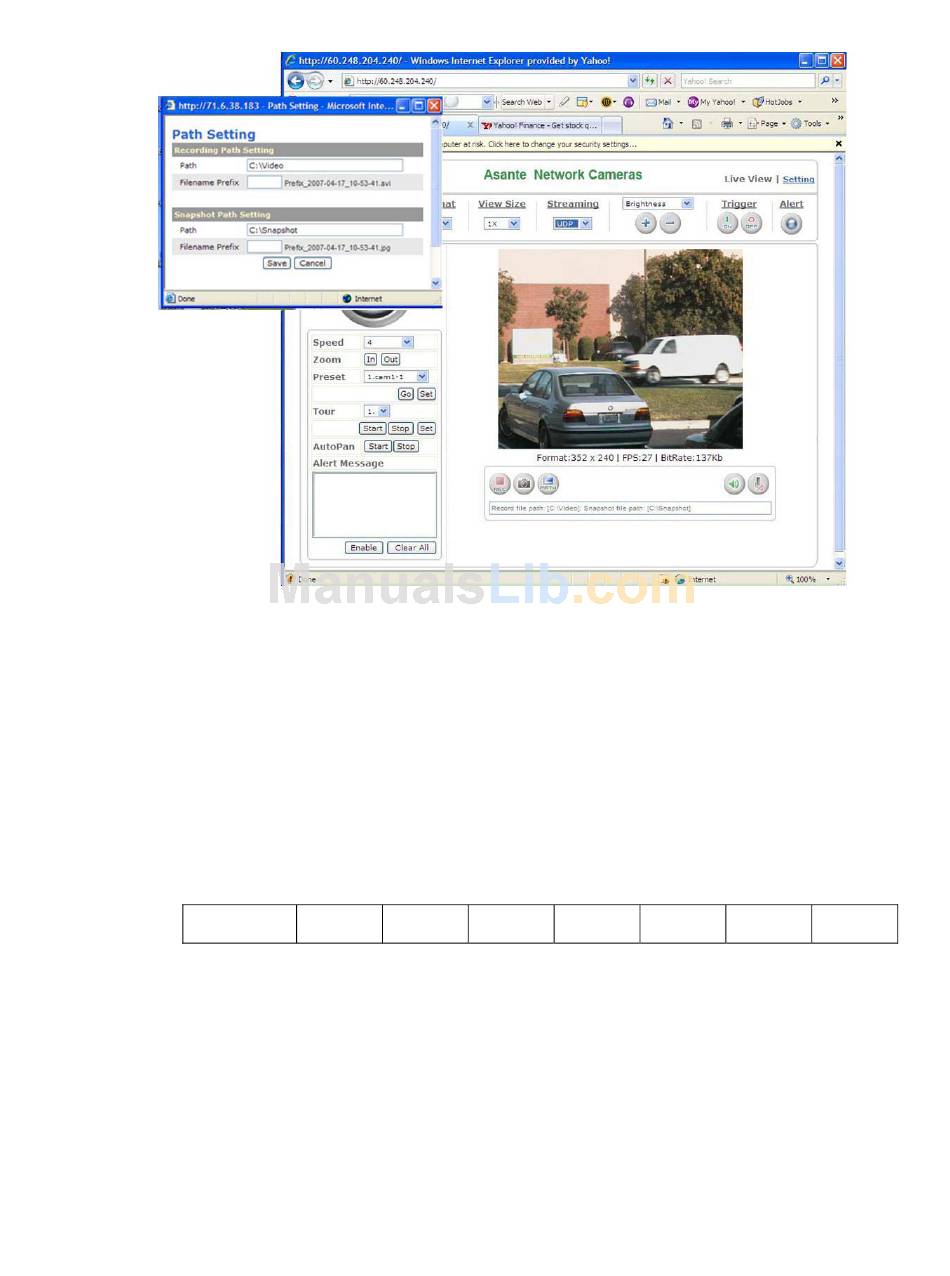

Camera control panel offers capability of managing camera from Pan, Tilt, Preset position, or auto
Pan. The camera control wheel is able to manage the direction, speed of pan and tilt, and display
"alert message"
Control wheel: With Up, Down, Left and Right directional button to allow you to adjust the
direction.
Center button: Home position and calibration.
Speed : Scale from 1 to 7. 1 is the slowest one and 7 is the fastest.
Speed
Angel/Sec
Zoom: Zoom could be Zoom In or Zoom Out on camera. If camera has zoom capability, it will
control zoom motor. If camera has no zoom capability, the digital zoom will be applied as
default.
Preset : Device could have 16 position with capability to naming the position so that you can
expedite the camera pan/tilt by one button. Procedure described as follow:
1) Select SET, a sub window will popup
2) Select Location Number from sub windows and enter the position name.
3) Control camera wheel to desire location for this position identity
4) Click "Update" and "exit".
5) You may test by select number on control panel and press "go". Camera will speedy
©2007 Asante Networks Inc., All rights reserved. NetCam are registered trademarks of Asante Network, Inc.
All other names may be trademarks or registered trademarks of their respective owners. Specifications subject to change without prior notice.
1 2
3 20
to turn to that location you set easier.
