4. Installing The System

Before connecting the hardware

1. Please be aware of that it is required to connect a PC and NetCam 8001 on the same IP
network or same Ethernet switch or hub for easier set up.
2. By default, NetCam 8001 is set at 192.168.0.20 private IP address.
3. Or you may use "IPFinder.exe" software come from CDROM alone with document and search
available or multiple NetCam 8001 on your network.

Wiring the Product

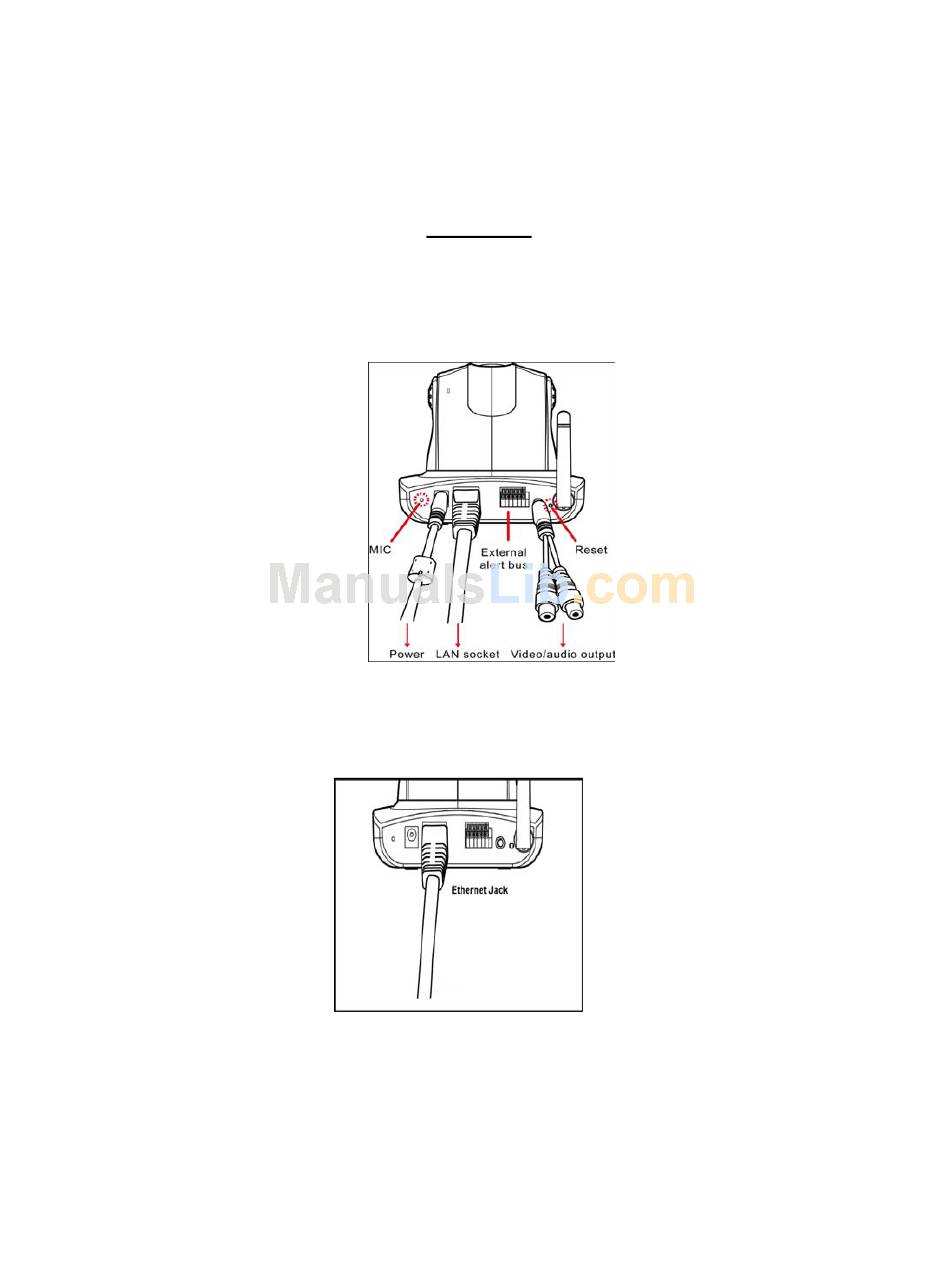

Connecting the hardware

1. Connect an Ethernet cable to the Ethernet connector and attach it to the network or Ethernet
switch RJ45 jack.
2. External Audio and Video could be connected to speaker and TV display respectively. Yellow
RCA connector is video output, and white RCA connector is audio output.
©2007 Asante Networks Inc., All rights reserved. NetCam are registered trademarks of Asante Network, Inc.
All other names may be trademarks or registered trademarks of their respective owners. Specifications subject to change without prior notice.
14
