Fiber Tronix FT-FOTR-1VDE-ST-S Installation Manual

1-channel digital duplex baseband video transmitter and receiver with reverse data transmission & ethernet transmission

Advertisement

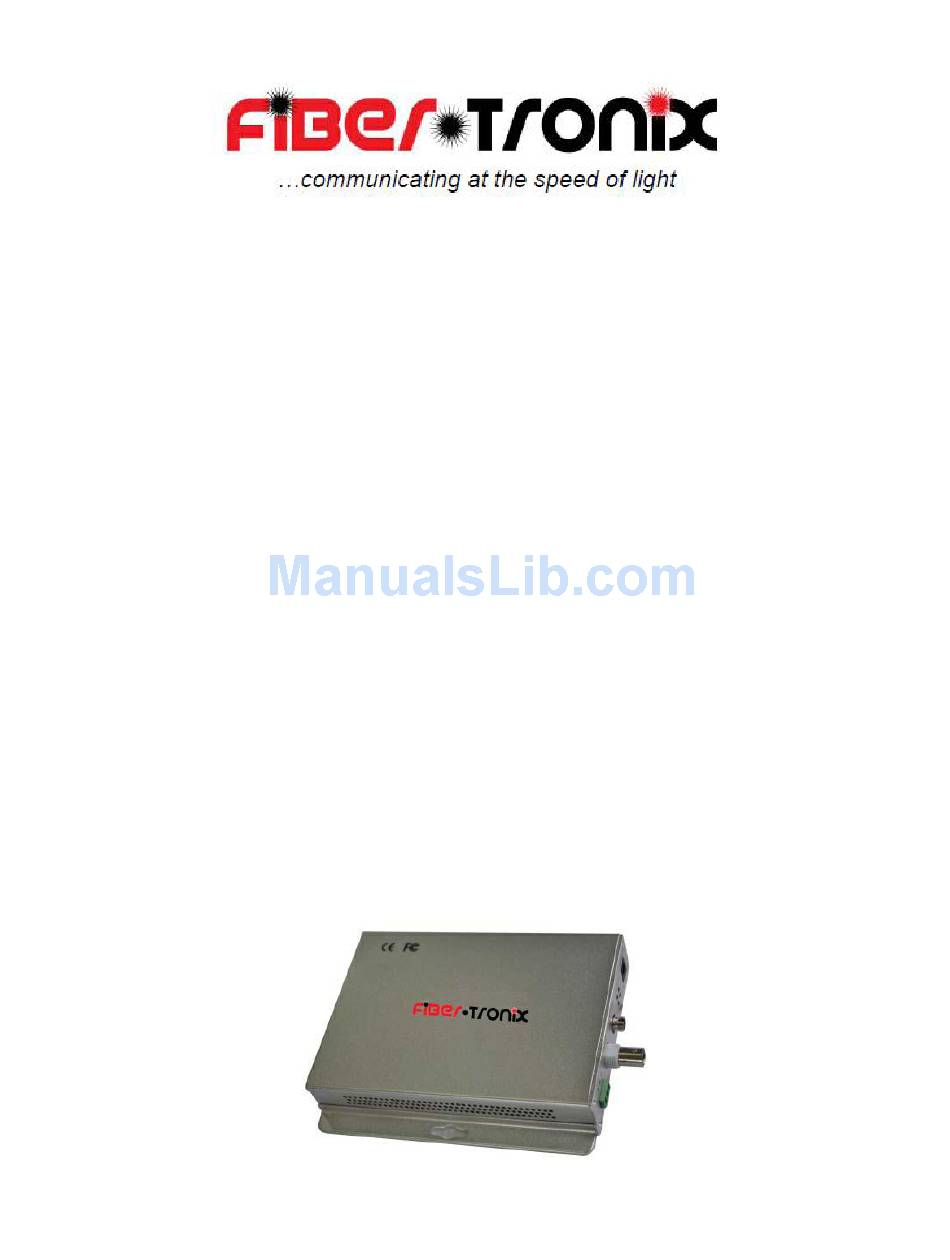

INSTALLATION MANUAL
FT-FOTR-1VDE-ST-S
1-Channel Digital Duplex
Baseband Video Transmitter and Receiver
With Reverse Data Transmission
& Ethernet Transmission
v1.0 4/5/11
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT-FOTR-1VDE-ST-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Fiber Tronix FT-FOTR-1VDE-ST-S

  • Page 1 INSTALLATION MANUAL FT-FOTR-1VDE-ST-S 1-Channel Digital Duplex Baseband Video Transmitter and Receiver With Reverse Data Transmission & Ethernet Transmission v1.0 4/5/11...
  • Page 2: Package Contents

    PACKAGE CONTENTS This package contains: One each FT-FOTR-1VDE-ST-S 1-channel baseband video transmitter and receiver Two 5VDC power supplies One installation manual PRODUCT DESCRIPTION The FT- FOTR-1VDE-ST-S fiber optic transmitter/receiver supports the transmission of a single baseband video channel, a reverse data signal and Ethernet over one strand of single-mode fiber optic cable.
  • Page 3: Unpacking And Handling

    25. Power Consumption <5W 0 – 95% non-condensing 26. Operating Relative Humidity 14F – 122F 27. Operating Temperature 6.8”x5.2”x1.1” per unit 28. Dimensions 29. Weight 11.3 oz. per unit INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions.
  • Page 4: Wiring Connections

    3. WIRING CONNECTIONS Transmitter Front and Rear Panels Video 1 Optical Optical port Video Input (ST/PC) 10/100M LINK / ACT A B G POWER RX TX Link Data DC5V Ethernet Data connector Power Input (Terminal Block ) (RJ45) (DC5V) Receiver Front and Rear Panels Video 1 Optical Optical port...
  • Page 5 a. Plug the included power supplies in a 120VAC outlet. Each power supply’s DC output adaptor connects respectively to the power input of the transmitter and receiver. b. Connect the transmitter and receiver’s optical connectors with an ST/PC patch cable. The transmitter and receiver’s Link Indicator Lights will indicate optical signals are transmitted and received normally.
  • Page 6 g. Data communications are not working – (i) ensure all cables and connectors are secured and (ii) if using the RS485 terminal block ensure all connections are consistent as specified in the wiring diagram for both the transmitter and receiver. h.
