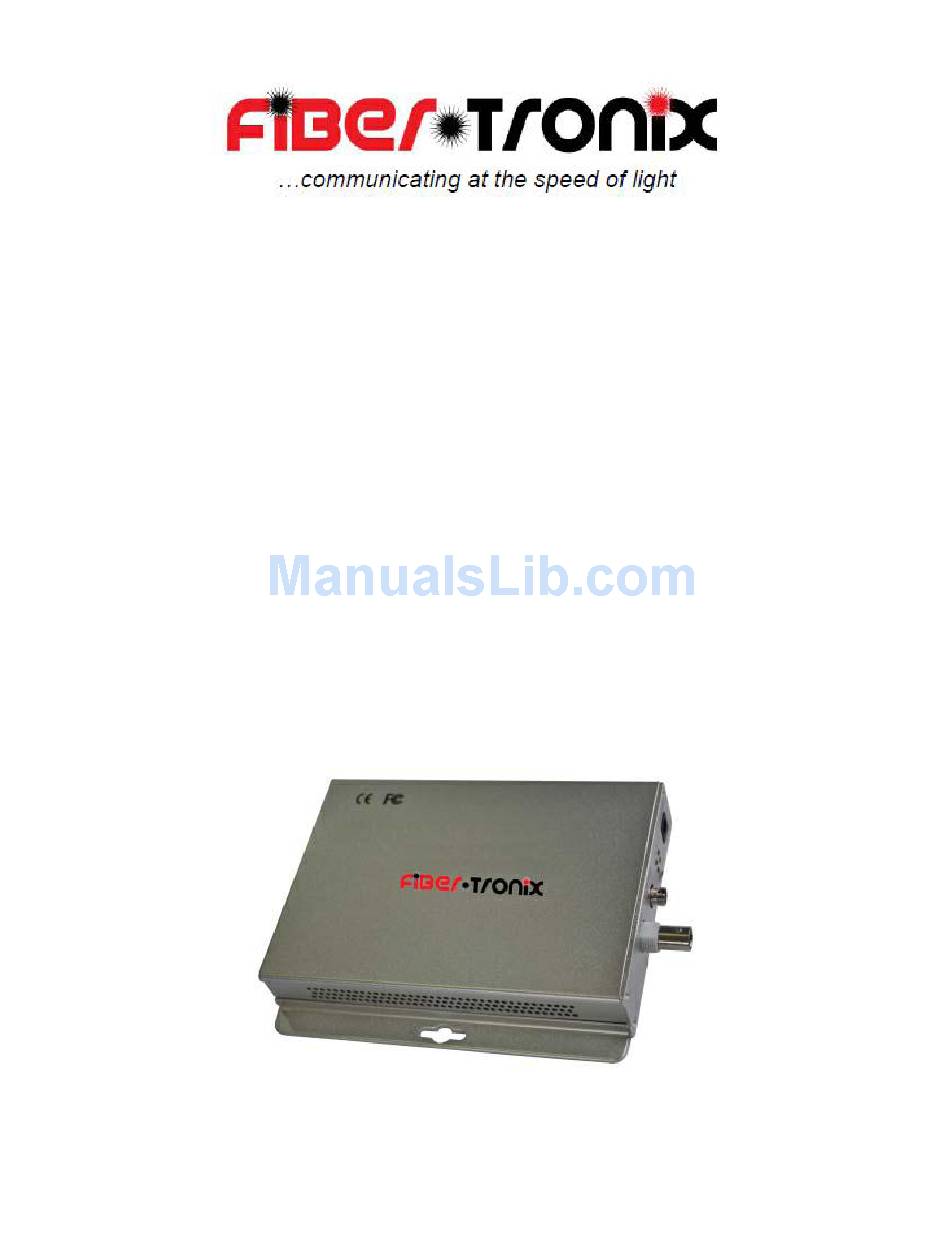

- Page 1 INSTALLATION MANUAL FT-FOTR-1V-ST-S 1-Channel Digital Simplex Baseband Video Transmitter and Receiver v1.0 4/5/11...
-
Page 2: Package Contents
PACKAGE CONTENTS This package contains: One each FT-FOTR-1V-ST-S 1-channel baseband video transmitter and receiver Two 5VDC power supplies One installation manual PRODUCT DESCRIPTION The FT- FOTR-1V-ST-S fiber optic transmitter/receiver supports the transmission of a single baseband video channel over one strand of single-mode fiber optic cable. This product is compatible with all NTSC and PAL video signals. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 Transmitter and Receiver Panels Power Power Video Video Optical Optical Input Input Link Power Link Power Data Video Data Video Transmitter Receiver 4. SPECIAL ATTENTION a. Only use the power supplies included with these units. The use of other power supplies may damage the transmitter and/or receiver and void the warranty.
