Summary of Contents for Hawke NV1000 DIGI

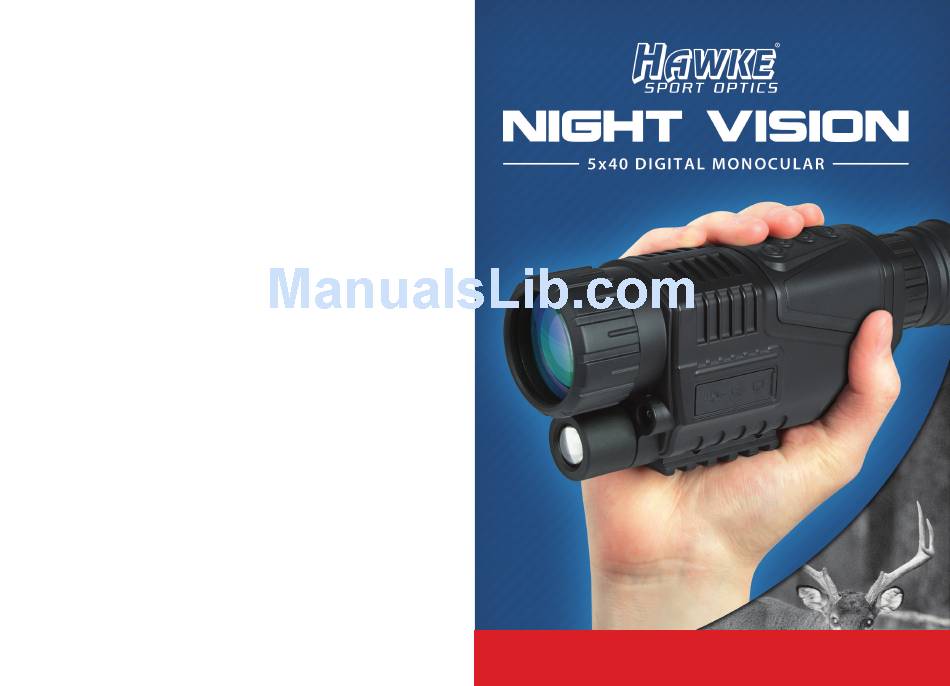

- Page 1 Hawke Sport Optics Avocet House, Wilford Bridge Road, Melton, Woodbridge, Suffolk, IP12 1RB, UK Digi NV MoNocular www.hawkeoptics.com uSEr MaNual Tel: +44 (0)1394 387762 | Fax: +44 (0)1394 386255 iNStructioN MaNual...
-
Page 2: Table Of Contents
contents Overview................. Pg. 3-4 Components..............Pg. 5-6 Battery installation............Pg. 7 Power on/off..............Pg. 8 Focusing................Pg. 9 Screen brightness............Pg. 10 Infrared illuminator..........Pg. 11-12 Photo mode..............Pg. 13 Video mode..............Pg.14 Photo playback............... Pg. 15 Video playback............... Pg. 16 Date and time.............. -
Page 3: Overview
• The Hawke Digi NV Monocular can be used for • The monocular can be used to take photos or observation in complete darkness or low light capture video during the day or at night. conditions. • The Hawke Digi NV monocular is the perfect optical •... -
Page 4: Components
components components Objective lens cover 10. Eyecup 14. Mode button Objective focus wheel 11. Dioptre marker 15. Up button Infrared illuminator 12. Power/Select button 16. Down button 5V DC IN 13. IR button 17. Hand strap Mini USB 2.0 socket Video OUT Threaded tripod mount Battery compartment... -
Page 5: Battery Installation
battery installation power on • Unscrew the battery cover (using a coin in the • Remove the objective lens cover. groove if needed). Insert the battery negative end • Hold the “power” button for 3 seconds to turn the first and then screw the battery cover back in place. Digi NV Monocular on. -
Page 6: Focusing
focusing screen brightness • Remove the objective lens cover and look through • The brightness adjustment menu allows you to alter the eyecup at the screen. the brightness of the digital display. • Adjust the dioptre focus ring until the icons on the •... -
Page 7: Infrared Illuminator
infrared illuminator notes: • The infrared adjustment menu allows you to alter • In any of the previous adjustment menus, the the strength of the assisting infrared light. monocular will return to its current mode if there is no operation within 8 seconds. •... -
Page 8: Photo Mode
photo mode video mode • When the monocular is first operated it will enter • In photo mode, press the “mode” button twice to photo mode automatically. In this mode you can enter video mode. In this mode you can record take still images of your environment. -
Page 9: Photo Playback
photo playback video playback • In photo mode, press the “mode” button to enter • In photo mode, press the “mode” button to enter playback mode. This allows you to view any photos playback mode. This allows you to view any photos or videos you have taken with the monocular. -
Page 10: Date And Time
date and time monitor connection • Connect the monocular to your computer using the • Connect your monitor to the Video OUT on the USB lead supplied. monocular using the video lead supplied. • The computer will identify the monocular •... -
Page 11: Battery
battery specification • RCR123A rechargeable (650mAh, 3.7V) Magnification: Objective diameter: 40mm • Please ensure the battery is charged for 10 hours Field of view: 5º x 3.75º before first use to increase life expectancy. Ocular adjustment: +/- 0.6 Range (low light): 2m - ∞... -
Page 12: Additional Information
additional information • Keep monocular in its carry case when not in use. • Operating temperature: -5ºC to 40ºC. • Store in a cool dry environment. • If the monocular image jitters or the screen does not light up, recharge the battery. •...
