USER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Deus XP

Summary of Contents for Deus XP

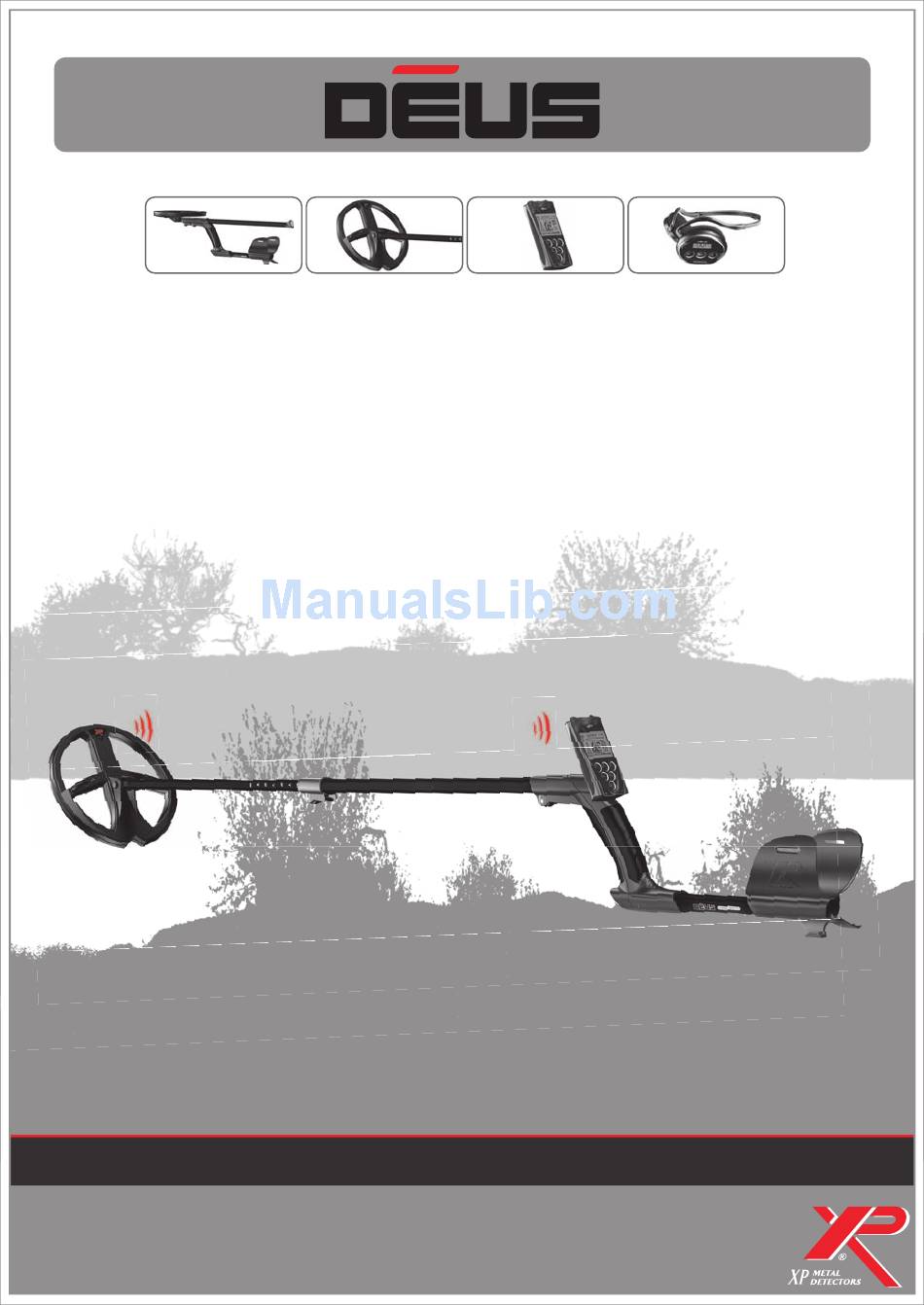

  • Page 1 USER'S MANUAL...
  • Page 3 TABLE OF CONTENTS QUICK START CORDELESS HEADPHONES — Page 60 Menu — Page 29 / 30 TECHNICAL INTRODUCTION — Page 02 Discrimination-Sensitivity-Ground Frequency-Tones-Volume-Coil LIST OF PARTS — Pairing with a new coil — Page 30 Page 04 ASSEMBLY — Factory Programmes — Page 05 Page 31 Replacement of the backphone —...
  • Page 4 CONGRATULATIONS ON THE PURCHASE OF YOUR XP METAL DETECTOR AND WELCOME TO THE WORLD OF RESEARCH AND EXPLORATION! You have invested in a high-tech detector capable of exceptional performance, which was designed and developed in France. You are therefore helping our company to further research in the eld of metal detecting and we thank you for your contribution.
  • Page 5 Performance is identical whether you are searching with or without the remote control! Lastly, the new patented* XP stem has the combined advantages of an S-shaped stem and a straight telescopic stem. It enables you to deploy or fold away the device in just a few seconds, and to change the coil in an instant.

  • Page 6: List Of Parts

    LIST OF PARTS The box for your Dēus metal detector contains the following parts:...
  • Page 7 Fitting the coil on the stem Insert the rubber washer in the lower shaft. Line up the stem with the coil and fit the two parts together. Install bolt and nut 3 positions...

  • Page 8: Remote Control

    After charging your device. (pg 33) DISC SENS TONE FREQ COIL Switch on Validate or not the use Switch on the remote control of the loudspeaker the headphones The LED on the coil gives 20 long, successive ashes to indicate that it is waking up and recalibrating.
  • Page 9 Responsive pitch that varies in frequency and amplitude according to the signal’s strength, same speed as the Gold Maxx Power. 5 - G-MAXX Similar settings to those of the XP G-Maxx1 detector, medium speed, particularly effective for large masses and highly conductive coins.
  • Page 10 After charging your device. (pg 33) DISC SENS TONE FREQ COIL Switch on Validate or not the use Switch on the remote control of the loudspeaker the headphones The LED on the coil gives 20 long, successive flashes to indicate that it is waking up and recalibrating.

  • Page 11: Discrimination

    Configuring the main detection settings. MENU Press menu Scroll through the menu by pressing Adjust the Discrimination level (from 0 to 99) with MENU NOTCH Exit with to return to the main menu. DISC SENS. FREQ. EXPERT Discrimination enables undesirable targets to be rejected by raising or lowering a threshold below which certain metals are differentiated.

  • Page 12: Sensitivity

    Two alternatives involve selecting a low level of discrimination, between 5 and 10, then using either: 1/ The digital target display to more or less visually discriminate a target category. 2/ The Multi-tone mode to discriminate undesirable targets using a selected audio tone.

  • Page 13: Frequency

    Scroll through the frequencies with MENU Exit with SENS. FREQ. IRON VOL. REACTIVITY EXPERT Dēus gives you the choice of four detection frequencies (4 kHz, 8 kHz, 12 kHz and 18 kHz) which cover most detection needs. They enable you to adapt your research more closely to the characteristics of the ground and the targets to be detected.

  • Page 14: Iron Level

    Remember that generally speaking, all frequencies can detect all kinds of targets, so for example a frequency of 4 kHz will detect a very small target and a frequency of 18 kHz will detect a large, deep mass. However, the 18 kHz frequency will lead you to discover a relatively higher number of small targets that cannot compare with that achieved with a frequency of 4 kHz.

  • Page 15: Reactivity

    Users familiar with the Gold Maxx Power have already had a foretaste of the reactivity of XP’s detectors. And even though Dēus is a particularly fast and selective detector, you now have the option of adjusting the...
  • Page 16 Example Passing the coil over an iron object close to the surface then over a noble metal target (ring). With a low Reactivity level, the iron is detected for a longer duration, to the extent that it completely hides the ring. No sound With a medium Reactivity level, you begin detecting the ring.

  • Page 17: Notch

    AUDIO CURVE Adjust the Audio Curve from 0 to 5 with MENU Exit with REACTIVITY AUDIO R. NOTCH The Audio Curve enables you to amplify the sound volume of distant DISC targets and therefore to be more alert to them. It gives the sensation of greater power, however it does not provide any additional depth as this setting only affects the sound curve (the dynamic range of sounds).

  • Page 18: Manual Mode

    General features The different levels of soil mineralisation you encounter when prospecting can sometimes affect the performance of your detector. For example, this may be due to natural magnetic mineralisation such as iron oxide, hot rocks and magnetite, or sporadic mineralisation from sites of former human settlement (also magnetic): hearths, pottery, hot rocks, slag, etc.
  • Page 19 Press Ground G.B. 4 modes are available: MANUAL - PUMPING - TRACKING - BEACH (ON / OFF) Go to Manual with G.B. Adjust with TRACKING MANUAL PUMPING Exit with BEACH You can manually adjust the ground rejection levels from 60 to 95 (Beach Off mode) or from 0 to 30 (Beach On mode) 90 is the default level, it is the most common level which enables you to reject all magnetic minerals found in the ground.

  • Page 20: Pumping Mode

    Pumping is a semi-automatic process which allows you to adjust the ground balance in a zone that you have determined as being representa- 15 cm tive of the mean level of the ground being prospected. Henceforth, the measured value of the ground is entered in memory and used as the new active ground balance value.

  • Page 21: Tracking Mode

    Indeed, within the same sweep of just one metre, a considerable variety of ground events may be encountered, ranging from one extreme to the other (values between 70 and 90): hot rocks, brick, slag, pottery interspersed with soil that is neutral or characterised by diverse mineralisation. This may be to such an extent that any mean value would be meaningless.

  • Page 22: Audio Response

    Go to Beach with G.B. PUMPING Choose YES or NO with BEACH TRACKING MANUAL NO (60-95) Deactivates calculation of the ground balance for a highly saline zone. Leave it set to OFF if you are searching on dry sand away from the wet zone, or for searches away from the seashore.
  • Page 23 Animated test card depending on the signal’s amplitude PINPOINT Press the return button to go back to the home page Used to access the static menu and/or update the threshold Dēus is designed to operate most of the time in dynamic mode, which means that a metal target will only be detected if the detector’s coil is moving.
  • Page 24 These enable you to save your settings, create new programmes and configure your equipment’s basic parameters. Listed here are the nine detection programmes which were pre-configured at the factory. You can modify the name of a programme, save modifications made to a programme or restore a factory programme.

  • Page 25: Coil

    Restore a programme Press to scroll through the menu and stop on the PROGRAM programme you wish to restaore, then press OPTION SAVE RESTORE RESTORE Scroll with and stop on EDIT NAME Press to save. SELECT SELECT Choose either YES or NO to confirm. Press X2 to return to the main menu.
  • Page 26 COIL ( continued) Pairing the remote control and the headphones with a new coil If you purchase an additional coil, you need to pair it with the remote control and the headphones the first time you use it, to enable Dēus to recognise and communicate with it.

  • Page 27: Configuration

    Choose with then press EDIT SERIAL NUMBER SELECT COIL At the point where the cursor is flashing, scroll through the characters EDIT SERIAL NUMBER EDIT NAME using and press to advance to the next digit. SELECT At the sixth digit press then YES or NO to confirm this new VALID serial number.

  • Page 28: Speakers

    CONFIGURATION (continued) Loudspeaker Enables the remote control’s loudspeaker to be activated or deactivated. CONFIGURATION UPDATE SPEAKER. Choose with SPEAKER. BACKLIGHT CONTRAST and choose ON or OFF Press Press x2 to return to the main menu. Duration of backlighting The remote control screen has a backlighting function which comes on CONFIGURATION as soon as any button is pressed and goes off automatically after a certain SPEAKER...

  • Page 29: Update

    Press adjust the time. Press x2 to return to the main menu. Updates The software can be updated via the Dēus USB interface and an internet connection. Full information is available on our website: www.xpmetaldetectors.com/deus/update Use the single USB cable.
  • Page 30 Displayed : Coil battery level Indicates the battery charge level of the coil Not displayed : Headphones battery level and the remote control (alternates every 4 seconds) Indicates the setting value or the number of the factory DISC Indicates that the radio link programme P1, P2, etc SENS TONE...

  • Page 31: Menu

    Menus accessed via the headphones have the same range of settings as DISC SENS the remote control: TONE FREQ COIL Press to access the different menus DISC Discrimination: 0-99 (pg 09). Adjusts with A flashing digit represents a digit after the decimal point. SENS Sensitivity: 0-99 (pg10).

  • Page 32: Menu

    continued If you are detecting with the remote control and you use it to change to a new coil, the headphones will automatically register this change (if they are switched on). Otherwise it can be done manually with this menu. Always leave the headphones switched on when you are changing the coil via the remote control, otherwise they will not register the change and will remain connected to the previous coil.
  • Page 33 With enter the second digit then validate it with With enter the third digit then validate it with Continue in this way until you reach the sixth digit. The new coil is now operational in this slot and should become active. A coil’...
  • Page 34 POWER SUPPLY-batteries LOW BATTERY LIGHTS The remote control alternately displays : 1 - BASIC 1 The symbol which indicates the coil’s charge level. The symbol which indicates its own charge level. OPTION MENU G.B. headphones If you only use the without the remote control, you will also DISC need to know the coil’s charge level.
  • Page 35 POWER SUPPLY-batteries The search coil, remote control and headphones are all powered by identical lithium polymer batteries. These miniature, high-capacity batteries can be recharged quickly. The different Dēus elements can be charged while switched on or off, but switching them off speeds up the process. You should use the power adaptor supplied, which enables all three elements to be charged simultaneously when used with the USB/3 mini-B cable, also supplied.
  • Page 36 The search coil battery is sealed for obvious reasons of safety and impermeability. It must be returned to our service department or an XP distributor for replacement. The batteries and the detector have a two-year guarantee for parts and labour.
  • Page 37 Always connect your power adaptor in an accessible, visible place to ensure that it can be unplugged quickly in the event of overheating or other problems. Use the special XP chargers in the recommended charging method to charge the battery, do not use other charger, that will cause the battery internal short-circuit and make it heat, smoke or burning.

  • Page 38: Pitch

    This section covers the advanced settings. You should ensure that you have studied all the basic parameters before moving on to this section. MULTI TONES 2 TONES - 3 TONES- 4 TONES Press MENU Choose DISCRI with Press EXPERT MULTI TONES Choose 2 tones - 3 tones - 4 tones - Pitch using PITCH 2 TONES...
  • Page 39 MULTI TONES, Thresholds and Tones Press MENU Scroll with and select Press EXPERT MULTI TONES Choose 2 tones - 3 tones - 4 toens - Pitch with 3 TONES 4 TONES Once you have selected the number of tones (for example: 4 tones) PITCH Press EXPERT...
  • Page 40 Press MENU Scroll with and select SENS Press EXPERT MENU Dēus enables you to adjust the strength of the emitted electromagnetic field according to three levels (from 1 to 3). DISC. SENS FREQ. It is adjusted using IRON VOL. EXPERT Press x2 to return to the main menu.
  • Page 41 Press MENU Scroll with and select FREQ Press EXPERT MENU Adjust the frequency with SENS. FREQ. IRON VOL. Press x2 to return to the main menu. REACTIVITY. EXPERT You can shift your operational frequency slightly to avoid occasional interference, particularly that generated by another detector nearby. DECAL FREQ Starting from the central frequency, two other frequencies are available.
  • Page 42 These partially discriminated iron objects often generate a few audible remnants of broken, inconsistent signals (crackling). Depending on your abilities and preferences, you may wish to remove this crackling using the Silencer. When you increase the value of the silencer you are applying a filter which eliminates the crackling caused by iron.
  • Page 43 PRACTICAL INFORMATION Metal detecting is a fascinating leisure activity that can bring you a lot of satisfaction. However, it requires a minimum of learning in order to get the most enjoyment. Begin by familiarising yourself with your equipment and its operation on a suitable practice ground. To do this, we recommend that you take an assortment of different objects: coins, everyday items, metal rubbish, etc.
  • Page 44 When you are detecting, you are free to choose the rate at which you move. For example, if you prefer to cover a zone at high speed while detecting, this will certainly give you a global ‘snapshot’ of the site. However, it is clear that this way of detecting will also leave large areas of ground unexplored between each sweep.
  • Page 45 Dēus is a precision device, designed to better address any detection constraints and be as robust as possible. Despite this, it is important to take care of it and exercise certain precautions in order to prolong its life: Do not store your device for long periods with discharged batteries. Ideally you should discharge/recharge the batteries at least once a month, and if possible store them 40 to 70% charged.
  • Page 46 (pg 24/30). inadvertently. Recharge it. The coil battery is drained. Contact your reseller or XP. The coil battery has reached the end of its lifespan. Contact your reseller or XP. The coil is defective or blocked.
  • Page 47 Change it, it is easy to replace The backphone is faulty. (pg 31/48). Contact your reseller or XP. The earpiece is faulty, for example its keypad was poorly reconnected to the circuit after being dismounted, or the audio contacts are faulty...
  • Page 49 Car charger Emergency charger with AA battery (x1) with 5 LED torch function (Battery not provided) Strap for remote control available 2010 Other optional coils available 2010 Armband case available 2010...
  • Page 50 Coil Réf: D01 Lower stem Magnetic holder Réf: D03 for remote control (with screws) Réf: D05 Armrest (with screws) Réf: D07 Middle part of aluminium stem Coil cover Réf: D04 Réf: D02 Handle (with top part of alum.stem) Réf: D06 Screwing kit for seach coil Locking parts for handle Full camlock...
  • Page 51 Detecting is an activity which, like other leisure activities, requires a few general guidelines. These recommendations will enable everyone to enjoy their hobby to the full while respecting laws, places, the environment and other people. Ensure you are informed of current legislation relating to discovery of treasure in order to abide by the law.
  • Page 52 FACTORY PROGRAMS General use Mineralised grounds Smalls targets Programme 1 Programme 2 MENU BASIC 1 GMPOWER MENU EXPERT SETTINGS DISC. DISC 0 to 99 (threshold 1 TONE / 2 TONES) 2 TONES YES/NO 3 TONES YES/NO 4 TONES YES/NO PITCH YES/NO TRESHOLD 2T/3 TONES 0 to 99...
  • Page 53 GMPOWER Programme 3 Programme 4 Programme 5 Programme 6 Programme 7 Programme 8 Programme 9 PITCH G-MAXX RELIC WET BEACH ALL METAL BASIC 2 DEUS FAST 00-00 00-00 00-00 00-00 00-00 00-00 00-00 00-00 00-00 00-00 00-00 00-00 00-00 00-00...
  • Page 54 Programme 1 Programme 2 MENU MENU EXPERT SETTINGS DISC. DISC 0 to 99 (Threshold 1 TONE / 2 TONES) 2 TONES YES/NO 3 TONES YES/NO 4 TONES YES/NO PITCH YES/NO TRESHOLD 2T/3 TONES 0 to 99 TRESHOLD 3T/4 TONES 0 to 99 FREQUENCY "TONE 1"...
  • Page 55 Programme 3 Programme 4 Programme 5 Programme 6 Programme 7 Programme 8 Programme 9...
  • Page 56 1 - BASIC 1 4 - PITCH 7 - WET BEACH 1-BASIC 1 2 - GMPOWER 5 - G-MAXX 8 - ALL METAL 2-GM POWER 3 - DEUS FAST 6 - RELIC 9 - BASIC 2 3-DEUS FAST OPTION MULTI TONES PROGRAM PROGRAM...
  • Page 57 G.B. MENU MENU MENU MENU MENU MENU DISC. SENS. FREQ. IRON VOL. REACTIVITY. AUDIO RESP. SENS FREQ. IRON VO. REACTIV. AUDIO R. NOTCH FREQ. IRON VOL. REACTIVITY AUDIO RESP. NOTCH. DISC. IRON VOL. REACTIVITY. AUDIO RESP. NOTCH. DISC. SENS. EXPERT EXPERT EXPERT EXPERT...
  • Page 58 This declaration is made under the responsibility of the manufacturer: XPLORER SARL - 8 rue du Développement – F-31320 CASTANET-TOLOSAN We, XPLORER, hereby certify that this detector complies with the essential requirements of European R&TTE Directive no. 1999/5/EC, which aims to harmonise legislation in member states on the use of the radio spectrum, electromagnetic compatibility and electrical safety.
  • Page 59 This document contains information that is protected by existing legislation on copyright, brands and royalties. Any reproduction, even partial, of this document, the logos or the XP and Dēus brands is prohibited without the agreement of: XPLORER SARL - 8 rue du Développement – F-31320 CASTANET-TOLOSAN...
  • Page 60 Xplorer reserves the right to modify its detectors’ characteristics or specifications without notice. Contacts Website : www.xpmetaldetectors.com e-mail : info@xpmetaldetectors.com XPLORER sarl 8 rue du développement F-31320 CASTANET TOLOSAN France Tel : 33 (0)5.61.73.63.29 Fax : 33 (0)5.61.73.48.39 XP and Dēus are trademarks of Xplorer sarl.

  • Page 62: Quick Start

    QUICK START After charging your device. (pg 33) DISC SENS TONE FREQ COIL Switch on Switch on Validate or not the use the remote control of the loudspeaker the headphones You’re now ready for detecting! By default you begin by using the 1 - BASIC 1 factory programme which is suitable for general use. If you wish to test one of the 9 other factory programmes, simply scroll through them with To switch off Dēus...
