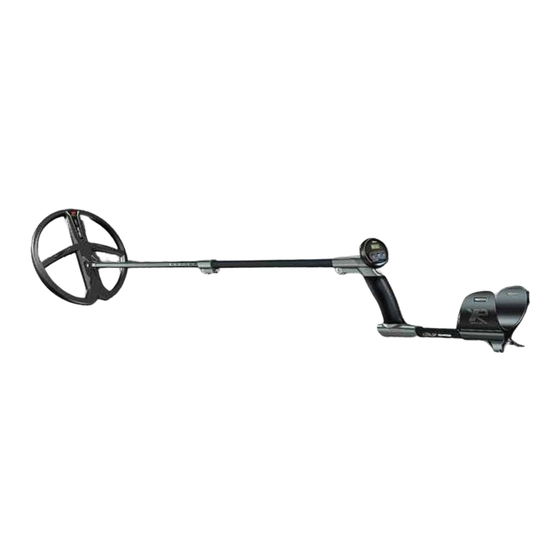

Deus V6 WS4 MASTER User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WS4
WSA
*
WS4
MASTER
MADE IN FRANCE
GB
0J0CBC
USER'S MANUAL
*optional

Advertisement

Table of Contents
loading

Related Manuals for Deus V6 WS4 MASTER

Summary of Contents for Deus V6 WS4 MASTER

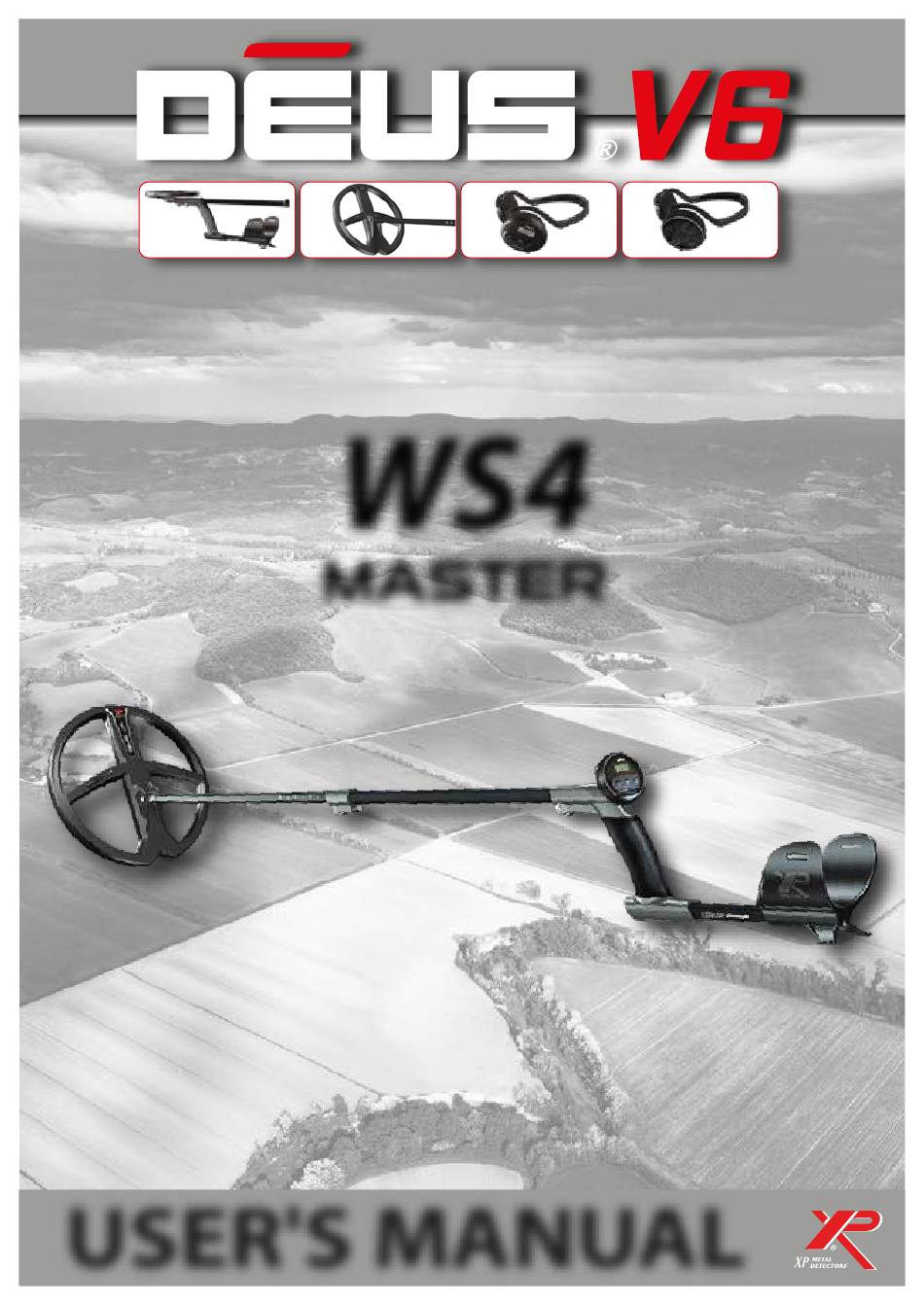

  • Page 1 MASTER MADE IN FRANCE 0J0CBC USER'S MANUAL *optional...
  • Page 3 TABLE OF CONTENTS TECHNICAL INTRODUCTION Page 02 POWER SUPPLY BATTERIES LIST OF PARTS ASSEMBLY Page 03 Battery status Page 18 Battery life Page 18 Charging time and charging progress Page 18 USB charger Page 19 Wireless headphones Page 05 Battery durability Page 19 Factory programs, Description Page 06...

  • Page 4: Technical Introduction

    CONGRATULATIONS ON THE PURCHASE OF YOUR XP METAL DETECTOR AND WELCOME TO THE WORLD OF RESEARCH AND EXPLORATION! You have invested in a high-tech metal detector capable of exceptional performance, which has been designed and developed in France. You are therefore helping our Company to further expand our research in the eld of metal detecting and we thank you for your contribution.
  • Page 5 LIST OF PARTS WS4 master) The box for your Dēus metal detector (subject to version purchased) contains the following parts: One connection cable: USB / three mini-B plugs One assembled fully telescopic stem (D044Lite or D044 depending on available stock) One WS4 Clip jack adaptor One WS4 module clipped on his backphone with One connection clamp for recharging the coil...
  • Page 6 ASSEMBLY COILS HF COILS...
  • Page 7 The WS4 / WS5 controls the coil, adjusts all all the settings with a target ID display (TID). the settings with a target ID display (TID). DEUS RC + WS4 / WS5 / WSAUDIO (975g in hand with 22.5cm coil) The remote control is master and controls the coil, the functions and the settings.

  • Page 8: Factory Programs

    Similar settings to the XP Gold Maxx Power detector, powerful and fast. 2 - GM POWER More selective to small targets in iron-infested ground and deeper on 3 - DEUS FAST mineralised ground 4 - PITCH Responsive pitch that varies in frequency and amplitude according to the signal’s strength.
  • Page 9 STARTING UP After charging your device. (pg 18) Switch on DISC SENS TONE the WS4 module FREQ COIL (after extending stems and holding the coil away from the ground and any metal) The LED on the coil gives 20 long, successive ashes to indicate that it is waking up and recalibrating.
  • Page 10 MENU Con guring the main detection settings. DISC SENS TONE Press to access the di erent menus. Adjust with FREQ COIL DISCRIMINATION DISC Discrimination: -6-99 . A ashing digit represents a digit after the decimal point. Discrimination enables undesirable targets to be rejected by raising or lowering a threshold below which certain metals are di erentiated.
  • Page 11 MENU DISCRIMINATION IAR (prog 10 GOLD FIELD) The program N°10 GOLD FIELD uses another discrimination method, called IAR (Iron Amplitude Rejection): the range of discrimination can be applied from 0 to 5. It applies only to targets that produce strong signals –...

  • Page 12: Iron Volume

    MENU IRON VOLUME TONE EXPERT: Press 2 sec to blink "TONE" and adjust the IRON VOLUME. TONE You have the option of controlling the volume of the low-pitched tone which generally corresponds to iron . Depending on the circumstances, sometimes reducing the iron volume can make the user more aware of non ferrous targets.
  • Page 13 MENU REACTIVITY Example Passing the coil over an iron object close to the surface then over a good metal target (ring). With a low Reactivity level, the iron is detected for a longer duration, to the extent that it completely hides the ring. No sound With a medium Reactivity level, you begin detecting the ring.

  • Page 14: Sound Volume

    MENU SOUND VOLUME Adjusts sound volume in headphones: 0-9. AUDIO RESPONSE EXPERT: 2 sec to blink "VOL" and adjust the AUDIO RESPONSE. Press The Audio Response enables you to amplify the volume of deep targets . It gives the impression of greater power, however it does not provide any additional depth as this setting only a ects the sound curve (the dynamic range of sounds).Lower Audio response levels give a good perception of depth Audio Level...

  • Page 15: Manual Mode

    GROUND General features If the ground is not mineralised, there is no need to adjust your ground balance to a level other than 90: since the ground does not send back any signi cant spurious echo, the performance will be optimal even at level 90 and you will reduce interference resulting from knocks to the coil. MANUAL MODE Ground balance.

  • Page 16: Tracking Mode

    GROUND PUMPING MODE PROG 10 GOLD FIELD The program 10 GOLD FIELD is adapted speci cally to search for gold nuggets in mineralised soils or likely gold areas. These areas are di cult to prospect with conventional detectors. The reason for this being the presence of ferromagnetic metals, they hide gold nuggets.
  • Page 17 Turn on the MI-6 by holding the button down for 8 seconds. PP is paired. Press When pairing, the MI-6 automatically switches to program 7 (DEUS). This program will only work with the DEUS. Program 7 will not generate any sound or vibration.
  • Page 18 3 seconds. Press To use the MI-6 without the DEUS, select programs 1 to 6 on the MI-6 menu. To change program: Switch MI-6 on - press the button for 5 seconds, a melody indicates that you have entered the program selection mode, press to correspond with the desired program number (eg press 2 times for program 2).
  • Page 19 Smartphone application GO TERRAIN GO TERRAIN is an application for IOS or Android smartphones, designed to optimize your Deus expe- rience. Key features are : Geo-locate, a real time map and the ability to make an inventory of your nds.

  • Page 20: Power Supply Batteries

    WS4: ~ 22 hours / WSAUDIO: ~ 12 hours / COIL : ~ 15 hours The search coil’s battery life may vary depending on the modes used. The table below shows battery life according to frequency and power selected DEUS COIL TX POWER 1 TX POWER 2 or 3...

  • Page 21: Usb Charger

    You should use an USB power adaptor, which enables all three elements to be charged simultaneously when used with the USB/3 mini-B cable supplied. The DEUS can be charged using any standard USB 5V certi ed charger with a minimum capa- city of 1A and 5V charger is enough to charge the 3 elements together output.
  • Page 22 POWER SUPPLY BATTERIES REPLACING BATTERIES The batteries for the wireless headphones and the remote control (ref battery : - ref XP : GEB721944 or XP721944 D088M-WTUBE) are easy to replace. Unscrew the rear/lower cap of the headphones or remote control / Unclip the battery and change it.
  • Page 23 EXPERT This section covers the advanced settings. You should ensure that you have studied all the basic parameters before moving on to this section. MULTI TONES 2 TONES - 3 TONES - 4 TONES - 5 TONES TONE Choice of number of tones: 2, 3, 4, 5 tones, Full tones, P (PITCH). TONE You can use the Multi-tones menu to sort targets into categories according to their conductivity, by assigning a speci c audio tone to each category.

  • Page 24: Frequency Shift

    EXPERT The XP 34 / 28cm coil will give optimum performance providing the terrain is suitable and a correct ground balance is used.The Gold Field program combined with the lower frequencies and the 34 / 28 cm coil may be a good choice for locating speci c deep targets. The power increases your detector’s power consumption as well as alter its stability on di cult ground.On iron-infested, mineralised ground, there is no need to use a high power setting, level 1 will be su cient as in any case it is impossible to detect deeply in this kind of ground.

  • Page 26: Practical Information

    PRACTICAL INFORMATION ADVICE BEFORE BEGINNING DETECTING Metal detecting is a fascinating leisure activity that can bring you a lot of satisfaction. However, it requires a minimum of learning in order to get the most enjoyment. Begin by familiarising yourself with your equipment and its operation on a suitable practice ground. To do this, we recommend that you take an assortment of di erent objects: coins, everyday items, metal rubbish, etc.

  • Page 27: Precaution For Use

    LOCATING A TARGET USING CROSSED SWEEPS IN MOTION MODE Once the detector has indicated the approximate presence of a target in Motion mode, if you are having di culty locating the target then sweep the place where you heard the sound. Slowly reduce the amplitude of your move- ments and make a mental note of the spot where the sound is loudest.

  • Page 28: Troubleshooting

    TROUBLESHOOTING You become aware of abnormal performance, instability, false signals, interference, for no apparent reason CAUSES SOLUTIONS Sensitivity is too high. Lower it. You are in a zone with a lot of interference Lower the sensitivity change frequency/ (high-voltage power lines, electric transformer, electric fence). frequency shift or move to a di erent zone.

  • Page 29: Specifications

    SPECIFICATIONS Link Digital wireless Channels 36 automatic channels Radio frequencies and Radio power 2.4 GHz / 0.56 mW Detection frequencies 4 - 8 - 12 - 18 - 25 kHz + shifts ( X35 coils) 15 - 30 - 50 or 80 kHz + shifts (depending HF coils) 99 levels Sensitivity Transmitter Power...
  • Page 30 ACCESSORIES DEUS Remote D08 (XPIHM) WS5 Headphone (XPBKF) WS4 Headphone (XPBKF) FX-03 Headphone WSAUDIO Headphone Coil X35 D01X35 (MDMF22) Coil X35 D28X35 (MDMF28) Coil X35 D3428X35 HF Coil D01HF (MDHF22) HF coil elliptical DELLHF 22.5 cm - 9'' 28 cm - 11'' (MDMF3428) 22.5 cm - 9"...

  • Page 31: Spare Parts

    SPARE PARTS 22.5 cm / 9’’ coil Réf : D01X35 lower stem Plastic holder for remote control Réf : D03-A (with screws) Réf : D05B Middle part of aluminium stem Réf : D04 22.5cm / 9’’ coil cover Réf : D022 Handle + locking parts for handle The clamp Réf : D06BLACK...
  • Page 32 FREQUENCY TONE 4 100 to 993 Hz FREQUENCY TONE 5 150 to 603 Hz FREQUENCY PITCH SENSITIVITY 0 to 99 TX POWER (DEUS) 1 to 3 FREQUENCY 4 to 80 kHz DEPENDING COIL USED FREQUENCY SHIFT -3 to 3 IRON LEVEL...
  • Page 33 FACTORY PROGRAMS General use For large Pro setting for More e ective Search of gold More e ectivel The Pro setting masses locating Audio signal for wet sand for dry sand based on the Full nuggets in highly varies both in and highly deep targets, mineralised soil -...

  • Page 34: Your Settings

    100 to 993 Hz FREQUENCY TONE 5 100 to 993 Hz 150 to 603 Hz FREQUENCY PITCH SENSITIVITY 0 to 99 TX POWER (DEUS) 1 to 3 FREQUENCY 4 to 80 kHz DEPENDING COIL USED FREQUENCY SHIFT -1 to 1...
  • Page 35 YOUR SETTINGS program 12 program 13 program 14 program 15 program 16 program17 program 18...

  • Page 36: Declaration Of Conformity Eu

    RECOMMENDATIONS TO DETECTORISTS / THE LAW Detecting is an activity which, like other leisure activities, requires a few general guidelines. These recommendations will enable everyone to enjoy their hobby to the full while respecting laws, places, the environment and other people. - Ensure you are informed of current legislation relating to discovery of treasure in order to abide by the law.
  • Page 37 CERTIFICATION IC This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innova- tion, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 38: Warranty

    XP DEUS - 5 YEARS LIMITED WARRANTY • XP warrants that its products DEUS will be free from defects in materials or workmanship for 5 years. • This contractual warranty for parts and labour takes e ect from the initial date of purchase.

  • Page 40: Quick Start

    QUICK START After charging your device. (pg 19) DISC Switch on the WS4 SENS TONE FREQ COIL (after extending stems and holding the coil away from the ground and any metal) You’re now ready for detecting! By default you begin by using the 1 - BASIC factory program which is suitable for general use. If you wish to test one of the 10 other factory programs, simply scroll through them with To switch o Dēus...
