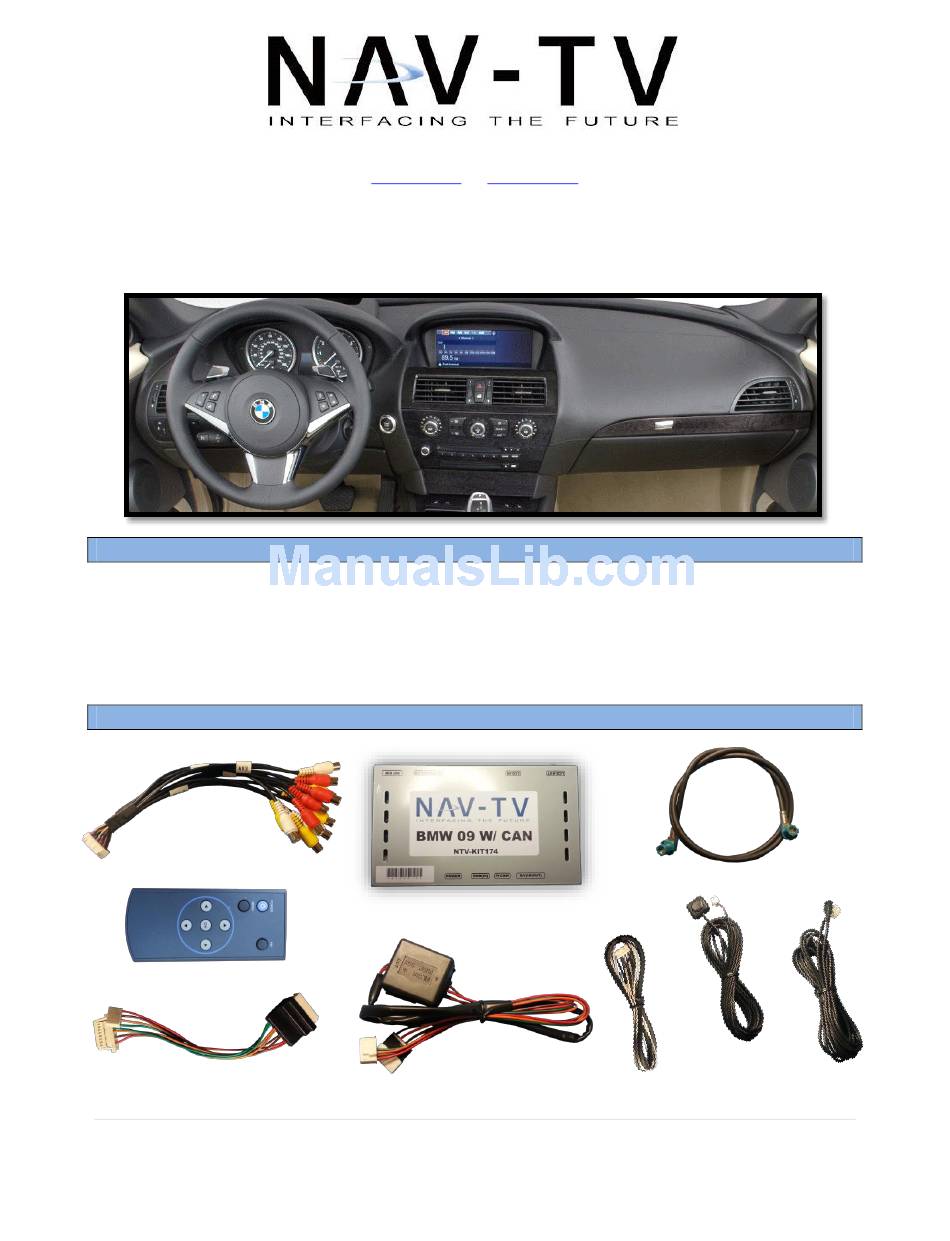

BMW09 Kit
NTV-KIT174
Overview
The BMW09 kit allows the user to add up to 3 video inputs and a backup camera input to the
factory media screen in select '09-'13 BMWs. This fully plug and play kit installs behind the
factory screen. The kit comes with an external toggle switch and if desired, forced rear camera
action is an option.
Kit Contents
AV Input Harness
LVDS Video cable
BMW09 Interface
Remote
Input Toggle Switch
Power/CAN Harness
IR Eye Harness
RGB Input cable
Screen T-Harness
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Nav TV BMW09
Summary of Contents for Nav TV BMW09
- Page 1 NTV-KIT174 Overview The BMW09 kit allows the user to add up to 3 video inputs and a backup camera input to the factory media screen in select ‘09-‘13 BMWs. This fully plug and play kit installs behind the factory screen. The kit comes with an external toggle switch and if desired, forced rear camera action is an option.
- Page 2 11/4/13 NTV-DOC148 Interface Connectors Power/CAN Rear Camera Power AV IN/OUT INPUT OUOUT OUOUT Mode Switch IR Eye Status LEDs Dip Switches LCD OUT (LVDS Cable) LCD IN (LVDS Cable) Dip Switch Settings Dip SW: Enables Enables Enables Enables 10.2” Deactivates Screen Rev-Cam DOWN...
- Page 3 5. a ‘R-CAM’ port will not provide proper voltage out. Connect to BMW09 Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 4 7. Run the factory LVDS video cable from the BMW09 port labeled ‘LCD-IN’ to the radio dash opening (it will connect to the radio’s LVDS connector later). 8. Connect the AV Input cable to the port on the BMW09 interface labeled ‘AV IN/OUT’. If you’re only connecting a reverse camera (and no other inputs), the signal input from the camera must connect to the RCA labeled ‘REAR-C’.
- Page 5 11/4/13 NTV-DOC148 11. Connect the BMW09 Power/CAN Harness to the interface at the port labeled ‘POWER’. Start the car and test for proper functionality before replacing dash pieces. Note: If you’re certain your connections are proper and you still get no reverse activation, see Figure 1 (below) on this page.
- Page 6 11/4/13 NTV-DOC148 Menu Adjustments Before you start: Make sure the car’s ignition is on and radio is booted/settled You must be in ‘NAVI’ (RGB), ‘AV1’, ‘AV2’ or ‘AV3’ mode (on display screen) Use the remote ‘OK’ button to switch modes, or use the provided input toggle switch ...
- Page 7 11/4/13 NTV-DOC148 FAQs Q. I cannot switch A/V sources. A. Check IR or toggle switch connection. Check the LEDs on the interface, if nothing is lit up with vehicle ignition, check power/ground connections. Q. All I see on the display is a black screen (no factory image pass-through). A.
