User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-F617-Q215V2
dedicated KVM switch and rackmount screen technology
17" FHD 1080p LCD

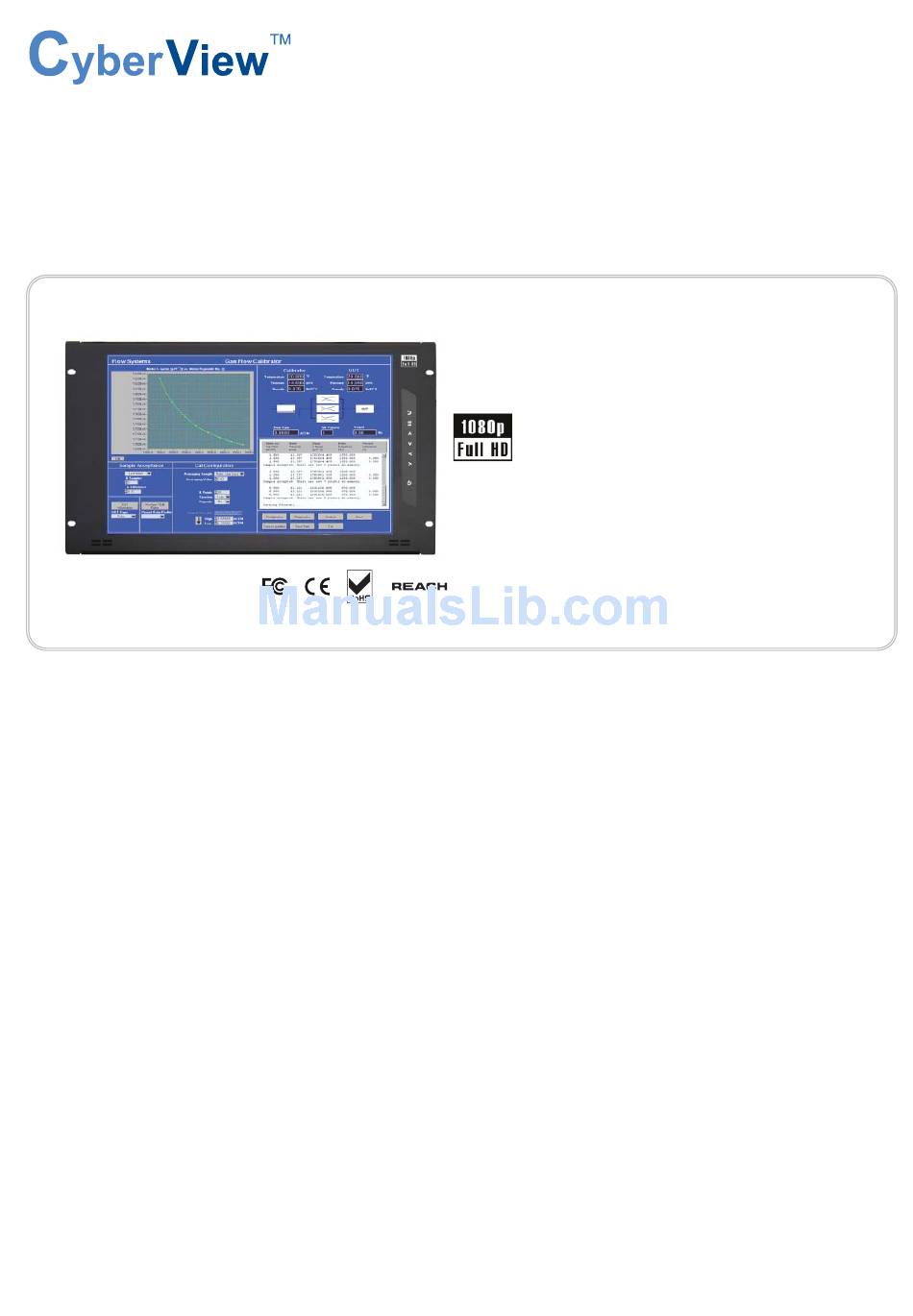

RP-F617
6U Rackmount Display Panel
Options :
- SDI / MCS
- AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cyber View RP-F617
Summary of Contents for Cyber View RP-F617
-
Page 1: User Manual
KVM switch and rackmount screen technology User Manual 17” FHD 1080p LCD RP-F617 6U Rackmount Display Panel Options : - SDI / MCS - AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector... - Page 3 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-F617-Q215V2 www.austin-hughes.com...
-
Page 4: Table Of Contents
Contents < Part. 1 > RP-F617 Package Content Structure Diagram & Dimension P.1 - 2 Installation Specifi cations / OSD / Remote Controller < Part. 2 > Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 <... -
Page 5: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-F617-Q215V2 www.austin-hughes.com... -
Page 6: Part. 1 > Rp-F617
< Part 1 > < 1.1 > Package Content RP-F617 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 7 < 1.2 > Dimension RP-F617 Front View Side View UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 480 x 48 x 266 mm 529 x 124 x 451 mm 4.5 kg...
-
Page 8: Installation
< 1.3 > Installation Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. UM-CV-751-RP-F617-Q215V2 www.austin-hughes.com... -
Page 9: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RP-F617 Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 10 848 x 480 x 60Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz 640 x 400 x 70Hz 640 x 350 x 70Hz UM-CV-751-RP-F617-Q215V2 www.austin-hughes.com...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-F617 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control...
-
Page 12: On-Screen Display Operation ( Osd )
H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer UM-CV-751-RP-F617-Q215V2 www.austin-hughes.com... -
Page 13: Options : 3G / Hd / Sd-Sdi Input
< Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input RP-F617 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high... -
Page 14: Multi-Display Control
( over 15 feet, extender required ) LINK Cat5 / 6 cable Cat5 / 6 cable Cat5 / 6 cable max. 300 meters max. 300 meters max. 300 meters RJ-45 jack Daisy chain up to 1,000 up to 64 displays meters and 64 displays UM-CV-751-RP-F617-Q215V2 www.austin-hughes.com... - Page 15 RP-F617 < 3.3 > AV3.0 Upgrade Options : ( HDMI 1.1, CEA-861-D - HDMI ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out )
-
Page 16: Options : Touchscreen & Driver
Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the fi rst setup P.11 UM-CV-751-RP-F617-Q215V2 www.austin-hughes.com... - Page 17 < 3.5 > Options : DC Power RP-F617 Model 110 ~ 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA...
- Page 18 Standard DC Power YM-Ext-461CP001 D-type 3W3 Lockable ( Male ) Connector LUSB - A111 - 00 MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided. P.13 UM-CV-751-RP-F617-Q215V2 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-F617-Q215V2 www.austin-hughes.com...
