User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-HF617-Q317V2
dedicated KVM switch and rackmount screen technology

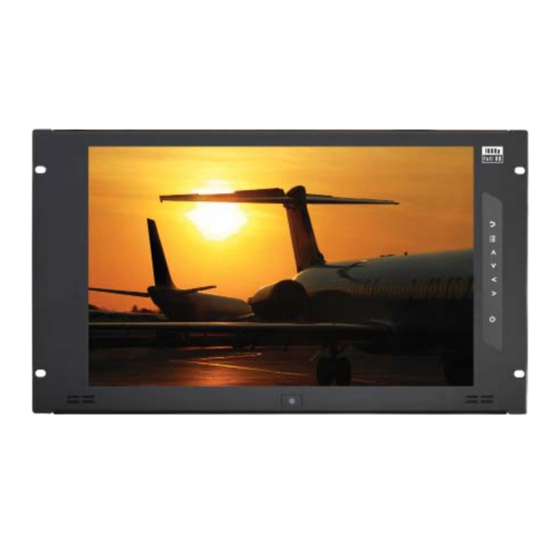

17" High Brightness FHD 1080p LCD 1000 cd/m²
RP-HF617
6U Rackmount Display Panel
Options :
- SDI / MCS
- AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Related Manuals for Cyber View RP-HF617
Summary of Contents for Cyber View RP-HF617
- Page 1 KVM switch and rackmount screen technology User Manual 17” High Brightness FHD 1080p LCD 1000 cd/m² RP-HF617 6U Rackmount Display Panel Options : - SDI / MCS - AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector...
- Page 3 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-HF617-Q317V2 www.austin-hughes.com...
-
Page 4: Table Of Contents
Contents < Part. 1 > RP-HF617 Package Content Structure Diagram & Dimension P.1 - 2 Installation Specifi cations / OSD / Remote Controller < Part. 2 > Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 <... - Page 5 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-HF617-Q317V2 www.austin-hughes.com...
-
Page 6: Package Content
< Part 1 > < 1.1 > Package Content RP-HF617 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 7 < 1.2 > Dimension RP-HF617 Front View Side View UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 480 x 48 x 266 mm 529 x 124 x 451 mm 4.5 kg...
-
Page 8: Installation
< 1.3 > Installation Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. UM-CV-751-RP-HF617-Q317V2 www.austin-hughes.com... -
Page 9: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RP-HF617 Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) 1000 Contrast Ratio ( typ. ) - Page 10 HDMI Input PC Signal Same as VGA Video Signal 1080p : 50 / 60Hz 720p : 50 / 60Hz 480p : 60Hz 576p : 50Hz Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz ) UM-CV-751-RP-HF617-Q317V2 www.austin-hughes.com...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-HF617 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control...
-
Page 12: On-Screen Display Operation ( Osd )
H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer UM-CV-751-RP-HF617-Q317V2 www.austin-hughes.com... - Page 13 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input RP-HF617 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
-
Page 14: Part. 3 > Options
( over 15 feet, extender required ) LINK Cat5 / 6 cable Cat5 / 6 cable Cat5 / 6 cable max. 300 meters max. 300 meters max. 300 meters RJ-45 jack Daisy chain up to 1,000 up to 64 displays meters and 64 displays UM-CV-751-RP-HF617-Q317V2 www.austin-hughes.com... -
Page 15: Av3.0 Upgrade
RP-HF617 < 3.3 > AV3.0 Upgrade Options : ( HDMI 1.3, CEA-861-D - HDMI ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. - Page 16 Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the fi rst setup P.11 UM-CV-751-RP-HF617-Q317V2 www.austin-hughes.com...
- Page 17 < 3.5 > Options : DC Power RP-HF617 Model 125V 250V Input rating Input voltage: 24-Volt 48-Volt 110-Volt 300-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA...
-
Page 18: Mil-Type Or Lockable Connector
Standard DC Power YM-Ext-461CP001 D-type 3W3 Lockable ( Male ) Connector LUSB - A111 - 00 MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided. P.13 UM-CV-751-RP-HF617-Q317V2 www.austin-hughes.com... - Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2017 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-HF617-Q317V2 www.austin-hughes.com...
