Summary of Contents for Malibukayaks X-13

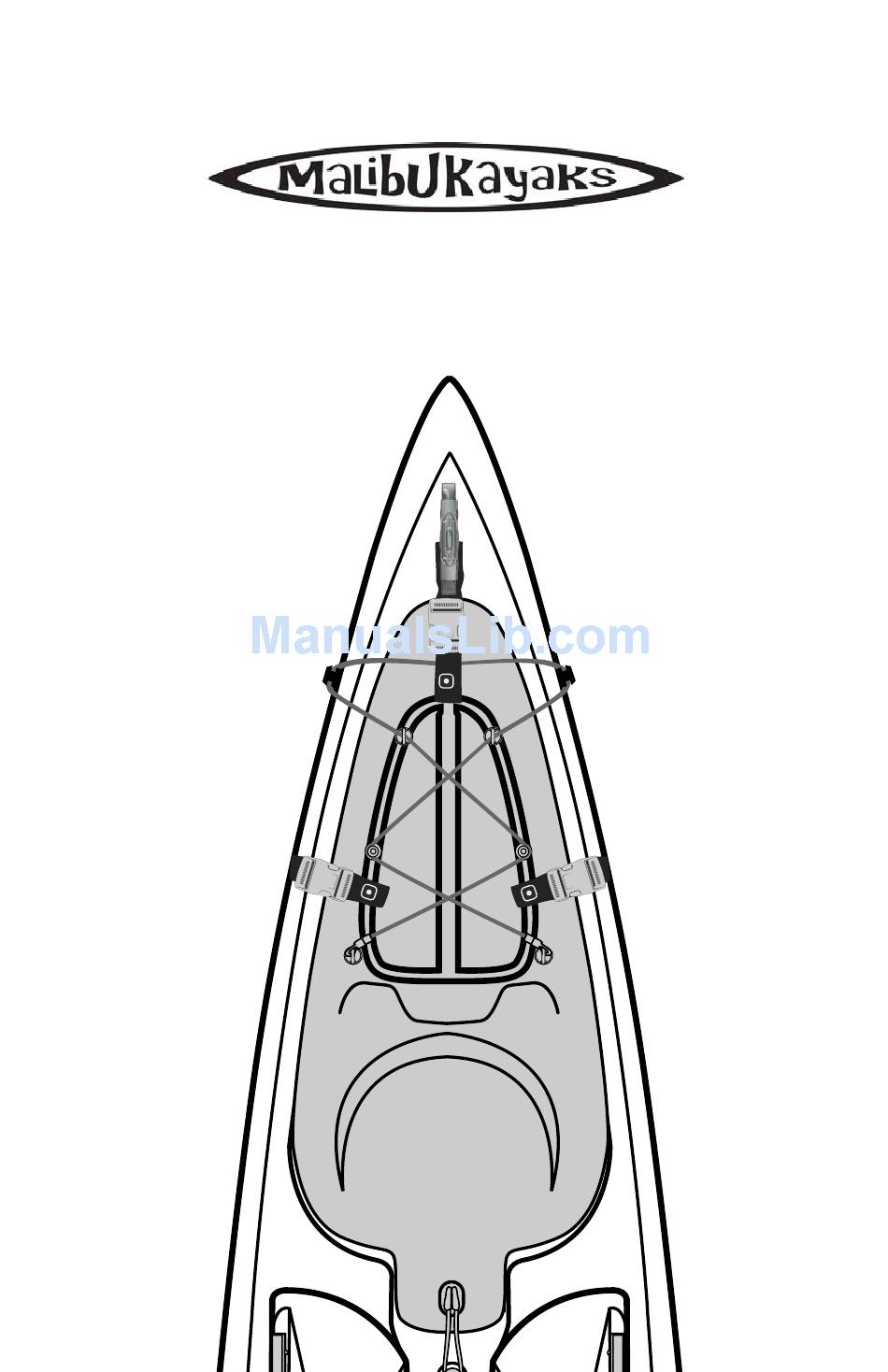

- Page 1 X-13 Owners Manual...
-
Page 2: Table Of Contents
- Flush Mount Fishing Rod Holders..............25 - Universal Rudder Kit..................25 Shop: http://www.codpaddlesports.com/ - 4” Round Hatch.....................27 Transporting..........................29 Copy this link for our Installation Videos and Instructional Manuals: Maintenance..........................31 http://www.malibukayaks.com/customer-support/ Repair............................32 Storage............................33 Safety............................35 Replacement Parts & Optional Accessories..............36 Warranty.............................37 Expedite Claim........................38... -
Page 3: Getting To Know Your Kayak
Soft Grip Handle The X-13 gator hatch is one of our patented designs, that allows full access to Bungee Storage the hull while providing additional bungee storage and a child seat. In the 1.5”... -
Page 4: Kayak Packages
A popular model among spear fishermen in Hawaii and South America, the X-13 also comes equipped with the Lowrance transducer mount to help you find the perfect spot. -
Page 5: Gator Hatch
X-13 Gator Hatch Gator Hatch (PM-1530) Child Seat Gator Hatch also provides a patented design seat so your little one can safely join you on board. Hull Storage Remove Gator Hatch to access the inside of your kayak. The inside of your... - Page 6 X-13 Gator Hatch Gator Hatch Bungee Storage (FM-2211R) Shock Cord Cleats 1.5” Buckle (PM-1553R) (PM-1503R) Bungee Storage The Gator Hatch bungee cord can be utilized to strap down smaller items like a water bottle or a small tackle box. Secure Gator Hatch...
-
Page 7: Adjustable Footrest Pedals & Flush Mount Rod Holder
X-13 Adjustable Footrest Pedals & Flush Mount Rod Holder p r e s s Adjustable Footrest Pedals Foot pedals can easily be adjusted by sliding them across track. Press/hold to lift the lever tab and adjust slide pedal across track for a comfortable Adjustable position. -
Page 8: Side Bungee Carry Handles
X-13 Side Bungee Carry Handles The side bungee carry handles can be utilized to strap down your paddle. Simply wrap the bungee cord over your paddle and attach it to the nylon lashing hook. Side Bungee Carry Handle (PCM-1906R) -
Page 9: Rectangular Hatch
X-13 Rectangular Hatch To access the rectangular hatch, simply lift the T-handle and twist to the left to unlock. Pull T-Handle to lift the hatch. Rectangular Hatch (PCM-1916R) The basket inside is removable; this provides access to the kayak hull which... -
Page 10: Seat Mount
X-13 Seat Mount Front Seat Straps Front Seat Straps Our seat hooks clip from the upper straps to threaded eyelets that are near the front of the seating area. Front Seat Strap Eyelet (PM-1551R) upper Back Seat Strap Eyelet (PM-1551R) -
Page 11: Backwell Storage
X-13 Backwell Storage Fishing Rod Rack Placement Holder X-13 backwell has enough placement holders for single rack fishing rods. Fishing Rod Rack Placement Holder Backwell Bungee Storage (FM-2211R) Backwell Storage A perfect place to store any extra equipment you would like to bring on board. -
Page 12: Drain System
X-13 Drain System Seat Drainage Unscrew threaded eyelet to drain excess water from the seat area for a comfortable ride. Threaded Eyelet w/ Washer (Seat Drainage) (PM-1552R) Hull Drainage Unscrew threaded eyelet, located near the stern of the kayak, to drain out... -
Page 13: Transducer & Rudder Kit/Motor Inserts
X-13 Transducer & Rudder Kit/Motor Inserts Transducer Inserts Your kayak comes with a Lowrance suited transducer mount located at the bottom of the kayak stern. Transducer Inserts Rudder Kit/Motor Inserts Located at the stern of the kayak, the rudder kit/motor inserts are specifically designed to mount our universal rudder kit. -
Page 14: Optional Features
X-13 Optional Features X-Wing Sliding Console X-Wing Sliding Designed for ergonomic fishing with effortless control in reaching for Console electronics, fishing rods and including a 6” round hatch for dry storage. (PM-1540) 5 Gal. Live Bait Bucket (PCM-1934) 5 Gal. Live Bait Bucket Keep your bait safe and ready for use in this sturdy bucket. -
Page 15: Universal Rudder Kit
X-13 Optional Features Gator Hatch Flush Mount Rod Holders (PCM-1922R) Gator Hatch Flush Mount Rod Holders Fishing rod holders installed for the little one on board. Universal Rudder Kit Steer your kayak hands-free with our durable Universal Rudder Kit. Universal Rudder Kit... -
Page 16: 4" Round Hatch
X-13 Optional Features 4” Round Hatch Install the 4” round hatch to get interior access to install the rudder kit or a trolling motor. (Includes Hardware) 4” Round Hatch (PCM-1909R) - Page 17 X-13 Transportation Tie Down Straps and Roof Rack Pads are available on codpaddlesports.com Step 1 Step 2 Step 3 Step 2 After strapping down your kayak to your roof rack make sure to strap it down Step 1 to the front and back bumper of your vehicle. Tie one end of the strap to front carry handle and the other end to your tow hook.
-
Page 18: Maintenance
Maintenance Repair After every use, it is recommended to thoroughly rinse your kayak with water. Patching Holes Make sure to rinse foot pegs and all hardware with plenty of fresh water after Super linear polyethylene is very durable and can be repaired if the need paddling in saltwater, brackish or polluted water. -
Page 19: Storage
X-13 Storage Storage Do’s Storage Don’t s Storing your kayak cockpit side up on cross bars can dent the bottom. Always store your kayak indoors or under cover to protect from harsh weather, direct sunlight and other elements. On its side over a long period of time it can deform or dent the sides. -
Page 20: Safety
- Inspect your equipment prior to each use for signs of possible wear or Hatches potential failure. 4” Round Hatch - PCM-1909R - Tie a leash to your paddle X-13 Gator Hatch - - Always carry a spare paddle PM-1530 Small Rectangular Hatch with Removable Bag - - Scout unfamiliar waters PCM-1916R - Be aware of river water levels, tidal changes, wind conditions, obstacles in Misc. -
Page 21: Warranty
For all kayak warranty claims visit the link below: Malibu Kayaks dealer and applies only to the original owner. Some states do http://www.malibukayaks.com/customer-support/ not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives Please fill out our Warranty Claim Form and submit photos or files to Support@malibukayaks.com... - Page 23 7110 E Jackson St. Paramount, CA 90723 T: 562.630.6282...
