Stealth-14
Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stealth-14 and is the answer not in the manual?

Questions and answers

Related Manuals for Malibukayaks Stealth-14

Summary of Contents for Malibukayaks Stealth-14

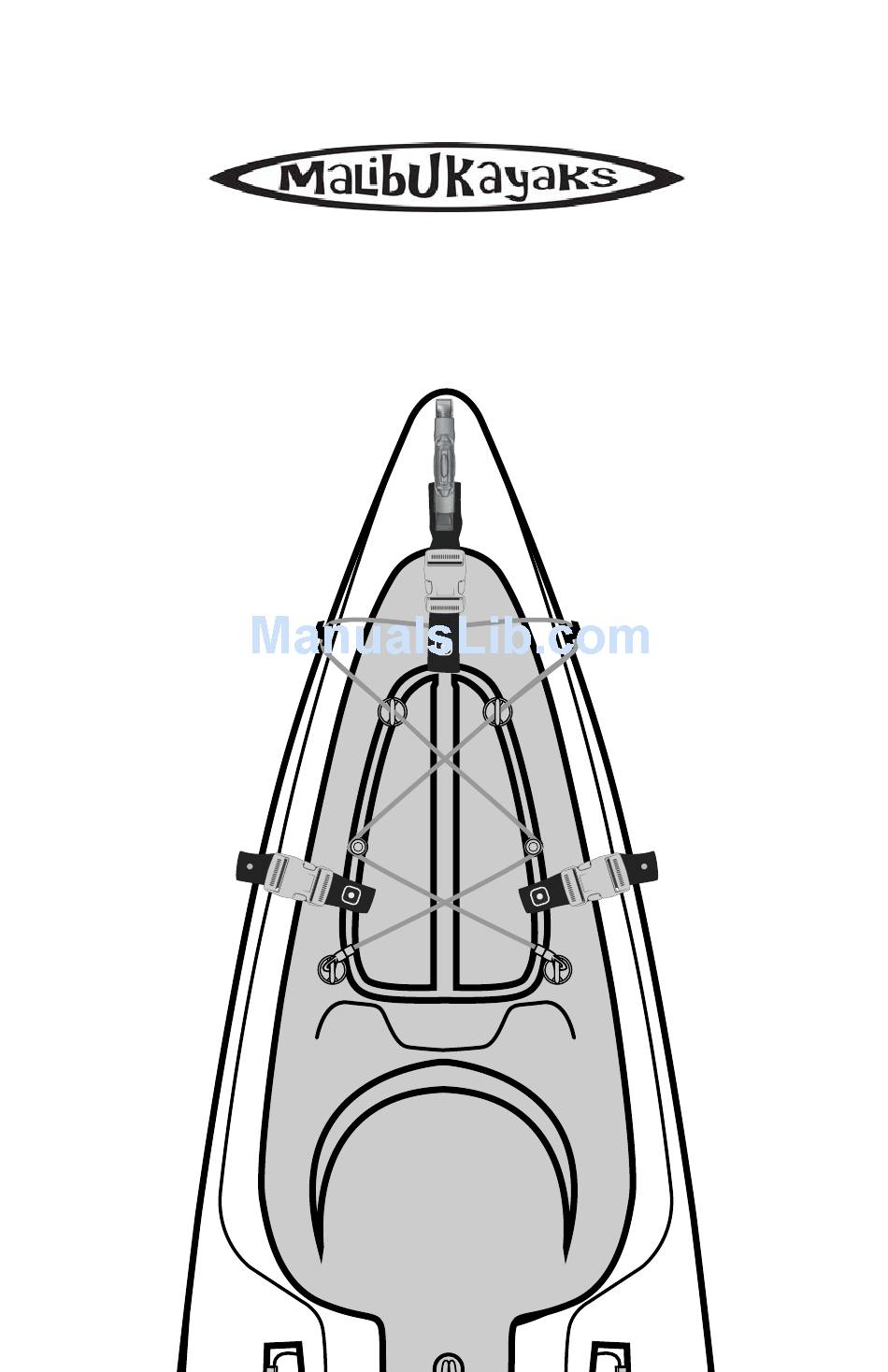

  • Page 1 Stealth-14 Owners Manual...

  • Page 2: Table Of Contents

    - Universal Rudder Kit..................33 - X-Tank........................34 Shop: http://www.codpaddlesports.com/ - 4” Round Hatch.....................34 Transportation ........................36 Copy this link for our Installation Videos and Instructional Manuals: Maintenance..........................38 http://www.malibukayaks.com/customer-support/ Repair............................39 Storage............................40 Safety ............................42 Replacement Parts & Optional Accessories..............43 INSTALLATION MANUALS INSTRUCTIONAL VIDEOS Warranty.............................46...

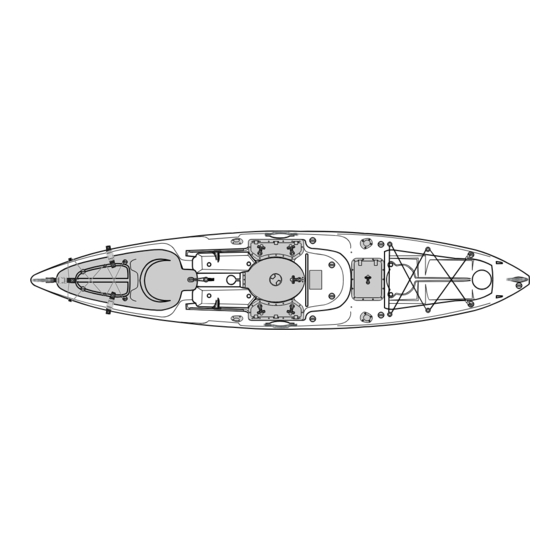

  • Page 3: Getting To Know Your Kayak

    Scupper Hole hatch allows access to the inside of the kayak for extra storage. Like many of our models, the Stealth-14 is equipped with a backwell bungee storage, which Adjustable Footrest Pedals is an ideal placement for a 5 gallon live bait bucket. It can also be used as...

  • Page 4: Kayak Packages

    Kayak Packages Stealth-14 The top of the line Stealth series, the Stealth-14 provides ample 550 lb. storage capacity, Gator Hatch, patented casting platform, and of course, our 3-hatch Center Bait Tank System. A must for the discerning angler who demands everything.

  • Page 5: Gator Hatch

    Stealth-14 Gator Hatch Gator Hatch Seat (PCM-1911) Child Seat Gator Hatch also provides a patented design seat so your little one can safely join you on board. Hull Storage Remove Gator Hatch to access the inside of your kayak. The inside of your...
  • Page 6 Stealth-14 Gator Hatch Shock Cord Cleats (PM-1553R) Gator Hatch Bungee Storage (FM-2211R) 1.5” Buckle (PM-1503R) Bungee Storage The Gator Hatch bungee cord can be utilized to strap down smaller items like a water bottle or a small tackle box. Secure Gator Hatch...

  • Page 7: Adjustable Footrest Pedals & Flush Mount Rod Holder

    Stealth-14 Adjustable Footrest Pedals & Flush Mount Rod Holder p r e s s Adjustable Footrest Pedals Adjustable Footrest Pedals (PM-1556R) Foot pedals can easily be adjusted by sliding them across the track. Press/ hold to lift the lever tab and adjust the slide pedal across track for a comfortable position.

  • Page 8: Side Bungee Carry Handles

    Stealth-14 Side Bungee Carry Handles Side Bungee Carry Handle The side bungee carry handles can be utilized to strap down your paddle. Simply wrap the bungee cord over your paddle and attach it to the nylon lashing hook. Side Bungee...

  • Page 9: Piece Hatch

    Stealth-14 3 Piece Hatch V-Tab Drainage V-Tab Drainage Drill holes on the outtake tab for drainage. Visit our support page on our website for the instructional manual. (3. Live Well Pump Installation Manual–Stealth Series) Livewell Bait Tank (PC-1148) Livewell Bait Tank Ideal for fresh live bait and a place to keep catch-and-release fish.
  • Page 10 Stealth-14 3 Piece Hatch Standing Platform Side Hatch/Standing Patented center standing platform is stable enough for casting your fishing Platform (PCM-1917S) line or stand up paddling. Clear Cap (PCM-1920) Clear Cap Instead of opening the oval hatch, remove the threaded clear cap to reach into the livewell for bait.
  • Page 11 Stealth-14 3 Piece Hatch Side Hatch with Removable Dry Bag Side Hatch with The basket inside the 3 piece side hatch is removable; this provides access Removable Dry Bag to the kayak hull. (PCM-1920)

  • Page 12: Seat Mount

    Stealth-14 Seat Mount Front Seat Straps Our seat hooks clip from the upper straps to threaded eyelets that are near the front of the seating area. Front Seat Strap Eyelet (PM-1551R) upper lower Back Seat Strap Eyelet (PM-1551R) Back Seat Straps The back seat hooks clip from the lower to threaded eyelets that are near the back of seating area.

  • Page 13: Rectangular Hatch

    Stealth-14 Rectangular Hatch To access the rectangular hatch, simply lift the T-handle and twist to the left to unlock. Pull T-Handle to lift the hatch. Rectangular Hatch (Rear) (PCM-1916R) The basket inside is removable; this provides access to the kayak hull which...

  • Page 14: Backwell Storage

    Stealth-14 Backwell Storage Backwell Bungee Storage It is a perfect place to store any extra equipment you would like to bring on board. The backwell also has a design placement holder for a 5 gallon live bait bucket. Backwell Bungee...

  • Page 15: Drain System

    Stealth-14 Drain System Seat Drainage Unscrew threaded eyelet to drain excess water from the seating area for a comfortable ride. Threaded Eyelet w/ Washer (Seat Drainage) (PM-1552R) Hull Drainage Threaded Eyelet w/ Unscrew threaded eyelet, located near the stern of the kayak, to drain out Washer (Hull Drainage) any excess water from inside the hull.

  • Page 16: Kayak Brass Inserts

    Kayak Brass Inserts Stealth-14 Trolling Motor Mount Inserts Located behind the seating area, these inserts are specifically designed to install our quarter inch cross bar. Trolling Motor Mount Inserts Rudder Kit/Motor Inserts Rudder Kit/Motor Located at the stern of the kayak, the rudder kit/motor inserts are Mount Inserts specifically designed to mount our universal rudder kit.
  • Page 17 Kayak Brass Inserts Stealth-14 Transducer Inserts Your kayak comes with a Lowrance suited transducer mount located at the bottom of the kayak stern. Transducer Inserts...

  • Page 18: Optional Features

    Stealth-14 Optional Features X-Wing Console X-Wing Sliding Console (PM-1540) Designed for ergonomic fishing with effortless control in reaching for electronics, fishing rods and a 4” round hatch for dry storage. The adapter brackets are required to install the X-Wing sliding console onto your kayak.

  • Page 19: Trolling Motor Mount

    Stealth-14 Optional Features Trolling Motor Mount A long crossbar ( 2”x2”x34” ) made of 1/4” steel, built for easy installation and powder coated to resist the elements. (Includes Hardware) Trolling Motor Mount (MM-4167) Universal Rudder Kit Universal Rudder Kit (PCM-1927R) Steer your kayak hands-free with our durable Universal Rudder Kit.

  • Page 20: X-Tank

    Stealth-14 Optional Features X-Tank Add more storage possibilities to your kayak by removing your rectangular hatch lid and adding the X-tank. Doubles as an elevated seating platform when closed, ideal for comfortable seated fishing. X-Tank (EC-4008) 4” Round Hatch 4” Round Hatch Install our 4”...

  • Page 21: Transportation

    Stealth-14 Transportation Tie Down Straps and Roof Rack Pads are available on codpaddlesports.com Step 1 Step 2 Step 3 Step 2 Step 1 After strapping down your kayak to your roof rack make sure to strap it down to the front and back bumper of your vehicle. Tie one end of the strap to front carry handle and the other end to your tow hook.

  • Page 22: Maintenance

    Maintenance Repair After every use, it is recommended to thoroughly rinse your kayak with water. Patching Holes Make sure to rinse foot pegs and all hardware with plenty of fresh water after Super linear polyethylene is very durable and can be repaired if the need paddling in saltwater, brackish or polluted water.

  • Page 23: Storage

    Stealth-14 Storage Storage Do’ s Storage Don’t s Storing your kayak cockpit side up on cross bars can dent the bottom. Always store your kayak indoors or under cover to protect from harsh weather, direct sunlight and other elements. On its side over a long period of time it can deform or dent the sides.

  • Page 24: Safety

    Safety Replacement Parts and Optional Accessories The list below refers to a specific category for each replacement part and Kayak Safety Suggestions There are basic safety rules that all kayakers should follow. Get paddlesports accessories that you can find at http://www.codpaddlesports.com/ instructions from a licensed or certified instructor.
  • Page 25 Replacement Parts and Optional Accessories Optional Accessories Fishing Gear 5 Gal. Bucket with Pump Kit - PCM-1934 Hatches 4” Round Hatch - PCM-1909R Pump Kits Livewell Pump Kit - Stealth Series PC-1148 Rudder Kit Universal Rudder Kit - PCM-1927R Transportation Gear Tie Down Straps - FCM-2400R Multi-Purpose Roof Rack System -...

  • Page 26: Warranty

    For all kayak warranty claims visit the link below: Malibu Kayaks dealer and applies only to the original owner. Some states do http://www.malibukayaks.com/customer-support/ not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives Please fill out our Warranty Claim Form and submit photos or files to Support@malibukayaks.com...
  • Page 27 7110 E Jackson St. Paramount, CA 90723 T: 562.630.6282...
