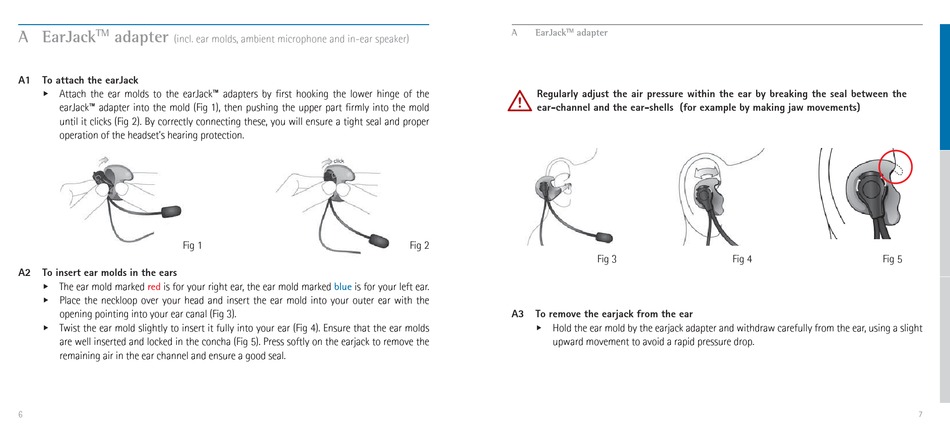

A EarJack adapter
(incl. ear molds, ambient microphone and in-ear speaker)
A1 To attach the earJack
u Attach the ear molds to the earJack™ adapters by first hooking the lower hinge of the
earJack™ adapter into the mold (Fig 1), then pushing the upper part firmly into the mold
until it clicks (Fig 2). By correctly connecting these, you will ensure a tight seal and proper
operation of the headset's hearing protection.
Fig 1
A2 To insert ear molds in the ears
u The ear mold marked red
is for your right ear, the ear mold marked
u Place the neckloop over your head and insert the ear mold into your outer ear with the
opening pointing into your ear canal (Fig 3).
u Twist the ear mold slightly to insert it fully into your ear (Fig 4). Ensure that the ear molds
are well inserted and locked in the concha (Fig 5). Press softly on the earjack to remove the
remaining air in the ear channel and ensure a good seal.
6
A
Fig 2
blue
is for your left ear.
A3 To remove the earjack from the ear
EarJack TM adapter
Regularly adjust the air pressure within the ear by breaking the seal between the
ear-channel and the ear-shells (for example by making jaw movements)
Fig 3
u Hold the ear mold by the earjack adapter and withdraw carefully from the ear, using a slight
upward movement to avoid a rapid pressure drop.
Fig 4 Fig 5
