ForU MN 3 Operation Manual

3-wheel and 4-wheel
Table of Contents

Advertisement

Quick Links

OPERATING MANUAL
MN 3 and MN 4
3 - w h e e l a n d 4 - w h e e l

Advertisement

Table of Contents
loading

Summary of Contents for ForU MN 3

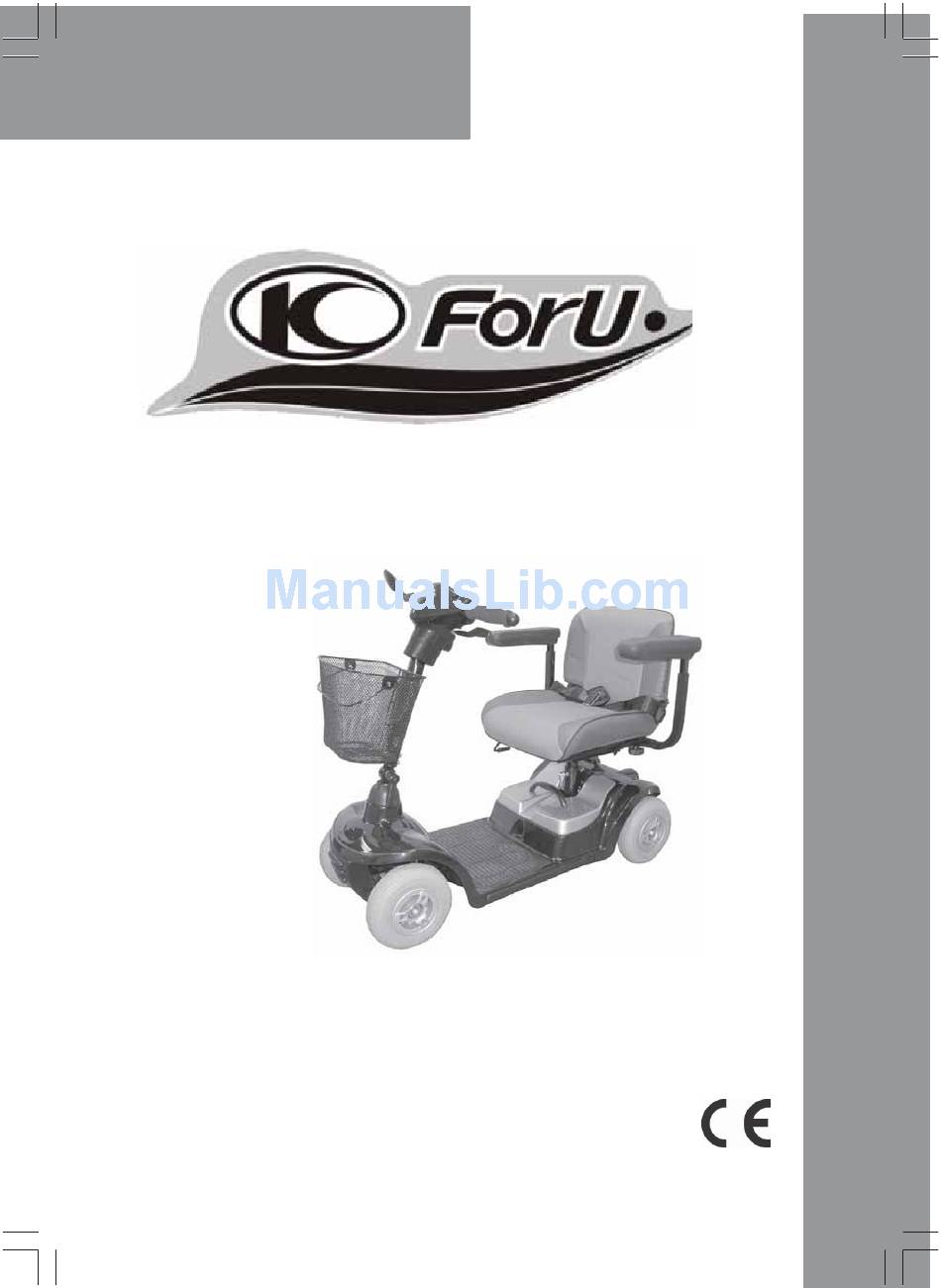

  • Page 1 OPERATING MANUAL MN 3 and MN 4 3 - w h e e l a n d 4 - w h e e l...
  • Page 3 Introduction FOR U MN3/4 With the FOR U MN3/4, you have now purchased a product which been manufactured in accordance with the newest technical capabilities and based on the highest operating comfort. We have placed great value on the simplest possible operation and long service life in both construction and material selection.
  • Page 4: Table Of Contents

    Contents FOR U MN3/4 1.0 Safety instructions ................. 8 Symbols used ................8 Intended use ................8 General Information ..............9 Safety when driving ..............10 Safety during transport, assembly and maintenance ....11 Safety when handling batteries ..........12 Safety - information about electronics ........
  • Page 5 Contents FOR U MN3/4 Driving ..................37 Using the motor brake ..............37 Using the horn ................38 8.10 Switching off / parking the FOR U ..........38 Pushing the FOR U................39 10.0 Attaching the shopping basket ............39 11.0 Charging the batteries ..............40 11.1 Preparing the battery charger .............40 11.2 Charging the batteries ..............41...
  • Page 6 Contents FOR U MN3/4 13.3.3 Removing the battery case ..........50 13.3.4 Locking the tiller (only 3-wheel version) ......51 13.3.5 Folding the tiller down ............. 51 13.3.6 Disengaging the drive unit from the chassis ....52 13.4 After Transport - Reassembly ............54 13.4.1 Engaging the drive unit to the chassis ......
  • Page 7 Contents FOR U MN3/4 19.3 Torque for fixing screws ............. 82 19.4 Disposing of the scooter ............82 20.0 Warranty information ............... 83 21.0 Annual inspections carried out ............84 Issued: 23.01.2008...
  • Page 8: Safety Instructions

    The MN 3 and MN4 models are classified as an “invalid carriage” for use indoors, on pavements, footpaths, pedestrian zones and areas free from motor traffic.
  • Page 9: General Information

    Safety information FOR U MN3/4 General Information Read the entire operating manual thoroughly before using the FOR U! Ensure that: • the operating manual is read by all people who drive, care for and service the scooter. • all persons who drive, care for, service or repair the scooter have access to the operating manual at any time.
  • Page 10: Safety When Driving

    Safety information FOR U MN3/4 Safety when driving Risk of accidents! • Check correct functioning of the brakes before every journey. • Check the tyre air pressure regularly. • Always use the seat belts when driving. • Do not switch the scooter off while driving. •...
  • Page 11: Safety During Transport, Assembly And Maintenance

    Safety information FOR U MN3/4 Danger due to unintentional movement! • Always turn the scooter off using the keyswitch if you: - want to get on or off - intend to stop for long periods - are putting the scooter away. Safety during transport, assembly and maintenance If the scooter is transported in the vehicle when fully assembled:...
  • Page 12: Safety When Handling Batteries

    Safety information FOR U MN3/4 Safety when handling batteries Fire hazard! • Do not cover the battery charger and ventilation slot while charging batteries. • Only use the battery charger in well-ventilated areas. Risk of accidents! • Only use the original battery charger (included in delivery). •...
  • Page 13: Versions

    Versions FOR U MN3/4 Versions 3-wheel version 4-wheel version Extent of delivery After receiving your FOR U, please check the following: • that the delivery is complete in accordance with the list below • the delivery condition using the inspection plan (chapter 14.2) If any faults are apparent or components are missing, please contact KYMCO Healthcare or...
  • Page 14: Components

    Components FOR U MN3/4 Components Dashboard with controls The FOR U Rear view mirror Seat unit with armrests Tiller Shopping basket Battery case Steering wheel The dashboard - displays and controls Operation indicator (fault display) Keyswitch Speed contoller (ON-OFF switch) Handle Handle Battery charge...
  • Page 15: Brief Instructions

    Brief instructions FOR U MN3/4 Brief instructions The following brief instructions should enable people to quickly get used to operating the scooter after a long period of non-use and to refresh existing knowledge of operation. It is imperative that you follow the instructions given in the main manual! Driving the FOR U NOTE...
  • Page 16 Brief instructions FOR U MN3/4 5.) Check the battery 6.) Set the maximum speed charging state = lowest possible driving speed (approx. 1.5 mph) = highest possible driving speed (approx. 4 mph) 7.) Driving Operate the drive lever slowly until the required speed has been reached The drive lever position controls the speed variably right up to maximum driving speed.
  • Page 17: Transporting The For U

    Brief instructions FOR U MN3/4 Transporting the FOR U FOR U Dismantling the (stages 1 to 6) 2.) Removing the battery case 1.) Remove the seat 3.) Disconnecting the main plug 4.) Fold the tiller down Issued: 23.01.2008...
  • Page 18 FOR U MN3/4 Brief instructions 6.) Remove the chassis 5.) Unlock the drive unit (1.) tilt the drive unit away (2.) Reassembling the FOR U (Stages 6 to 1) The FOR U dismantled: 1. Chassis 2. Drive unit 3. Battery case 4.
  • Page 19: Setting Up The For U

    Adjusting the seat height FOR U MN3/4 Setting up the FOR U The following passage describes how to set up your FOR U in order to ensure that you have a comfortable and safe drive. Adjusting the seat height NOTE! The seat must be removed from the FOR U in order to adjust the seat height.
  • Page 20 Adjusting the seat height FOR U MN3/4 Adjusting the seat height: Tools required: 2 x ring spanner, size 12 mm Removing the clamping bolt Hold the clamping bold (1) with a ring spanner (size 12 mm) and unscrew the self-locking nut (2) with the other ring spanner (size 12 mm).
  • Page 21 Adjusting the seat height FOR U MN3/4 Adjusting the seat The seat height (h) is adjusted using the support three holes (B1 - B4) in the seat support. Pull the seat support (4) out as far as the required height until the correct hole (B1-B4) appears in the seat tube hole (5).
  • Page 22 Adjusting the seat height FOR U MN3/4 Reinserting the battery Reinserting the battery case: case Insert the battery case into the FOR U chassis. Inserting the seat: Inserting the seat Pull the seat lock (a) and guide the seat into the seat support (1) from above. Let go off the seat lock and engage the rotational adjustment by turning the seat a little one way then the other.
  • Page 23: Adjusting The Seat Position

    FOR U MN3/4 Adjusting the seat Adjusting the seat position Moving the 6.2.1 Adjusting the distance between seat and seat tiller Pull the locking lever (1) upwards and move the seat forwards or backwards to the required distance. Let go of locking lever and engage the locking mechanism by pushing the seat slightly forwards and backwards.
  • Page 24: Adjusting The Armrest Height

    Adjusting the seat FOR U MN3/4 6.2.3 Adjusting the armrest height Loosening the fixing Tools required: 1 x Allen key (size 5 mm) Loosen the Allen screw (4) and remove. The armrest height is adjusted using four holes in the armrest support (b). The height can be adjusted in stages of 10 mm.
  • Page 25: Adjusting The Tiller Angle

    Adjusting the seat FOR U MN3/4 Adjusting the tiller angle adjusting the tiller Always adjust the tiller so that you can reach all displays and controls easily at any time. The tiller can be variably adjusted. Loosen the clamping lever (1). Push the tiller forwards or backwards into the required position (2).
  • Page 26: Information About Safe For U Driving

    Driving information FOR U MN3/4 Information about safe FOR U driving Always carry out the safety information described in chapter 1.4 “Safety when driving“! Driving the FOR U is very simple and after a few practice sessions you will find it very easy. The following information should help you to drive safely through traffic: •...
  • Page 27: Driving Up Inclines And Down Slopes

    Driving information FOR U MN3/4 Driving up inclines and down slopes The FOR U can climb up inclines of up to 8° without danger. Climb angle examples: a 1 metre long ramp should not be higher than. 14 cm a 2 metre long ramp should not be higher than. 28 cm Tipping •...
  • Page 28: Overcoming Obstacles

    Driving information FOR U MN3/4 Overcoming obstacles The FOR U can climb over obstacles such as kerbstones up to height of 6 cm without any problem. Please observe the following points to make sure that your FOR U doesn’t tip over while climbing obstacles: •...
  • Page 29: Driving Information - Overcoming Kerbs

    Driving information FOR U MN3/4 7.2.1 Driving Information – Overcoming kerbs Risk of accidents! Neogating kerbs needs some practice. • Please observe the maximum obstacle hights of 6 cm. • Please start practicing kerb climbing with small kerbs. Approach at a right angle Approach the kerb at a right angle.
  • Page 30: Overload Protection - Motor Protection

    Driving information FOR U MN3/4 Overload protection - motor protection The overload protection switches the drive off if the motor becomes overloaded by trying to climb over too high an obstacle such as a kerbstone, or if you try to climb too steep of an incline. If the motor is overloaded, the following happens: •...
  • Page 31: Battery Charging State = Driving Range

    Driving information FOR U MN3/4 Battery charging state = driving range 7.4.1 Battery charging state Battery charge display Battery charge display: The battery charger display on the dashboard shows the battery charging state. Display ranges Full = maximum range Medium = decreased driving range, charge batteries after journey Reserve = minimum driving range, end journey as soon as possible,...
  • Page 32: Driving Range

    Driving information FOR U MN3/4 7.4.2 Driving range The FOR U driving range is dependent on the following conditions in addition to battery charge: landscape conditions (level or steep) weight of user weather conditions (cold, rain) driving with headlights (if fitted) For this reason, information about the driving range is only given as a guideline.
  • Page 33: Driving The For U

    Driving the FOR U FOR U MN3/4 Driving the FOR U Getting on and off Please observe the following before getting on or off: • The FOR U must be standing on firm, level and non-slippery ground. Turning the seat •...
  • Page 34: Seat Belt -Adjusting For Length And Putting On

    Driving the FOR U FOR U MN3/4 NOTE! If you feel you are safe enough, you can of course get onto the FOR U without turning the seat round. • You can lift up the armrest on the side where you are standing and then get on.
  • Page 35: Turning The Seat

    Driving the FOR U FOR U MN3/4 Turning the seat The seat can be turned to both sides of the angle, and firmly engaged in 8 positions (each position turns 45°). Turning the seat: Pull the turning lock (1), turn the seat in the required direction or position (2) and engage.
  • Page 36: Adjusting The Speed

    Driving the FOR U FOR U MN3/4 Adjusting the speed Your maximum driving speed can be variably adjusted using the speed controller. Maximum driving speed = drive lever pressed as far as stop Controller symbols: Speed controller = lowest possible maximum driving speed (approx.
  • Page 37: Driving

    Driving the FOR U FOR U MN3/4 Driving Accident hazard due to locked tiller! • Before driving off, turn the tiller to check that it is not locked. Observe chapter 13.3.4. Hold the tiller firmly in both hands. Handle Handle Press the drive lever (1) in the direction of travel until the required speed has been reached.
  • Page 38: Using The Horn

    Hazard lamps FOR U MN3/4 Using the horn Using the horn Press the horn button (5). It will sound for as long as you hold the button down. 8.10 Switching off / parking the FOR U Turn the key to the left to switch the FOR U off.
  • Page 39: Pushing The For U

    Pushing the FOR U FOR U MN3/4 Disengaging the drive Pushing the FOR U In order to be able to push the FOR U, you must disengage the drive motor. The disengaging lever (1) is located on the right-hand side of the FOR U. No one is permitted to sit on the FOR U when it is being pushed.
  • Page 40: Charging The Batteries

    Charging the batteries FOR U MN3/4 11.0 Charging the batteries Please also see the information given in the chapter entitled “Things to know“. Charging information: • The surrounding temperature should be between 10° and 30° Celsius. The charging time will increase at lower temperatures. •...
  • Page 41: Charging The Batteries

    Charging the batteries FOR U MN3/4 11.2 Charging the batteries 11.2.1 Charging the batteries in the FOR U Switching off via the tiller (12 Ah and 17 Ah batteries) Engaging Switch the FOR U off. Engage the engaging lever for push mode into the “drive“...
  • Page 42: Charging The 12 Ah Batteries In The Battery Case

    Charging the batteries FOR U MN3/4 11.2.2 Charging the 12 Ah batteries in the battery case (when removed from the FOR U) This section applies to the FOR U fitted with Removing the battery 12 Ah batteries. case 12 Ah batteries can be recognised because the battery case (1) is a single unit.
  • Page 43: Led Information At Battery Charger During Charging

    Charging the batteries FOR U MN3/4 11.2.3 LED information at battery charger during charging LED -> Colour -> Meaning -> Red -> battery charger -> Orange -> charging in progress -> Green -> charging complete, battery completely Removing 11.3 After charging the mains plug (1.) Switch off and remove the battery...
  • Page 44: Things To Know

    Things to know FOR U MN3/4 12.0 Things to know 12.1 The battery charger - functioning principle The battery charger regulates the voltage (Volt) and the current (Ampere) from your mains connection down to the voltage required for charging your batteries (24 Volt). The amount of charging current required is dependent on the charging state of the discharged batteries.
  • Page 45: What Are Batteries For Cyclic Use

    Things to know FOR U MN3/4 12.2.1 What are batteries for cyclic use? Batteries for cyclic use are designed, in contrast to starter batteries as used in cars, so that they deliver continuous energy over a longer period of time and allow a considerable number of charging phases. 12.2.2 When do the batteries achieve their maximum performance? Fixed cycle batteries achieve a maximum performance after four or five charging and discharging cycles.
  • Page 46: The Tiller Lock (Only 3-Wheel Version)

    Things to know FOR U MN3/4 12.5 The tiller lock Tiller lock (only 3-wheel version) The handlebar on the 3-wheel version of the FOR U can be locked in the straight-ahead position using the tiller lock (2) to enable transport. This prevents uncontrolled handle- bar movement.
  • Page 47: The Control Unit

    Things to know FOR U MN3/4 12.8 The control unit The control unit is a programmable electronic regulating unit. It regulates drive characteristics such as acceleration, maximum speed and braking behaviour. The drive characteristics can be set to match the user’s requirements by altering the programming.
  • Page 48: Driver´s Licence

    Things to know FOR U MN3/4 12.11 Driver´s licence Not required! 12.12 Insurance As a scooter user you must be aware of the risks involved to both yourself and others. It is recommended that you take out third party insurance to cover you against any possible claims. Advice and policies are available from insurance companies or alternatively ask your scooter supplier for details.
  • Page 49: Transporting The For U

    Transporting the FOR U FOR U MN3/4 13.0 Transporting the FOR U 13.1 Transport information Depending on the size of the transport vehicle, the FOR U can be dismantled in a few steps so that it can also be easily transported in smaller vehicles.
  • Page 50: Working Step Summary

    Transporting the FOR U FOR U MN3/4 In just a few steps you can dismantle the FOR U down to the following components to make it ready for transport: 1. Chassis 2. Drive unit 3. Battery case 4. Seat unit Removing the seat 13.3.1 Working step summary 1.
  • Page 51: Locking The Tiller (Only 3-Wheel Version)

    Transporting the FOR U FOR U MN3/4 13.3.4 Locking the tiller (only 3-wheel version) Locking the tiller Turn the tiller to face straight ahead. Pull the locking knob (2), turn it through 90° (3) and locate in the V-shaped recess (4).
  • Page 52: Disengaging The Drive Unit From The Chassis

    Transporting the FOR U FOR U MN3/4 13.3.6 Disengaging the drive unit from Separating the front connector the chassis Separate the front unit connecting plug (8). Tilt the drive unit away Pull the locking device (9) and tilt drive unit to the rear onto the anti tip wheels (10).
  • Page 53 Transporting the FOR U FOR U MN3/4 Separating the chassis Remove the chassis (11) upwards from the holding bolts (12) on the drive unit. NOTE Use rear bumper as grip to stowe the drive unit. Issued: 23.01.2008...
  • Page 54: After Transport - Reassembly

    Transporting the FOR U FOR U MN3/4 13.4 After Transport - Reassembly Working step summary: 1. Re-couple the drive unit. 2. Fold the tiller up again. 3. Unlocking the tiller (only 3-wheel) 4. Insert the battery case. 5. Fit the seat. NOTE •...
  • Page 55 Transporting the FOR U FOR U MN3/4 NOTE The drive unit locking device (4) engages automatically and audibly into the chassis receptacle. Accident hazard due to locking device not engaged! • Ensure that the drive unit locking device audibly engages into the chassis.
  • Page 56: Folding The Tiller Up

    Transporting the FOR U FOR U MN3/4 13.4.2 Folding the tiller up Folding the tiller up Loosen the clamping lever (6). Fold the tiller down towards the rear until it is horizontal. (7). Tighten the clamping lever (8). Ensure that the tiller is engaged properly by moving slightly forwards and backwards.
  • Page 57: Unlocking The Tiller (Only 3-Wheel Version)

    Transporting the FOR U FOR U MN3/4 13.4.3 Unlocking the tiller Unlocking the tiller (only 3-wheel version) Pull the locking knob (11), turn it through 90° (12) and locate in the V-shaped recess (13). Accident hazard due to locked tiller! •...
  • Page 58: Cleaning

    Cleaning FOR U MN3/4 14.0 Cleaning NOTE • Only use mild detergents without scouring agents to clean any surfaces. • Please observe instructions for use on the detergents to avoid damage to the component surfaces. • Do not use any sharp-edged tools such as knives, metal scrapers or aggressive solvents for cleaning.
  • Page 59: Maintenance And Inspection

    FOR U MN3/4 15.0 Maintenance and Inspection If you find any faults on your scooter during maintenance which are not covered by the repair information, please contact your dealer. Always remove faulty scooters from operation and secure them against unauthorized use (remove key). 15.1 Daily maintenance before start of journey Check the brakes by driving slowly and then braking.
  • Page 60: Annual Inspection - Inspection Timetable

    Maintenance and inspection FOR U MN3/4 15.3 Annual inspection - inspection timetable Take your scooter once per year to your dealer for an inspection. He will have the necessary tools and experience to service your scooter correctly. Description Assessment (Component / inspection for) Defective Component : Seat Seatbelt /...
  • Page 61 Maintenance and inspection FOR U MN3/4 Description Assessment (Component / inspection for) Defective Component : Tiller Panelling / no damage fixed securely Grip rubbers / no damage fixed securely Tiller, folding mechanism / no play in joint functions easily Component : chassis Connections / no damage Frames /...
  • Page 62 Maintenance and inspection FOR U MN3/4 Description Assessment (Component / inspection for) Defective Component : Displays and controls, electric system, electronic system Drive lever/ No damage Easy functioning over the entire lever movement Returns to central position after releasing from any position Secure blockage of magnetic brakes when lever is in central position (FOR U can not be pushed)
  • Page 63: Troubleshooting

    Maintenance and inspection FOR U MN3/4 Description Assessment (Component / inspection for) Defective Component : Drive Motor, drive / no damage fixed securely drive noise Motor, magnetic brake / holding force OK (FOR U can not be pushed with engaging lever in drive-position) Engaging lever / no damage functions easily...
  • Page 64: Troubleshooting

    Troubleshooting FOR U MN3/4 16.2 Troubleshooting Fault Cause Remedy Scooter does not run / Scooter not Switch the scooter no display at the dashboard switched on on (chapter 8.4) Power Battery not pluged supply interrupted Front unit connector not plugged in Check the battery fuses (chapter 17.6)
  • Page 65 Troubleshooting FOR U MN3/4 Fault Cause Remedy Main fuses blow frequently Batteries defective Motor defective Visit your dealer Fault in control unit Short-circuit in electrical equipment Battery charge display moves Batteries Charge the batteries rapidly to discharged during discharged (chapter 10.0) journey Batteries defective Visit your dealer...
  • Page 66: Operation Indicator Blink Codes

    Troubleshooting FOR U MN3/4 16.3 Operation indicator blink codes The operation indicator (1) on the dashboard is also designed as a display for error messages. Various faults in the drive electronics are displayed using blink sequence is as listed in Chapter 17.3.2. 16.3.1 Blink Operation indicator (fault display) ...
  • Page 67 Troubleshooting FOR U MN3/4 Blink codes Cause Remedy 2 x blink Bad connection to drive Check main battery plug motor connection (Chapt. 13.4.2) Have the control unit connecting plugs checked (specialist Drive motor carbon Visit your dealer brushes worn 3 x blink Motor cable short-circuited Visit your dealer to battery terminal...
  • Page 68: Repairs

    Repairs FOR U MN3/4 17.0 Repairs The following repair information should enable you to carry out small repairs on your vehicle yourself. You should, however, only carry out such work if you are used to working with the tools described here since it is impossible to fully prevent injury hazards when handling tools.
  • Page 69: Wheels - Removal And Replacement - 3-Wheel Version

    Repairs FOR U MN3/4 17.3 Wheels - removal and replacement - 3-wheel version Tools required: 1 x ring spanner, size 14 mm 1 x ring spanner, size 17 mm Removing the front wheel: Front wheel Secure the FOR U against rolling away. Lift the front end of the FOR U and support it (see chapter 18.0).
  • Page 70: Wheels - Removal And Replacement - 4-Wheel Version

    Repairs FOR U MN3/4 17.4 Wheels - removal and replacement - 4-wheel version Tools required: Front wheel: 1 x socket spanner, size 17 mm Rear wheel: 1 x socket spanner, size 19 mm Removing the wheels: Remove the wheel fixing protective cap (1) with a screwdriver.
  • Page 71 Repairs FOR U MN3/4 Fitting the front wheel Fitting the front wheel: Push the wheel onto the stem (3) as far as the wheel stop. Screw the wheel fixing self-locking nut (4) and tighten it (size 17 mm). Lower the FOR U. Retighten the self-locking nut (3).
  • Page 72 Repairs FOR U MN3/4 Locating the washer Place the washer (8). Securing the rear wheel Screw the wheel fixing self-locking nut (9) and tighten it (size 19 mm). Lower the FOR U. Retighten the self-locking nut. Press the protective cap onto the wheel fixing nut.
  • Page 73: Replacing The Tyre

    Repairs FOR U MN3/4 Deflating the tyres 17.5 Replacing the tyre Remove the damaged wheel. Unscrew the valve cap (1). Carefully press the valve plunger (a) inwards with a screwdriver until the inner tube is completely deflated. Risk of accidents! •...
  • Page 74: Fuses

    Repairs - fuses FOR U MN3/4 17.6 Fuses Wiring diagram The FOR U is fitted with the following fuses. • 1.35 A resetable fuse Position: power supply to tiller head (1). • 3 A resetable fuse Position: in cable betweencharging socket and batteries (2).
  • Page 75: Batteries

    Repairs - batteries FOR U MN3/4 To replace Fuse: Pull out fuse and replace it. 17.7 Batteries Only replace the batteries with the following battery types: 12 V / 12 Ah or 17 Ah, lead acid deep cycle batteries. You may not use wet cell batteries with detachable cover caps. Risk of accidents! •...
  • Page 76: Replacing The Batteries - 12 Ah

    Repairs - batteries FOR U MN3/4 17.7.2 Replacing the batteries - 12 Ah Fire and burn hazard if battery terminal is short-circuited! • Never touch the positive and negative battery terminals simultaneously with metal parts (short-circuiting). Opening the battery Remove the battery case from the FOR U case as described in chapter 13.3.3.
  • Page 77: Replacing The Batteries - 17 Ah

    Repairs - batteries FOR U MN3/4 Opening the battery 17.7.3 Replacing the batteries - 17 Ah case Fire and burns hazard if battery terminal is short- circuited! • Never touch the positive and negative battery terminals simultaneously with metal parts (short-circuiting).
  • Page 78: Temporary Storage

    Temporary storage FOR U MN3/4 18.0 Temporary storage Front support, 3 wheel If you are not intending to use your FOR U version for longer periods (e.g. over the winter, you should prepare it as follows: Remove soiling and dust. Charge the batteries completely.
  • Page 79: Specifications

    Maximum climable incline ....... 8° Maximum climable obstacle ......60 mm Total weight (ready for driving incl. batteries) 12 Ah batteries ..........57.0 kg / MN 3 ..........62.0 kg / MN 4 17 Ah batteries ..........61.4 kg / MN 3 ..........
  • Page 80: Dimensions 3-Wheel Version

    Appendix FOR U MN3/4 19.2.2 Dimensions 3-wheel version Issued: 23.01.2008...
  • Page 81: Dimensions 4-Wheel Version

    Appendix - dimensions FOR U MN3/4 19.2.3 Dimensions 4-wheel version Issued: 23.01.2008...
  • Page 82: Torque For Fixing Screws

    Appendix - tightening torques FOR U MN3/4 19.3 Torque for fixing screws Front wheel central self-locking Nut (M10*p1.25) = 50 Nm Rear wheel central self-locking Nut (M12*p1.25) = 60 Nm Front / rear wheel rim, 3 nuts (M8*p1.25) = 33 Nm General torque for nuts and bolts: = 4.5 to 6 Nm = 8 to 12 Nm...
  • Page 83: Warranty Information

    Warranty FOR U MN3/4 20.0 Warranty information The FOR U Model MN 3 and MN 4 scooters are warranted for 18 months from date of purchase except for the batteries which carry 12 months warranty period. Important! • During the warranty period any parts that have become defective due to faulty workmanship or material will be repaired or replaced without charge by KYMCO HEALTHCARE supplier / dealer.
  • Page 84: Annual Inspections Carried Out

    FOR U MN3/4 21.0 Annual inspections carried Date: Date: Dealer´s stamp Dealer´s stamp (Signature) (Signature) Date: Date: Dealer´s stamp Dealer´s stamp (Signature) (Signature) Date: Date: Dealer´s stamp Dealer´s stamp (Signature) (Signature) Date: Date: Dealer´s stamp Dealer´s stamp (Signature) (Signature) Issued: 23.01.2008...
  • Page 86 (Dealer´s stamp) KWANG YANG MOTOR CO., LTD No.35 Wan Hsing Street,San Min Distrist Kaohsiung Taiwan, Republic of PROC Telephone:886-7-3822526 FAX : 886-7-3950021...
