  • Page 2: Table Of Contents

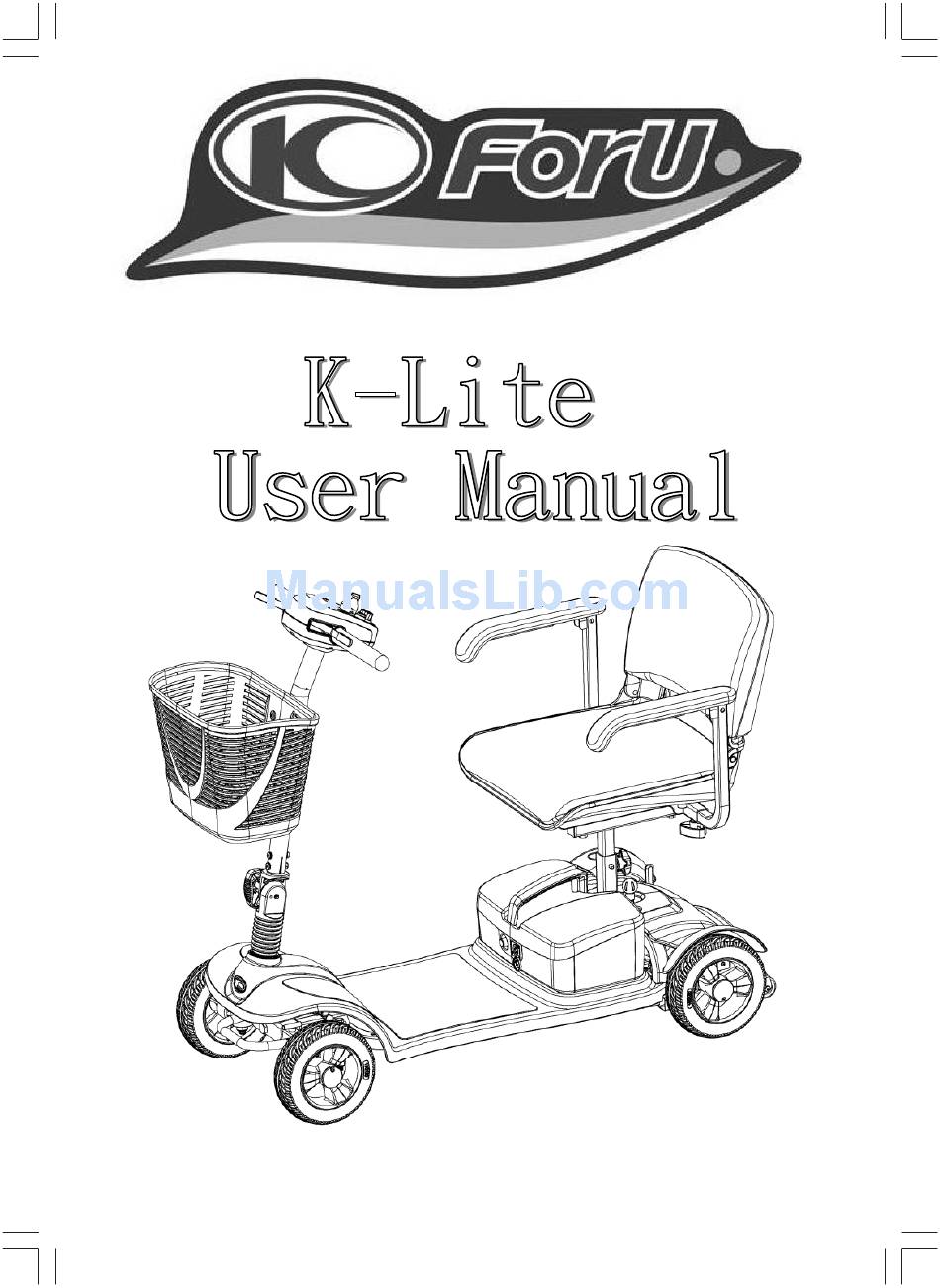

    Contents Contents BEFORE DRIVING ............ 1 1. INSTRUCTIONS FOR USE ......... 1 2. INTRODUCTION ..........2 3. GENERAL SAFETY INFORMATION ....3 4. GETTING TO KNOW YOUR SCOOTER .... 15 5. PRODUCT SPECIFICATIONS ......17 6. PUSHING AND TRANSPORTING THE SCOOTER 6.1 Parts .............
  • Page 3 Contents 8.2 ADJUSTING THE SPEED ......28 8.3 DRIVING FORWARDS AND BACKWARDS ................29 8.4 OVERLOAD PROTECTION ......30 8.5 SWITCHING ON THE HORN ...... 30 8.6 DRIVING ON AN INCLINE ......31 9. BATTERY AND CHARGING ......32 9.1 BATTERY STATUS DISPLAY ..... 33 9.2 CHARGING THE BATTERIES ....

  • Page 4: Before Driving

    INDICATION FOR USE BEFORE DRIVING The scooter is a motorised electric scooter for use outdoors primarily on flat surfaces such as pavements, roads, parking lots and drive ways. It is intended to increase the mobility of people who are both physically and mentally capable of correctly assessing driving situations and reacting correspondingly to them at any time.

  • Page 5: Introduction

    INTRODUCTION DEAR CUSTOMER With your K-Lite scooter, you have now purchased a product which has been manufactured in accordance with the latest technical capabilities and based on the highest levels of user comfort. We have placed great focus on the simplest possible operation and long service life in both construction and material selection.

  • Page 6: General Safety Information

    GENERAL SAFETY INFORMATION WARNING! Before you operate your scooter, please read and understand all of the information provided with your scooter for your safety. As operating any vehicle, only drive with full alertness to ensure safety. WARNING! Please observe the warnings below to avoid any damage or injury resulting from improper use of your scooter.
  • Page 7 GETTING TO KNOW YOUR SCOOTER WARNING! Anti-tippers substantially reduce your risk of tipping over backwards, which can cause serious injury. WARNING! Have someone help you practice bending and reaching on the scooter and transferring to and from the scooter until you learn how to do it safely.
  • Page 8 GETTING TO KNOW YOUR SCOOTER WARNING! The addition of accessories to your scooter may change certain specifications such as overall weight, size, and /or the center of gravity of your scooter. Please note how some of the changes may damage any objects around you. WARNING! Do not change your seating configuration.
  • Page 9 GETTING TO KNOW YOUR SCOOTER WARNING! Do not place the scooter in “freewheel” mode while the unit is powered up. Always power off the scooter and remove the key from the key switch before engaging or disengaging “freewheel” mode. WARNING! To prevent the scooter from rolling uncontrollably on its own, never place the scooter in “freewheel”...
  • Page 10 GETTING TO KNOW YOUR SCOOTER WARNING! Keep all charger power cord connectors clean, dry and away from sources of dampness at all times to prevent damage to the electrical system and /or personal injury. Check any actuators for loose, worn, or damaged items and have any damaged wires replaced immediately.
  • Page 11 GETTING TO KNOW YOUR SCOOTER WARNING! Only sealed batteries that meet DOT CFR173.159 should be used in the scooter. Replacement batteries should be obtained directly from an authorized provider to ensure conformity, fit, and function. WARNING! Always protect the batteries from freezing;...
  • Page 12 GETTING TO KNOW YOUR SCOOTER WARNING! When descending an incline, use the slowest speed possible. If the descent is faster than you desire, release the throttle control lever to stop the scooter. Then press the throttle control lever slightly to control the speed of your descent. WARNING! The maximum recommended incline angles (see specifications) are tested in a controlled environment.
  • Page 13 GETTING TO KNOW YOUR SCOOTER WARNING! Never reach or lean over the top of the seat back. This may damage the backrest and cause you to fall. WARNING! Do not use the armrests for any weight bearing purposes. Such use may cause the scooter to tip, which may result in a fall from the scooter and personal injury.
  • Page 14 GETTING TO KNOW YOUR SCOOTER WARNING! Do not ride your scooter along the edges of streams, lakes, or the ocean. Never use your scooter to cross waterways. WARNING! If you feel unsure about a driving surface, avoid that surface. WARNING! Do not expose your scooter to open flames.
  • Page 15 GETTING TO KNOW YOUR SCOOTER WARNING! When your scooter is used with any type of lift/elevation devices, always turn off the power of the scooter; make sure the scooter is not in “freewheel” mode and do NOT sit on your scooter. Failure to follow this may result in unintended movement and personal injury or product damage.
  • Page 16 GETTING TO KNOW YOUR SCOOTER WARNING! Should the fittings on your seating system become loose, please call your approved service provider. WARNING! Replace worn or damaged upholstery immediately to reduce the risk of fire hazard. WARNING! Be aware that washing of upholstered items may reduce the fabric’s resistance to flammability.
  • Page 17 GETTING TO KNOW YOUR SCOOTER 1) 20 volts per meter (V/m) is a generally achievable and useful immunity level against interference from radio wave sources (as of May 1994)(the higher the level, the greater the protection); 2) This product has an immunity level of 20 volts per meter (V/m)

  • Page 18: Getting To Know Your Scooter

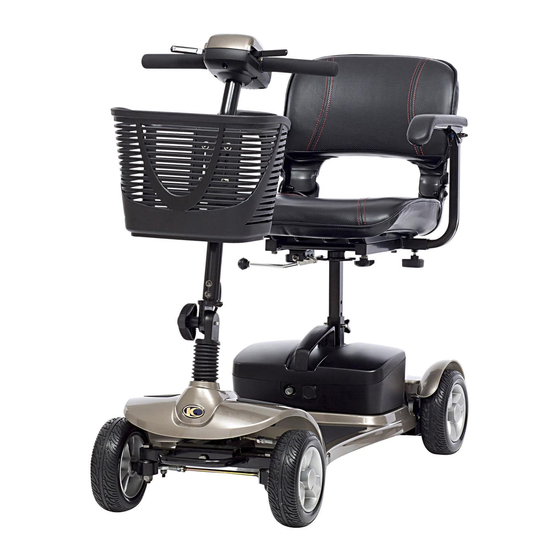

    GETTING TO KNOW YOUR SCOOTER Seat Detachable seat with fold-down back Removable flip-up arm rest Control panel Basket Adjuster Knob Battery Box Wheel Carrying handle Throttle lever Battery gauge Horn button Power light Key switch Speed control dial...
  • Page 19 GETTING TO KNOW YOUR SCOOTER 16 in 36.8 in 31.6-34.6 in 15.5-18.5 in 2.0 in 47.6" 47.6" 19.7"...

  • Page 20: Product Specifications

    PRODUCT SPECIFICATIONS Model Name EQ10DA(UK) Maximum weight capacity 275 lbs (125kg) – 19.7 Stone Overall height 36.8 in (935 mm) Overall length 40.2 in (1020 mm) Overall width 19.7 in (500 mm) Ground clearance 2.0 in (50 mm) Total weight (in/excluding 92/74 lbs (42/33.5 kg) Batt.) Direct drive rear wheels...

  • Page 21: Pushing And Transporting The Scooter

    ADJUSTING THE SCOOTER 1. Please carefully read the safety information in section 3 related to transportation first. 2. Pushing the scooter: In order to push the scooter, you must place the scooter in “freewheel” mode, which disengages the drive motor. The release lever is located at the bottom right- hand side of the scooter under the seat.

  • Page 22: Parts

    ADJUSTING THE SCOOTER 1. Always switch the scooter off to push it. 2. Do not push the scooter too fast. If a pre-set speed is exceeded while you are pushing the scooter, the drive motor will switch on automatically and brake the scooter.
  • Page 23 ADJUSTING THE SCOOTER components. 2. See “Specifications” individual component weights. 3. No tools are required to disassemble or assemble your scooter. Always disassemble or assemble your scooter on a level, dry surface with sufficient space for you to work and move around your scooter. Keep in mind that the disassembled sections of the scooter take...

  • Page 24: To Disassemble

    ADJUSTING THE SCOOTER 6.2 To Disassemble: 1. Turn key switch to “OFF”. 2. Place the free wheel mode lever in the drive position. 3. Pick up the battery pack and remove it from the scooter. (See the Fig.) 4. Pull the release knob upward and lift and the front section apart from the rear section.

  • Page 25: Assembly

    ADJUSTING THE SCOOTER 6.3 ASSEMBLY Note: Raise the tiller before reassembling the scooter. 1. Place the freewheel mode lever in the drive position. 2. Set the rear section in the up position and pick up the front section to the connecting bracket of rear section.
  • Page 26 ADJUSTING THE SCOOTER 5. Fit the seat on the seat post, insert the seat post and screw the knob . 6. Turn key switch to “ON”, make sure battery gauge has sufficient power. Make sure you connect all the pieces together properly.

  • Page 27: Adjusting The Scooter

    OPERATING THE SCOOTER The following describes how to set up and adjust your Scooter in order to have a comfortable and safe drive. 7.1 SWIVELING THE SEAT TO GET ON AND 1. Lift the seat lever and rotate the seat to the side (left or right) to get on.

  • Page 28: Turning The Seat

    OPERATING THE SCOOTER 2. Tighten the knob by turning clockwise, and make sure the tiller is securely fixed. Accident hazard due to non-engaged tiller: Ensure that the tiller is properly locked after adjustment by seeing that it doesn’t move when you try pushing it slightly forwards and backwards 7.3 TURNING THE SEAT Pull swivel seat lever to rotate the seat.
  • Page 29 OPERATING THE SCOOTER Accident hazard due to incorrect seat position: Always turn the seat to face forward and lock it before driving. If the seat has been turned, the possibility of tipping is increased. Before turning the seat, always ensure that the scooter is on an even and solid surface.

  • Page 30: Operating

    OPERATING THE SCOOTER OPERATING Always carry out the safety information described in the “General Safety Information” section: Before starting to drive, adjust the seat and tiller to a comfortable position. WARNING! Every scooter is different. Take the time to learn the feel of your scooter before you begin riding.

  • Page 31: Powering On/Off

    OPERATING THE SCOOTER 6. Check before you power on the scooter: Ensure your scooter is in Check the “freewheel” drive mode (not in mode lever is in the “freewheel” mode) pushed down position Seat is locked into the Move the seat forwards desirable position and backwards to ensure it is stationary.

  • Page 32: Driving Forwards And Backwards

    OPERATING THE SCOOTER b. It is designed to allow you to adjust the speed from low to maximum speed (Maximum = Rabbit). Anticipated Speed levels: c. The speed levels are tested under controlled environments and your driving speed may vary depending on the driving conditions and loads.

  • Page 33: Overload Protection

    OPERATING THE SCOOTER 8.4 OVERLOAD PROTECTION The overload protection switches the power off when the motor becomes overloaded while trying to climb over too high an obstacle, such as a curb or trying to climb too steep of an incline. If the motor is overloaded, the following happens: •...

  • Page 34: Driving On An Incline

    OPERATING THE SCOOTER 8.6 DRIVING ON AN INCLINE TIPPING HAZZARD! When driving on an incline reduce your speed. Lean your body forward to increase your stability and to avoid tipping backwards. Always avoid leaning backwards while driving up an incline. Observe the safe climbing angle in the product specifications and always access the driving surface, as this can be a factor for safe incline driving (For example ice and leaves can cause...

  • Page 35: Battery And Charging

    BATTERY AND CHARGING THE BATTERY Corrosive chemicals contained in battery. Explosive conditions exist! Warning hands pinching! Do not use batteries with different amp- hour (Ah) capacities. Keep tools and other metal objects away from battery terminals. Contact with tools can cause electrical shock. Flammable material contained in battery.

  • Page 36: Battery Status Display

    BATTERY AND CHARGING THE BATTERY The range per battery charge, using recommended batteries, should be approximately 8 to 12 hours of typical operation. Extensive use on inclines may substantially reduce per charge mileage. 9.1 BATTERY STATUS DISPLAY When the key is switched “ON”, the battery gauge will display the battery power capacity by indicating red,...

  • Page 37: Charging The Batteries

    BATTERY AND CHARGING THE BATTERY 9.2 CHARGING THE BATTERIES It is imperative that you observe the sequence for connecting and disconnecting the battery charger. Be sure to follow the procedures shown below accordingly. 1. Turn the scooter key switch to ”OFF”. 2.
  • Page 38 BATTERY AND CHARGING THE BATTERY Step 1. Position the scooter near an electric outlet. Step 2. Switch the scooter off and remove the key. Step 3. Ensure the lever for “freewheel” mode is pushed down to the “drive” position.
  • Page 39 BATTERY AND CHARGING THE BATTERY Step 4. Connect the battery charger plug into the scooter charging socket located in the center of the battery box. Step 5. Connect the battery charger power plug into an electrical outlet (AC100-240V, 50 to 60 Hz) and charge the battery.

  • Page 40: After Charging

    BATTERY AND CHARGING THE BATTERY LED information at battery charger during Charging: LED-> Color-> Meaning 1 --- Red --- charging in progress 2 --- Green --- charging is complete 9.3 AFTER CHARGING (1) Remove the battery charger jack plug from the battery box socket.
  • Page 41 BATTERY AND CHARGING THE BATTERY Check the battery The controller is charger connector. being inhibited Remove the battery from driving. charger from the scooter. Make sure that the A speed control speed control lever is in lever fault is the rest position before indicated.

  • Page 42: Emi

    This portion of the content will provide the user with basic information about the problems with EMI (electromagnetic interference), protective measures can be used to either lessen the possibility of exposure or to minimize the degree of exposure; this section also shows some conditions that unexpected or erratic movements may cause.
  • Page 43 There are a number of sources of relatively intense electromagnetic fields in the everyday environment. Some of these sources are obvious and easy to avoid. Others are not apparent and exposure is unavoidable. However, we believe that by following the warning listed below, your risk to EMI will be minimized.
  • Page 44 POWERED SCOOTER ELECTROMAGNETIC INTERFERENCE (EMI) EM energy rapidly becomes more intense as one moves closer to a transmitting antenna (source). The EM fields from hand-held radio wave sources (transceivers) are of special concern.. It is possible to unintentionally bring high levels of EM energy very close to the powered scooter’s control system while using these devices;...
  • Page 45 IMPORTANT INFORMATION 20 Volts per meter (V/m) is generally a useful immunity level against EMI (the higher the level, the greater the protection). This product has an immunity level of 20 V/m without any accessories connected to it.
  • Page 46 By KWANG YANG Motor Co., Ltd. First Edition, OCT. 2014 All rights reserved. Any reproduction or unauthorized use without the written permission of KWANG YANG Motor Co., Ltd. is strictly prohibited. T300-EQ10DA-A1 Date printed:Oct.2014...
  • Page 47 KWANG YANG MOTOR CO., LTD No.35 Wan Hsing Street,San Min Distrist Kaohsiung Taiwan, Republic of China Telephone:886-7-3822526 FAX: 886-7-3950021...
