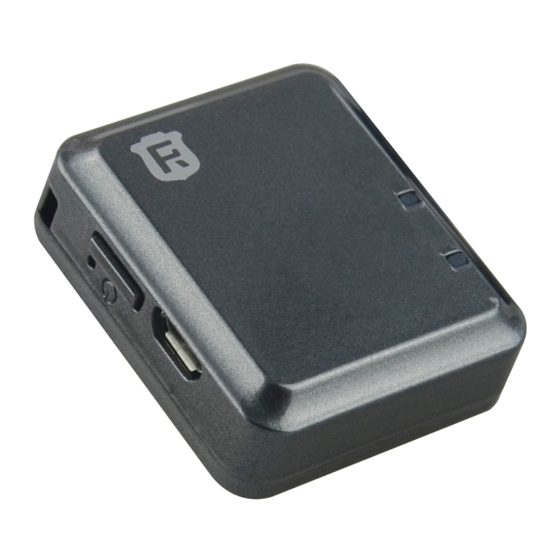

ReachFar RF-V8 User Manual

Gps tracker & sos communicator
Hide thumbs

Advertisement

Table of Contents

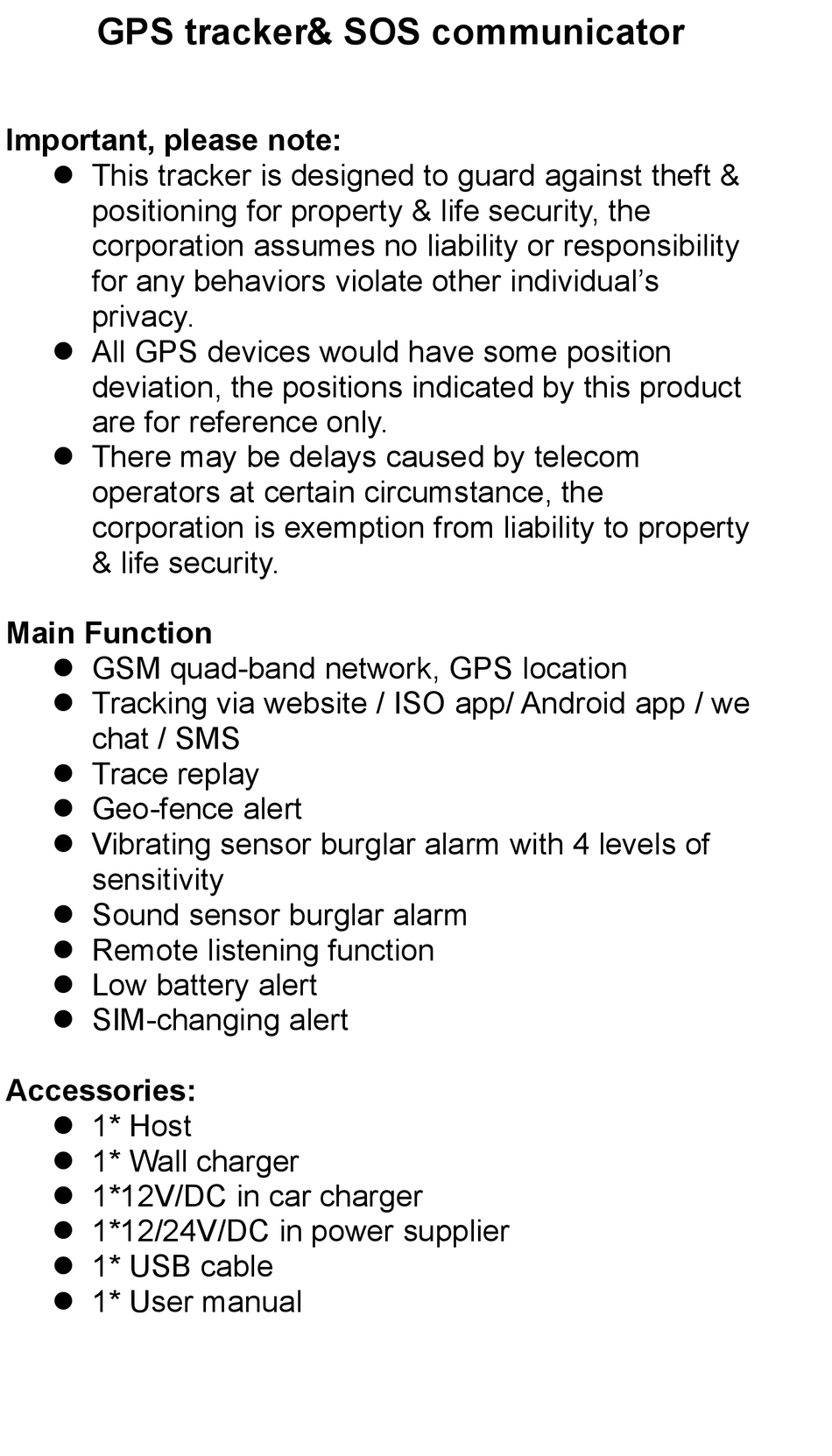

GPS tracker& SOS communicator
Important, please note:
 This tracker is designed to guard against theft &
positioning for property & life security, the
corporation assumes no liability or responsibility
for any behaviors violate other individual's
privacy.
 All GPS devices would have some position
deviation, the positions indicated by this product
are for reference only.
 There may be delays caused by telecom
operators at certain circumstance, the
corporation is exemption from liability to property
& life security.
Main Function
 GSM quad-band network, GPS location
 Tracking via website / ISO app/ Android app / we
chat / SMS
 Trace replay
 Geo-fence alert
 Vibrating sensor burglar alarm with 4 levels of
sensitivity
 Sound sensor burglar alarm
 Remote listening function
 Low battery alert
 SIM-changing alert
Accessories:
 1* Host
 1* Wall charger
 1*12V/DC in car charger
 1*12/24V/DC in power supplier
 1* USB cable
 1* User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-V8 and is the answer not in the manual?

Questions and answers

Related Manuals for ReachFar RF-V8

Summary of Contents for ReachFar RF-V8

  • Page 1 GPS tracker& SOS communicator Important, please note:  This tracker is designed to guard against theft & positioning for property & life security, the corporation assumes no liability or responsibility for any behaviors violate other individual’s privacy.  All GPS devices would have some position deviation, the positions indicated by this product are for reference only.
  • Page 2 Product specification  GSM network: 850/900/1800/1900MHz  GPRS standard: Class 12, TCP/IP  GPS locating time: 30sec with cold boot(under the open sky) 29sec with warm boot(under the open sky) 5sec with hot boot (under the open sky)  GPS Positioning accuracy: 10-15m(under the open sky) ...

  • Page 3: Switch On

    Prepare for work Please use GSM network Micro-SIM card (same like micro card for Iphone4) for the product. And please note: a. Please be sure the tracker is turn off before insert or take out the Micro-SIM. b. Please be sure the GPRS and Caller ID has been activated Switch on Please insert the Micro-SIM card into the card slot as...

  • Page 4: App Tracking

    APP tracking Please scan the QR code on the back of this user manual then install ISO or Android APP. You could check the positioning and replay trace after you enter 10 ID numbers and the initial password is 123456. Wechat tracking Please scan the QR code or add the Wechat number: dingweifangdao, link up with 10 ID numbers then you could...
  • Page 5 Method two: setting other phone numbers by master-control number one by one. sos2, phone number# For example: sos2, 13700000000# The tracker will reply: sos number2 has been set for sos number successfully. As picture shows: Enter your phone number! Turn on the vibration sensor alarm.
  • Page 6  lag,3# change the language to French. Remote listening function In order to respond to emergencies, when the all SOS number makes a phone call to this tracker, the sound of this tracker’s surroundings could be heard of. Inquiry function Inquiry the tracker location: The master-control send message to this tracker like: dw#...

  • Page 7: Changing Interval Of Position Data Upload

     voff#(turn off vibrating sensor burglar alarm) Turn on/off sound sensor burglar alarm The master-control phone number send SMS message like:  non#(turn on sound sensor burglar alarm, when this tracker monitor the sound of surroundings over 45 Db, alarm message will be sent to the master-control phone number.) ntim,<valuer>#(changing delay function of sound ...

  • Page 8: Change Password

    The master-control phone number send SMS message to this tracker like: tim,<valuer># For example: tim,20# That means this tracker will send positioning details to the platform once per 20 minutes. (The interval of factory default is 10 minutes) Attention: To change the interval will affect the standby time of this tracker, the less interval time the shorter standby time.
  • Page 9 value>,pport,<port value>,plmn,<plmn ualue># If there is no need to verify ID, password, IP and interface, the master-control phone number just need to apn,<apn value># send SMS message like: Precautions: This tracker will boot automatically when it is be  charging even it was turned off. ...

  • Page 10: Commands List

    Commands List All these commands should be sent to this tracker by the master-control phone number. Command Function password,sos1,ph Set master-control phone number one number# sos2(3,4,5), phone Set sos2(3,4,5) phone number number# Turn on the vibrating sensor burglar alarm( level 1 is von,number# the most sensitive and level 4 is the least sensitive) voff#...
