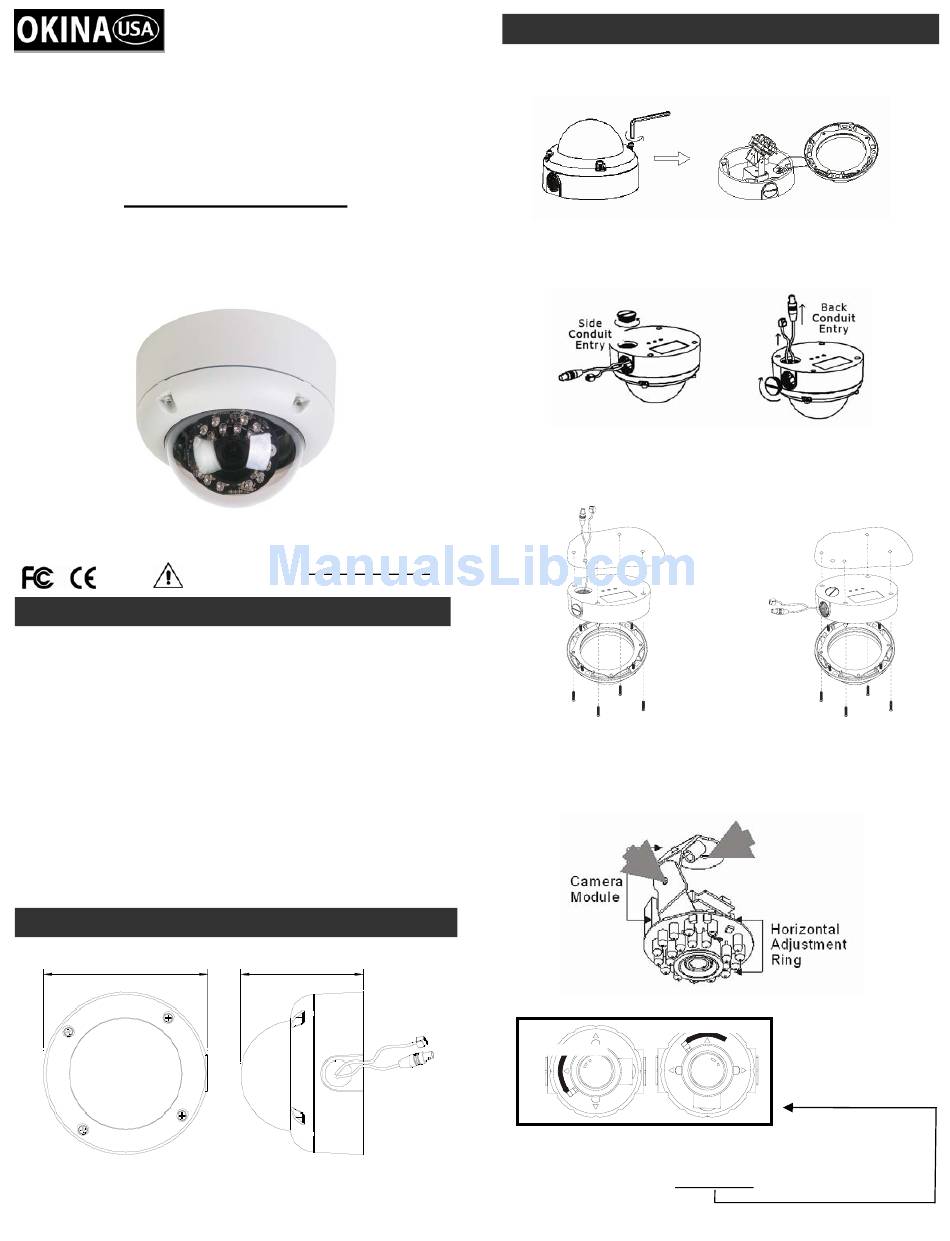

SIR24X-348AIDN-VD
SIR24X-342AIDN-VD
Operational Manual
3-AXIS Day & Night Vandal Proof
IR Dome Camera
FEATURES
• 1/3" Sony Super HAD CCD
• Employs Digital Signal Processor (DSP) IC for Image
Control
• 24 IR LED
• 3.3mm~12.0mm Aspherical Auto Iris Vari-Focal Lens
Made by Daiwon
• IR Distance up to 50ft / 15m
• 0.3 Lux @ F2.0, 0 Lux @ IR "on" – 480 TVL
0.2 Lux @ F2.0, 0 Lux @ IR "on" – 420 TVL
• High Sensitivity, Low Smear, High Anti-Blooming
• IP66 Rating
• 12V DC
DIMENSIONS
(Ø)145mm
Copyright © 2009. All Rights Reserved.
PAL Version Also Available
http://www.okinausa.com
480 TVL
420 TVL
Please read the Operational Manual
before attempting to use this product.
108.2mm
INSTALLATION
1.
Use the allen wrench to loosen the screws on the
tamper-resistant housing cover.
2.
The unit has a factory installed side conduit entry and the
cables can be adjusted to the back conduit entry according
to installation requirement.
3.
Set the mounting base onto the wall or ceiling and center
it over the mounting hole. Use the four screws to secure it
onto the wall/ceiling.
4.
Camera Image Adjustment
First tilt then rotate the camera module to obtain desired
viewing angle. Then turn the horizontal adjustment ring to
correct the image.
Shade Facing Top
Shade Facing Left
Note: When adjusting 3-AXIS vari-focal lens, follow the Camera
Image Adjustment setup first. You must turn the horizontal
adjustment ring so that the shaded area is facing toward the top or
left side of you.
REV0120809
