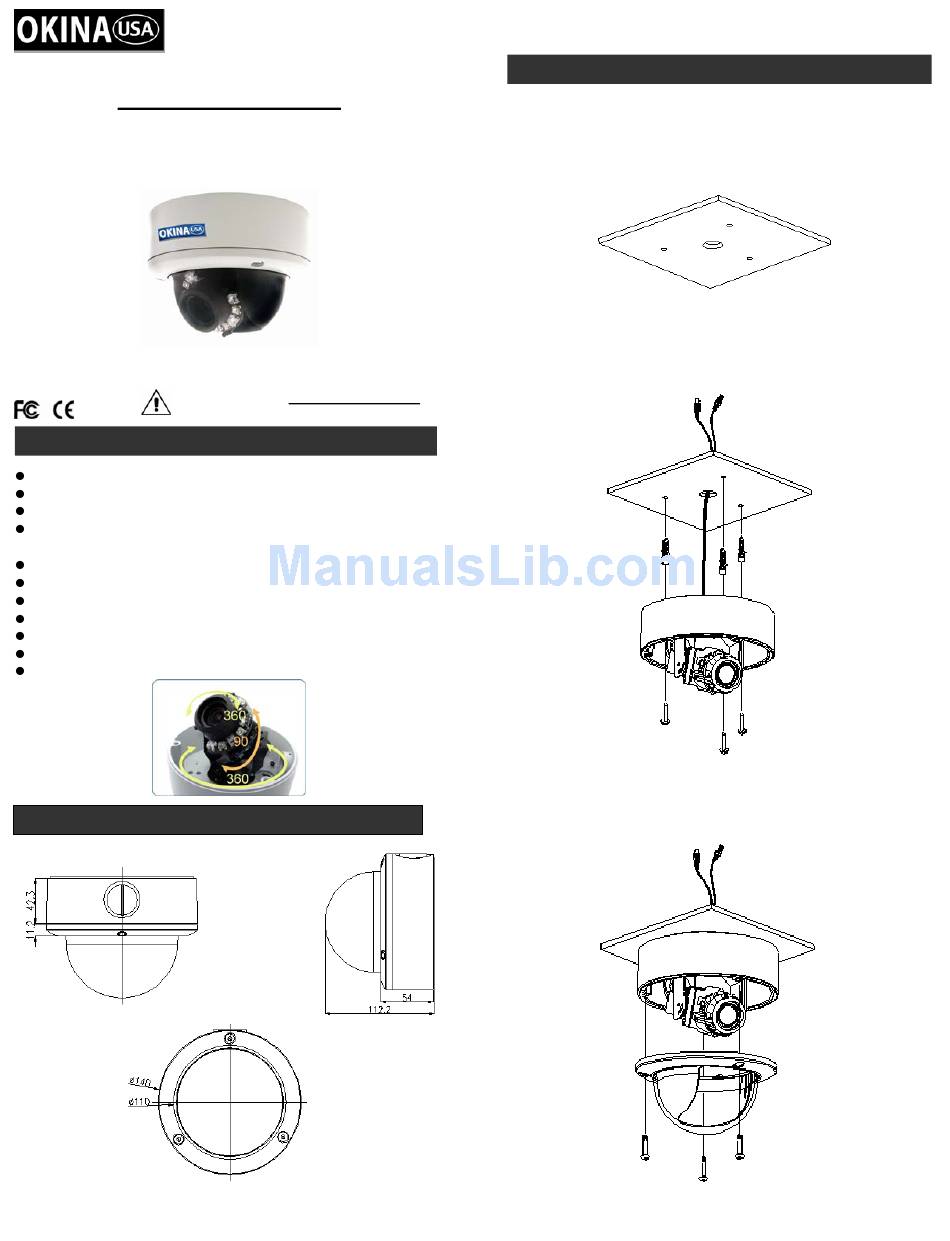

Operational Manual
3-AXIS Day & Night
Vandal Proof IR Dome Camera
Please read the Operational Manual
before attempting to use this product.
FEATURES
1/3" Sony Super HAD CCD
550 TV Lines, HQ-1 DSP
10 High Power IR LED
2.9mm~10.0mm Aspherical Auto Iris Lens
Made in Japan
Mechanical IR Cut Filter Removable (ICR)
High Gain/Low Noise Amplifier - DNR
IR Distance up to 50ft / 15m
0 Lux IR "on" @ 2.0 Lux
Power Consumption 224mA @ IR "off" / 355mA @ IR "on"
IP66 Rating
12V DC
DIMENSIONS (Unit: mm)
Copyright © 2009. All Rights Reserved.
www.okinausa.com
SIVD10H-755AI
SIVD10H-755AIP
INSTALLATION
To mount the camera directly on the ceiling:
(1). Drill ф25mm hole on the ceiling for video and power
connector cable to pass through.
(2). Take off the dome cover from the camera. Use specified
holes inside the camera base for installation.
(3). Fasten the camera base on the ceiling with the 3 screws
that are provided.
3-AXIS
P = PAL Version
Rev093009
Advertisement
Table of Contents
Related Manuals for Okina USA SIVD10H-755AI
Summary of Contents for Okina USA SIVD10H-755AI
- Page 1 SIVD10H-755AI 3-AXIS SIVD10H-755AIP INSTALLATION Operational Manual To mount the camera directly on the ceiling: 3-AXIS Day & Night (1). Drill ф25mm hole on the ceiling for video and power connector cable to pass through. Vandal Proof IR Dome Camera (2). Take off the dome cover from the camera. Use specified holes inside the camera base for installation.
- Page 2 (4). Adjust pan, tilt, and rotation until the image is satisfied. After adjusting the camera, put the cover back on. 1. FAR/NEAR 2. WIDE/TELE PARTS AND FUNCTIONS 3. DC LEVEL The VR for adjusting the IRIS level of Auto Iris lens. 4.
- Page 3 WARRANTY 5.51”(dia) x 4.41”(H) Dimension 140(dia) x 112(H) mm OKINA USA products are covered under warranty for one year Weight 2.09 lbs / 950g from the date of purchase. The warranty will automatically be *Specifications are subject to change without notice voided if any of the following occurs: 1.
